Introduction
The JA Solar 580-605W Mono MBB Half-cell Module (JAM78S30 Series) is designed with advanced 11BB PERC cells and a half-cell configuration, offering significant advantages such as higher power output, improved temperature-dependent performance, reduced shading effects, lower risk of hot spots, and enhanced mechanical loading tolerance.
Key Features
- Higher Output Power: Enhanced performance due to advanced cell technology.
- Lower LCOE: Improved efficiency and cost-effectiveness.
- Less Shading and Lower Resistive Loss: Optimized design minimizes shading impact and resistive loss.
- Better Mechanical Loading Tolerance: Increased durability and resistance to environmental stresses.
JA Solar 580 Watt Solar Panel SPECIFICATIONS
|
item
|
value
|
|
Brand Name
|
JA Solar
|
|
Model Number
|
JAM78S30 580-605W
|
|
Cell size
|
182mmx182mm
|
|
Type
|
PERC, Half Cell, BIPV
|
|
Panel Dimensions
|
2465*1134*35mm
|
|
Certificate
|
CE
|
|
Warranty
|
25 years
|
|
Weight
|
31.1kg
|
|
Packing
|
31pcs/pallet ;496pcs/40HQ container
|

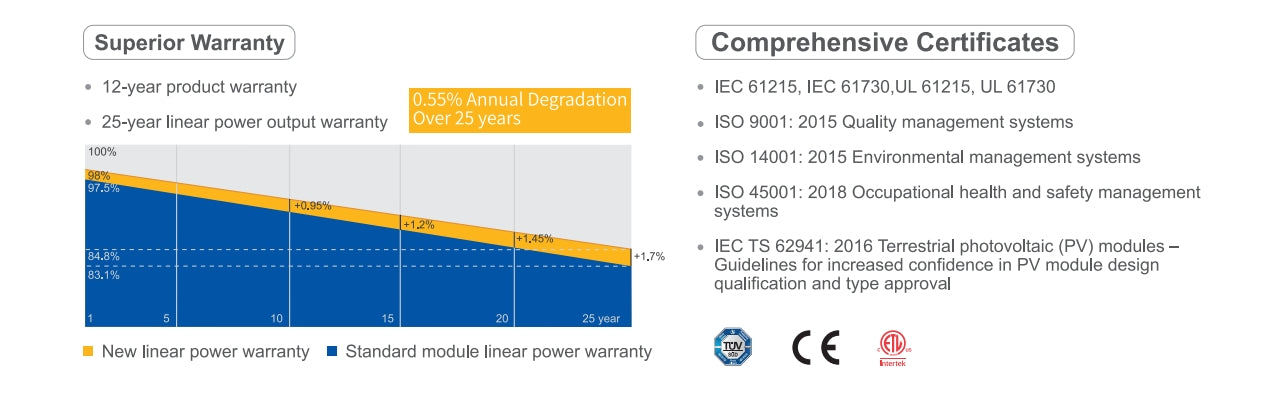

Superior Warranty
- 12-year Product Warranty: Ensuring product quality and reliability.
- 25-year Linear Power Output Warranty: Guaranteeing an annual degradation rate of only 0.55%, ensuring 84.8% power output after 25 years.
Comprehensive Certificates
- IEC 61215, IEC 61730, UL 61215, UL 61730
- ISO 9001: 2015 (Quality Management Systems)
- ISO 14001: 2015 (Environmental Management Systems)
- ISO 45001: 2018 (Occupational Health and Safety Management Systems)
- IEC TS 62941: 2016 (Guidelines for Increased Confidence in PV Module Design Qualification and Type Approval)

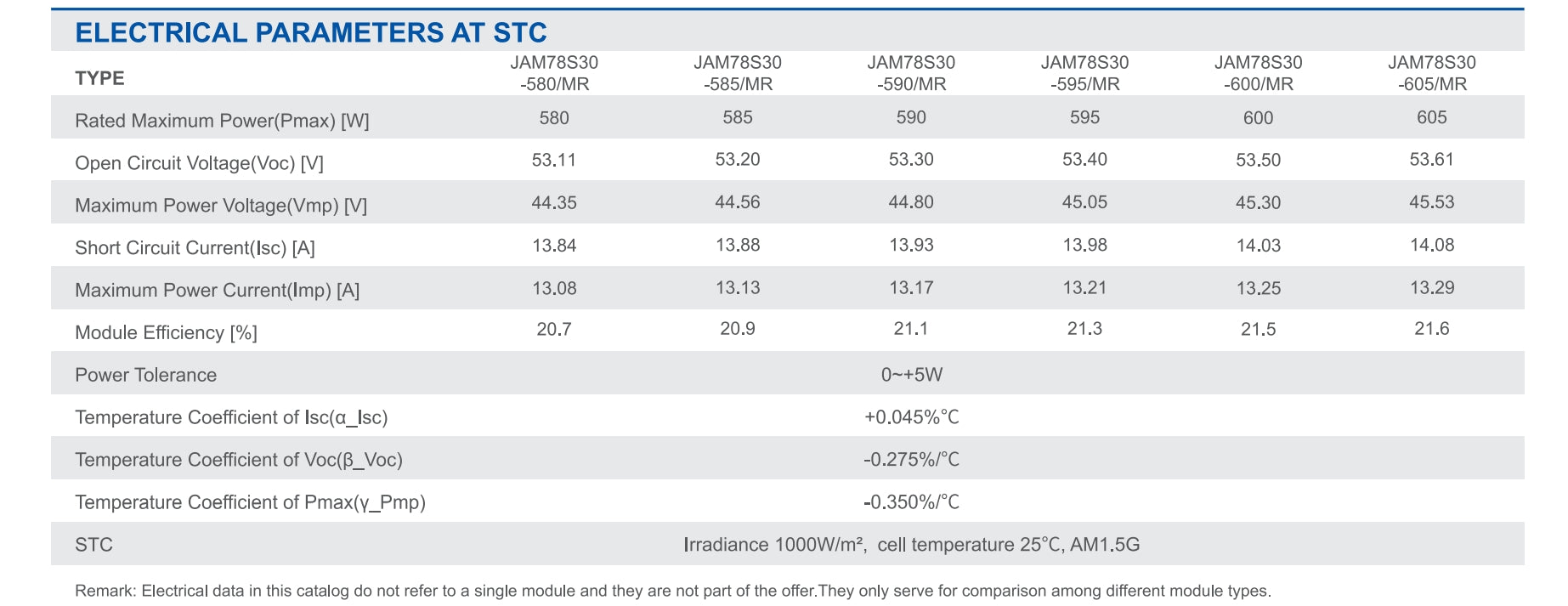

Electrical Parameters at STC
| Type | JAM78S30-580/MR | JAM78S30-585/MR | JAM78S30-590/MR | JAM78S30-595/MR | JAM78S30-600/MR | JAM78S30-605/MR |
|---|---|---|---|---|---|---|
| Rated Maximum Power (Pmax) [W] | 580 | 585 | 590 | 595 | 600 | 605 |
| Open Circuit Voltage (Voc) [V] | 53.11 | 53.20 | 53.30 | 53.40 | 53.50 | 53.61 |
| Maximum Power Voltage (Vmp) [V] | 44.35 | 44.56 | 44.80 | 45.05 | 45.30 | 45.53 |
| Short Circuit Current (Isc) [A] | 13.84 | 13.88 | 13.93 | 13.98 | 14.03 | 14.08 |
| Maximum Power Current (Imp) [A] | 13.08 | 13.13 | 13.17 | 13.21 | 13.25 | 13.29 |
| Module Efficiency [%] | 20.7 | 20.9 | 21.1 | 21.3 | 21.5 | 21.6 |
| Power Tolerance | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W |
| Temperature Coefficient of Isc (α_Isc) | +0.045%/°C | +0.045%/°C | +0.045%/°C | +0.045%/°C | +0.045%/°C | +0.045%/°C |
| Temperature Coefficient of Voc (β_Voc) | -0.275%/°C | -0.275%/°C | -0.275%/°C | -0.275%/°C | -0.275%/°C | -0.275%/°C |
| Temperature Coefficient of Pmax (γ_Pmp) | -0.350%/°C | -0.350%/°C | -0.350%/°C | -0.350%/°C | -0.350%/°C | -0.350%/°C |
| STC | Irradiance 1000W/m², cell temperature 25°C, AM1.5G |

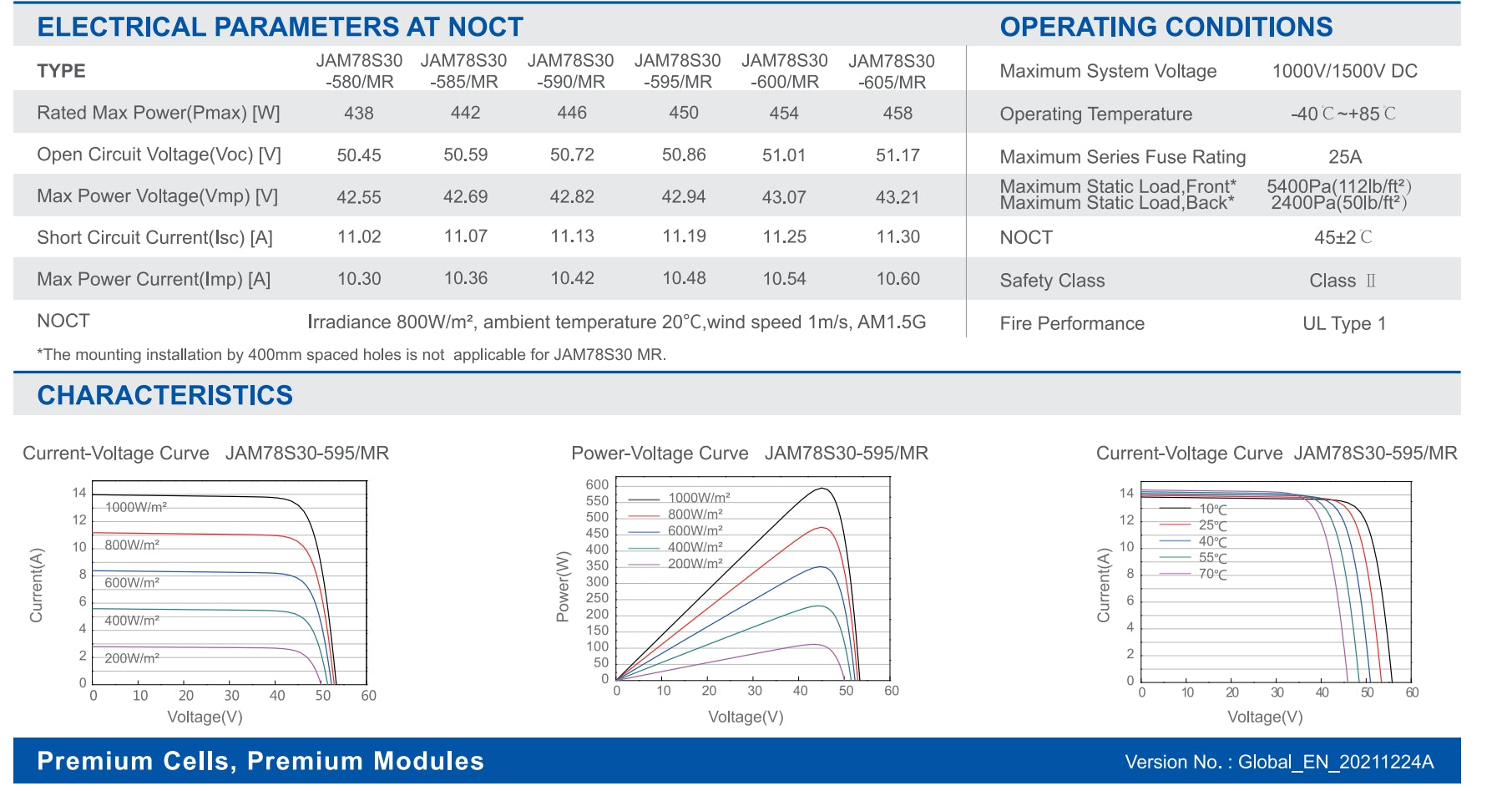

Electrical Parameters at NOCT
| Type | JAM78S30-580/MR | JAM78S30-585/MR | JAM78S30-590/MR | JAM78S30-595/MR | JAM78S30-600/MR | JAM78S30-605/MR |
|---|---|---|---|---|---|---|
| Rated Max Power (Pmax) [W] | 438 | 442 | 446 | 450 | 454 | 458 |
| Open Circuit Voltage (Voc) [V] | 50.45 | 50.59 | 50.72 | 50.86 | 51.01 | 51.17 |
| Max Power Voltage (Vmp) [V] | 42.55 | 42.69 | 42.82 | 42.94 | 43.07 | 43.21 |
| Short Circuit Current (Isc) [A] | 11.02 | 11.07 | 11.13 | 11.19 | 11.25 | 11.30 |
| Max Power Current (Imp) [A] | 10.30 | 10.36 | 10.42 | 10.48 | 10.54 | 10.60 |
Operating Conditions
- Maximum System Voltage: 1000V/1500V DC
- Operating Temperature: -40°C to +85°C
- Maximum Series Fuse Rating: 25A
- Maximum Static Load (Front): 5400Pa (112 lb/ft²)
- Maximum Static Load (Back): 2400Pa (50 lb/ft²)
- NOCT: 45±2°C
- Safety Class: Class II
- Fire Performance: UL Type 1

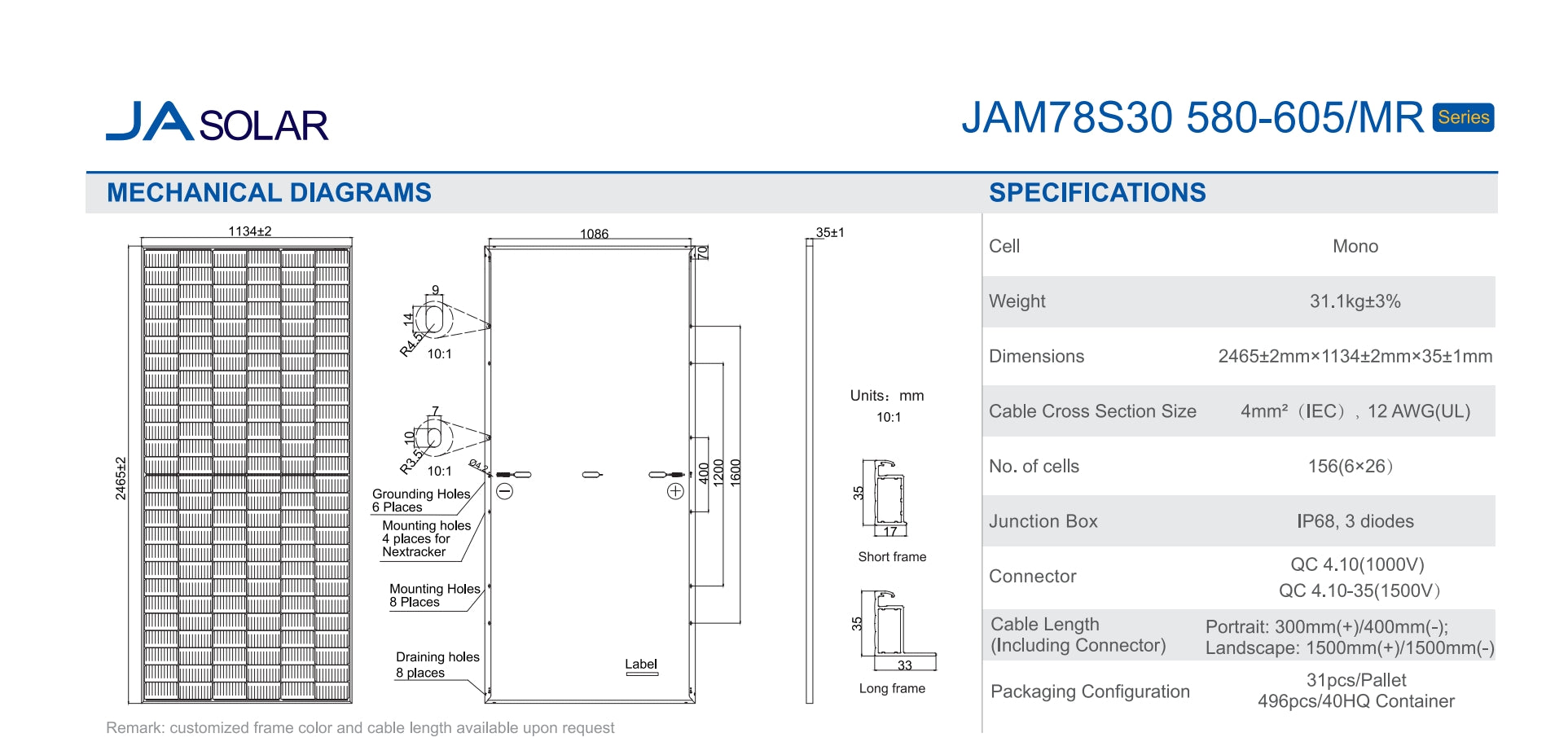

Mechanical Diagrams and Specifications
- Dimensions: 2465 ± 2mm x 1134 ± 2mm x 35 ± 1mm
- Weight: 31.1kg ± 3%
- Cable Cross Section Size: 4mm² (IEC), 12 AWG (UL)
- No. of Cells: 156 (6×26)
- Junction Box: IP68, 3 diodes
- Connector: QC 4.10 (1000V) / QC 4.10-35 (1500V)
- Cable Length (Including Connector): Portrait: 300mm(+)/400mm(-); Landscape: 1500mm(+)/1500mm(-)
- Packaging Configuration: 31 pcs/Pallet, 496 pcs/40HQ Container
JA 580W Solar Panel Manual

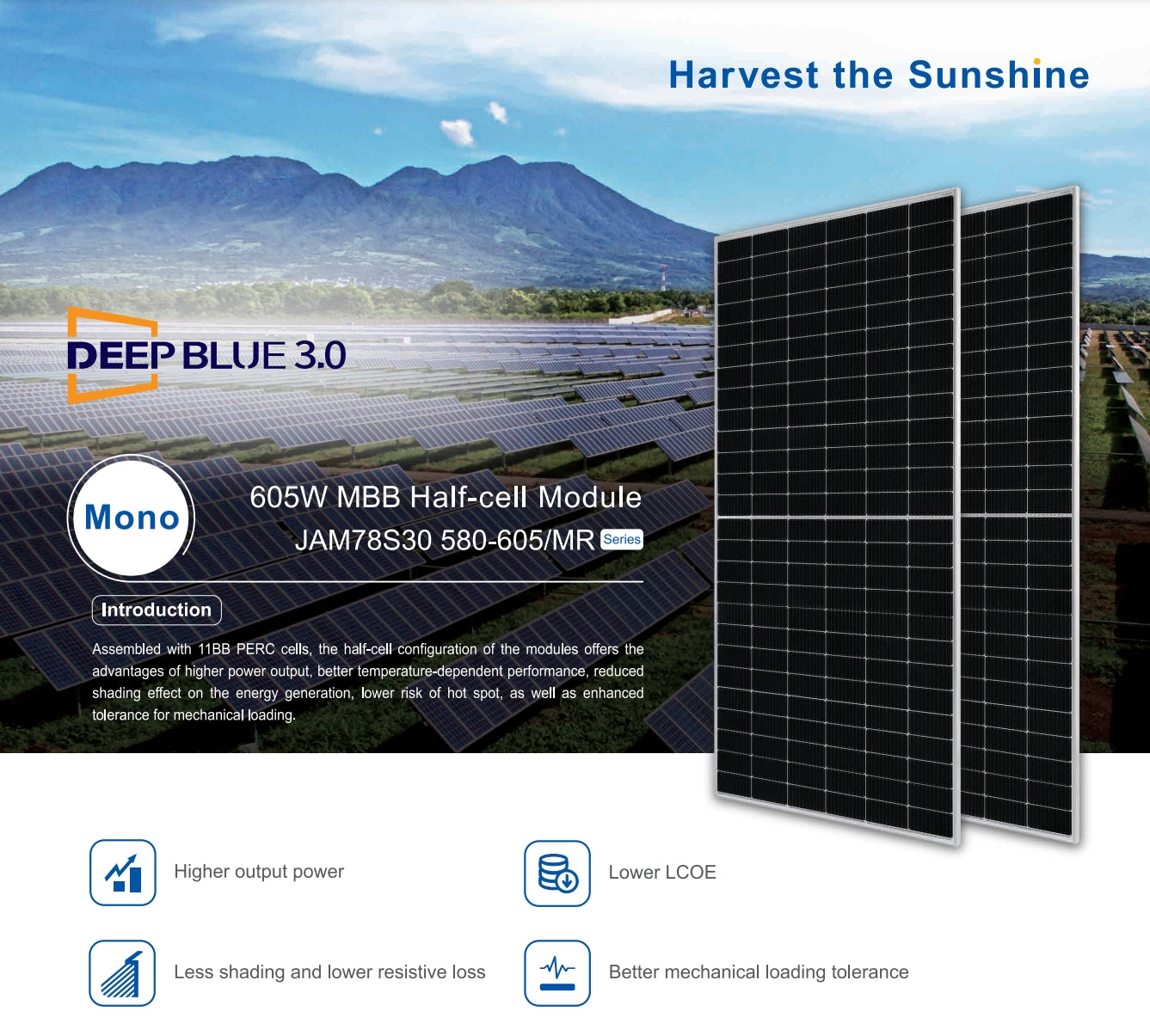

Harvest the Sunshine's DEEP BLUE 3.0 MBB Half-cell Module features 11BB PERC cells, offering improved performance with higher power output, reduced shading effects, and enhanced mechanical loading tolerance.
Enjoy comprehensive certifications from IEC, UL, and ISO, backed by a 12-year product warranty and a 25-year linear power output warranty. Our modules are designed with quality management systems ISO 9001:2015, environmental management systems ISO 14001:2015, and occupational health and safety management ISO 45001:2018.
JA Solar's 580-605W solar panel features a mechanical diagram, specifications, and key details such as dimensions (2465+2mm x 1134+2mm x 35mm), weight (31.1kg, 3%), cable cross-section size (4mm or IEC 12 AWG UL), 156 mono cells with 6x26 configuration, grounding holes, mounting holes, junction box IP68, and more.
Electrical parameters at standard test conditions (STC): Rated Maximum Power 580-605W, Open Circuit Voltage 53.11-53.61V, Maximum Power Voltage 44.35-45.53V, Short Circuit Current 13.84-14.08A, Maximum Power Current 13.08-13.29A, Module Efficiency 20.7-21.6%, Power Tolerance 0~+5W, Temperature Coefficient of Isc +0.045%/°C, Temperature Coefficient of Voc -0.275%/°C, and Temperature Coefficient of Pmax -0.350%/°C.
Product specifications: Maximum system voltage 1000V, rated max power (Pmax) 580W, operating temperature -40°C to +85°C, open circuit voltage (Voc) 50.45V, maximum series fuse rating 25A, maximum static load 54P(58b4), short circuit current (Isc) 11.02A, NOCT irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s, safety class Class NOCT, and fire performance UL Type 1.
JA Solar 580W Solar Panel with high efficiency and excellent performance, suitable for residential or commercial use. The panel features a durable design, corrosion-resistant aluminum frame, and enhanced safety protection. With a maximum power output of 580-605 watts, this solar panel is ideal for those looking to generate clean energy and reduce their carbon footprint.

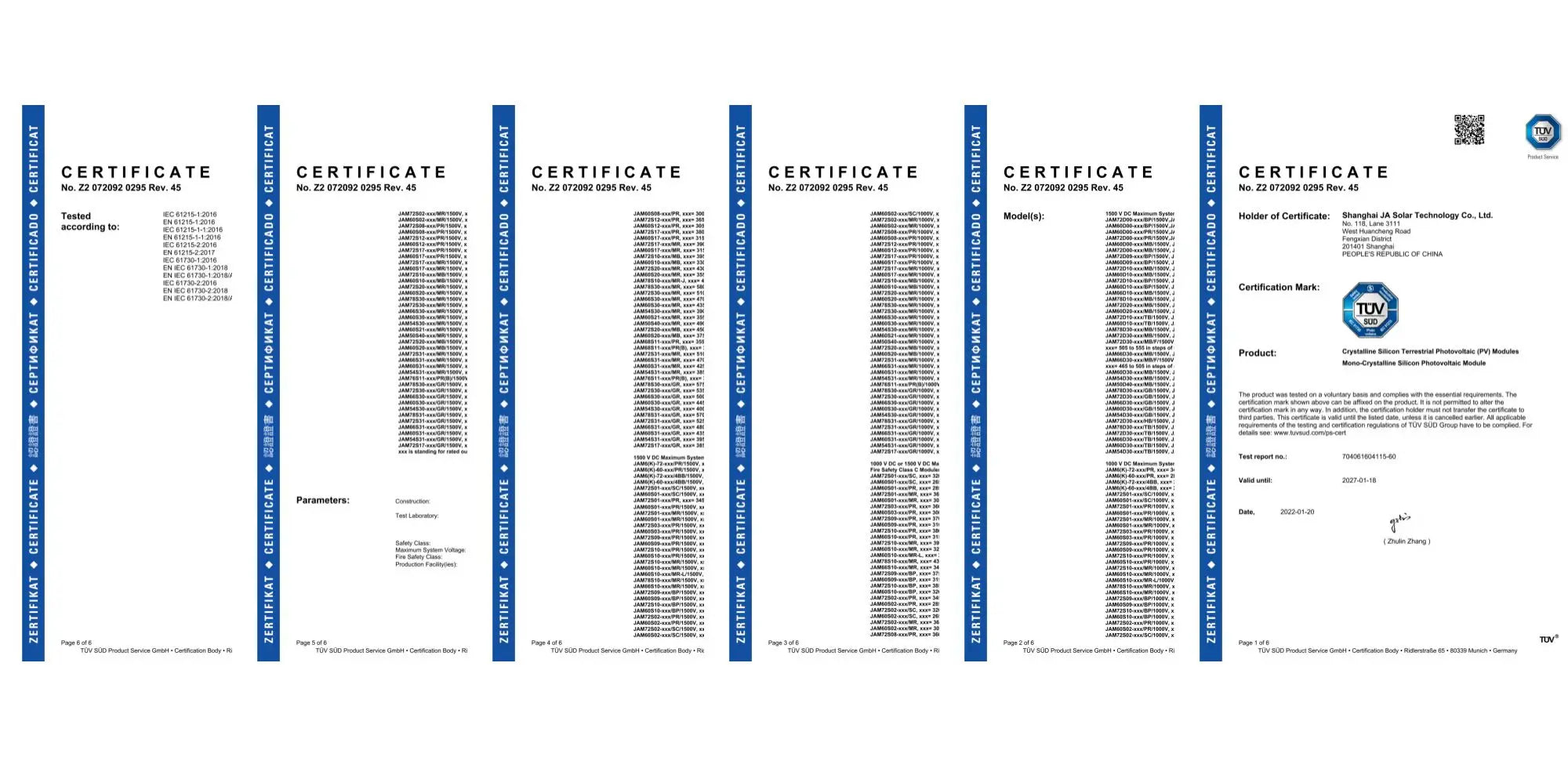

JA Solar Certificate. This product meets international standards IEC 61215:2015 and EN 61730:2021 for solar photovoltaic modules. It has been tested according to IEC 61215-2:2006 and complies with the requirements of People's Republic of China National Standards Committee (CNS). The product is certified by Shanghai JA Solar Technology Co., Ltd.
