Overview

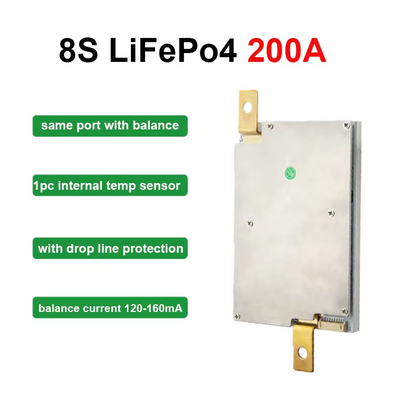

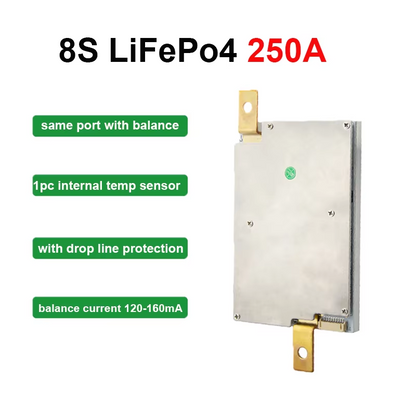

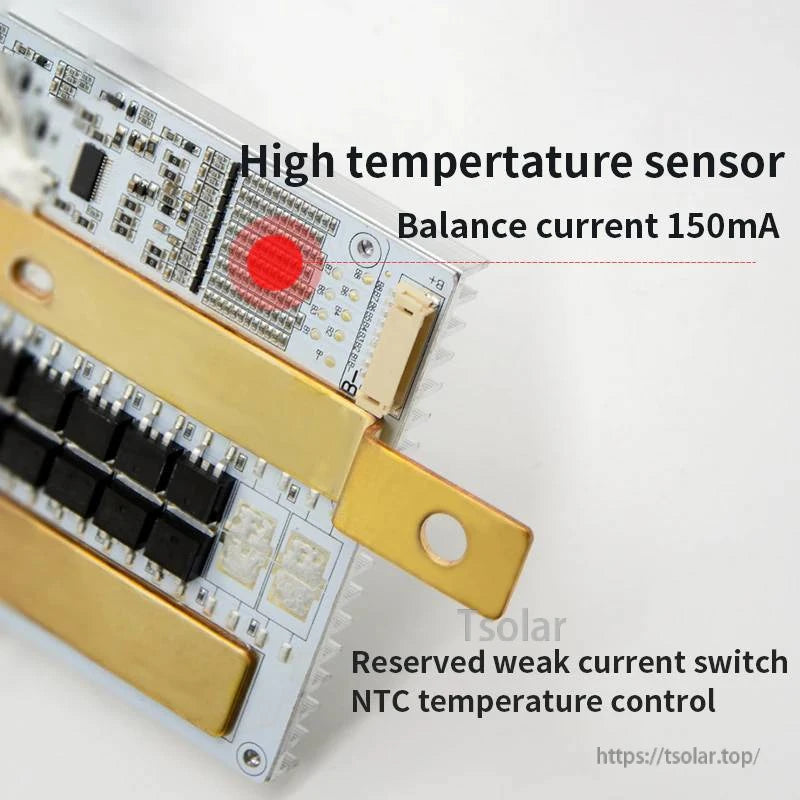

The JBD ZP08S002 is a Hard BMS (Battery Management System) designed for 8S (24V) LiFePO4 battery packs, with high-current operation and built-in balancing (equalization). It is specified with drop protection and an internal NTC for temperature-related protection functions.
Key Features
- 8S LiFePO4 BMS for 24V battery systems

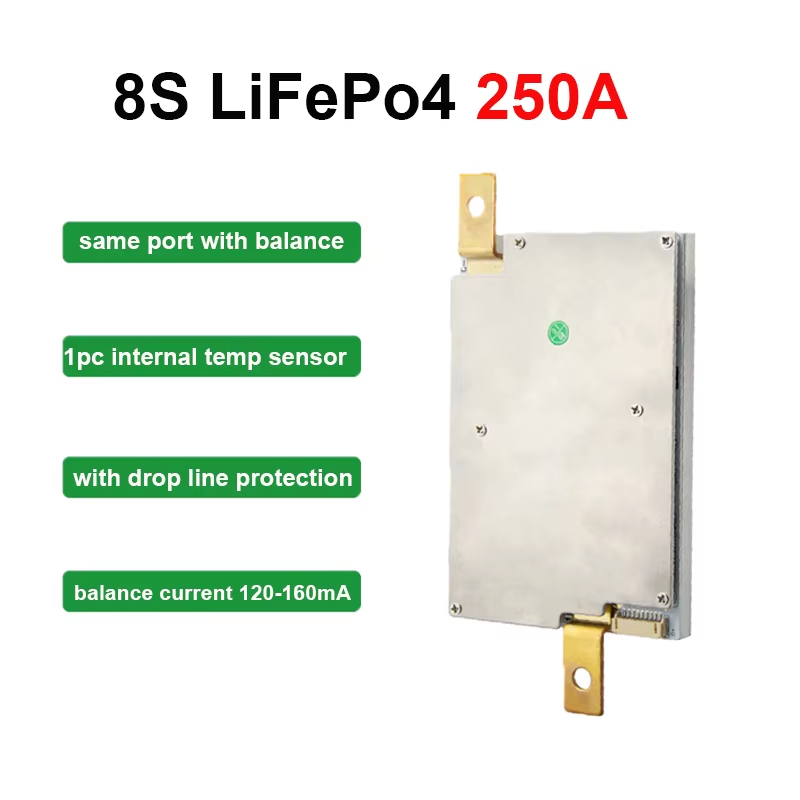

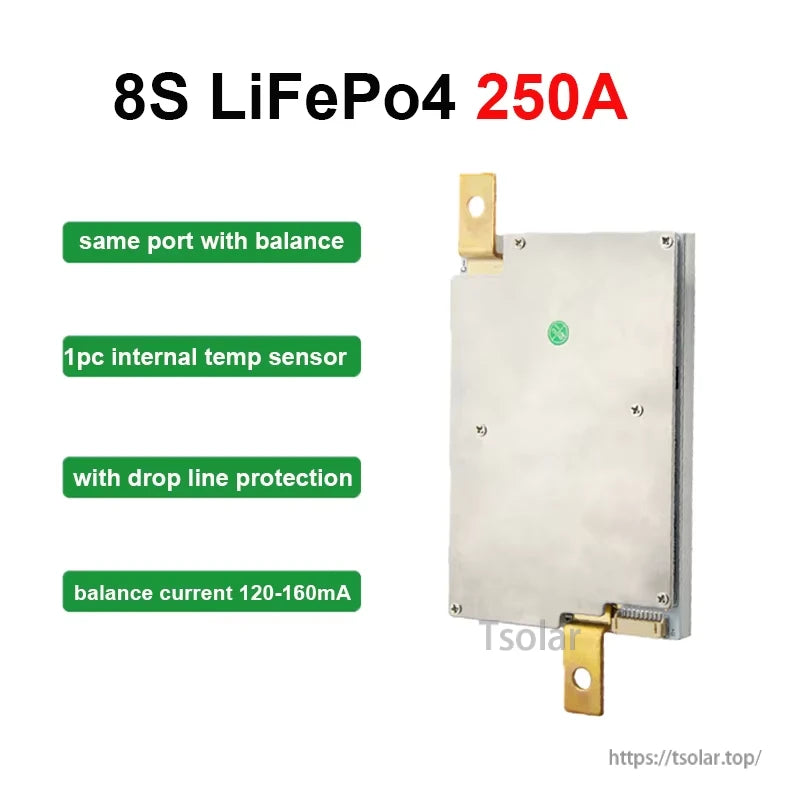

- Balance (equalization) function (equilibrium current shown as 150mA; balance current specified 120–160mA)

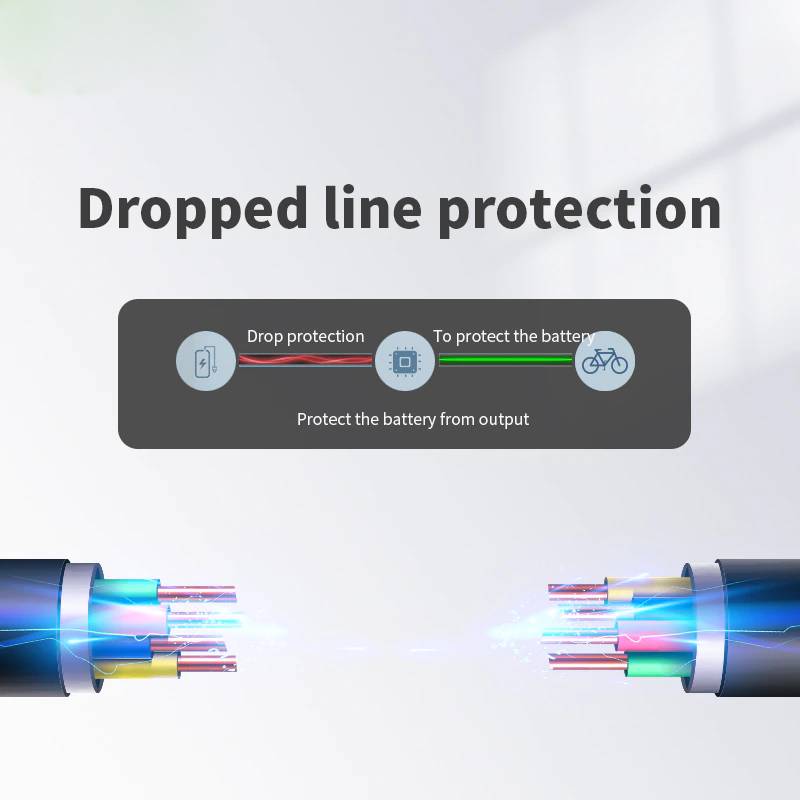

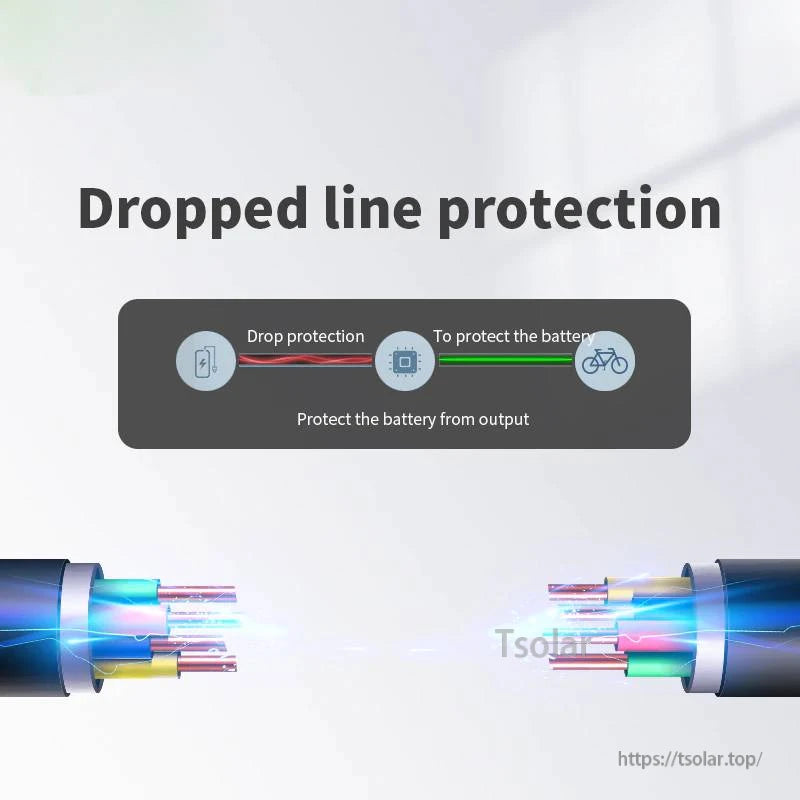

- Drop protection
- Thickened copper bar for diversion; copper bar thickness: 2mm
- Multiple protection functions listed: overcharge protection, over discharge protection, overcurrent protection, short circuit protection, balance function, temperature protection
- Communication: NO
- Support display: NO
- Support automatic identification of string number: NO
Specifications
| Products Name | Battery Management System |
| Type | Hard BMS |
| Model Number | ZP08S002 |
| Applicable Battery Type | LiFePO4 Battery |
| Strings | 8S |
| Voltage | 24V |
| Current (range) | 200A–250A |
| Continuous discharge (stated) | 200A |
| Continuous charge/discharge current up to (stated) | 200A |
| Continuous Current / Balance Current | 100–250A / 120–160mA |
| Equilibrium current (stated) | 150mA |
| Size | 160mm * 105mm * 20mm |
| Copper bar thickness | 2mm |
| Communication | NO |
| Support display | NO |
| Support automatic identification of string number | NO |
| Features | Drop Protection |
| Application | Electric Products |
| Series (stated) | Can support 8pcs 8S battery pack series connection at most |

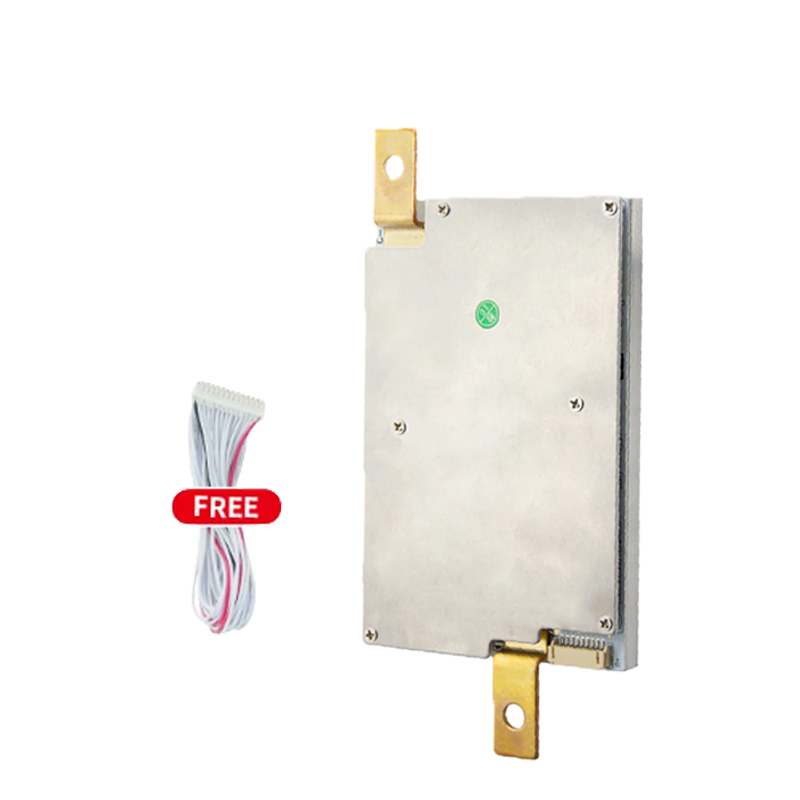

What’s Included
- BMS
- Balance wires
Applications
- Solar street lamp
- Electric tool
- AGV
- Energy storage UPS
- Emergency power
- Marine motor
- E-bicycle
- E-car
- Low speed vehicle
Certificates (Types Shown)
- RoHS Certificate
- ISO 9001 Certificate
- SGS Certificate
- Test Report
- Computer Software Copyright
- Invention Patent
For detailed BMS specification documents and ordering support, contact customer service at https://tsolar.top/ or service@tsolar.top.
Details

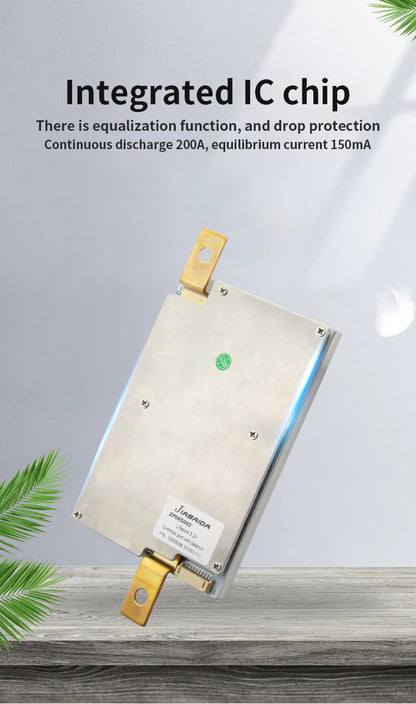

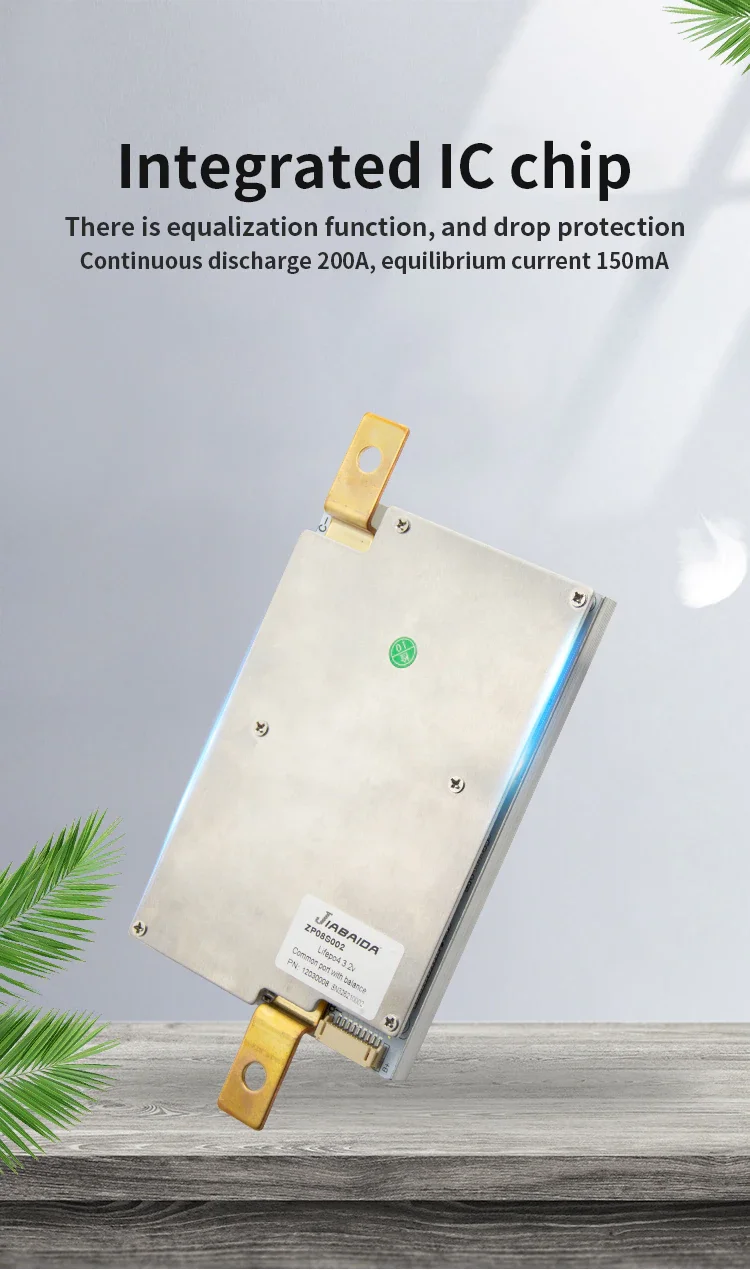

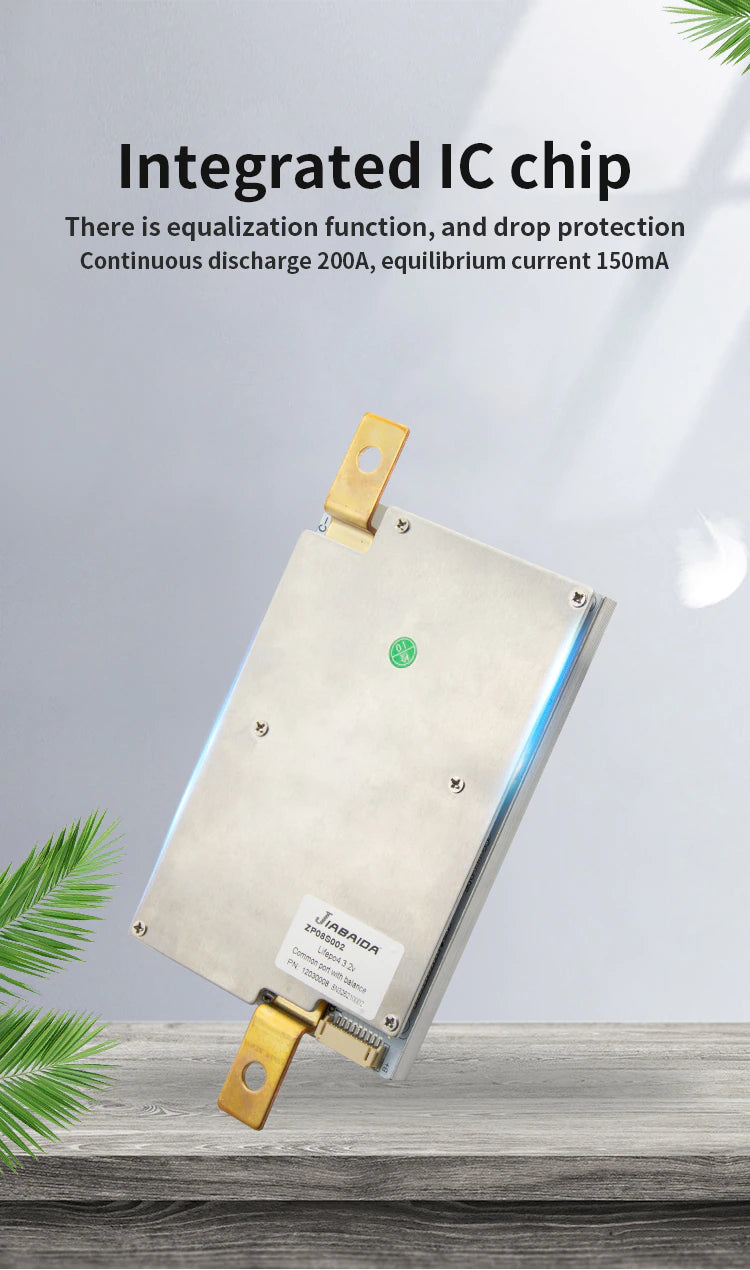

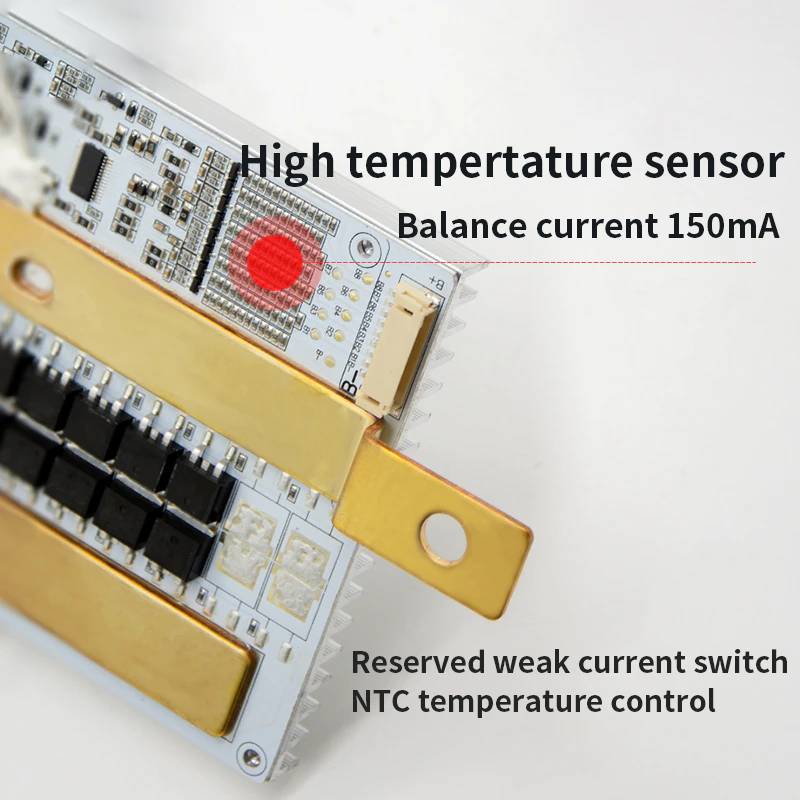

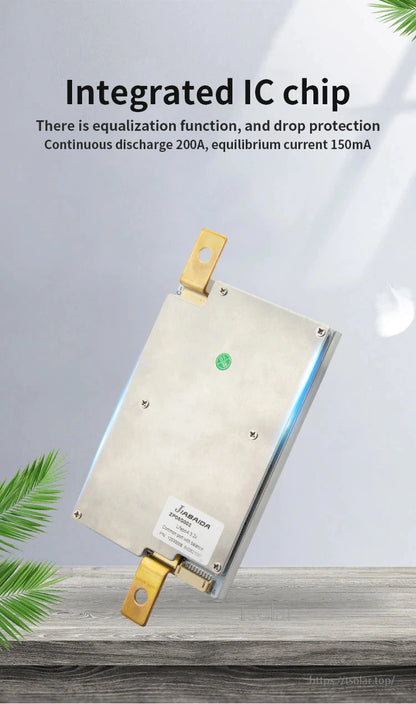

Integrated IC design supports cell balancing and high-current operation for 8S (24V) LiFePO4 packs.

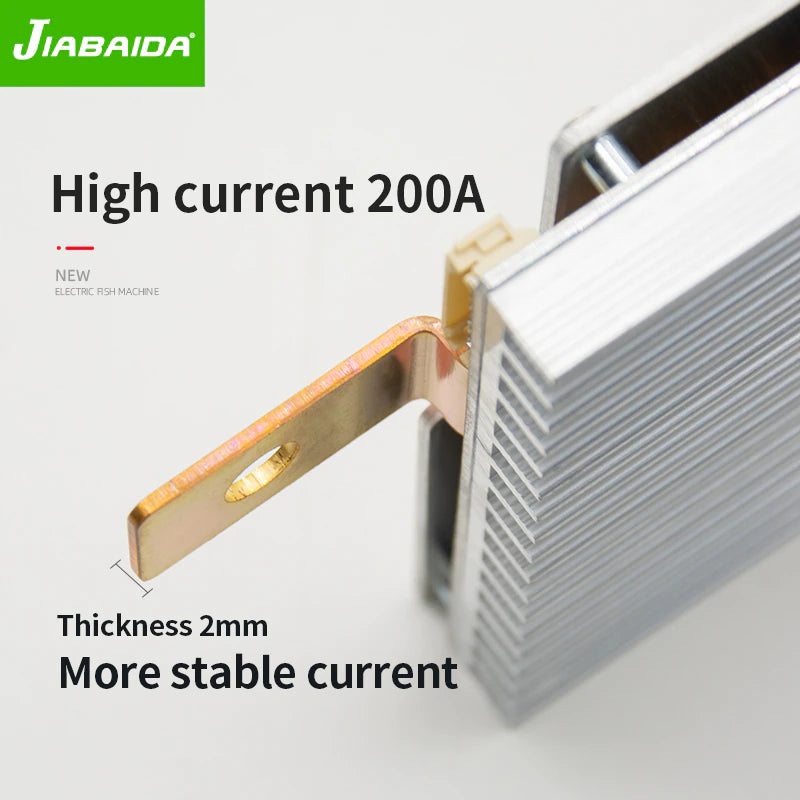

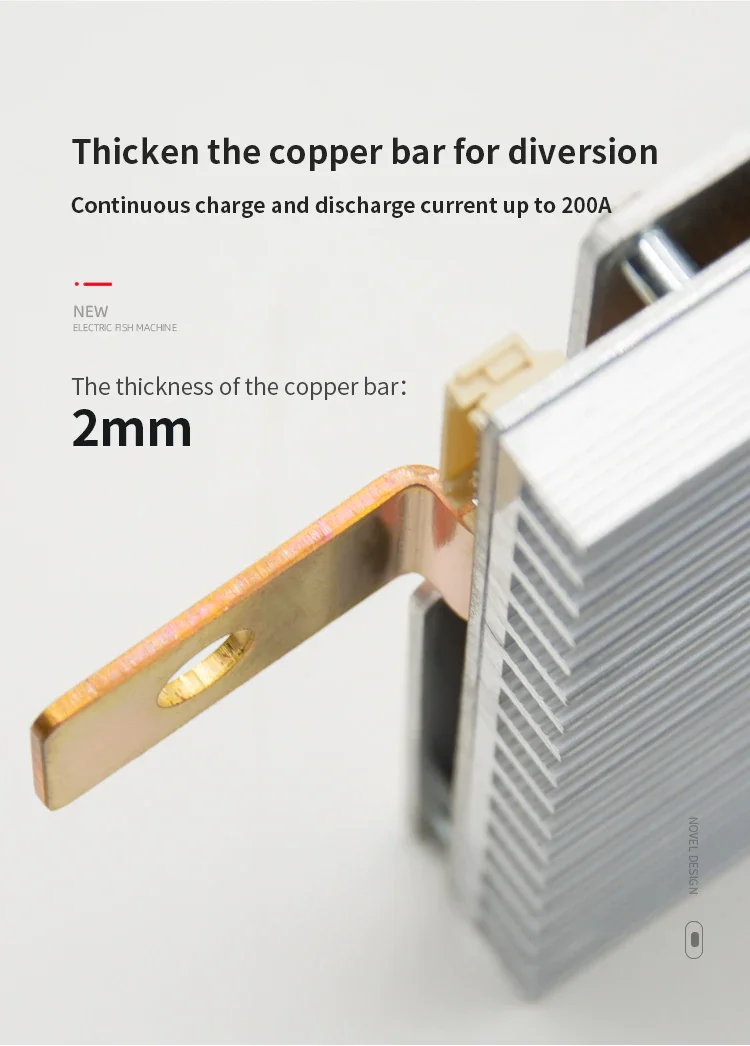

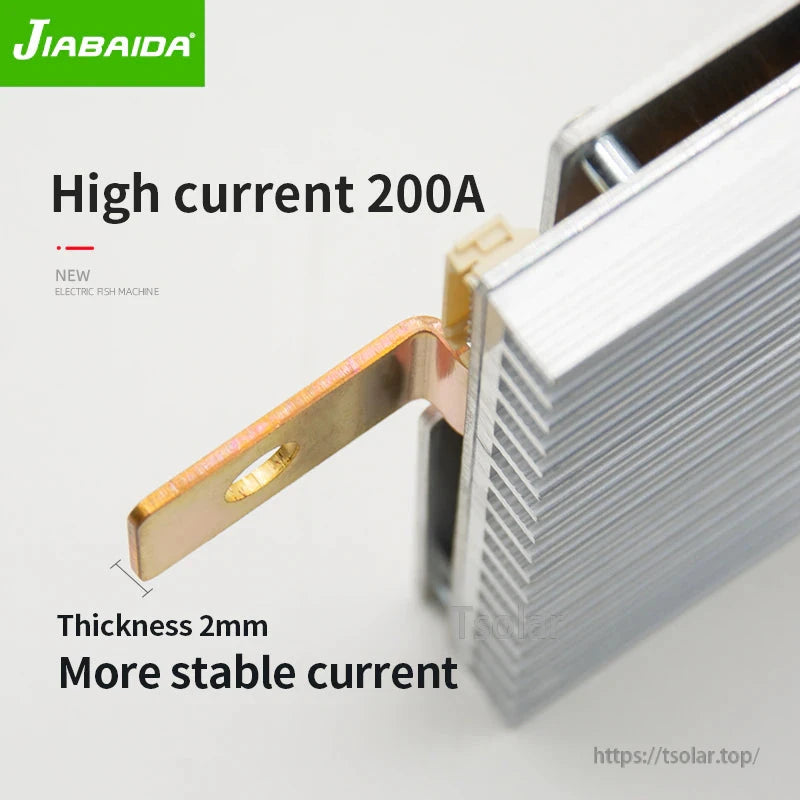

A thickened 2mm copper bar helps handle high current while reducing connection resistance.
Built-in protections cover charging, discharging, short circuit, temperature, and balance operation.
Designed for a wide range of 24V LiFePO4 battery applications, from energy storage to light electric vehicles.
Compliance and quality documentation is available, including RoHS, ISO 9001, SGS, and test reports.

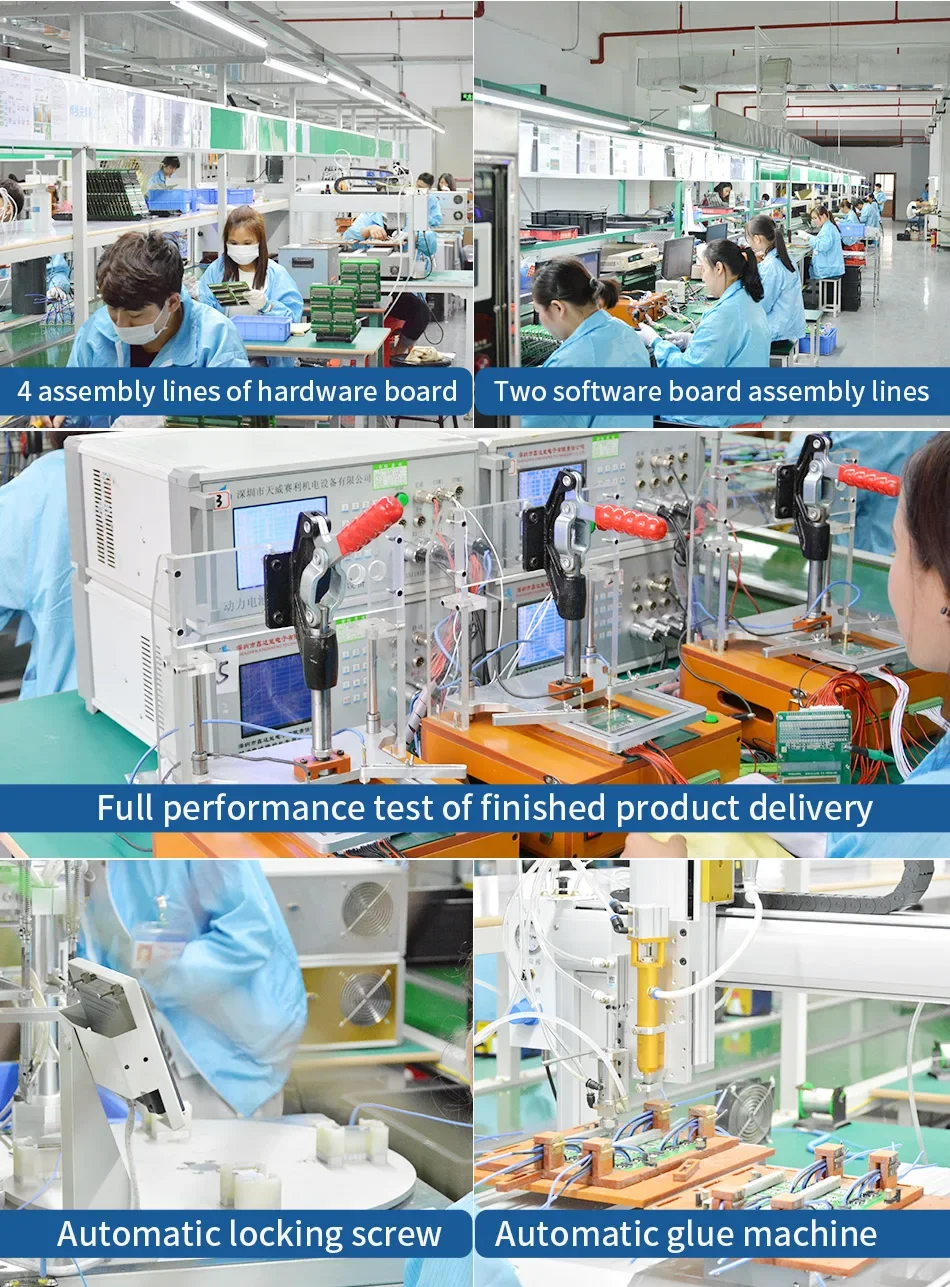

Production includes assembly, automated fastening, and full performance testing before delivery.
Multiple payment options and export-ready packaging support efficient worldwide shipping.
