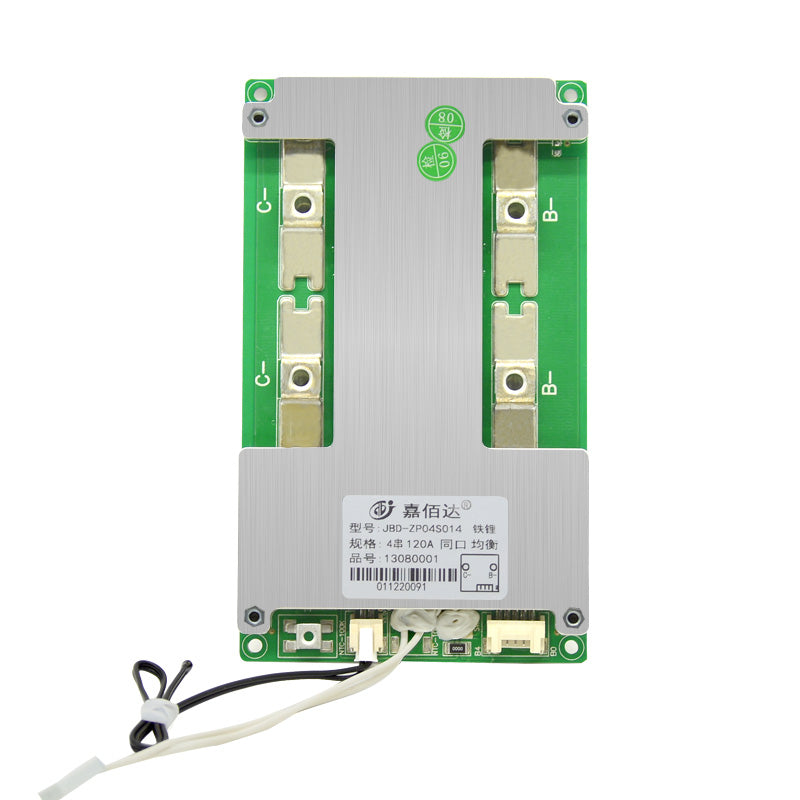

JBD ZP04S014 Hardware BMS Battery Management System (BMS) for 3.2V LiFePO4 4S (12V) battery packs. It is a lithium battery balance protection circuit board with a common port and balancing function for electric-product battery packs.
Key Features

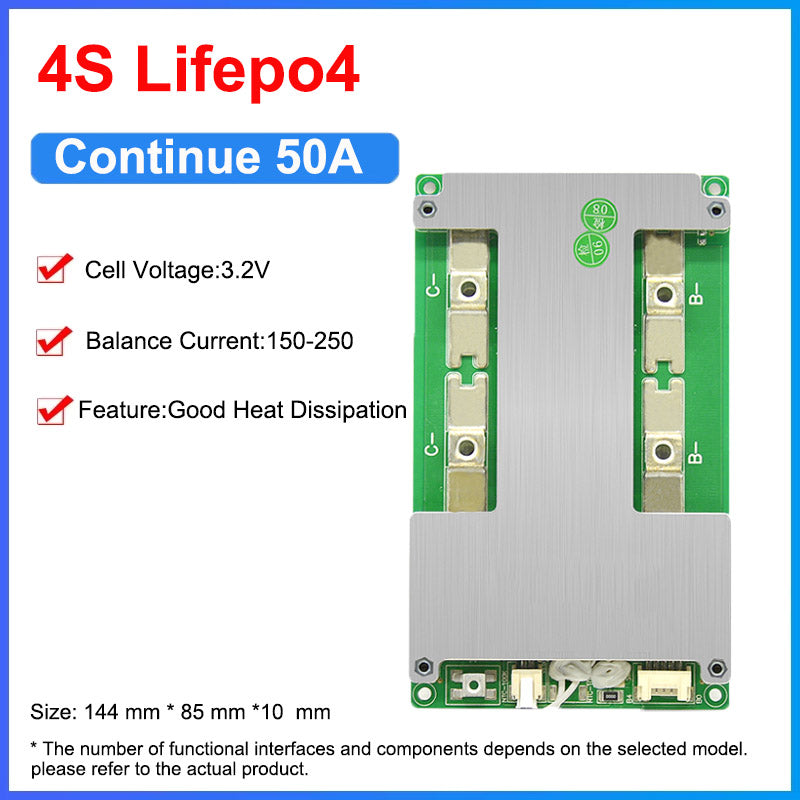

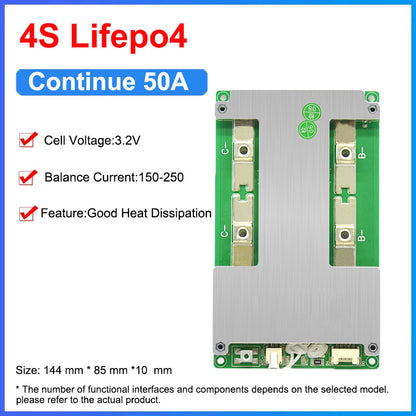

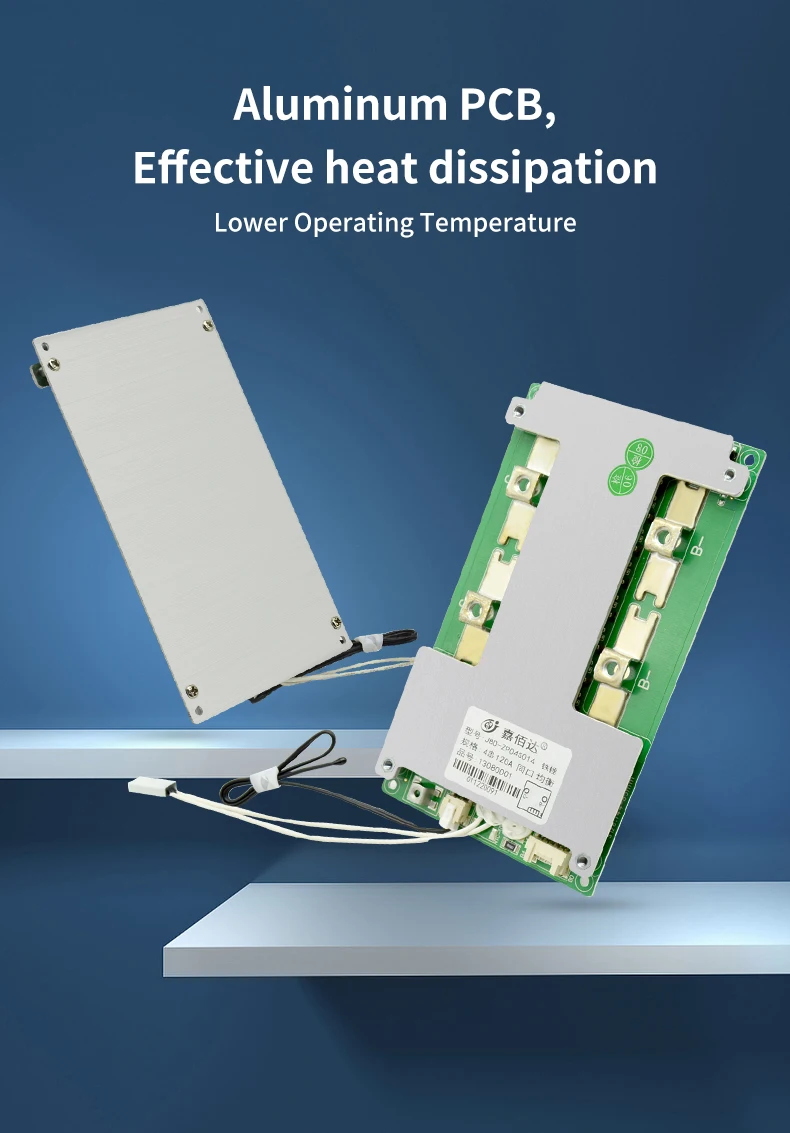

- Aluminum PCB for effective heat dissipation and lower operating temperature
- Super Power TVS, anti-high current impact
- Balancing current up to 250 mA
- Drop protection

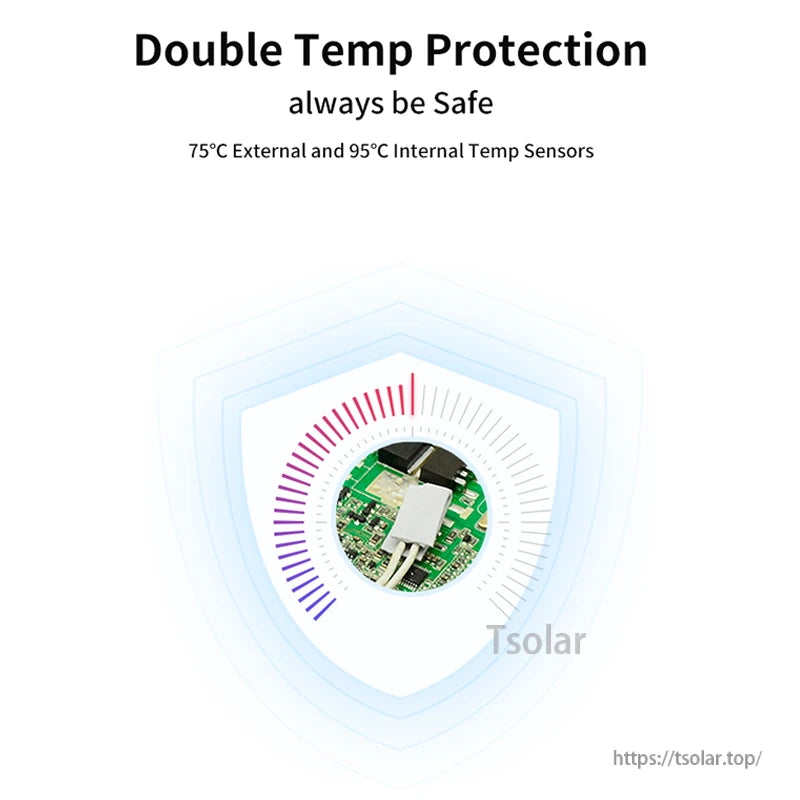

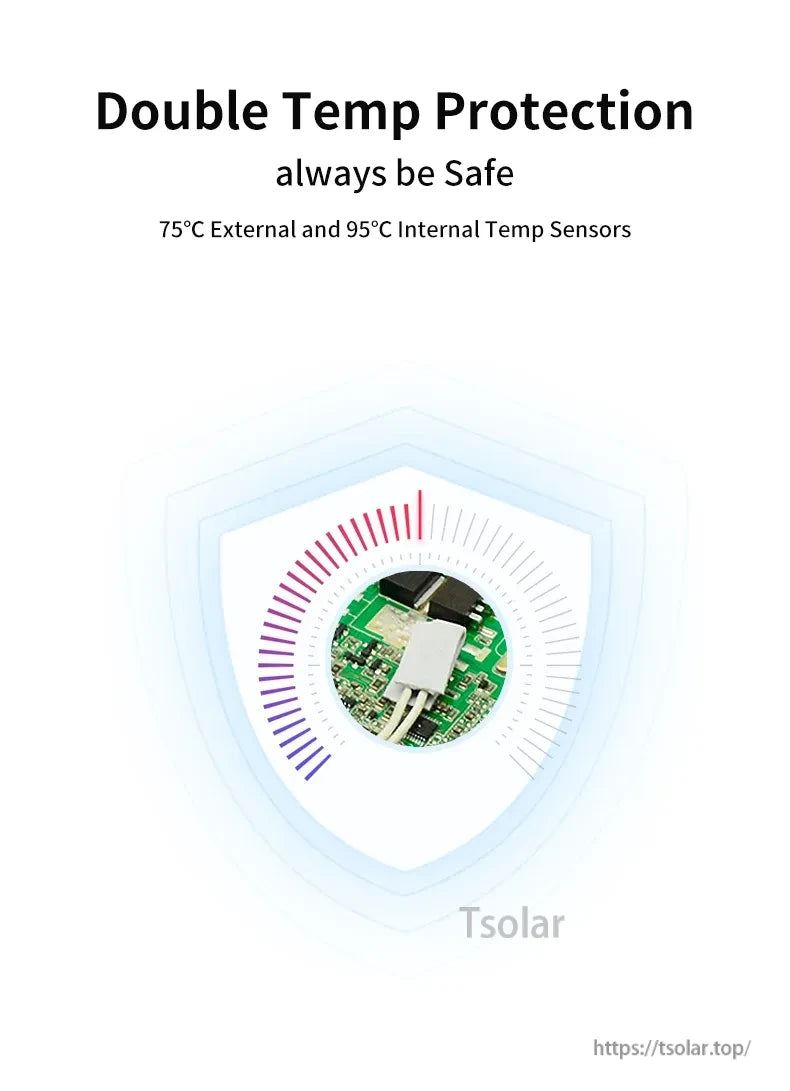

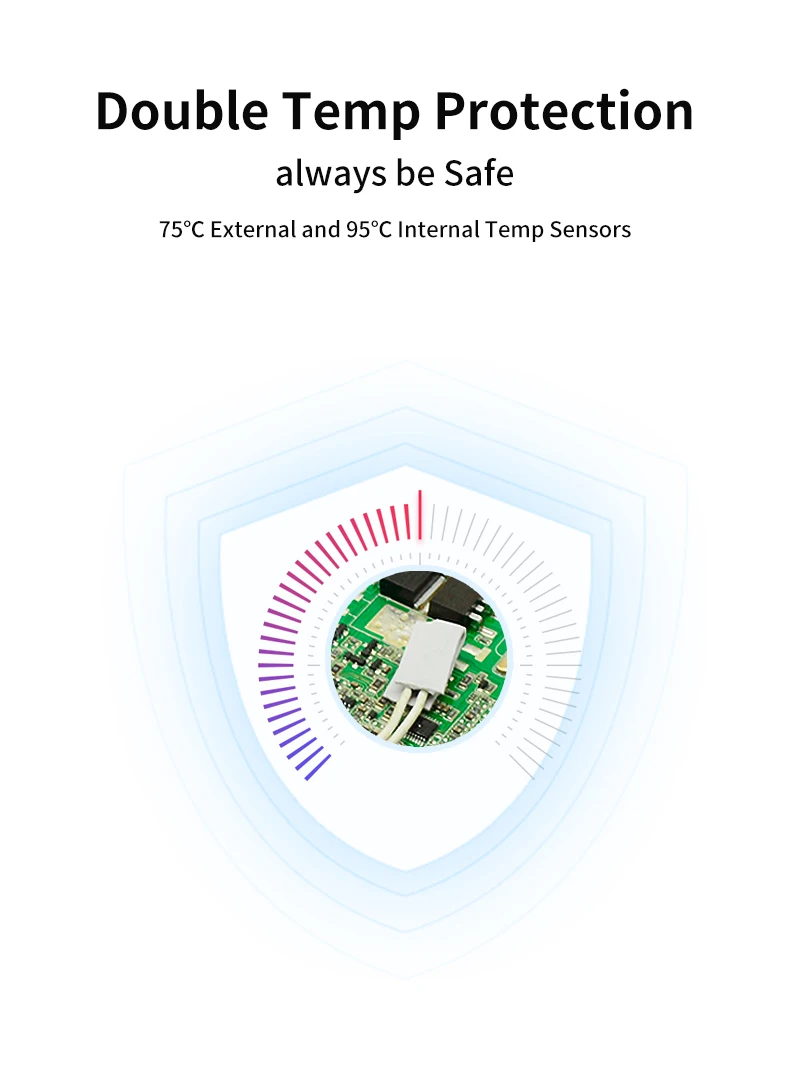

- Double temperature protection: 75 C external and 95 C internal temperature sensors

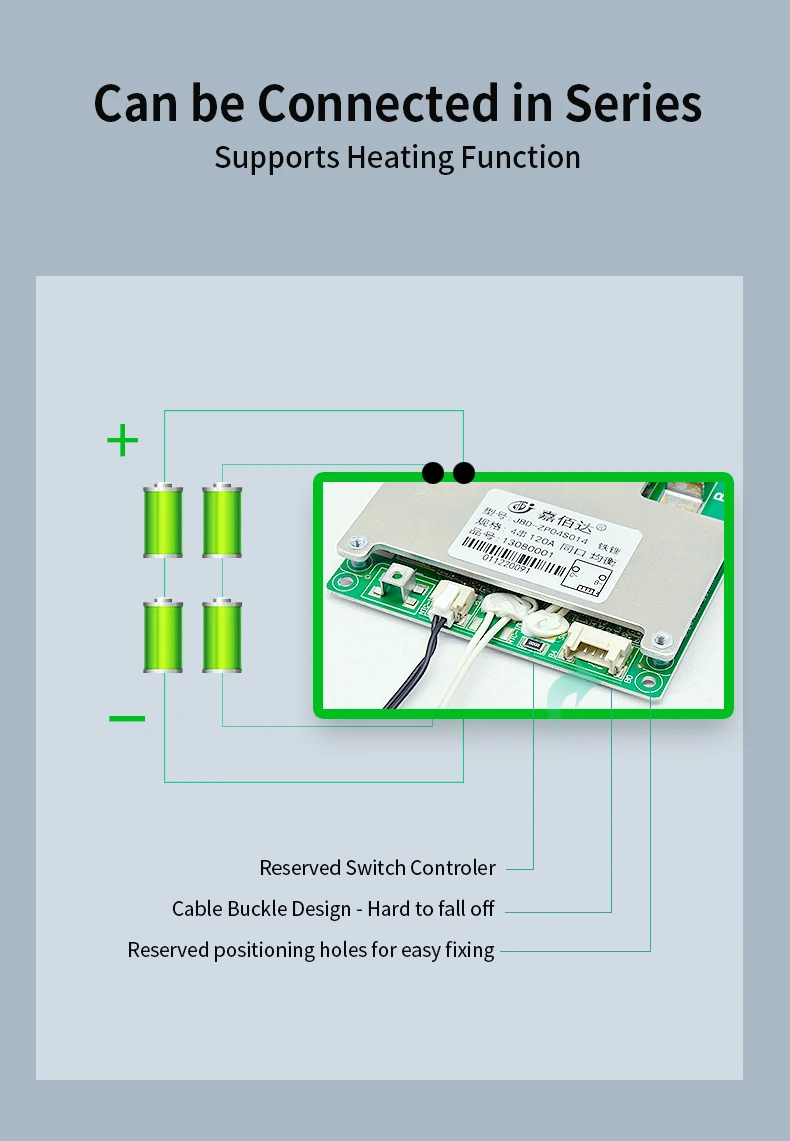

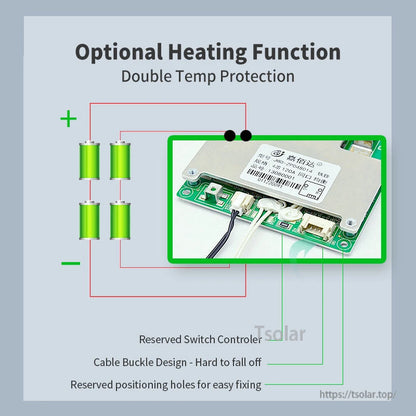

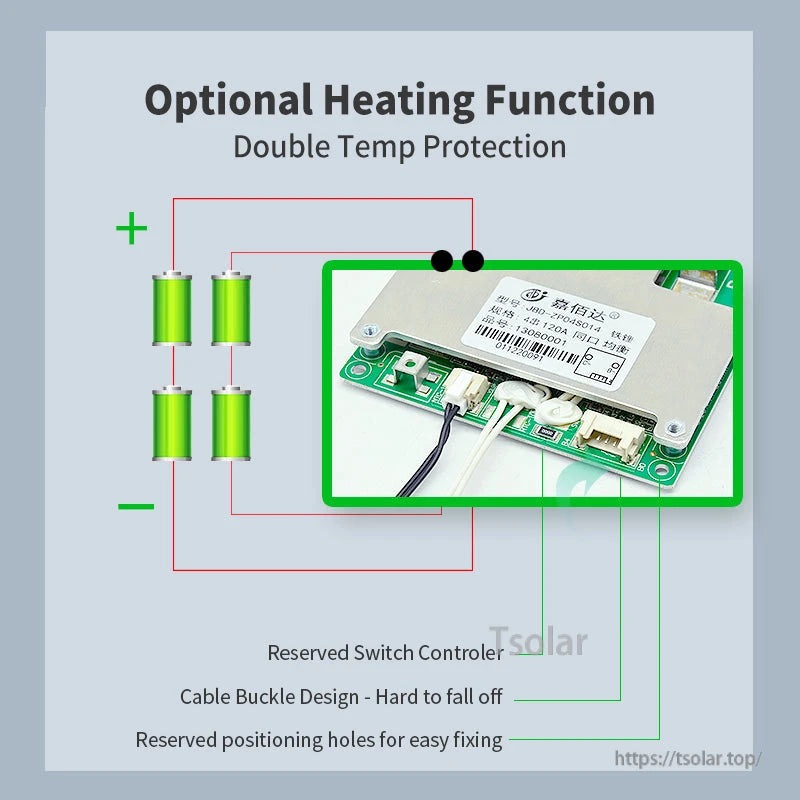

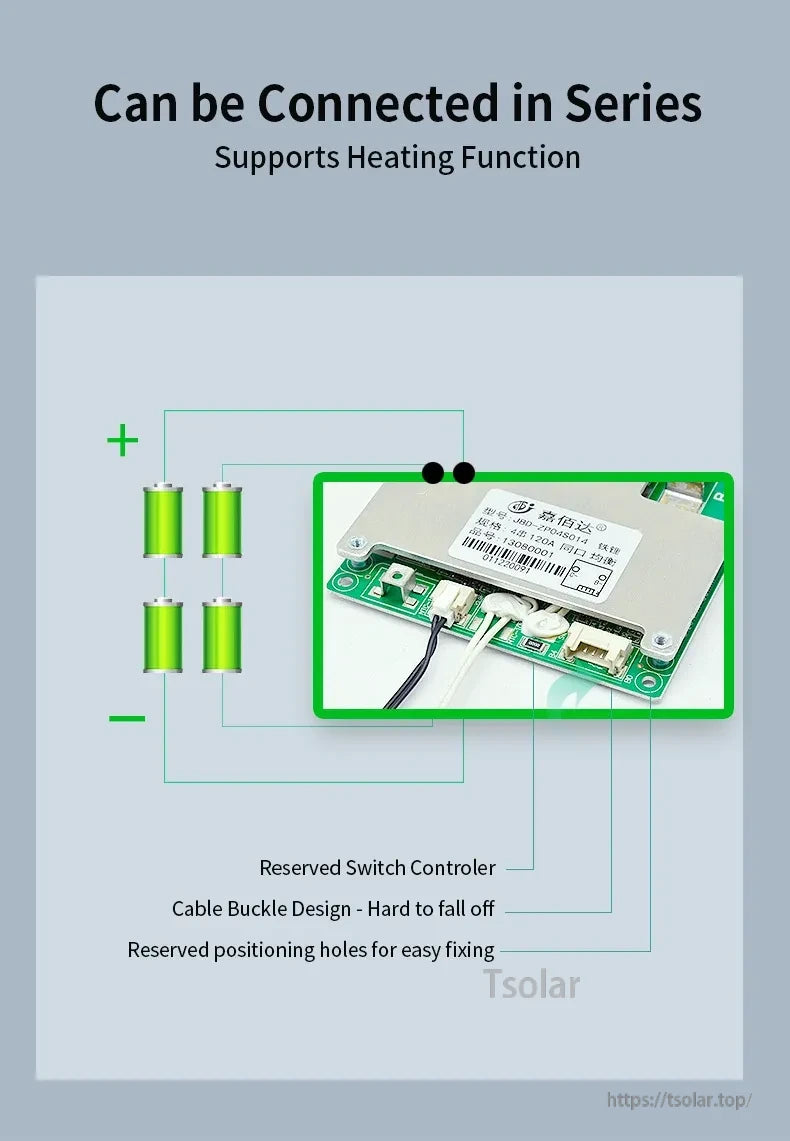

- Can be connected in series; supports heating function (no heating film)

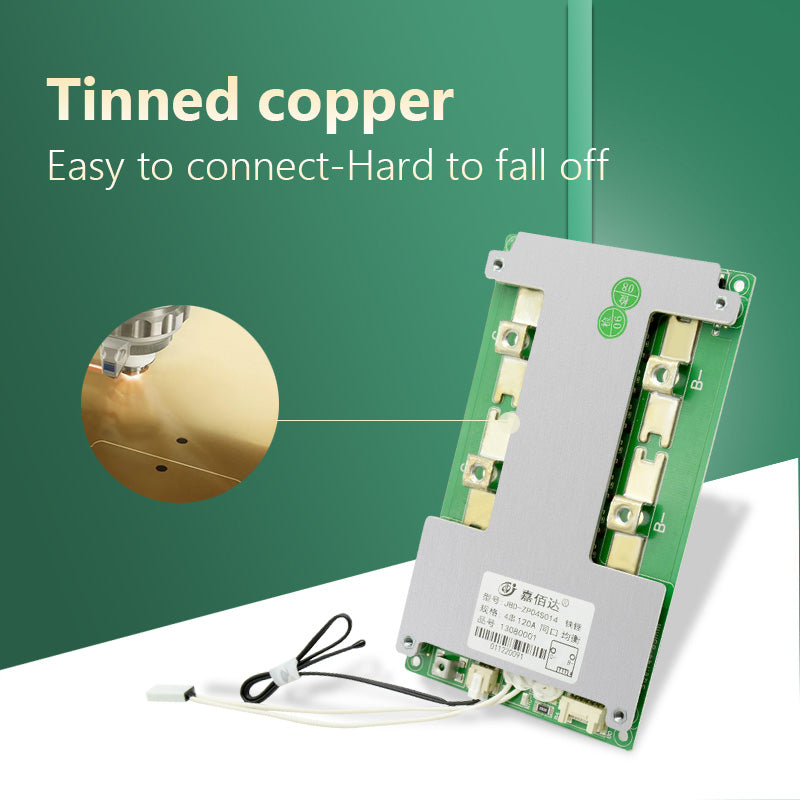

- Reserved switch controller; cable buckle design (hard to fall off); reserved positioning holes for easy fixing
- No communication; no display; no automatic identification of string number
For batch customization inquiries, contact https://tsolar.top/ or email service@tsolar.top.

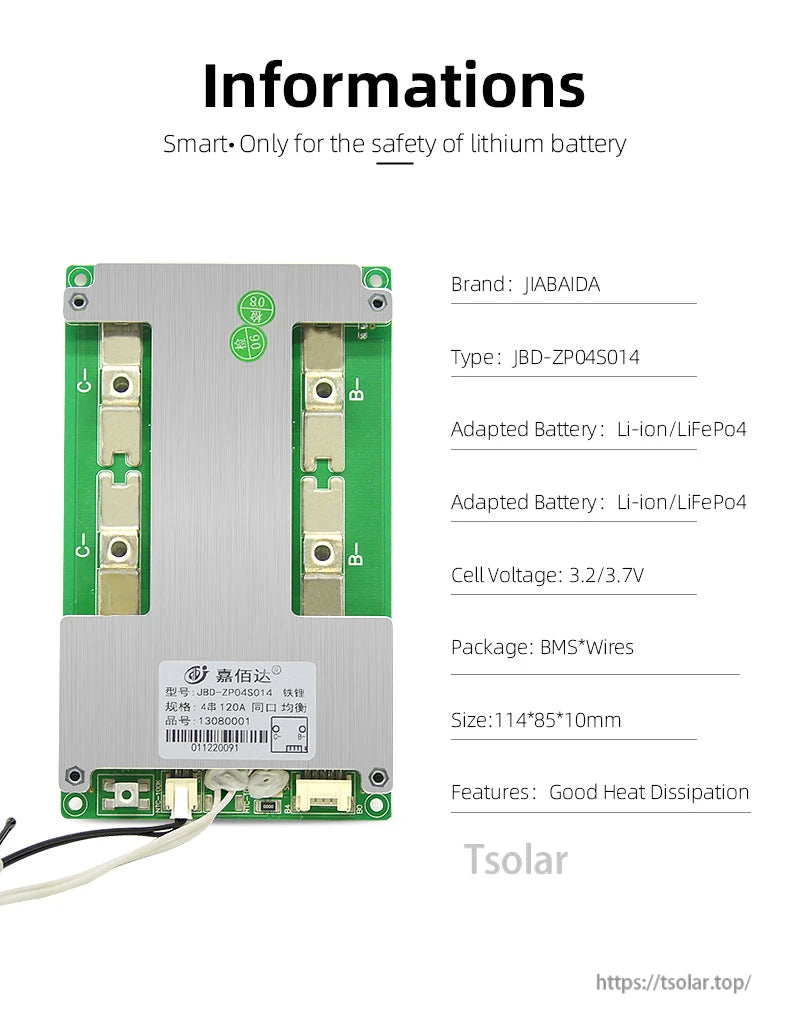

Specifications

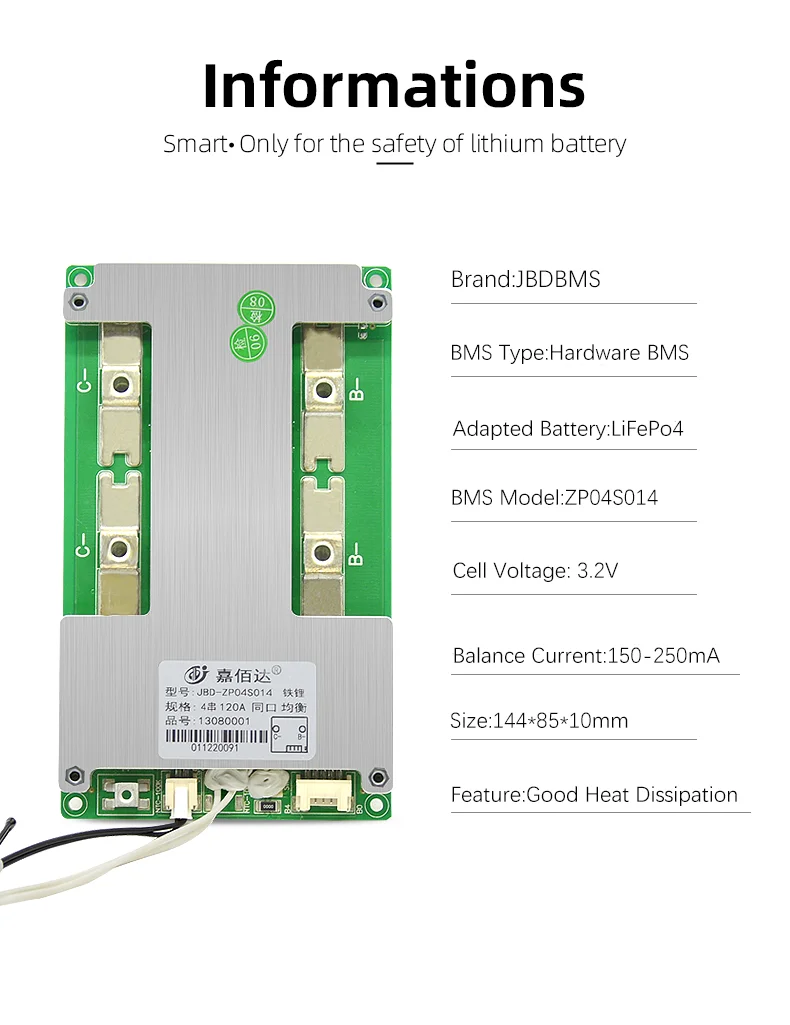

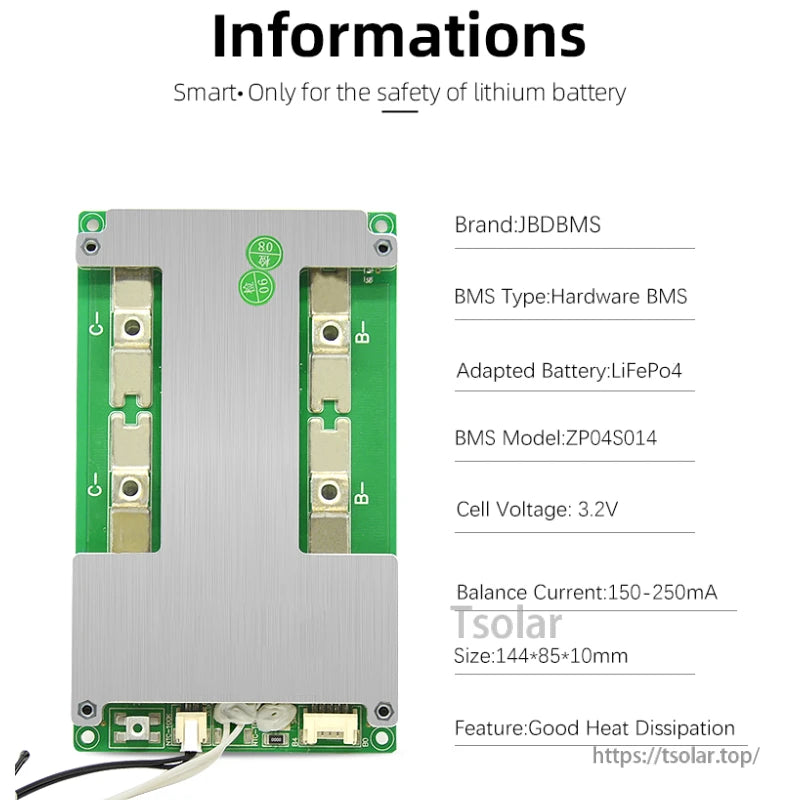

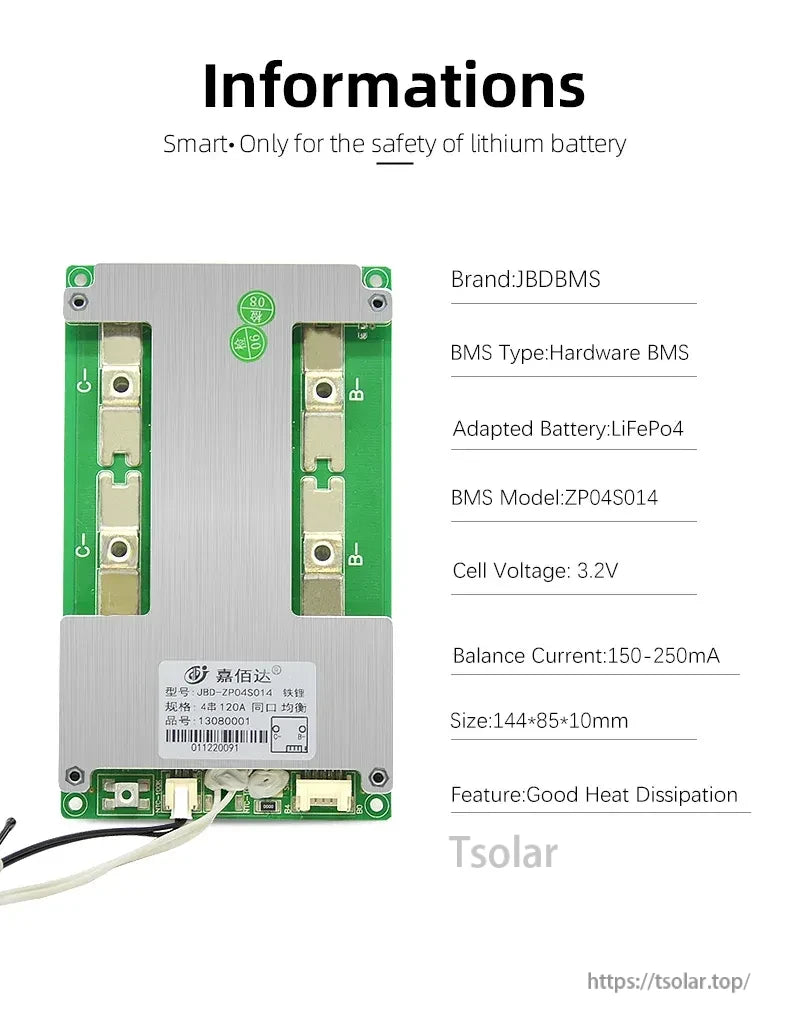

| Brand | JBDBMS |
| Product type | Battery Management System (BMS) |
| BMS type | Hardware BMS / Hard BMS |
| Model | ZP04S014 |
| Adapted battery | LiFePO4 |
| Cell voltage | 3.2V |
| Series | 4S |
| Pack voltage | 12V |

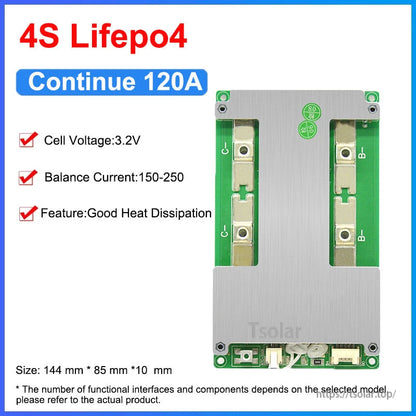

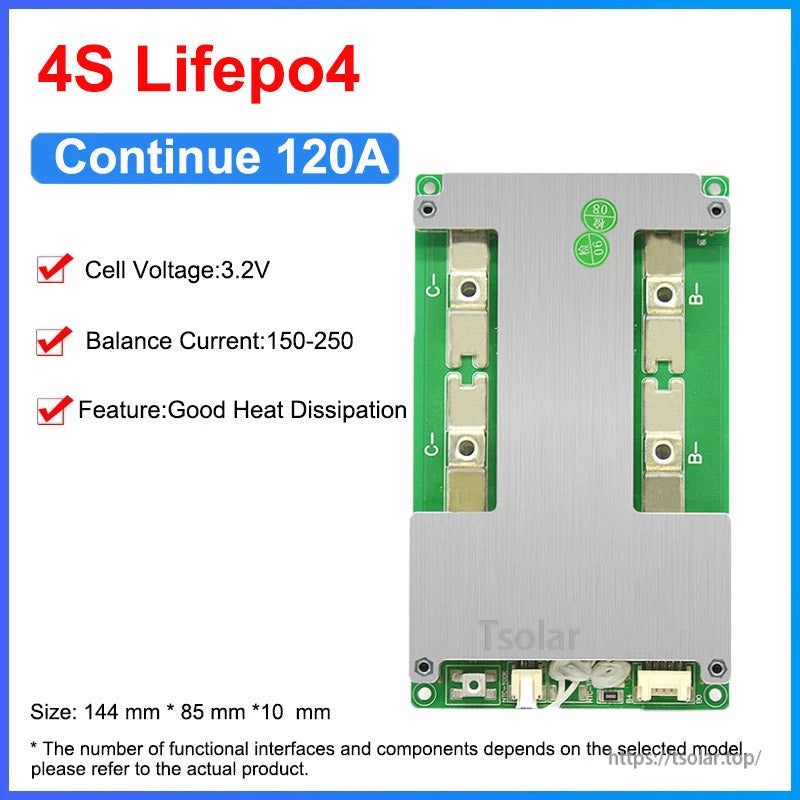

| Continuous current | 50A-120A |
| Balance current | 150-250 mA |
| Communication | NO |
| Support automatic identification of string number | NO |
| Support display | NO |
| Dimensions | 144 x 85 x 10 mm |
| Feature | Good heat dissipation; Drop protection |
| Temperature sensor | 1PC external NTC |
Whats Included
- BMS
- Balance wires
Applications
- Solar street lamp
- Electric tool
- AGV
- Energy storage UPS
- Emergency power
- Marine motor
- E-bicycle
- E-car
- Low speed vehicle
Wiring Notes (Same Port BMS)

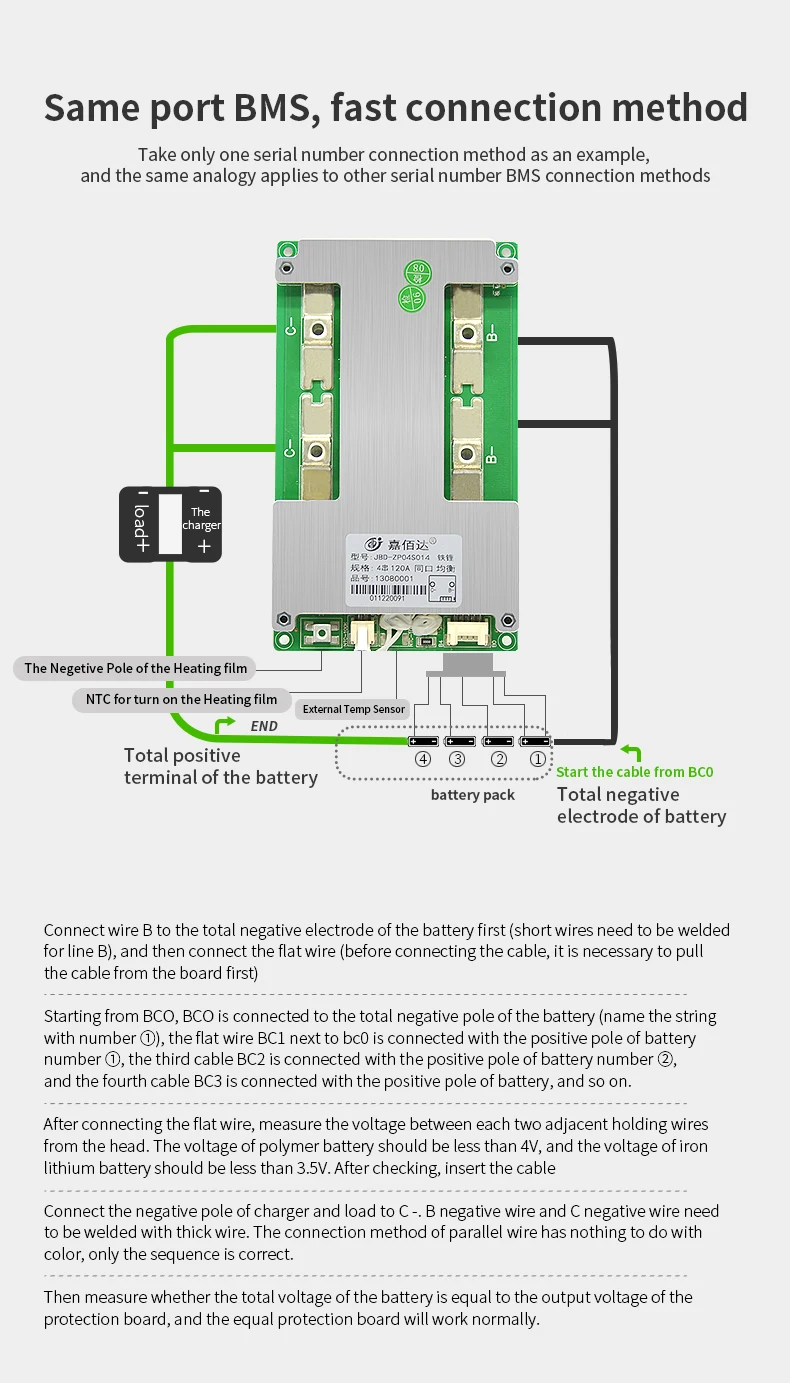

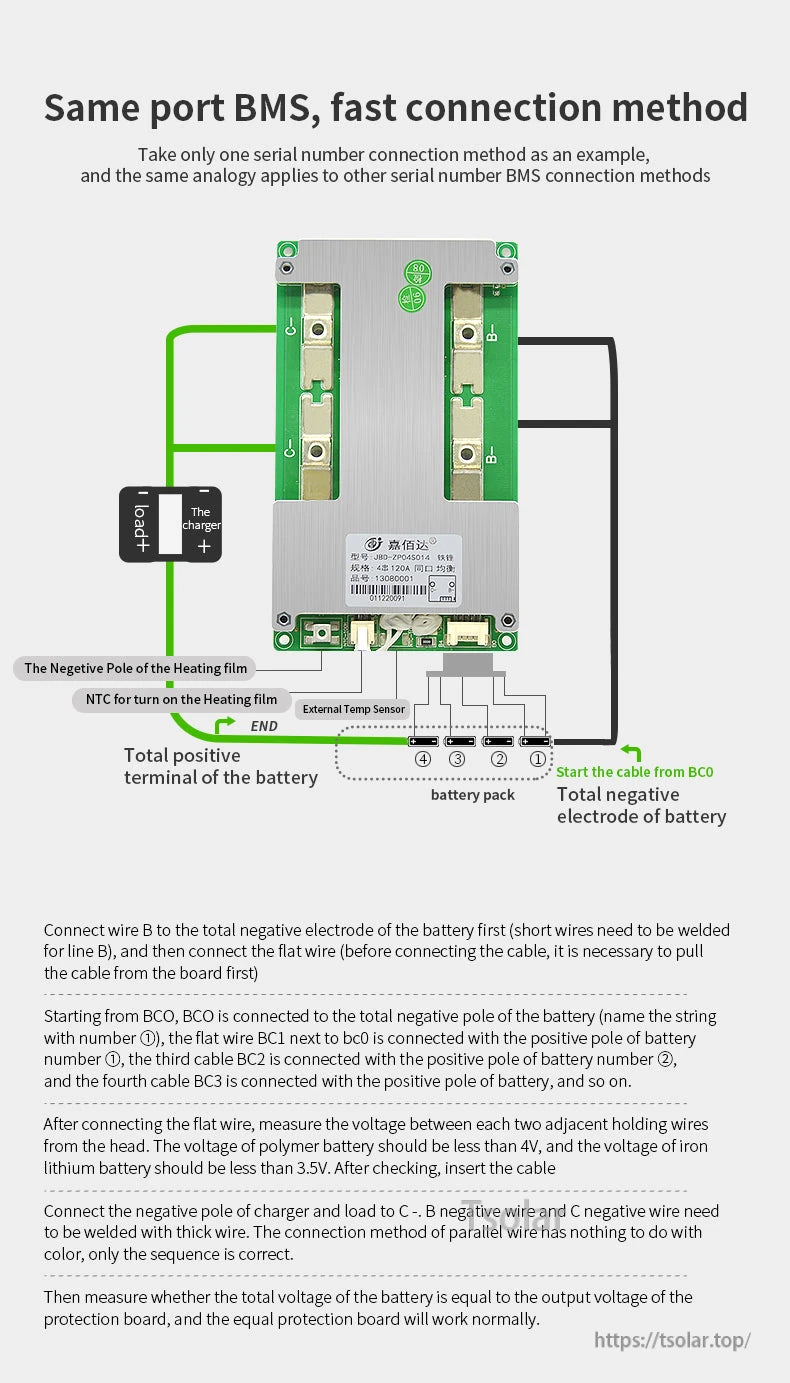

- Connect wire B to the total negative electrode of the battery first (short wires need to be welded for line B), then connect the flat wire (pull the cable from the board before connecting).
- Start from BC0: connect BC0 to the total negative pole of the battery (string 1). Connect BC1 to the positive pole of battery 1, BC2 to the positive pole of battery 2, BC3 to the positive pole of battery 3, and so on.
- After connecting the flat wire, measure the voltage between each two adjacent wires: polymer battery should be less than 4V; iron lithium (LiFePO4) should be less than 3.5V. After checking, insert the cable.
- Connect the negative pole of charger and load to C-. B negative wire and C negative wire need to be welded with thick wire.
- Measure whether the total battery voltage equals the output voltage of the protection board; then it will work normally.
Details

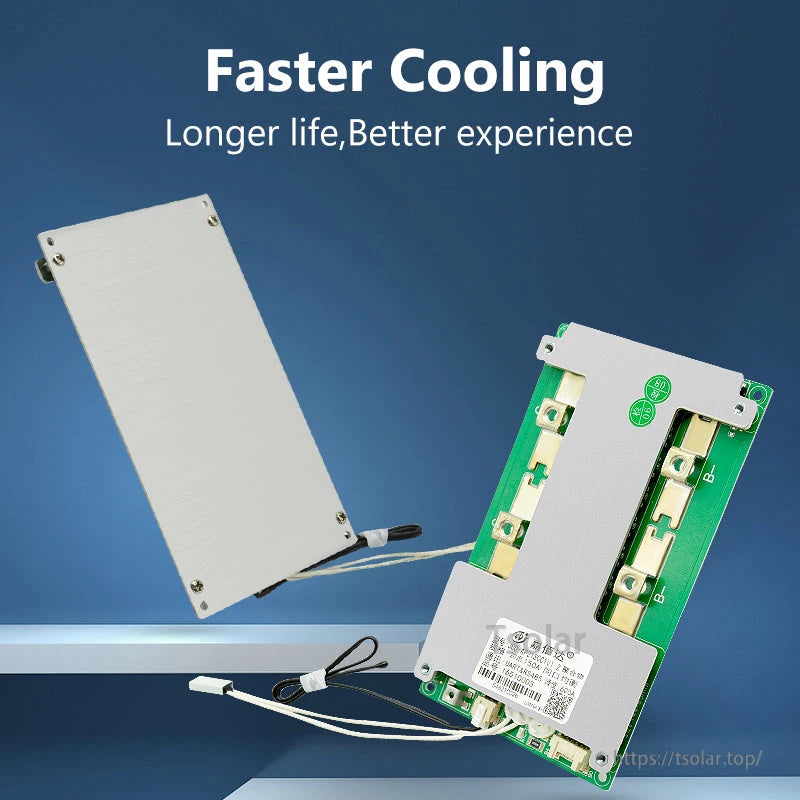

An aluminum PCB cover helps dissipate heat to keep the hardware BMS running cooler in demanding builds.
Designed for 3.2V LiFePO4 4S (12V) packs, with balance current rated 150–250 mA and a compact 144×85×10 mm layout.
Supports series connection and includes interfaces for a heating function and switch control wiring.
Follow the same-port wiring order for B-, C-, and the balance leads to ensure correct startup and protection behavior.
Dual temperature sensing adds an extra layer of protection with external and internal over-temperature monitoring.
A practical fit for 12V LiFePO4 battery packs used in solar lighting, tools, UPS systems, marine power, and light electric vehicles.
