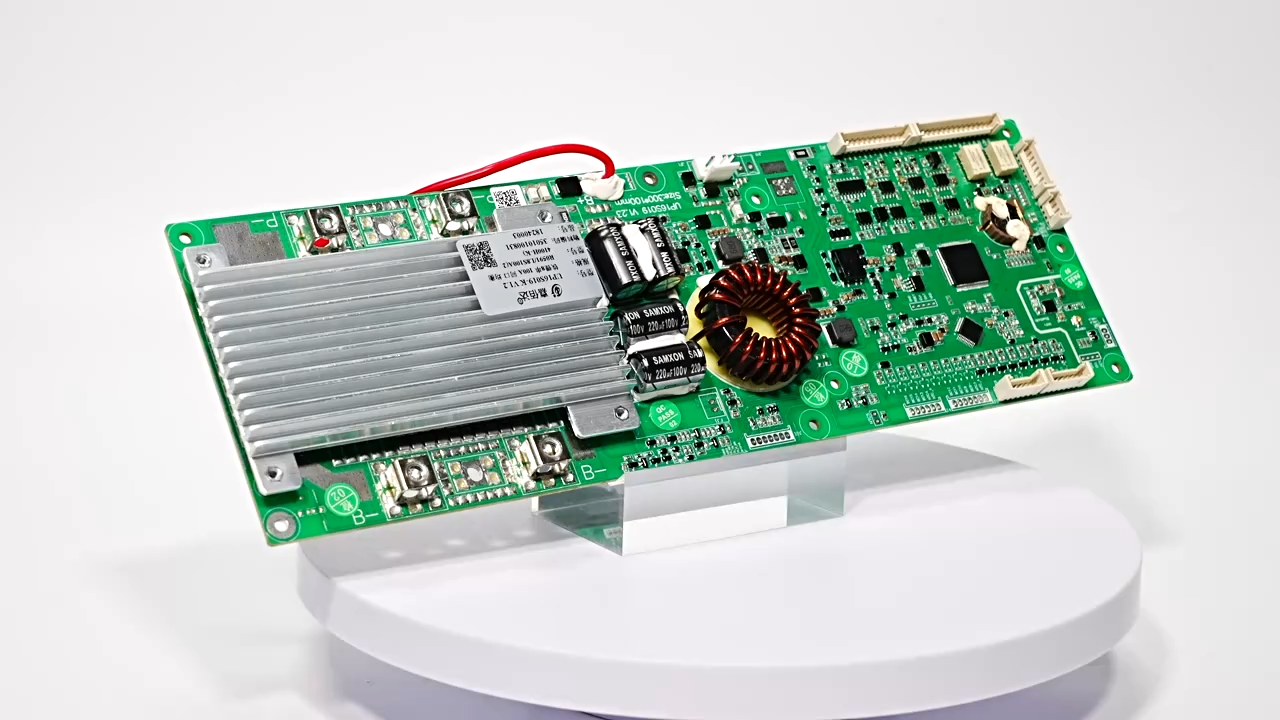

  • JBD Smart BMS circuit board with aluminum heatsink and copper inductor coil, angled view
  • JBD Smart BMS shown with inverter brand compatibility graphic and separate communication interface board

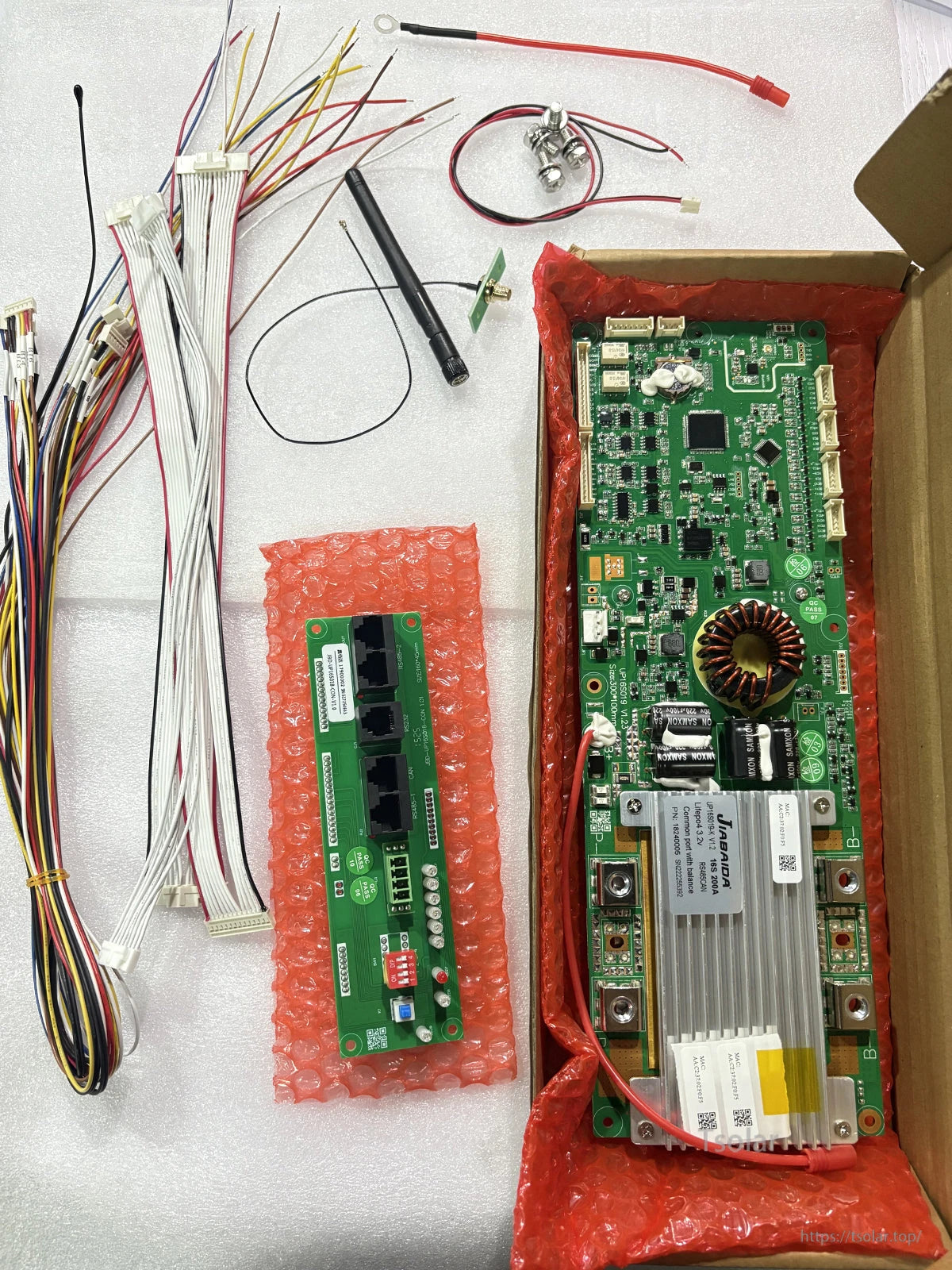

  • JBD Smart BMS kit contents laid out: main BMS board, interface board, and wiring harness leads

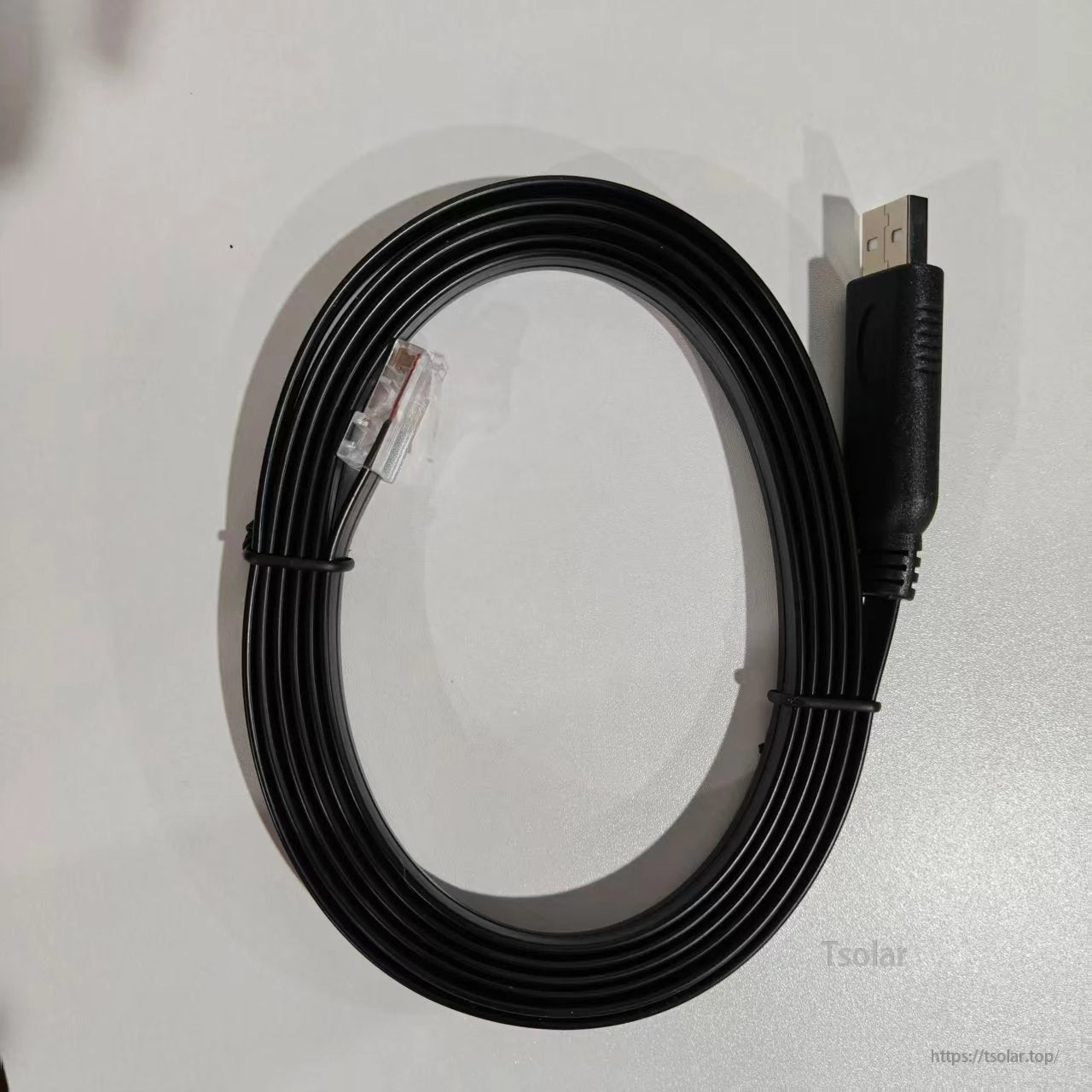

  • USB to RJ45 communication cable, black coiled lead with USB-A and RJ45 connectors

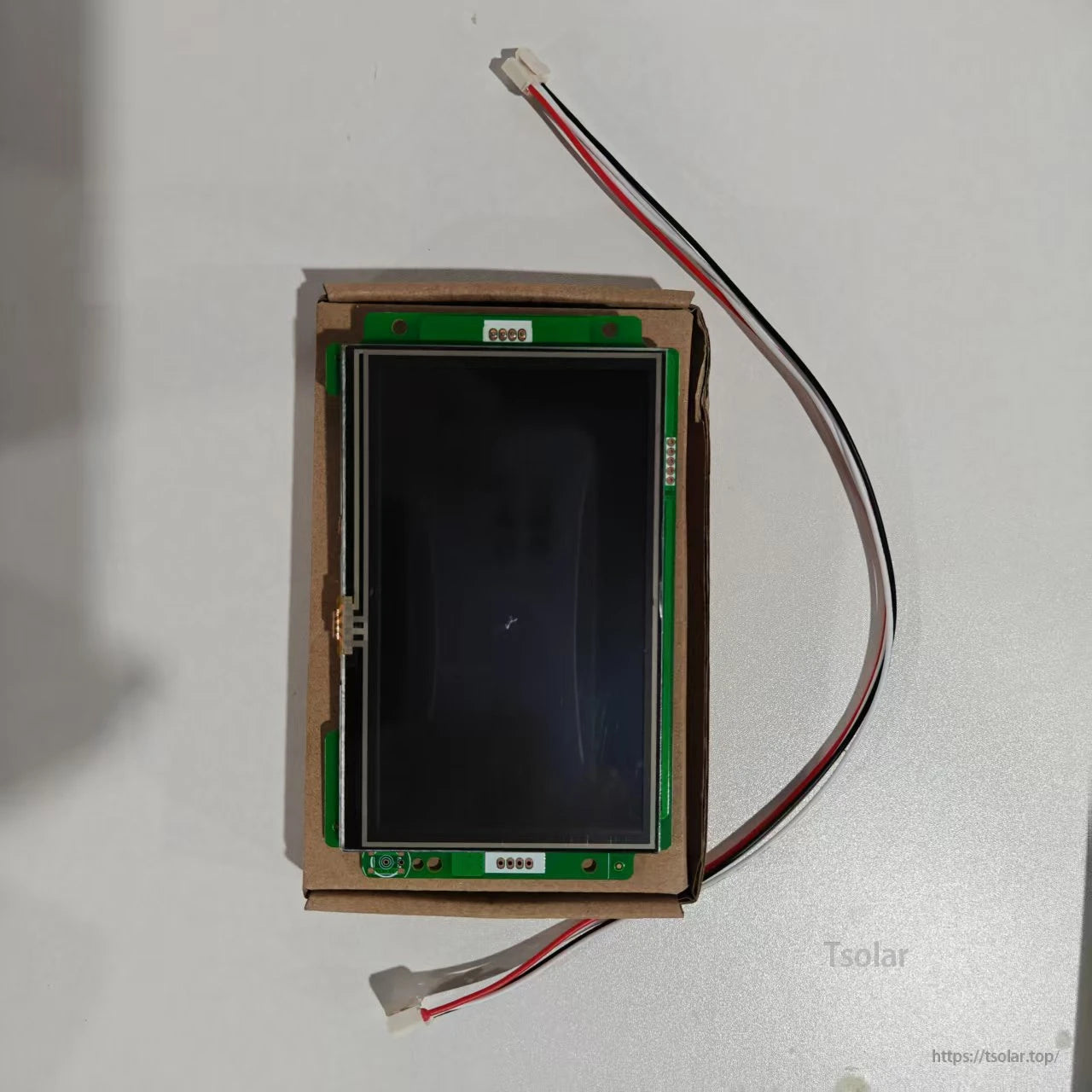

  • LCD display module for BMS, front view on cardboard tray with two wire leads
  • LCD display module for BMS, rear PCB view with buttons along bottom edge and wire leads
  • 16S Li-ion 100A continuous 300A peak BMS feature chart with RS485/CAN and WiFi/Bluetooth noted
  • 16S LiFePO4 150A continuous 450A peak BMS feature chart; common port with balance and history storage
  • 16S Li-ion 150A continuous 450A peak BMS feature chart; includes note LCD and RS485 wire not included
  • 16S LiFePO4 200A continuous 600A peak BMS feature chart; size listed 300×100×28mm

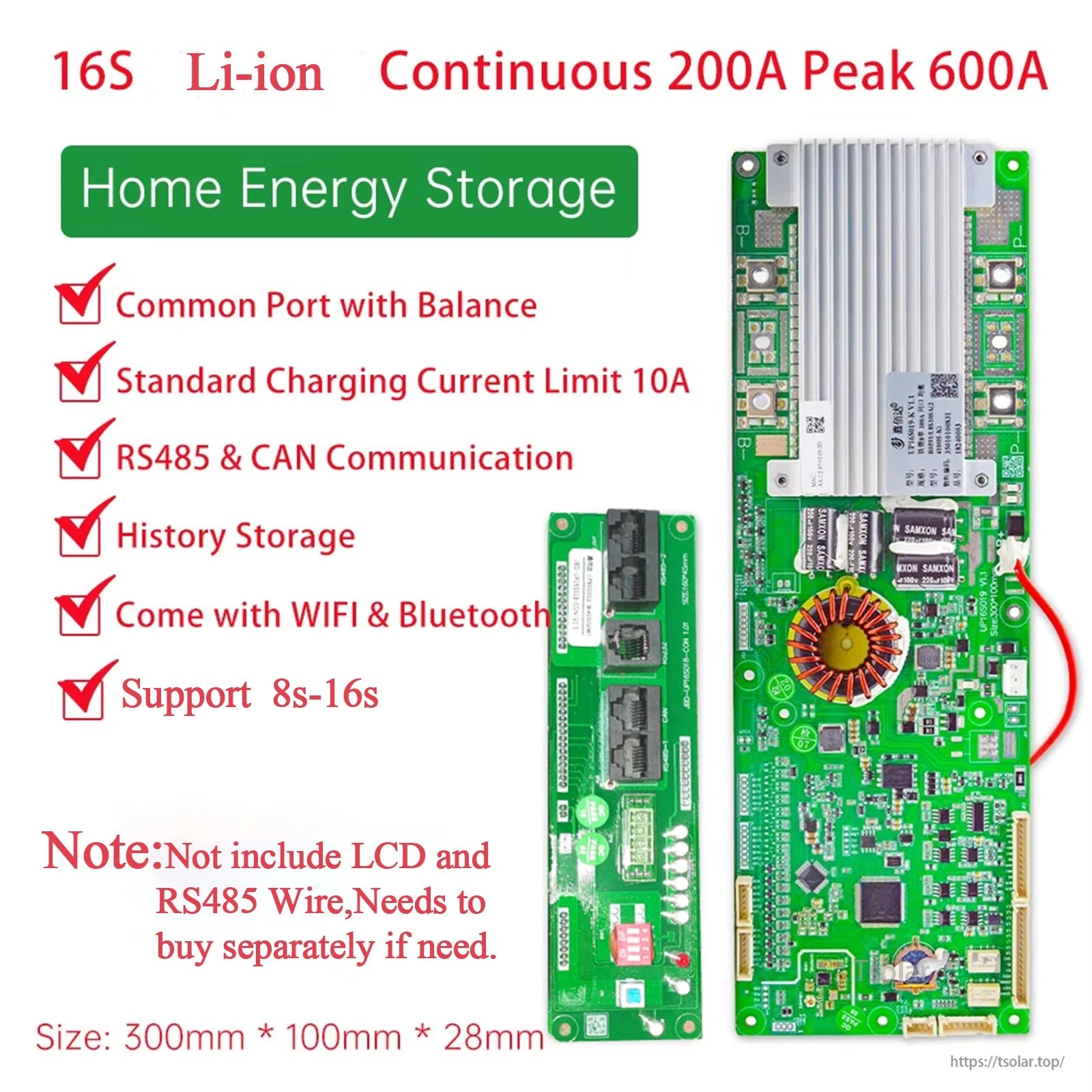

  • 16S Li-ion 200A continuous 600A peak BMS feature chart; common port with balance and RS485/CAN
1 4

JBD

JBD Smart BMS 8-16S 50-200A for LiFePO4/Li-ion ESS Inverter, RS485 CAN, Bluetooth, WiFi

JBD Smart BMS 8-16S 50-200A for LiFePO4/Li-ion ESS Inverter, RS485 CAN, Bluetooth, WiFi

$78.33 USD
$78.33 USD
Sale Sold out
Shipping calculated at checkout.
Style
View full details

Overview

The JBD Smart BMS is an 8–16S battery management system for LiFePO4 (3.2V cells) and Li-ion (3.6V/3.7V cells), designed for home energy storage (ESS) battery packs and inverter communication via RS485/CANBUS. It supports cell balancing, temperature sensing, Bluetooth/WiFi connectivity, APP & PC monitoring/control, and a discharge switch function.

Key Features

  • Strings: 8–16S smart BMS
  • Working current options: 50A / 100A / 150A / 200A
  • Continuous current (series graphic): 100A–200A
  • Peak current (series graphic): 300A–600A
  • Communications: RS485 / CANBUS
  • Connectivity: Bluetooth, WiFi; APP & PC control
  • Battery functions: cell balance, temperature sensor support
  • Protection note (series graphic): Double protection; high power TVS provides protection for MOS transistors through high current and reverse voltage
  • Certification (provided description): CE
  • Installation note (provided description): no charger included

Specifications

Number of strings 8–16S
Voltage 36V / 48V / 60V
Working current 50A, 100A, 150A, 200A
Continuous current (series graphic) 100A–200A
Peak current (series graphic) 300A–600A
Applicable battery 3.2V LiFePO4 cells; 3.6V / 3.7V Li-ion cells
Communication RS485 / CANBUS
Balance current 20mA–80mA
Functions Balance; Temp Sensor; BT/Wifi; APP & PC Control; Discharge switch

Inverter Compatibility (Provided List)

RS485: Pylon / Growatt_SPF / Voltronic / LXP / Deye / INVT / SRNE / HNJD / SVC / 0LU_VMII

CANBUS: Pylon / Deye / GoodWe / LXP / Victron / Must / SMA / Growatt / Sofar / GINLONG

For the PC tool software and support, contact customer service at service@tsolar.top or visit https://tsolar.top/.

Applications

  • Home energy storage systems (ESS)
  • Building energy storage
  • Communication base stations
  • Industrial equipment backup power

Details

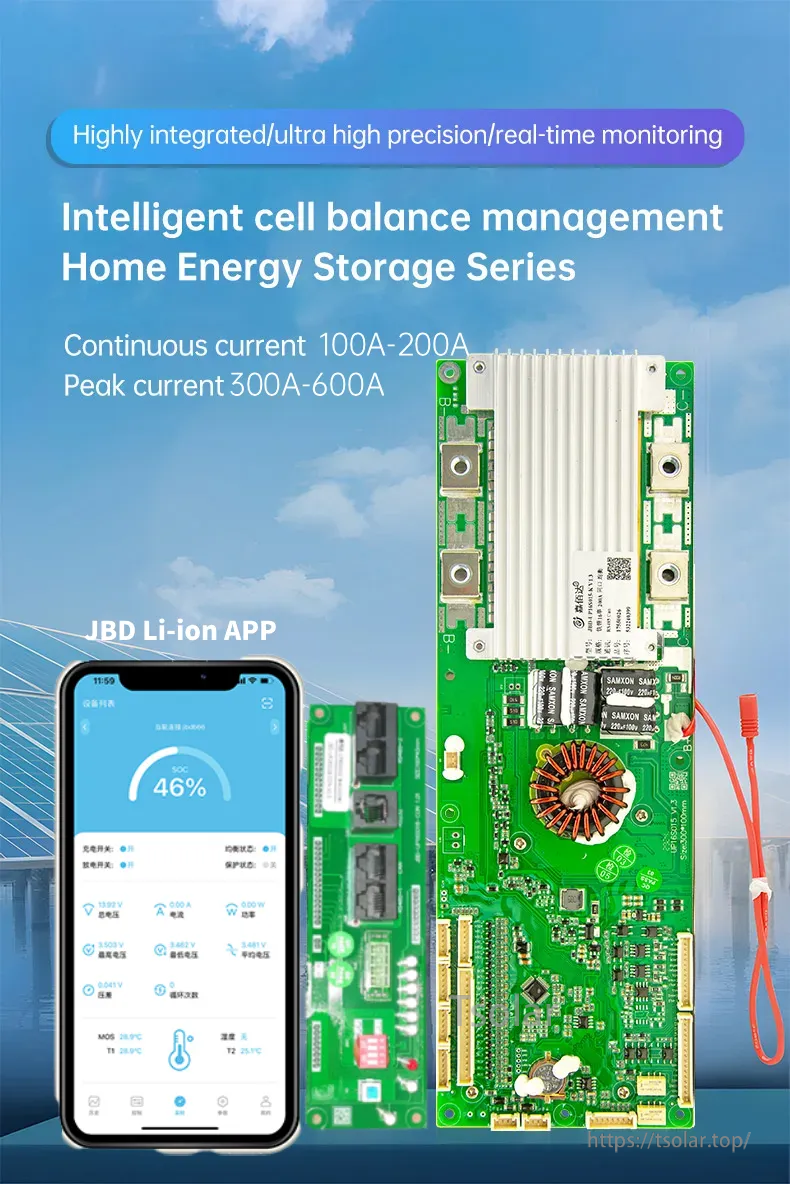

JBD Smart BMS home energy storage series with real-time monitoring, 100–200A continuous and 300–600A peak graphic

Bluetooth app monitoring supports real-time status checks for home energy storage battery packs, with high-current series options.

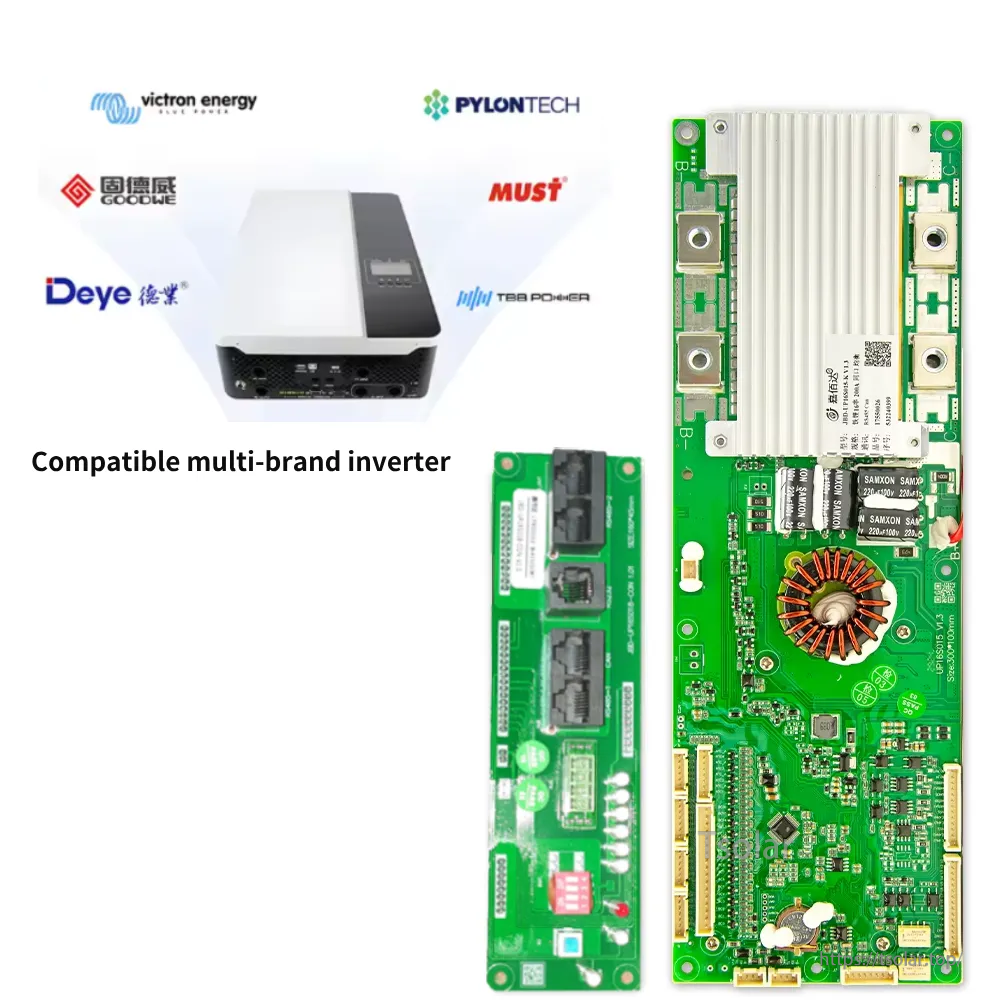

JBD BMS board set highlighting multi-brand inverter compatibility via RS485/CANBUS (Victron, Pylontech, Deye, GoodWe, Must)

RS485/CANBUS communication helps integrate the BMS with many popular inverter brands for ESS builds.

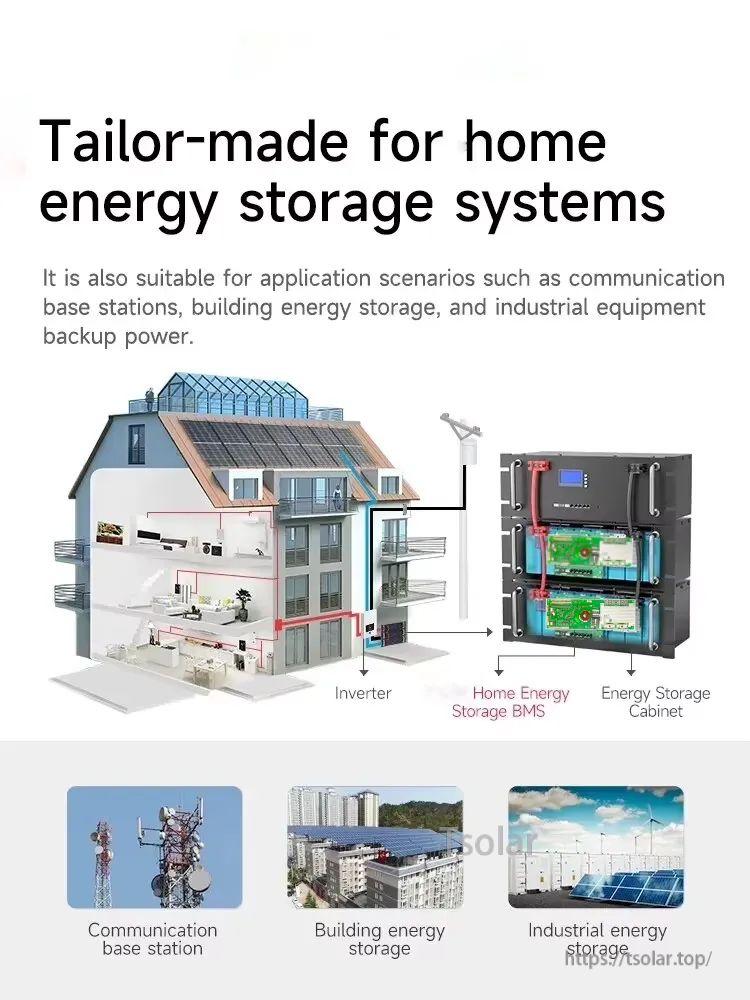

Home energy storage system application graphic with inverter, storage cabinet, and backup power scenarios

Designed for home ESS and also suitable for building energy storage, communication base stations, and industrial backup power.

Double protection concept for household energy storage, noting high-power TVS protection against reverse voltage and surge current
