Overview
The JBD Smart BMS RS485 PC Tool Box is a Battery Accessories item designed for use with JBD Smart BMS, enabling battery monitoring and parameter configuration from a host computer (PC). The accessory is identified as model RS485-TOOLS, and the enclosure label shows JBD-UART-TOOLS (communication box).
Key Features
- PC monitoring and configuration: supports monitoring and setting parameters on a PC.

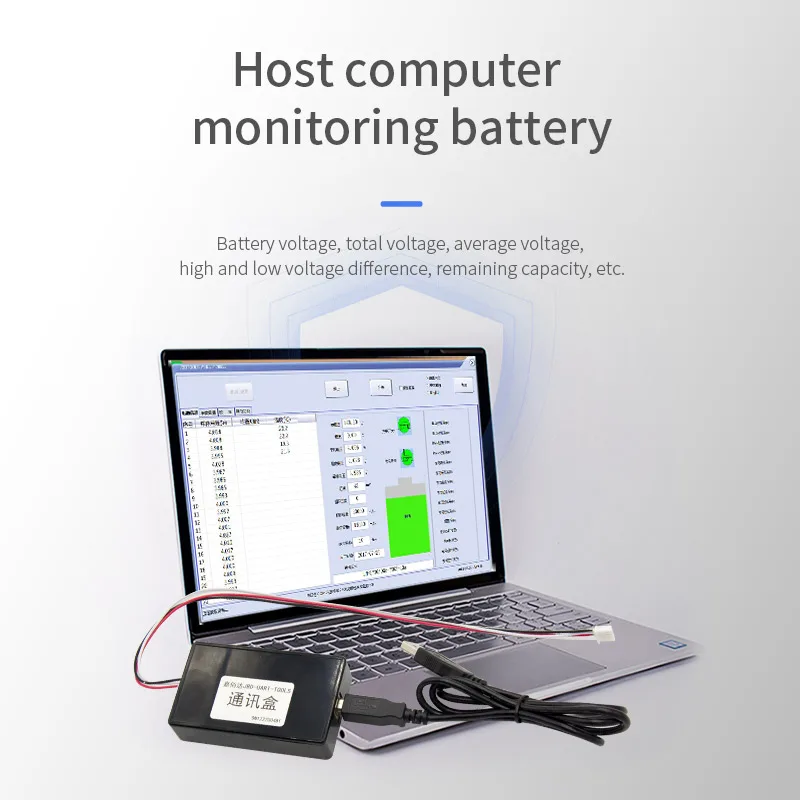

- Host computer monitoring items shown: battery voltage, total voltage, average voltage, high and low voltage difference, remaining capacity, etc.

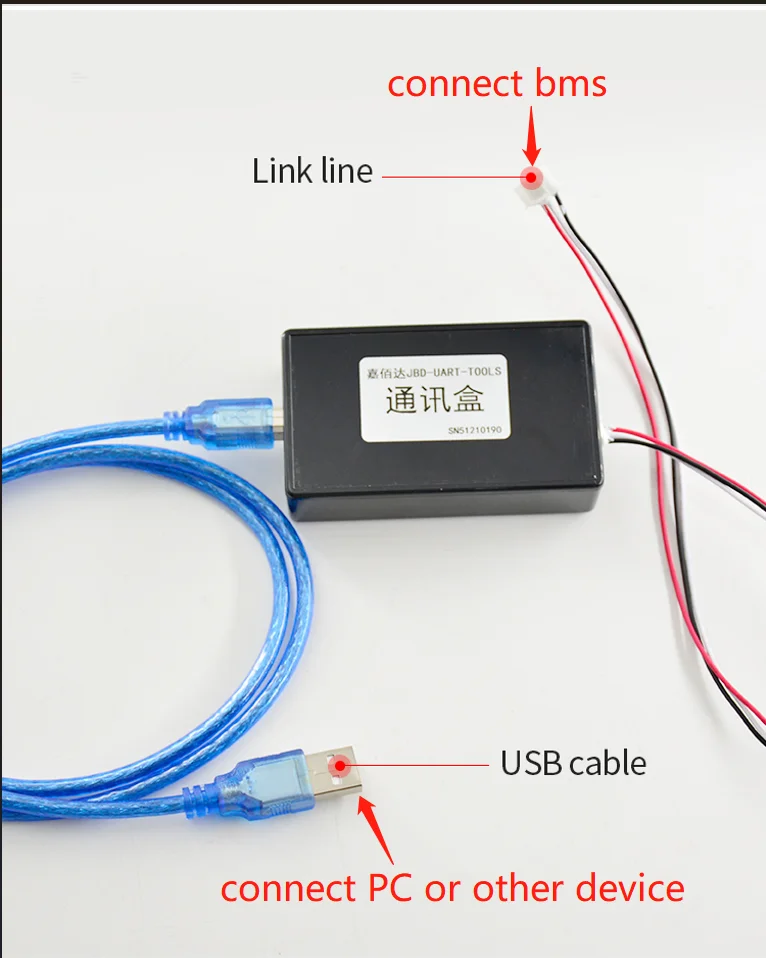

- Connection guidance shown: connect BMS via the “link line”, and connect PC/other device via USB cable.
- JBD ecosystem notes (as provided): XiaoxiangElectric phone app supports iOS and Android for monitoring and parameter changes (within the specified range). RS485-LCD displayer can monitor parameters.
For compatibility confirmation with a specific JBD Smart BMS model or help with setup, contact https://tsolar.top/ or email service@tsolar.top.
Specifications
| Product name | BMS Smart Accessories |
| Type | Battery Accessories |
| Model number | RS485-TOOLS |
| Size | 86mm * 51mm * 22mm |
Software
- PC Tool Software:https://jbdtools.oss-cn-beijing.aliyuncs.com/packfile/JBDTools.zip
- XiaoxiangElectric App (phone):http://www.jiabaida.com/appdown/index.html
Applications
- Solar Street Lamp
- Electric Tool
- AGV
- Energy Storage UPS
- Emergency Power
- Marine Motor
- E-bicycle
- E-car
- Low Speed Vehicle
Certificates (shown)
- RoHS Certificate
- ISO 9001 Certificate
- SGS Certificate
- Test Report
- Computer Software Copyright
- Invention Patent
Details
Connect the tool box to the BMS with the link line, then plug the USB cable into a PC for communication and setup.

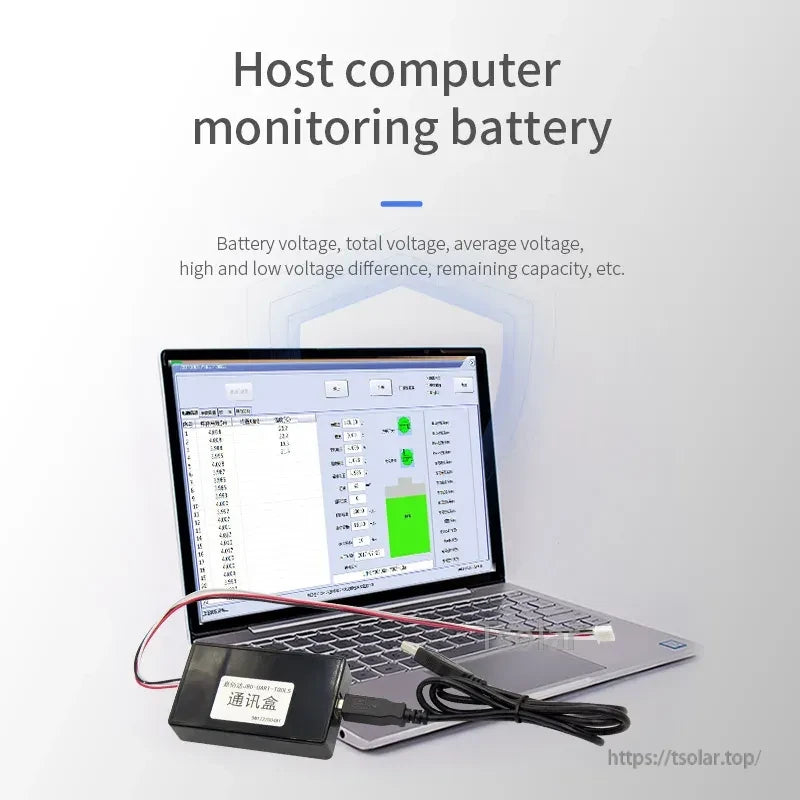

Use the PC software to monitor key pack data such as voltage, remaining capacity, and cell balance information in real time.
Product documentation includes compliance and test paperwork provided by the manufacturer.
Suitable for a wide range of battery-powered systems, from energy storage and UPS to e-mobility and marine applications.
Multiple payment options are supported, with standard packaging and shipping for international delivery.
