Overview
The JBD ZP10S036 is a Hard BMS (Battery Management System) designed for 24V lithium battery packs. It supports LiFePO4 (3.2V) and Li-ion (3.7V) cells in a common-port design with balancing, intended for 7S–8S battery pack configurations (8S is also specified in the provided product information).
Key Features
- Common port with balance

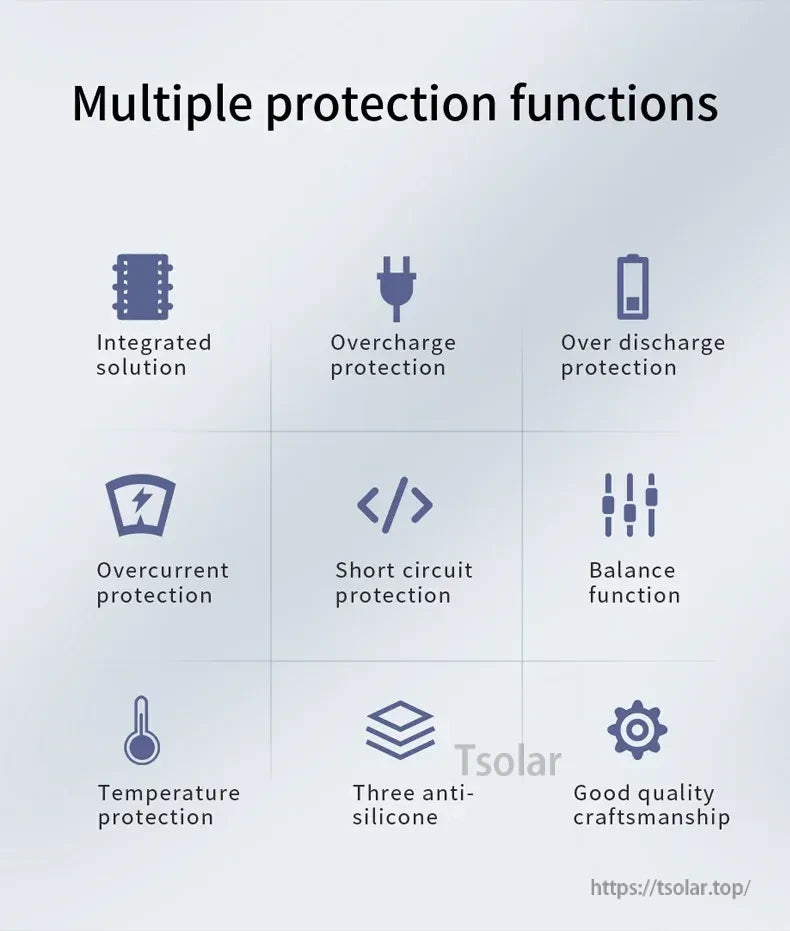

- Protection functions listed: integrated solution, overcharge protection, over discharge protection, overcurrent protection, short circuit protection, balance function, temperature protection

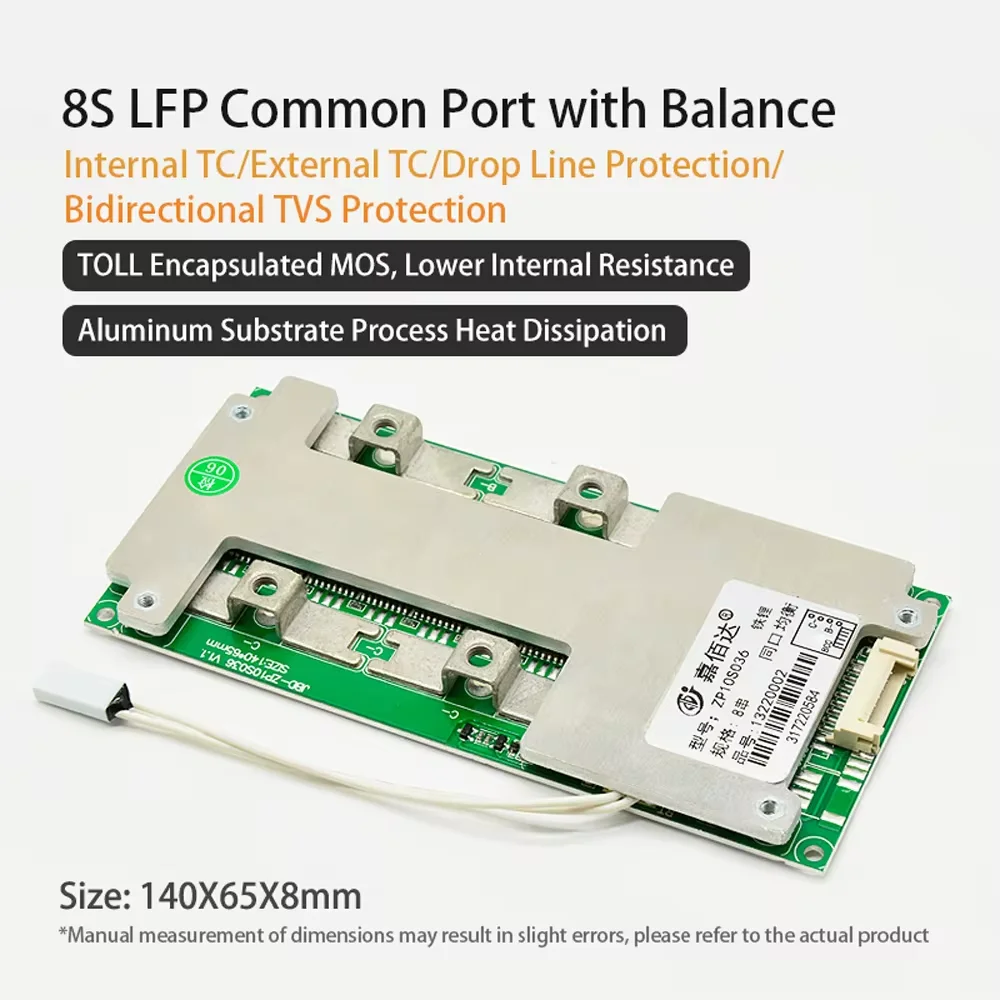

- Additional function text provided: Internal TC / External TC / Drop Line Protection / Bidirectional TVS Protection

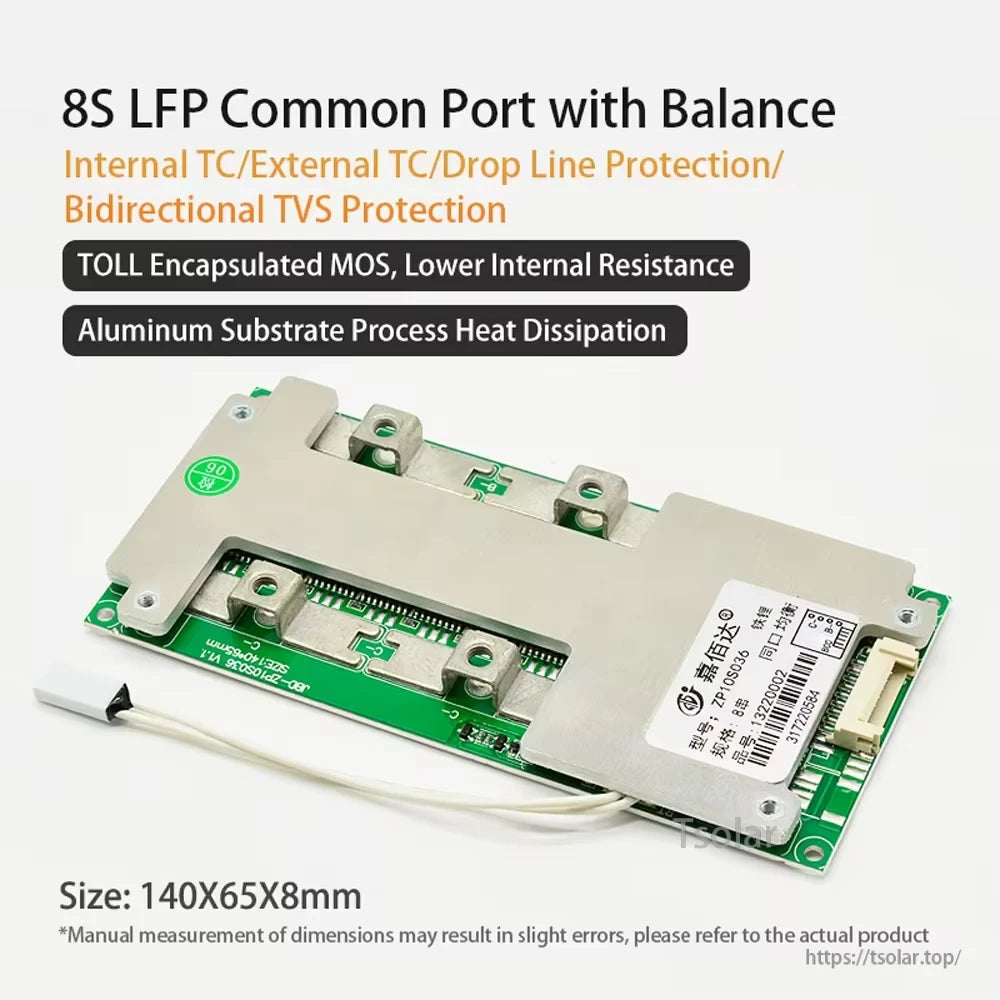

- Construction/process text provided: TOLL encapsulated MOS (lower internal resistance); aluminum substrate process heat dissipation
- Other listed items: “Three anti-silicone”, “Good quality craftsmanship”
- No communication / no BT function
- No automatic identification of string number; no display support
For BMS specification details or pre-sales wiring questions, contact customer support at https://tsolar.top/ or service@tsolar.top.
Specifications

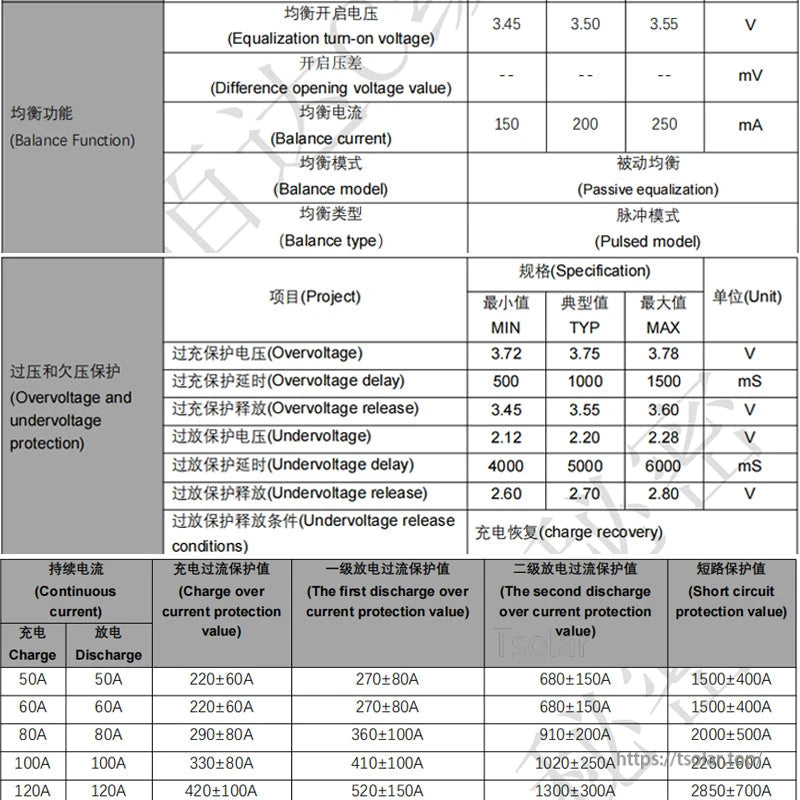

| Product Name | Battery Management System |
| Type | Hard BMS |
| Model Number | ZP10S036 |
| Applicable Battery Type | LiFePO4 / Li-ion lithium battery |
| Working Voltage | 24V |
| Strings (Series) | 7S–8S |
| Support Battery Pack Strings (also stated) | 8S |
| Continuous Current | 60A |
| Communication | No |
| BT / Communication Function | No |
| Balance Function | Common port with balance |
| Balance Current | 150mA–250mA |

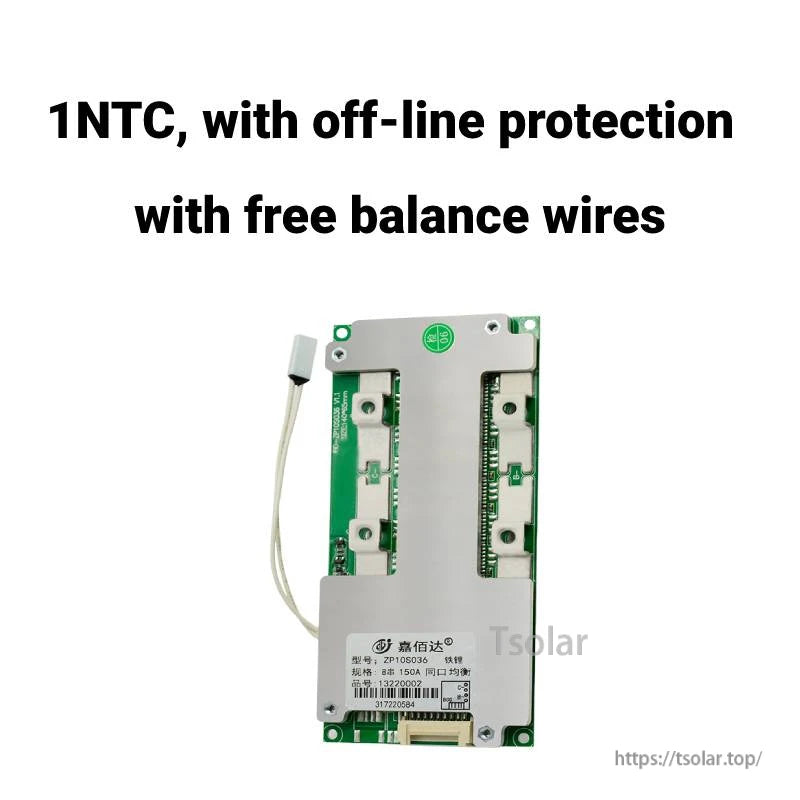

| Temperature Sensor | 1 external |
| Features | Drop Protection |
| Support automatic identification of String Number | No |
| Support display | No |

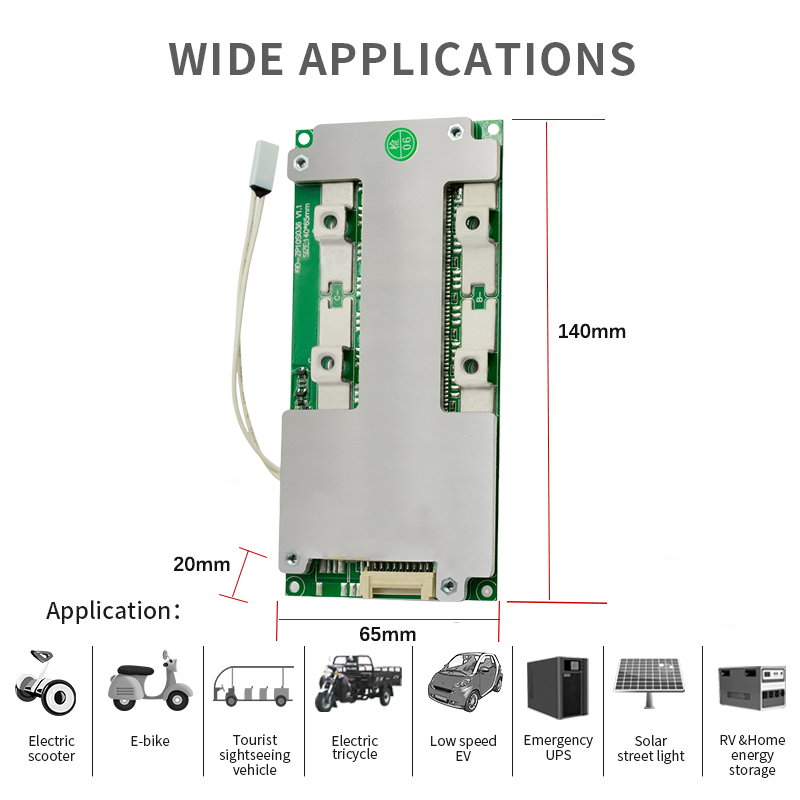

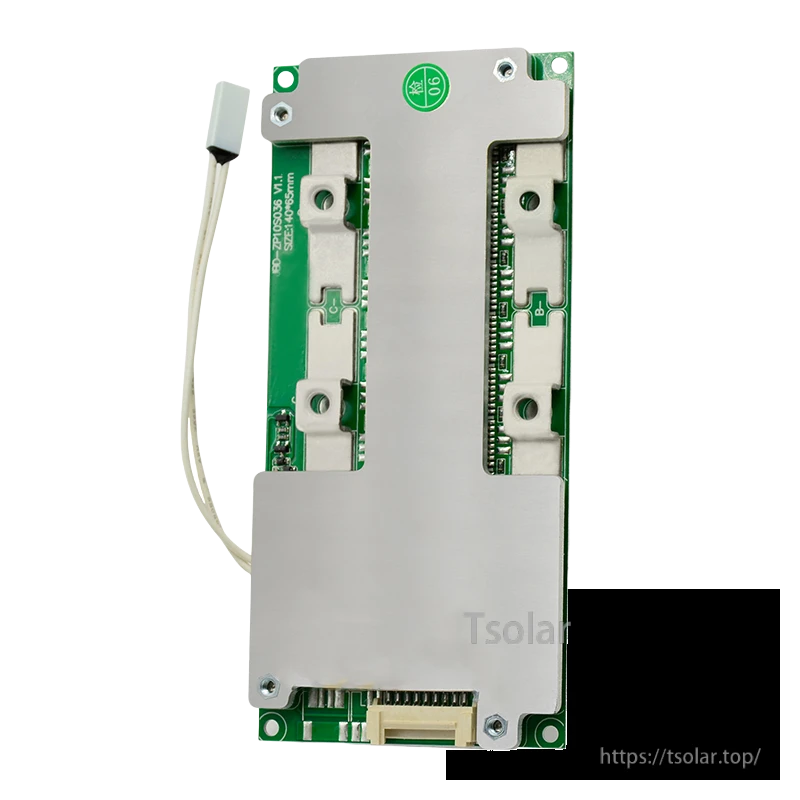

| Size (stated in product info) | 140mm * 65mm * 20mm |
| Size (stated in product image text) | 140 x 65 x 8 mm |

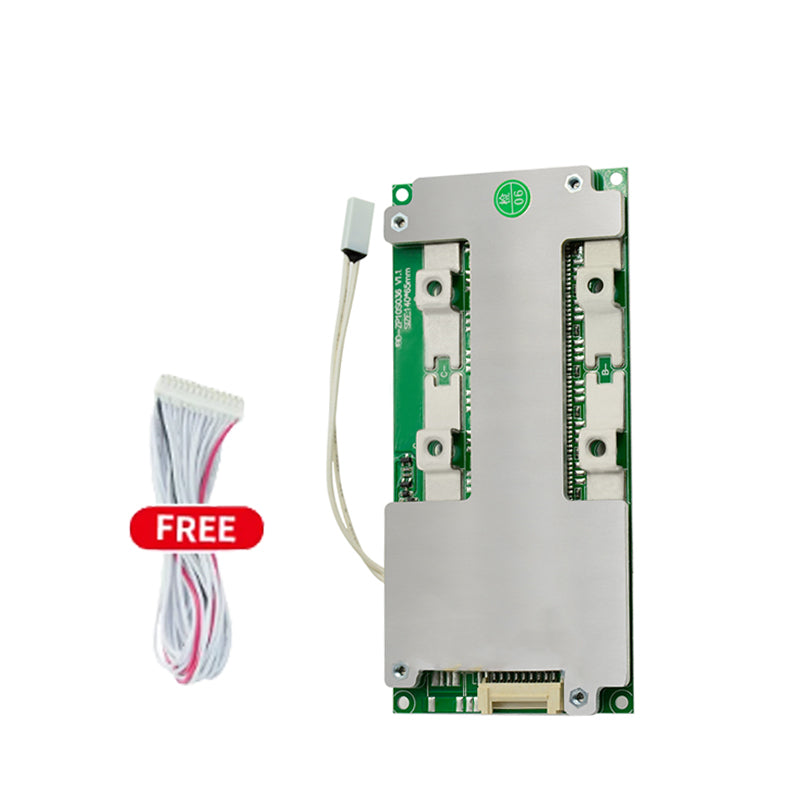

What’s Included
- BMS
- Balance wires
Applications
- Electric products (as stated)
- Application examples shown: electric bicycle, electric tricycle, electric car, energy storage UPS, recreational vehicle, sea motorcycle, solar street light, electrical tools, AGV logistics vehicle

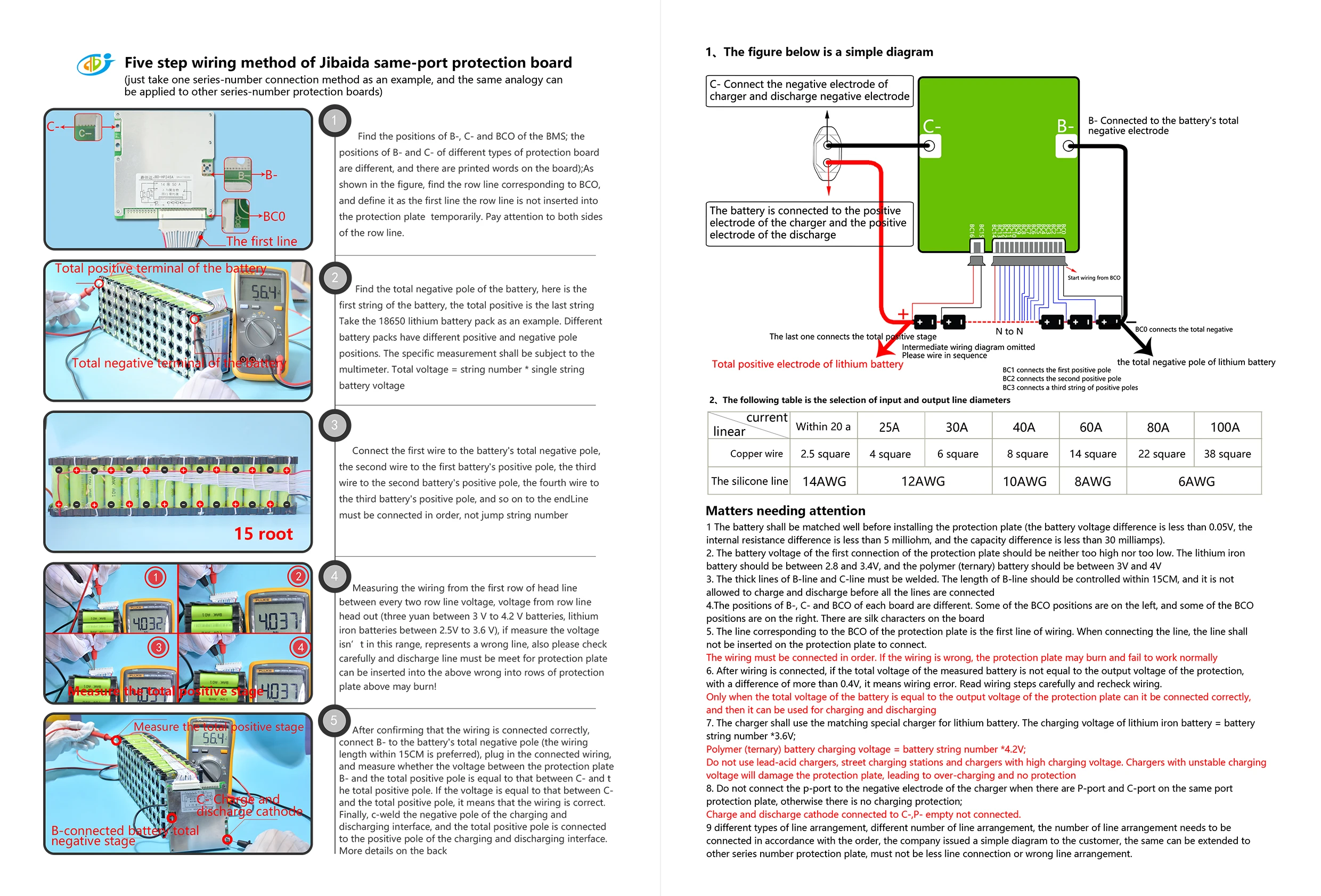

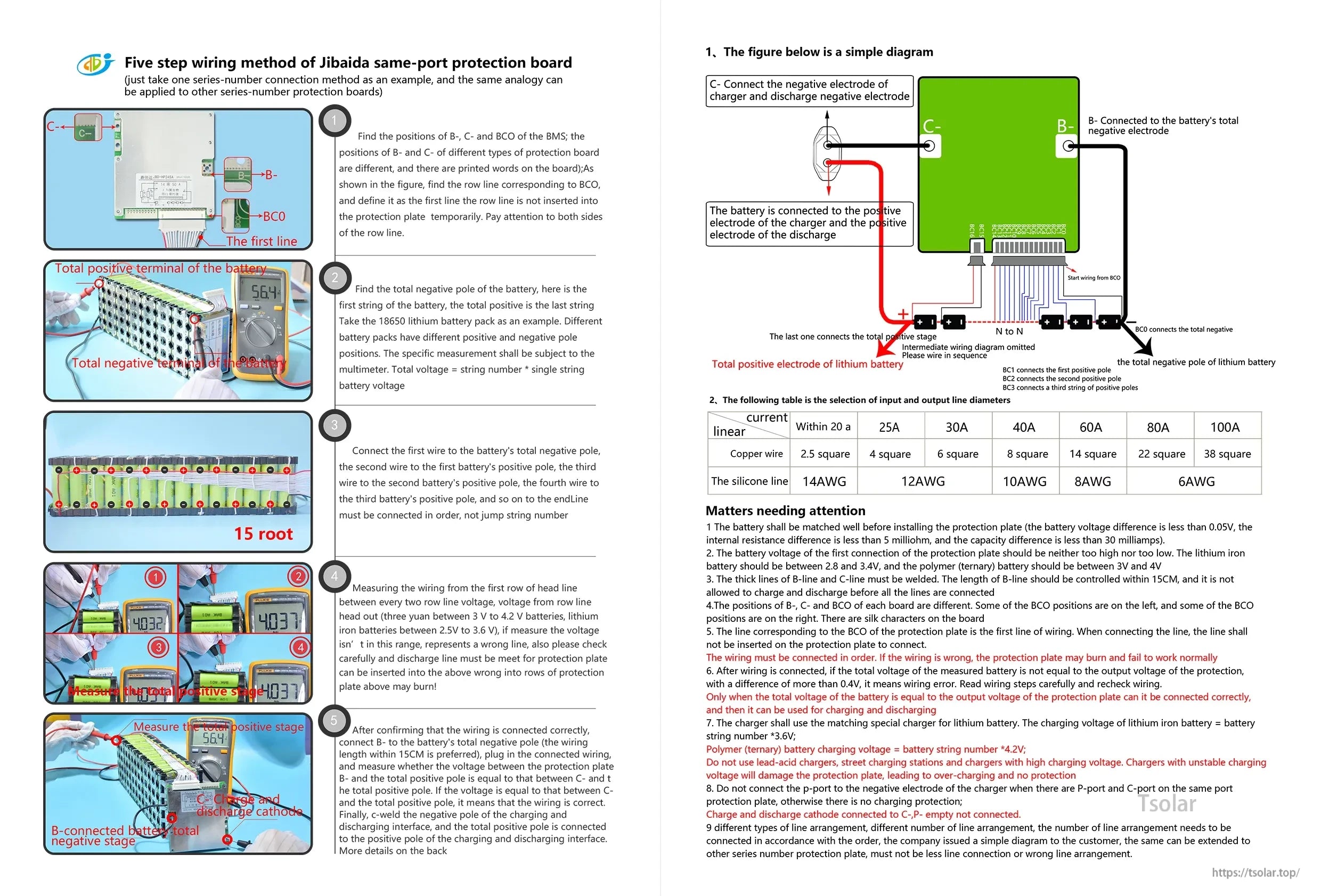

Wiring Notes
- Connection labels referenced: B-, C-, and BCO. A simple wiring diagram description includes: connect charger/discharge negative to C-; B- connects to the battery’s total negative electrode.
- Balance lead order note: start wiring from BCO; balance leads (BCO, BC1, BC2, BC3, etc.) connect sequentially to cell positive points in order; do not jump string number.
- Voltage check ranges stated before connection: lithium ion batteries between 3V and 4.2V; lithium iron (LiFePO4) batteries between 2.5V and 3.6V.
- Thick cables: B- and C- should be welded; B- line length should be controlled within 15CM (as stated).
- Battery matching guidance stated: battery voltage difference less than 0.05V; internal resistance difference less than 5 milliohm; capacity difference less than 30 milliohms (wording/units as provided).
- Charging notes stated: use a matching special charger for lithium battery; do not use lead-acid chargers; avoid unstable charging voltage; do not damage the protection plate by incorrect charger connection.
- A reference table is provided for linear current vs wire size, listing linear current levels: within 20A, 25A, 30A, 40A, 60A, 80A, 100A; copper wire sizes: 2.5 square, 4 square, 6 square, 8 square, 14 square, 22 square, 38 square; silicone line AWG values listed: 14AWG, 12AWG, 10AWG, 8AWG, 6AWG.
Details
A 24V hard BMS option for 7S–8S LiFePO4 or Li‑ion battery packs, built for a common‑port wiring setup with balancing.
Follow the included wiring guide carefully—connect C- for charge/discharge negative, and wire balance leads sequentially starting from BCO.
TOLL encapsulated MOS and an aluminum substrate design help reduce resistance and improve heat dissipation during higher-current use.
Protection coverage includes overcharge, over-discharge, overcurrent, short-circuit, temperature protection, plus cell balancing.
Supporting documents from the manufacturer are provided for reference, including quality system and compliance-related paperwork.
Suitable for a wide range of 24V lithium battery applications, from light EVs to energy storage, tools, and AGV systems.
