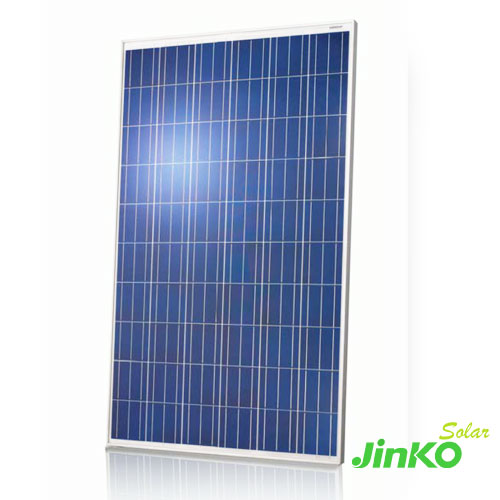

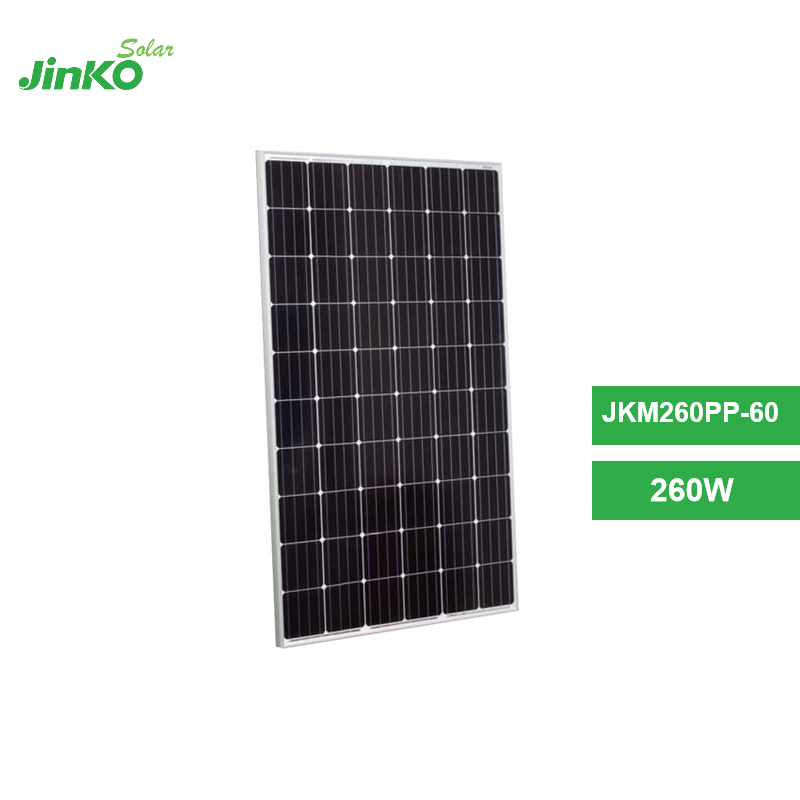

Jinko 260W Solar Panel Overview

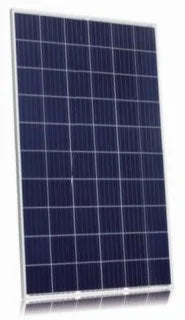

The Jinko 260W Solar Panel (JKM260PP-60) is a high-efficiency polycrystalline solar panel, delivering 260W of maximum power output with a 15.88% efficiency rate. Its 5-busbar technology improves both power conversion and aesthetic appeal, while its dimensions of 1650 x 992 x 40 mm make it ideal for rooftop installations. The panel is designed for durability, withstanding extreme weather conditions such as wind loads up to 2400 Pascal and snow loads up to 5400 Pascal. With PID resistance and excellent low-light performance, this panel ensures reliable energy production even in challenging environments.
Jinko Solar 260W Key Features:
- 5 Busbar Solar Cell Technology: Enhances power efficiency and provides a more streamlined appearance, perfect for rooftop systems.
- High Power Output: Capable of delivering up to 260W under standard test conditions (STC), ensuring high energy generation.
- PID Resistant: Protects against potential induced degradation, ensuring long-term performance stability.

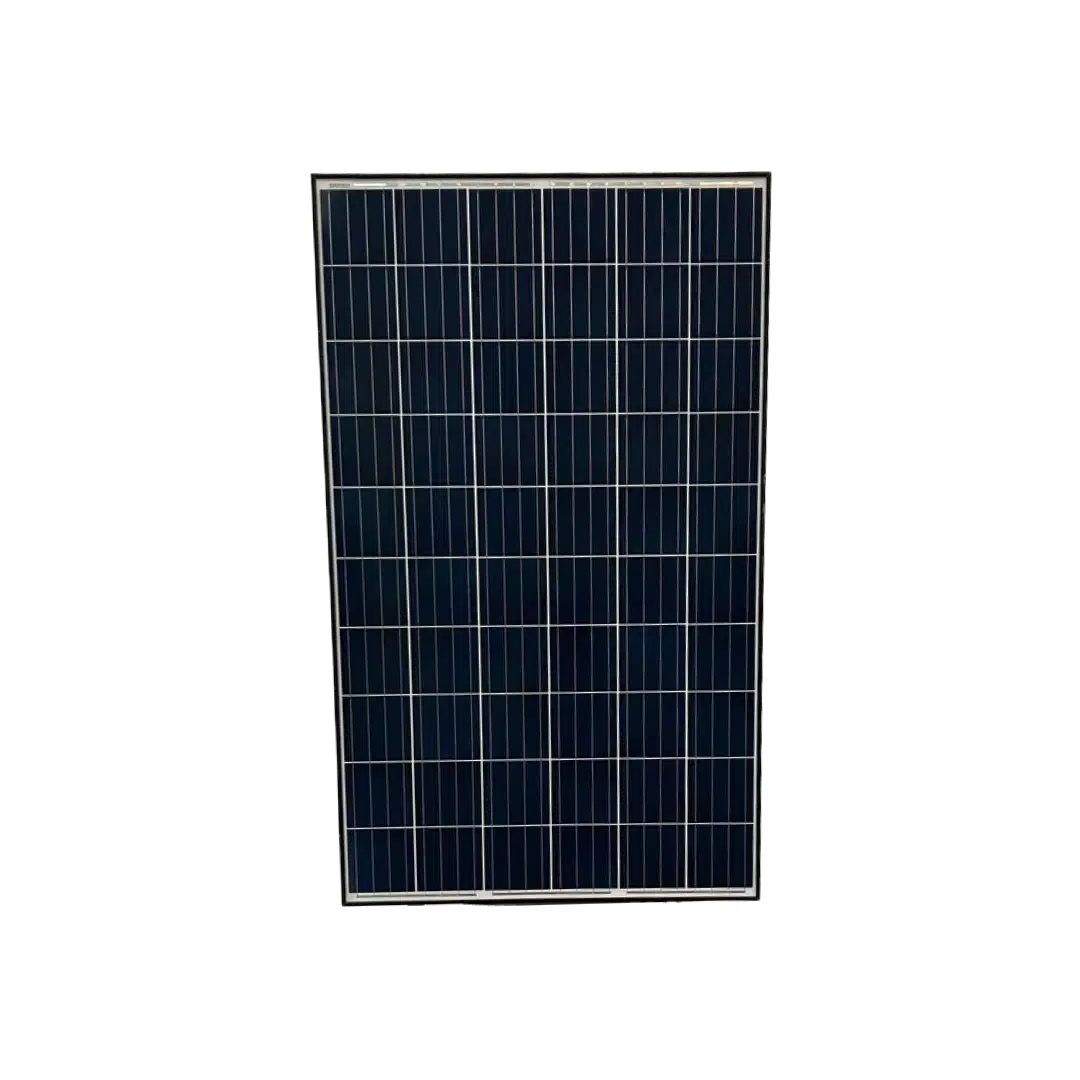

- Low-light Performance: Optimized for excellent energy generation even in low-light conditions, thanks to advanced glass and surface texturing.
- Weather and Corrosion Resistance: Certified to withstand extreme conditions, including wind loads up to 2400 Pascal, snow loads up to 5400 Pascal, and resistance to salt mist and ammonia.
Jinko 260W Datasheet

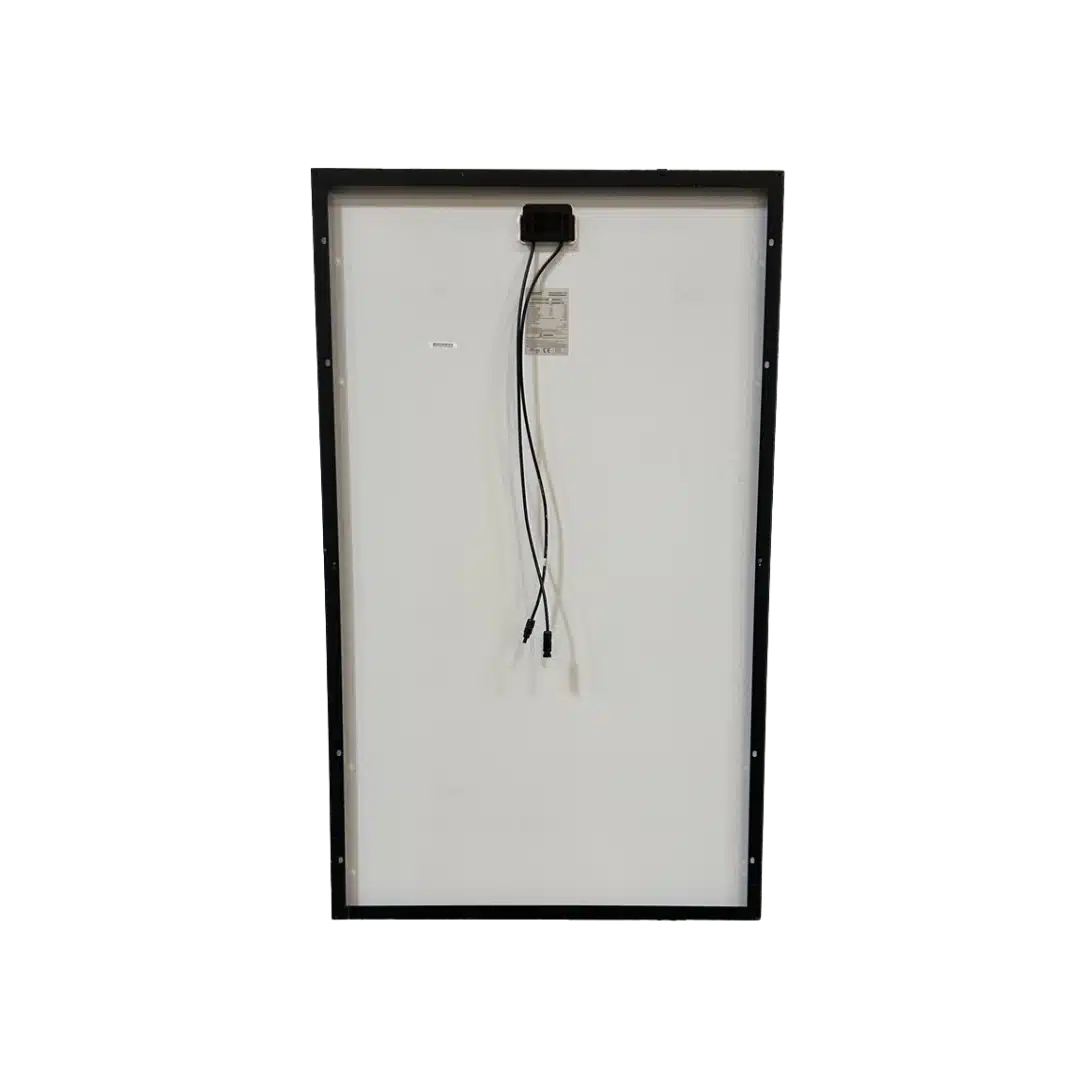

Mechanical Specifications:
- Dimensions: 1650 x 992 x 40 mm (65.00 x 39.05 x 1.57 inches)
- Weight: 19.0 kg (41.9 lbs)
- Front Glass: 3.2mm high transmission, low iron, tempered glass for durability
- Frame: Anodized aluminum alloy, enhancing structural strength and corrosion resistance
- Junction Box: IP67 rated for superior water and dust protection
- Output Cables: TÜV 1x4.0mm², 900mm length (customizable)

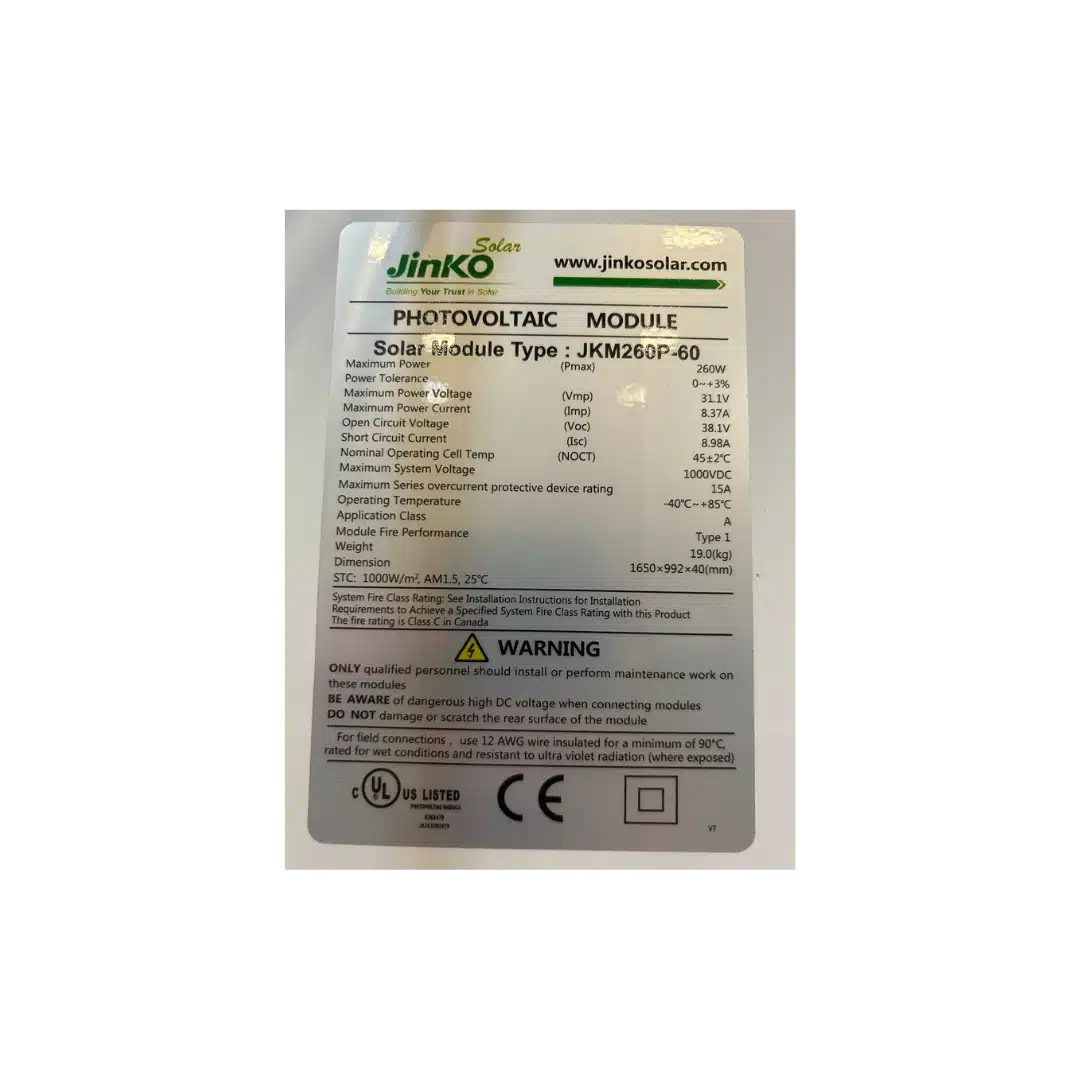

Electrical Specifications:
- Maximum Power (Pmax): 260Wp (STC), 193Wp (NOCT)
- Maximum Power Voltage (Vmp): 31.1V (STC), 28.7V (NOCT)
- Maximum Power Current (Imp): 8.37A (STC), 6.71A (NOCT)
- Open-circuit Voltage (Voc): 38.1V (STC), 35.2V (NOCT)
- Short-circuit Current (Isc): 8.98A (STC), 7.31A (NOCT)
- Module Efficiency: 15.88%
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1000VDC (IEC)
-
Temperature Coefficients:
- Power: -0.40%/°C
- Voltage: -0.31%/°C
- Current: +0.06%/°C
- Nominal Operating Cell Temperature (NOCT): 45 ± 2°C
Packaging Information:
-
Packaging Configuration:
- 26 panels per pallet
- 52 panels per stack
- 728 panels per 40' HQ container
- Securely packaged to ensure safe transport and storage.
Certifications:
- Certified by ISO9001:2008, ISO14001:2004, and OHSAS18001.
- IEC61215 and IEC61730 certified for both safety and high-performance standards.
Warranty:
- 10-Year Product Warranty and 25-Year Linear Power Warranty give you peace of mind, ensuring that the Jinko 260W Solar Panel will deliver reliable performance for years to come.
The Jinko 260W Solar Panel is perfect for both residential and commercial installations, providing excellent durability, efficiency, and reliable energy output. Whether you're looking for a solution for your rooftop or other solar projects, the Jinko 260 Watt Solar Panel offers top-tier performance and a long lifespan, making it a wise investment for sustainable energy generation.
Jinko 260 Watt Solar Panel Details

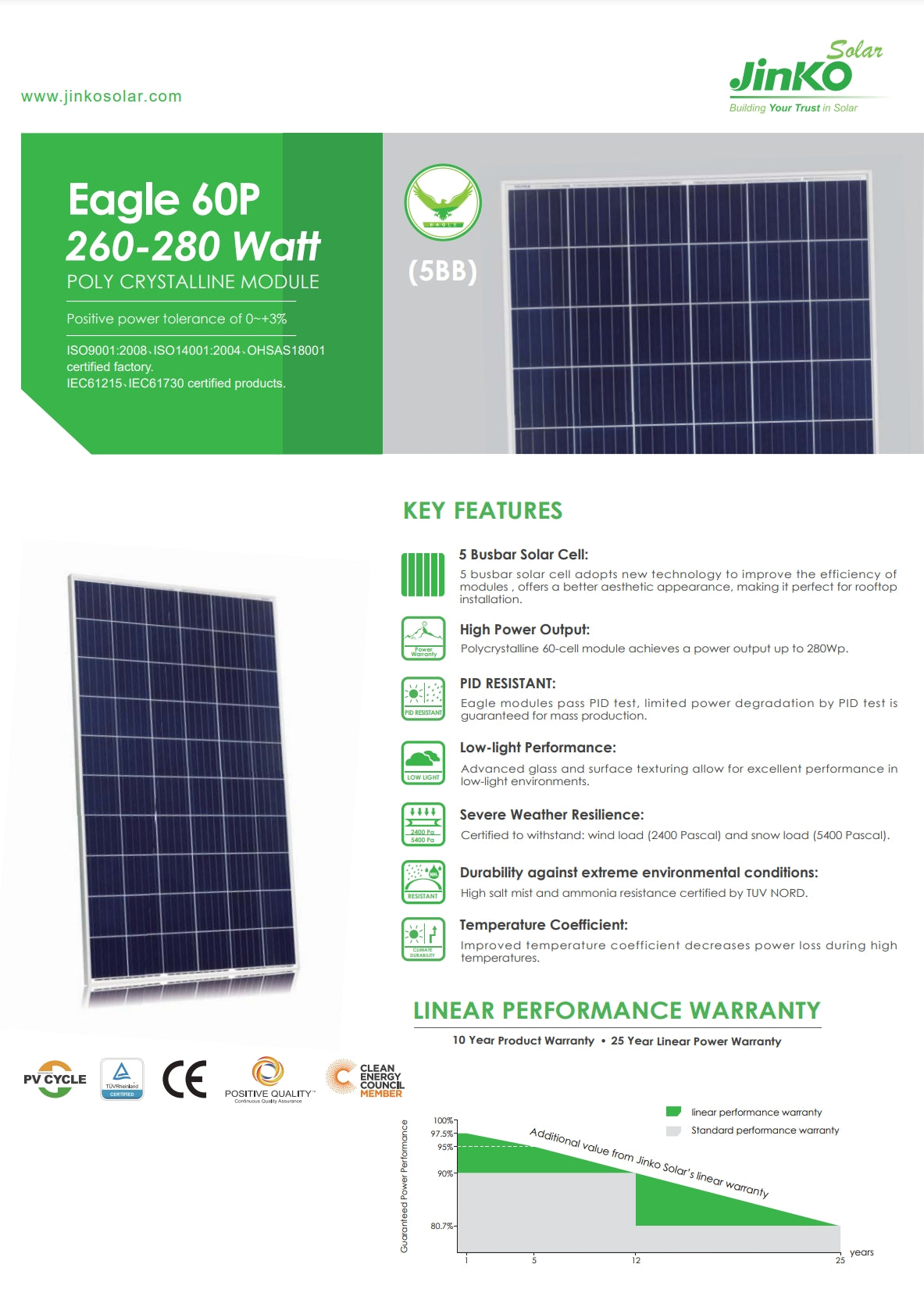

JinKo: Building Your Trust in Solar Energy 60P 260-280 Watt Poly Crystalline Module (SBB) Positive Power Tolerance of +3% ISO9001:2008, ISO14001:2004, OHSAS18001 certified factory; IEC61215, IEC61730 certified products. Key Features: 5 Busbar Solar Cell - a new technology improves module efficiency and offers a better aesthetic appearance for rooftop installation; High Power Output - polycrystalline 60-cell module achieves up to 280Wp; PID Resistant - Eagle modules pass PID test, guaranteeing limited power degradation; Low-Light Performance - advanced glass and surface texturing ensure excellent performance in low-light environments; Severe Weather Resilience - certified to withstand wind load (2400 Pascal) and snow load (5400 Pascal); Durability against extreme environmental conditions; High Salt Mist and Ammonia Resistance certified by TUV NORD; Temperature Coefficient - improved temperature coefficient decreases power loss during high temperatures; Linear Performance Warranty: 10 Year Product Warranty, 25 Year Linear Power Warranty, PV Cycle TD anti-riot, Ceramic POSITIVE QUALITY MEMBER Certificate

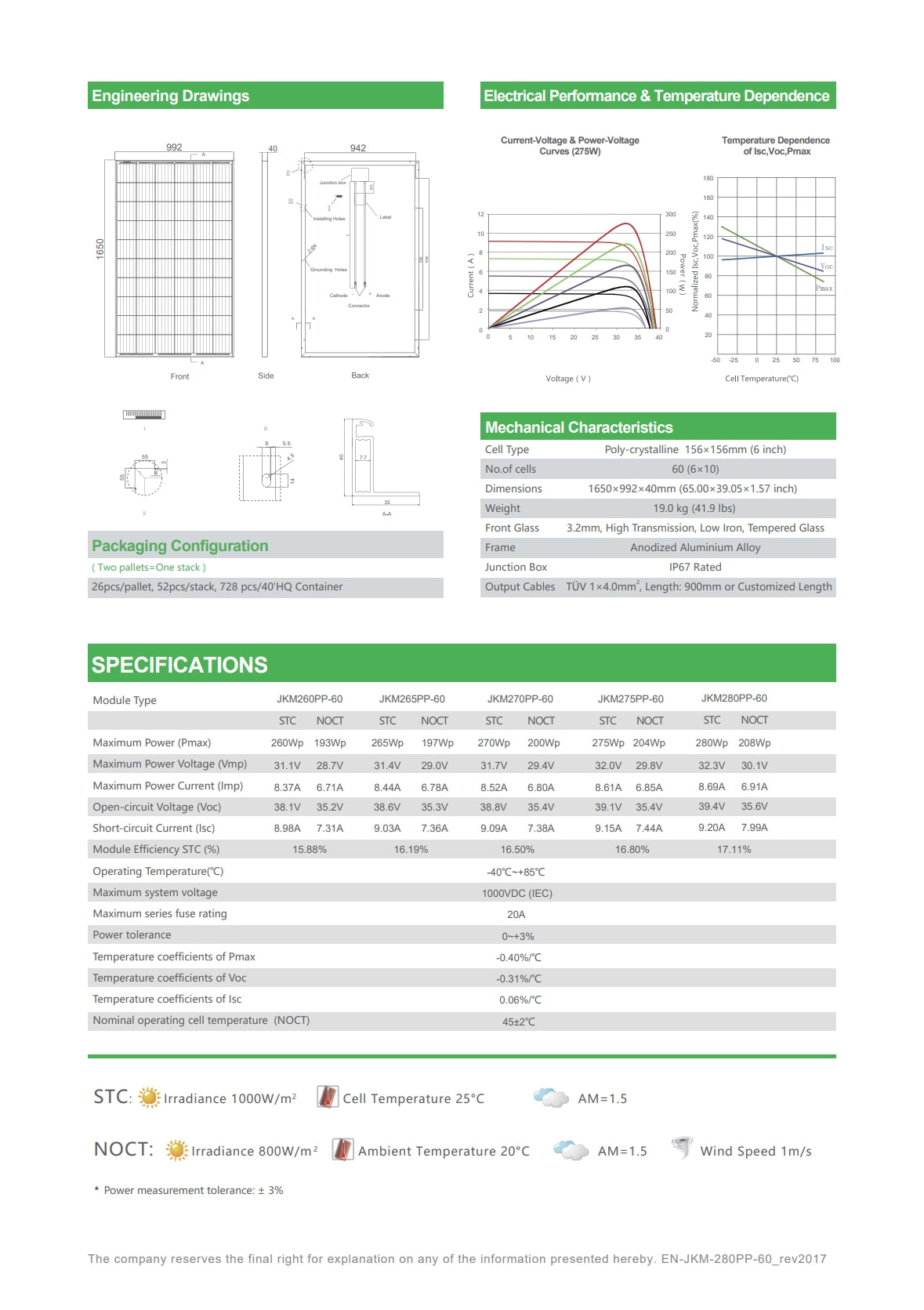

JinkoSolar 260W Solar Panel (JKM260PP-60) Specifications: Module Type: JKM260PP-60 Maximum Power: 260Wp Open-circuit Voltage: 38.1V Short-circuit Current: 8.98A Module Efficiency: 15.88% Operating Temperature: -40°C to +85°C Nominal Operating Cell Temperature (NOCT): 45°C Mechanical Characteristics: Cell Type: Poly-crystalline Dimensions: 1650mm x 992mm x 40mm Weight: 19.0 kg Front Glass: 3.2mm, High Transmission, Low Iron, Tempered Glass Junction Box: IP67 Rated
Jinko Solar Panel JKM260PP-60, 260W photovoltaic module with high efficiency and reliable performance. Ideal for residential and commercial applications.
