Jinko 265W Solar Panel Overview
The Jinko 265W Solar Panel (JKM265PP-60) is a high-performance polycrystalline solar panel designed to deliver reliable and efficient power for various installations. Featuring 265W of maximum power output and a 15.88% efficiency rate, it utilizes 5-busbar technology for enhanced energy conversion and a sleek appearance. Its robust construction, including a 1650 x 992 x 40 mm frame and 19 kg weight, allows it to withstand harsh weather conditions, including wind loads of up to 2400 Pascal and snow loads of 5400 Pascal. With PID resistance and exceptional low-light performance, this panel is ideal for residential and commercial rooftop installations, offering longevity and high energy output.
Jinko Solar 265W Key Features:
- 5 Busbar Solar Cell Technology: Enhances power efficiency and provides a more streamlined appearance, ideal for rooftop installations.
- High Power Output: Provides up to 265W under standard test conditions (STC), ensuring robust energy generation.
- PID Resistant: Protects against potential induced degradation, maintaining long-term performance and stability.
- Low-light Performance: Engineered with advanced glass and surface texturing for improved energy generation in low-light conditions.
- Weather and Corrosion Resistance: Certified to endure extreme environmental conditions, including high wind loads and salt mist exposure, making it suitable for coastal and harsh environments.
Jinko 265W Datasheet
Mechanical Specifications:
- Dimensions: 1650 x 992 x 40 mm (65.00 x 39.05 x 1.57 inches)
- Weight: 19.0 kg (41.9 lbs)
- Front Glass: 3.2mm high transmission, low iron, tempered glass for enhanced durability
- Frame: Anodized aluminum alloy for additional strength and corrosion resistance
- Junction Box: IP67 rated for protection against water and dust
- Output Cables: TÜV 1x4.0mm², 900mm length (customizable)

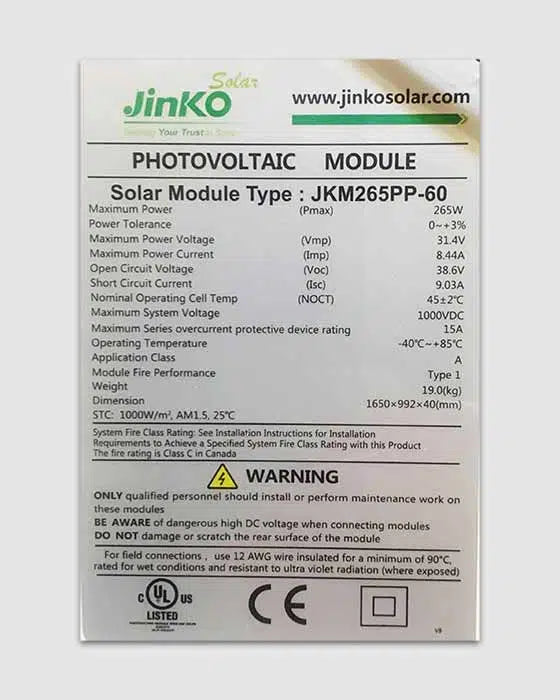

Electrical Specifications:
- Maximum Power (Pmax): 265Wp (STC)
- Maximum Power Voltage (Vmp): 31.4V
- Maximum Power Current (Imp): 8.44A
- Open-circuit Voltage (Voc): 38.6V
- Short-circuit Current (Isc): 9.03A
- Module Efficiency: 15.88%
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1000VDC (IEC)
-
Temperature Coefficients:
- Power: -0.40%/°C
- Voltage: -0.31%/°C
- Current: +0.06%/°C
- Nominal Operating Cell Temperature (NOCT): 45 ± 2°C
Packaging Information:
-
Packaging Configuration:
- 26 panels per pallet
- 52 panels per stack
- 728 panels per 40' HQ container
- Secure packaging ensures safe transport and storage.
Certifications:
- Certified by ISO9001:2008, ISO14001:2004, and OHSAS18001, ensuring high standards for quality and environmental management.
- IEC61215 and IEC61730 certified, guaranteeing safety and performance.
Fire Performance:
- Module Fire Performance: Rated as Type 1 for compliance with fire safety standards.
Warranty:
- 10-Year Product Warranty and 25-Year Linear Power Warranty give you peace of mind, ensuring that the Jinko 265W Solar Panel will deliver reliable performance for decades.
The Jinko 265W Solar Panel is an excellent choice for both residential and commercial solar installations, offering exceptional efficiency, durability, and long-term energy output. Whether for rooftop solar projects or larger commercial installations, the Jinko 265W Solar Panel provides dependable and sustainable energy generation.
