Jinko 270W Solar Panel Overview

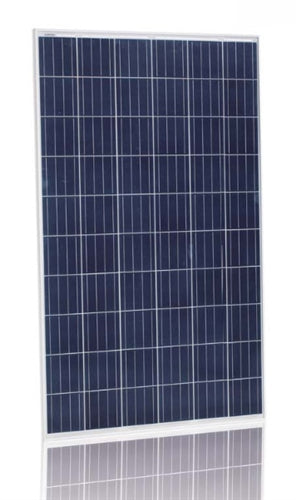

The Jinko 270W Solar Panel (JKM270PP-60) is a high-performance polycrystalline photovoltaic module designed to deliver reliable and efficient power generation. With a maximum power output of 270W and a 16.50% efficiency rate, this solar panel uses 5-busbar technology to enhance power conversion and improve aesthetic appeal. Its robust design and construction make it suitable for rooftop installations in residential and commercial environments.

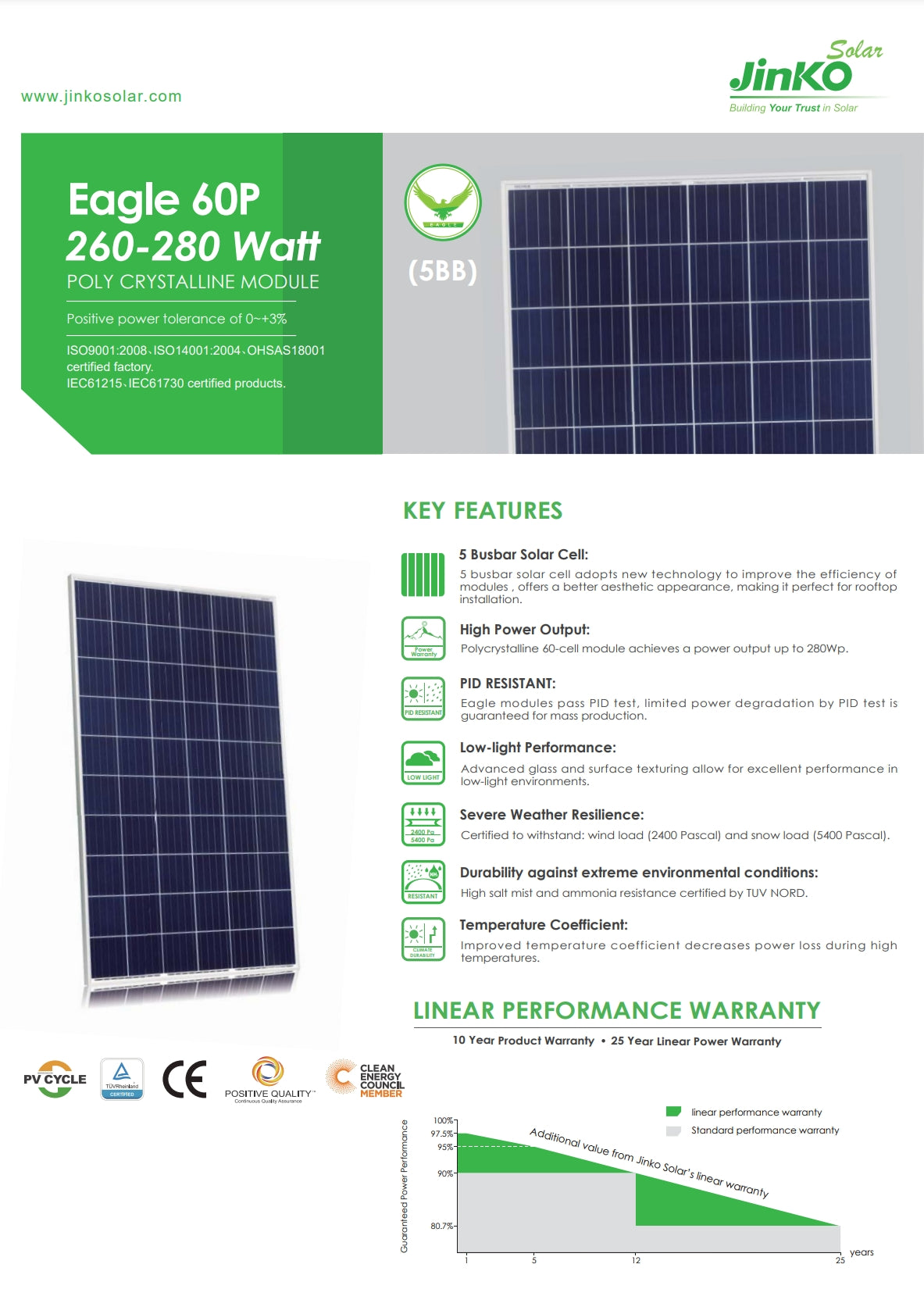

Jinko Solar 270W Key Features:
- 5 Busbar Solar Cell Technology: Enhances energy conversion efficiency and provides a streamlined appearance, making it perfect for rooftop systems.
- High Power Output: Delivers up to 270W under standard test conditions (STC), ensuring optimal energy generation.
- PID Resistant: Protects against potential induced degradation, maintaining long-term performance stability.
- Low-light Performance: Advanced glass and surface texturing allow for improved performance even in low-light environments.
- Weather and Corrosion Resistance: Certified to endure harsh environmental conditions, including wind loads of 2400 Pascal and snow loads of 5400 Pascal, making it suitable for coastal and high-salt areas.
Jinko 270W Datasheet
Mechanical Specifications:
- Dimensions: 1650 x 992 x 40 mm (65.00 x 39.05 x 1.57 inches)
- Weight: 19.0 kg (41.9 lbs)
- Front Glass: 3.2mm high transmission, low iron, tempered glass for enhanced durability.
- Frame: Anodized aluminum alloy, providing additional structural strength and corrosion resistance.
- Junction Box: IP67 rated for superior water and dust protection.

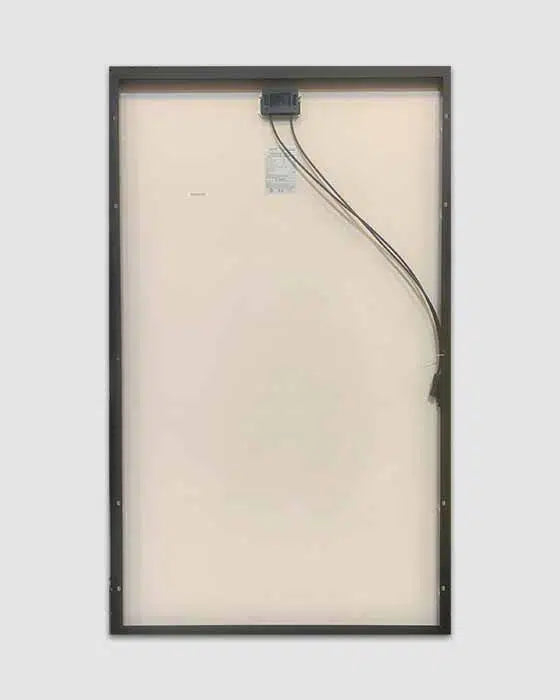

- Output Cables: TÜV 1x4.0mm², 900mm length (customizable).
Electrical Specifications:
- Maximum Power (Pmax): 270Wp (STC), 200Wp (NOCT)
- Maximum Power Voltage (Vmp): 31.7V (STC), 29.4V (NOCT)
- Maximum Power Current (Imp): 8.52A (STC), 6.80A (NOCT)
- Open-circuit Voltage (Voc): 38.8V (STC), 35.3V (NOCT)
- Short-circuit Current (Isc): 9.09A (STC), 7.38A (NOCT)
- Module Efficiency: 16.50%
- Operating Temperature Range: -40°C to +85°C
- Maximum System Voltage: 1000VDC (IEC)
-
Temperature Coefficients:
- Power: -0.40%/°C
- Voltage: -0.31%/°C
- Current: +0.06%/°C
- Nominal Operating Cell Temperature (NOCT): 45 ± 2°C
Packaging Information:
-
Packaging Configuration:
- 26 panels per pallet
- 52 panels per stack
- 728 panels per 40' HQ container
- Securely packaged to ensure safe transport and storage.
Certifications:
- Certified by ISO9001:2008, ISO14001:2004, and OHSAS18001, ensuring high standards for quality and environmental management.

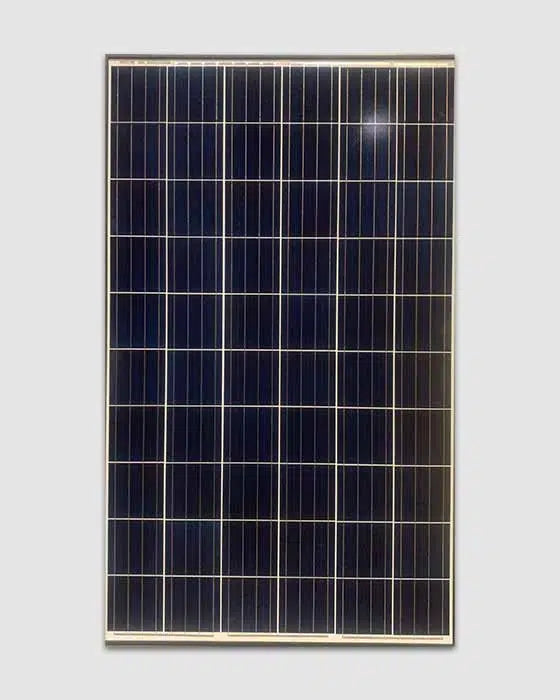

- IEC61215 and IEC61730 certified, guaranteeing safety and performance.
Warranty:
- 10-Year Product Warranty and 25-Year Linear Power Warranty provide assurance of long-term reliability and performance.
The Jinko 270W Solar Panel is designed to offer superior energy output and resilience in diverse environmental conditions. Whether for residential or commercial use, this panel delivers dependable performance, making it an excellent investment for sustainable energy solutions.
Jinko 270 Watt Solar Panel Details

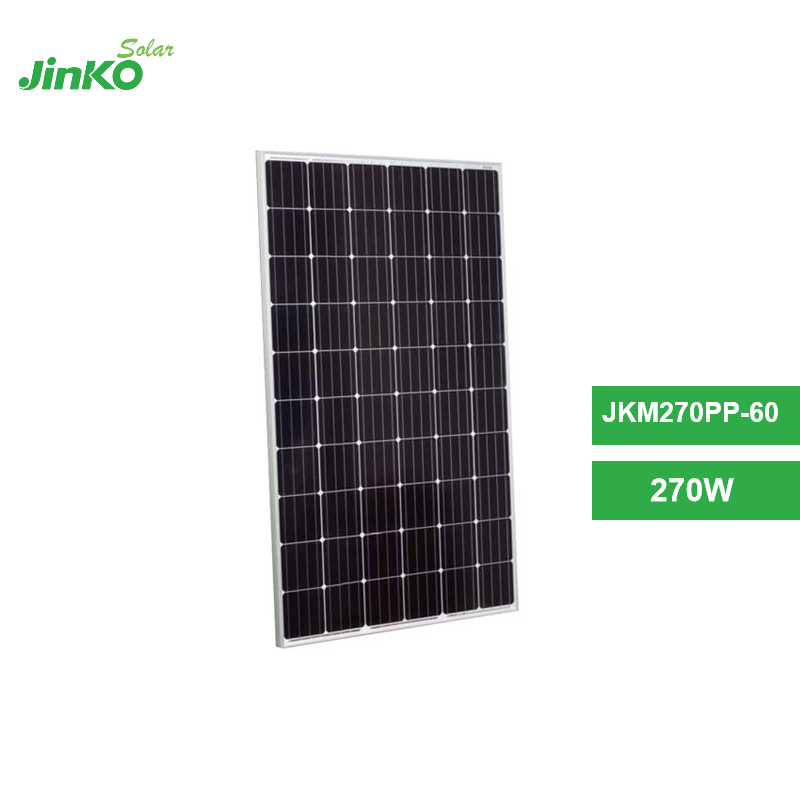

JinkoSolar presents its premium product, JKM270PP-60, a 270W solar panel with exceptional performance and durability.

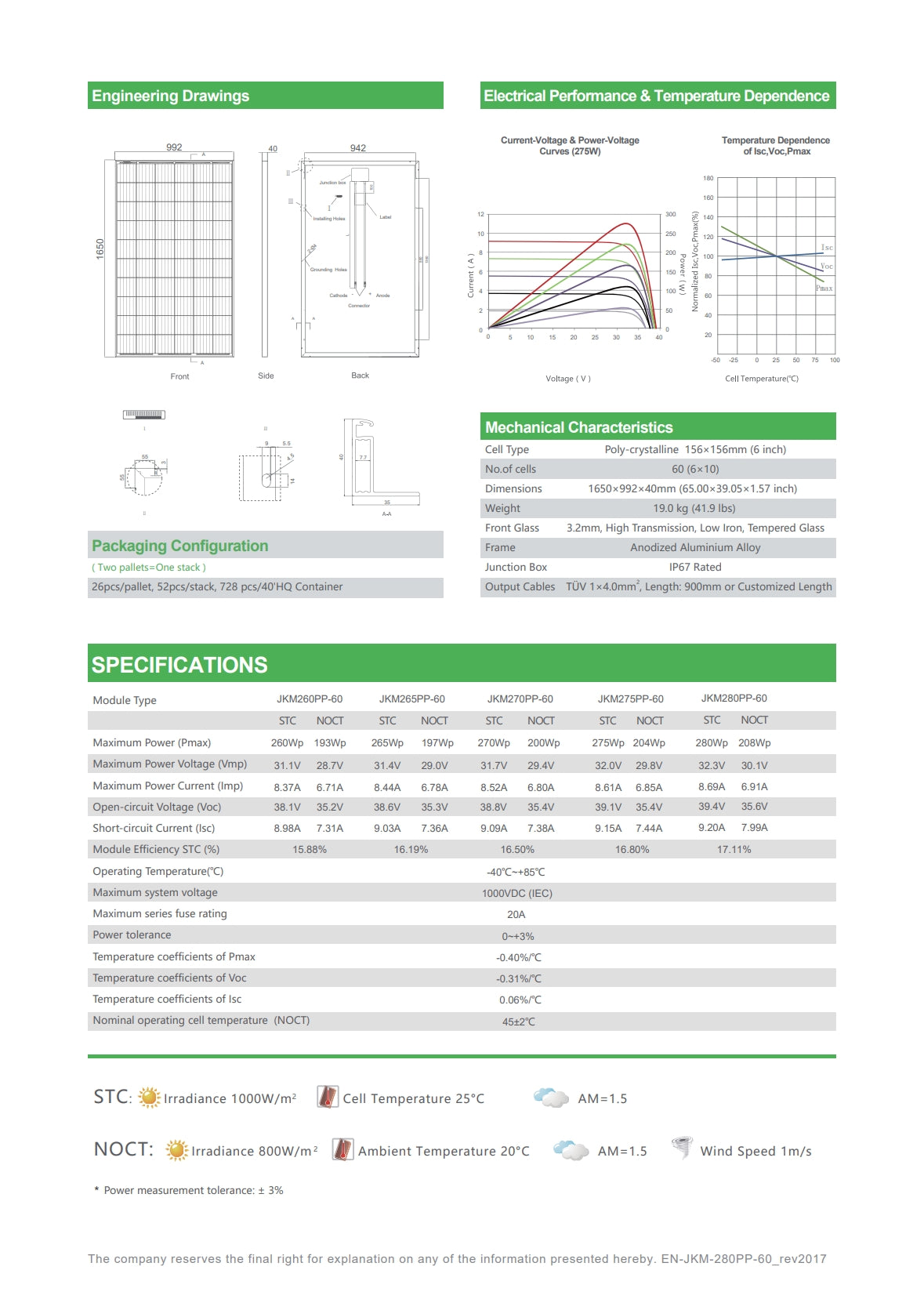

Jinko 270W Solar Panel (JKM270PP-60) Product Specifications: Engineering Drawings, Electrical Performance & Temperature Dependence. Current-Voltage, Power-Voltage, Temperature Dependence. 992 Curves for Isc, Voc, Pmax. Front Side, Back Voltage, Cell Temperature, Mechanical Characteristics: Poly-crystalline, 156x156mm (6 inch), No. of cells: 60 (6*10). Dimensions: 1650*992x40mm (65.00x39.05x1.57 inch), Weight: 19.0 kg (41.9 lbs), Front Glass: 3.2mm, High Transmission, Low Iron, Tempered Glass. Packaging Configuration: Frame Anodized Aluminium Alloy, Two pallets-One stack. Junction Box IP67 Rated.
Jinko Solar Panel 270W (JKM270PP-60) - High Efficiency Monocrystalline Photovoltaic Module for Residential and Commercial Power Generation
