Jinko 275W Solar Panel (JKM275PP-60)
The Jinko 275W Solar Panel (JKM275PP-60) is a high-performance polycrystalline module designed to deliver reliable energy output even in challenging environmental conditions. Equipped with advanced 5-busbar solar cell technology, this panel enhances power efficiency and offers a sleek appearance for easy rooftop installation.
Jinko 275 Watt Solar Panel Key Features:
- High Power Output: This 60-cell polycrystalline panel achieves up to 275W peak power, ensuring robust energy production.
- PID Resistance: Built to withstand potential-induced degradation, this module maintains efficiency and reliability over long-term usage.
- Low-Light Performance: Optimized glass and surface texturing allow it to perform well in low-light settings, maximizing energy capture.
- Severe Weather Resilience: With certifications to withstand high wind loads (2400 Pascal) and snow loads (5400 Pascal), this panel is durable against extreme weather.
- Corrosion Resistance: Certified against salt mist and ammonia, making it suitable for coastal and agricultural applications.
- Temperature Coefficient: Enhanced temperature coefficient reduces power loss at higher temperatures, boosting performance in hotter climates.

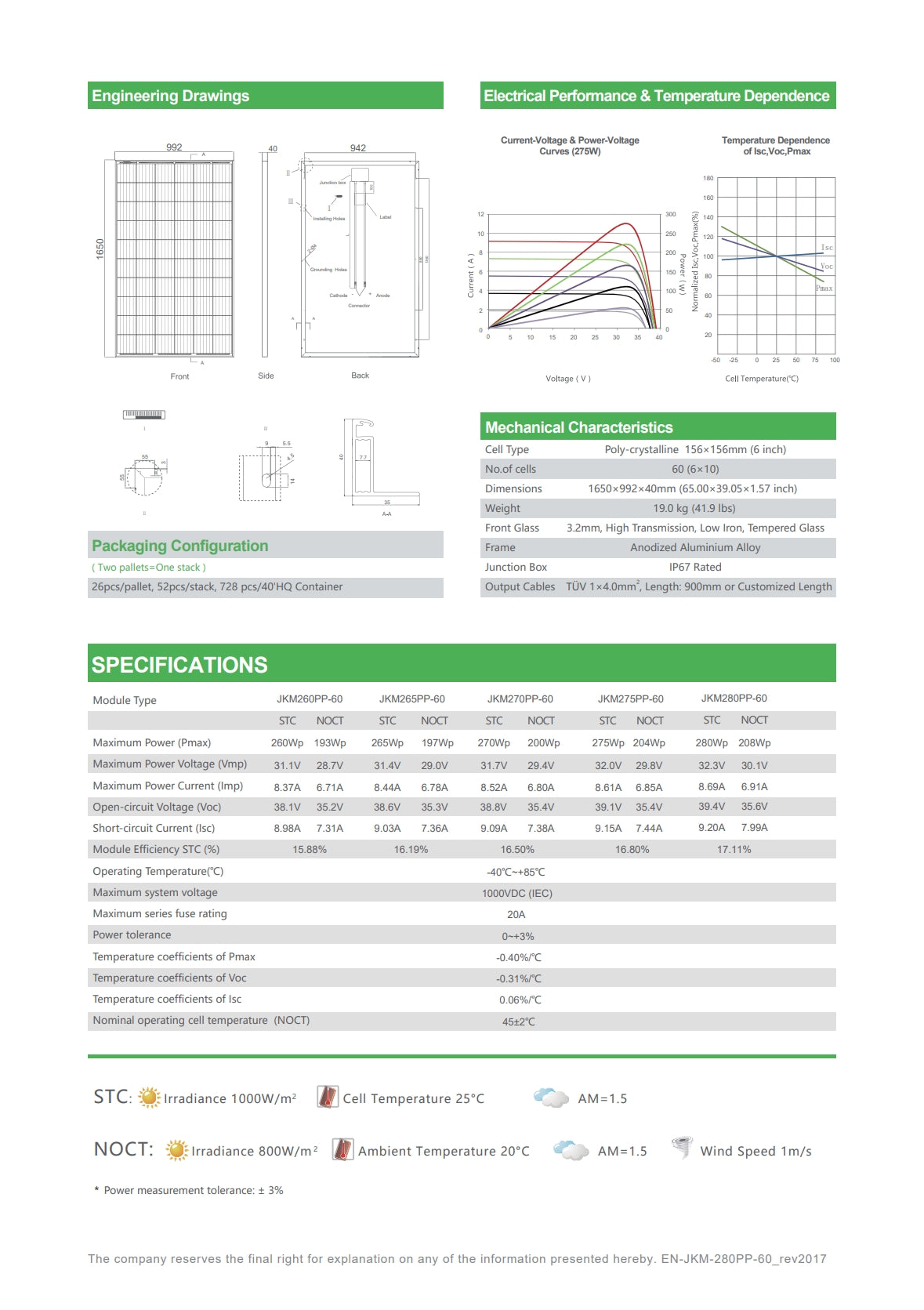

Jinko 275W Datasheet
Specifications:
- Cell Type: Poly-crystalline, 156 x 156 mm (6 inches)
- Cell Count: 60 (6x10 configuration)
- Dimensions: 1650 x 992 x 40 mm (65.0 x 39.05 x 1.57 inches)
- Weight: 19.0 kg (41.9 lbs)
- Front Glass: 3.2 mm, high-transmission, low-iron, tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP67 rated for water and dust protection
- Output Cables: TÜV 1x4.0 mm², customizable cable length
Electrical Performance:
- Max Power (Pmax): 275W (STC), 204W (NOCT)
- Max Power Voltage (Vmp): 31.7V (STC), 29.4V (NOCT)
- Max Power Current (Imp): 8.65A (STC), 6.94A (NOCT)
- Open-Circuit Voltage (Voc): 38.8V (STC), 35.4V (NOCT)
- Short-Circuit Current (Isc): 9.05A (STC), 7.58A (NOCT)
- Module Efficiency: 16.50%
- Operating Temperature: -40°C to +85°C
- Max System Voltage: 1000V DC (IEC)
- Series Fuse Rating: 20A
- Power Tolerance: 0~+3%
Temperature Coefficients:
- Pmax: -0.40%/°C
- Voc: -0.31%/°C
- Isc: +0.06%/°C
Warranty & Certifications:
- Product Warranty: 10 years
- Linear Power Warranty: 25 years
- Certifications: ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730
Designed for efficient and reliable power output, the Jinko 275W Solar Panel is a versatile solution for both residential and commercial installations. Its robust construction and advanced features make it an excellent choice for sustainable energy needs.

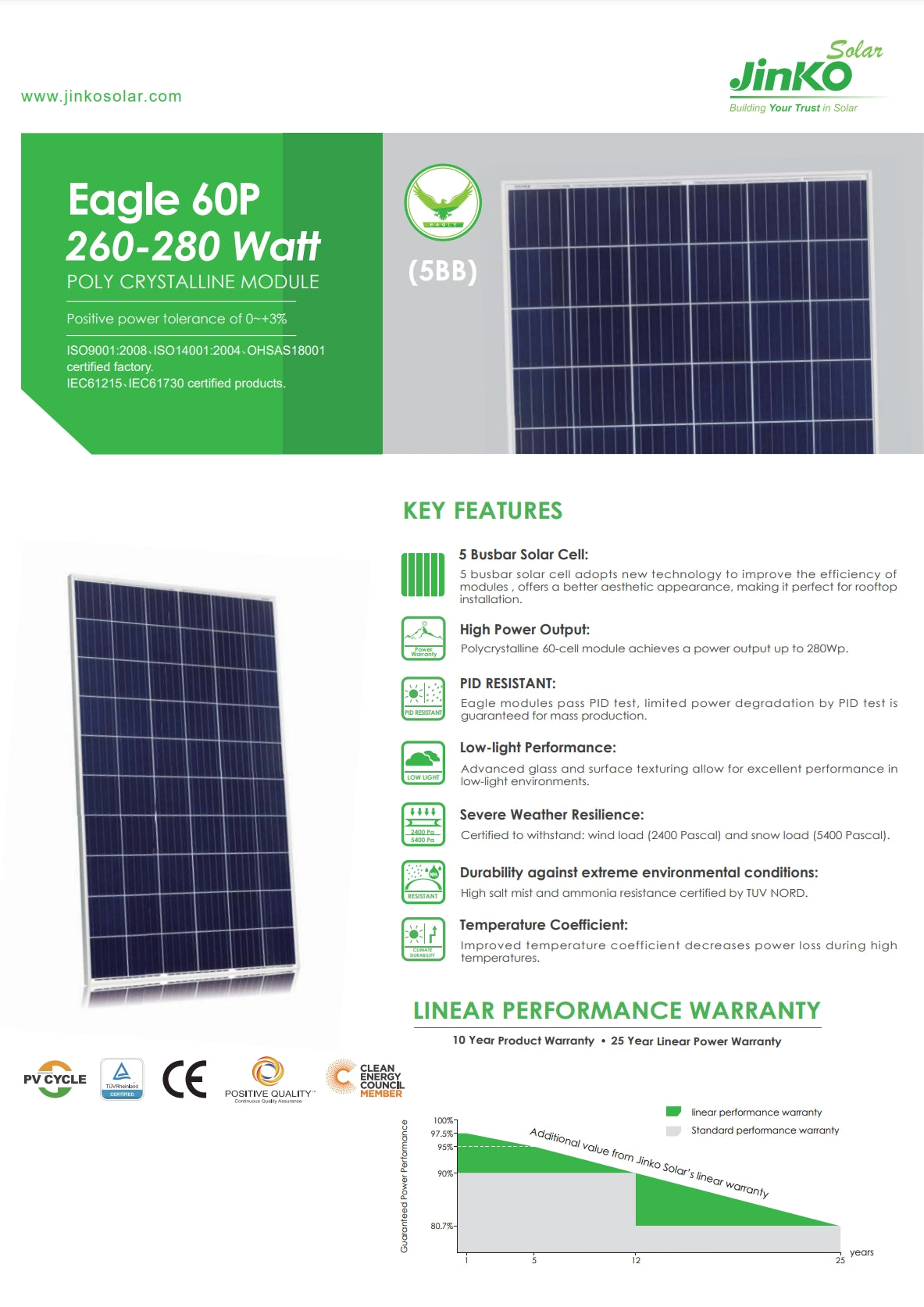

Jinko Solar Eagle Series: Building Your Trust in Solar Power 260-280 Watt POLY CRYSTALLINE MODULE (SBB) with Positive Power Tolerance of +3% and certifications from ISO9001:2008, ISO14001:2004, OHSAS18001. KEY FEATURES: 5 Busbar Solar Cell: New technology for improved efficiency and aesthetic appearance for rooftop installation High Power Output: Polycrystalline 60-cell module achieves a power output up to 260-280 watts PID Resistant: Eagle modules pass PID test, limited power degradation guaranteed for mass production Low-Light Performance: Advanced glass and surface texturing for excellent performance in low-light environments Severe Weather Resilience: Certified to withstand wind load (2400 Pascal) and snow load (5400 Pascal) Durability against extreme environmental conditions: High salt mist and ammonia resistance certified by TUV NORD Temperature Coefficient: Improved temperature coefficient decreases power loss during high temperatures Linear Performance Warranty: 10-year product warranty, 25-year linear power warranty
High-efficiency Jinko 275W solar panel designed for residential and commercial use, offering reliable power generation with a durable construction.
