Jinko 280W Solar Panel Overview
The Jinko 280W Solar Panel (JKM280M-60B) is a high-efficiency monocrystalline module, optimized for superior energy output and durability in various environments. With advanced Passivated Emitter Rear Contact (PERC) technology, it delivers up to 17.11% module efficiency, making it ideal for both residential and commercial applications. Enhanced with smart module features, it provides consistent performance even in challenging conditions, maximizing power generation across different orientations and shading scenarios.
Jinko 280 Watt Solar Panel Key Features:
- High Module Efficiency: Achieves up to 17.11% efficiency through PERC technology, enhancing power output.
- Smart Module Technology: Integrated intelligent cell optimizer IC reduces power loss due to shading, soiling, and other environmental mismatches, ensuring peak power performance.
- Flexible Orientation Compatibility: Suitable for any rooftop condition, providing optimal output across various installation angles and orientations.
- Hot Spot Elimination: Minimizes potential hot spots, protecting the panel from degradation and extending its lifespan.
- Shade Tolerance: Equipped with Maximum Power Point Tracking (MPPT) for individual cell strings, ensuring maximum energy harvest in shaded areas.
- EMI Resistance: Built with anti-electromagnetic interference capabilities for smooth operation.
- Compatibility: Works seamlessly with inverters and optimization systems without the need for additional hardware.
Jinko 280W Datasheet
Specifications:
- Cell Type: Monocrystalline PERC, 156 x 156 mm (6 inches)
- Cell Count: 60 (6x10 configuration)
- Dimensions: 1650 x 992 x 40 mm (65.0 x 39.05 x 1.57 inches)
- Weight: 19.0 kg (41.9 lbs)
- Front Glass: 3.2 mm, high-transmission, low-iron, tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP65 rated for water and dust protection
- Output Cables: TÜV 1x4.0 mm², customizable cable length
Electrical Performance:
- Max Power (Pmax): 280W (STC), 209W (NOCT)
- Max Power Voltage (Vmp): 31.7V (STC), 29.7V (NOCT)
- Max Power Current (Imp): 8.81A (STC), 7.04A (NOCT)
- Open-Circuit Voltage (Voc): 38.6V (STC), 36.8V (NOCT)
- Short-Circuit Current (Isc): 9.32A (STC), 7.81A (NOCT)
- Module Efficiency: 17.11%
- Operating Temperature: -40°C to +85°C
- Max System Voltage: 1000V DC (IEC)
- Series Fuse Rating: 15A
- Power Tolerance: 0~+3%
Temperature Coefficients:
- Pmax: -0.39%/°C
- Voc: -0.29%/°C
- Isc: +0.05%/°C
Warranty & Certifications:
- Product Warranty: 10 years
- Linear Power Warranty: 25 years
- Certifications: PV Cycle, TÜV, MCS, CE
The Jinko 280W Solar Panel (JKM280M-60B) combines high efficiency, intelligent design, and resilience, making it an exceptional choice for those looking to invest in a reliable and long-lasting solar energy solution. Perfect for residential and commercial installations, this panel ensures robust performance under diverse conditions.

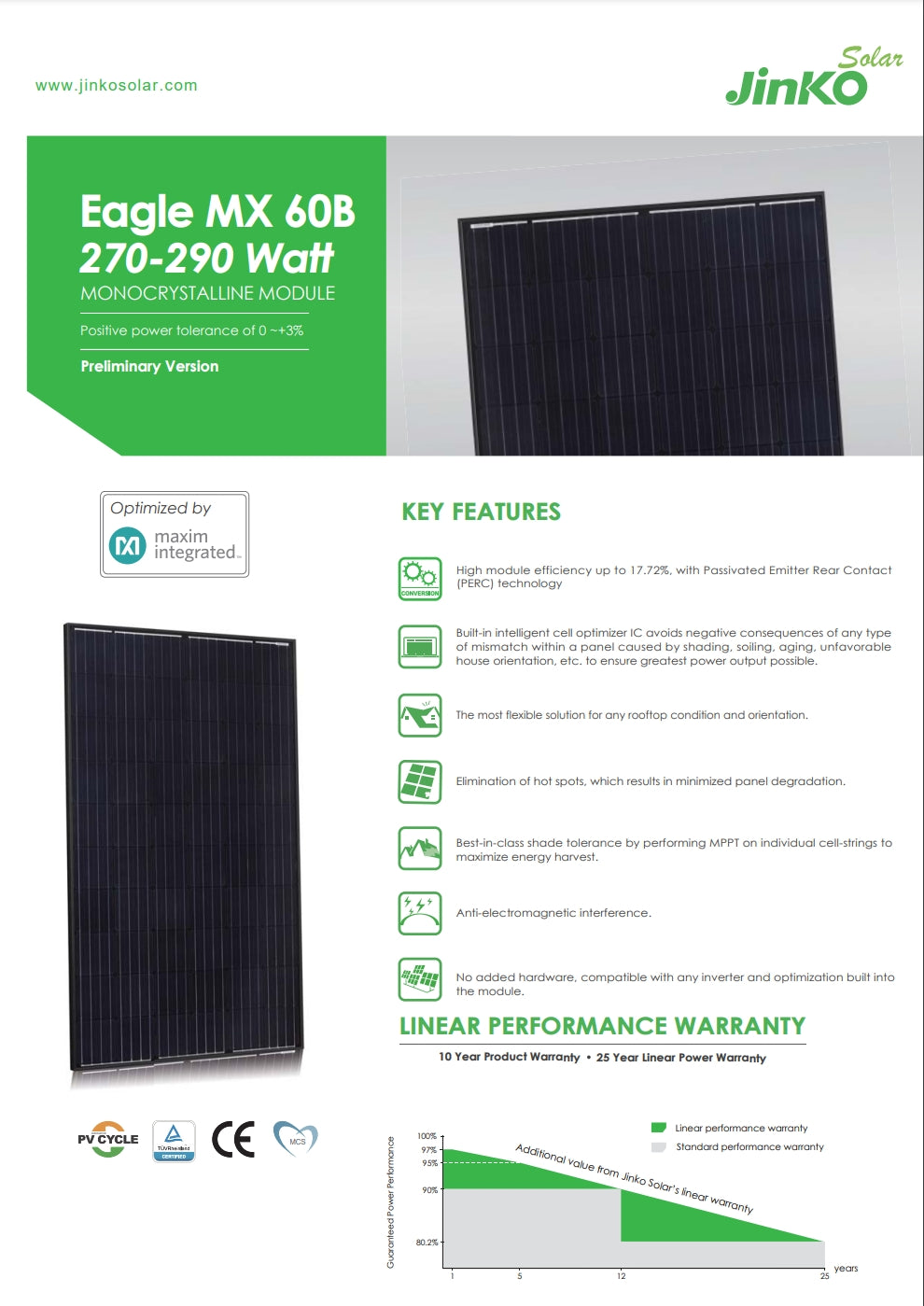

The Jinko 280W Solar Panel (JKM280M-60B) features a monocrystalline module with a power output of 270-290 Watts. The PosiPower tolerance is ±3.7%. The module boasts high efficiency, up to 17.72%, thanks to its optimized design and PERC technology. A built-in intelligent cell optimizer ensures optimal energy harvest by avoiding negative impacts from shading, soiling, aging, and unfavorable orientation. The panel flexibility allows for maximum power output in any rooftop condition or orientation, eliminating hot spots that can lead to degradation.

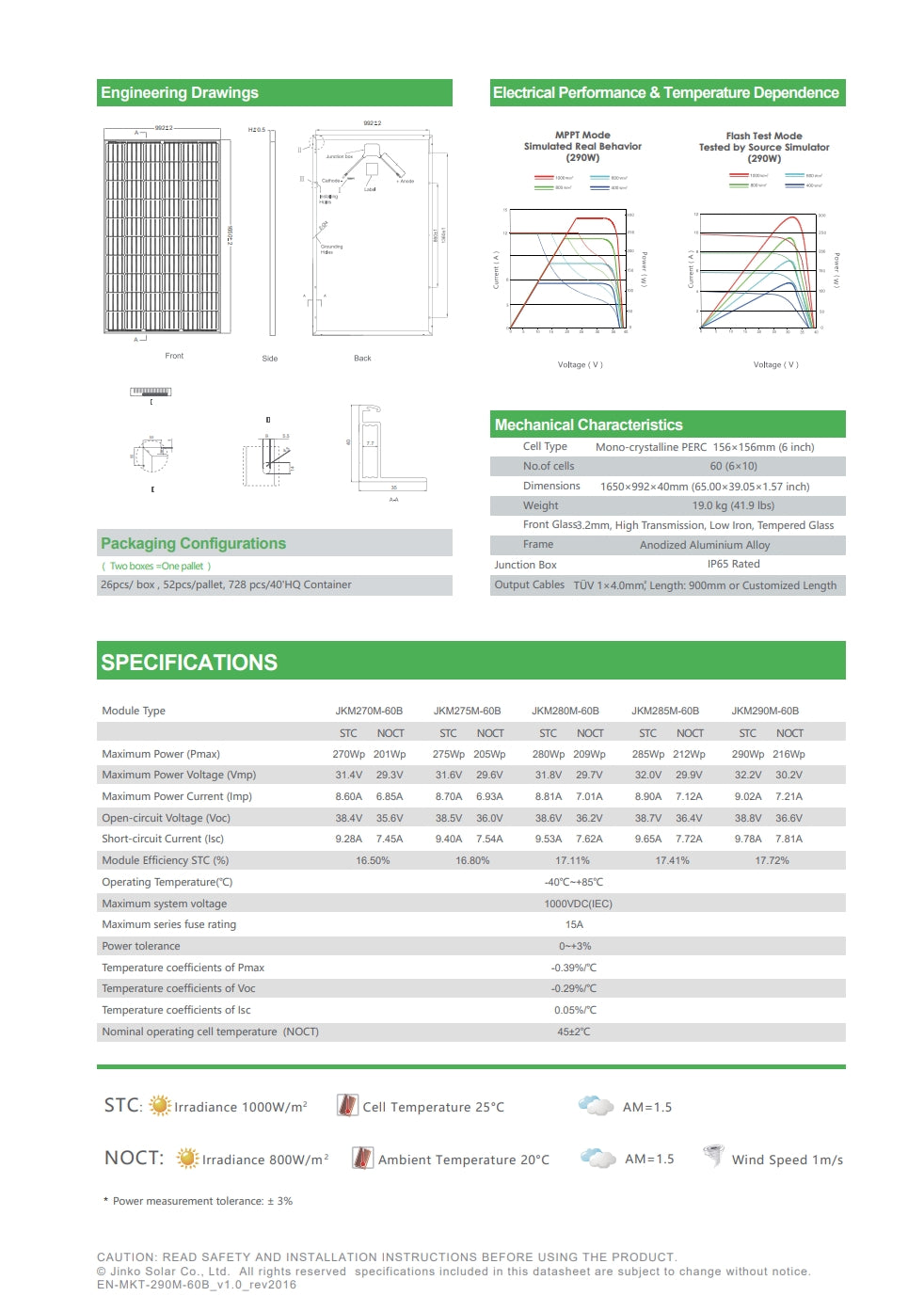

The Jinko 280W Solar Panel (JKM280M-60B) features engineering drawings, electrical performance, and temperature dependence tests. The MPPT mode flash test simulates real behavior tested by a source simulator at 290W. Key specifications include cell type mono-crystalline PERC, dimensions 1650x992*40mm, weight 19.0kg, and packaging configurations with anodized aluminum alloy frames.
