Jinko 290W Solar Panel (JKM290M-60)
The Jinko 290W Solar Panel (JKM290M-60) is a high-efficiency monocrystalline module engineered for both residential and commercial solar installations. This panel offers a maximum power output of 290W and features advanced 5-busbar cell technology, enhancing both efficiency and durability. With robust performance in diverse environmental conditions, the Jinko 290W Solar Panel is designed to provide sustainable, reliable energy.

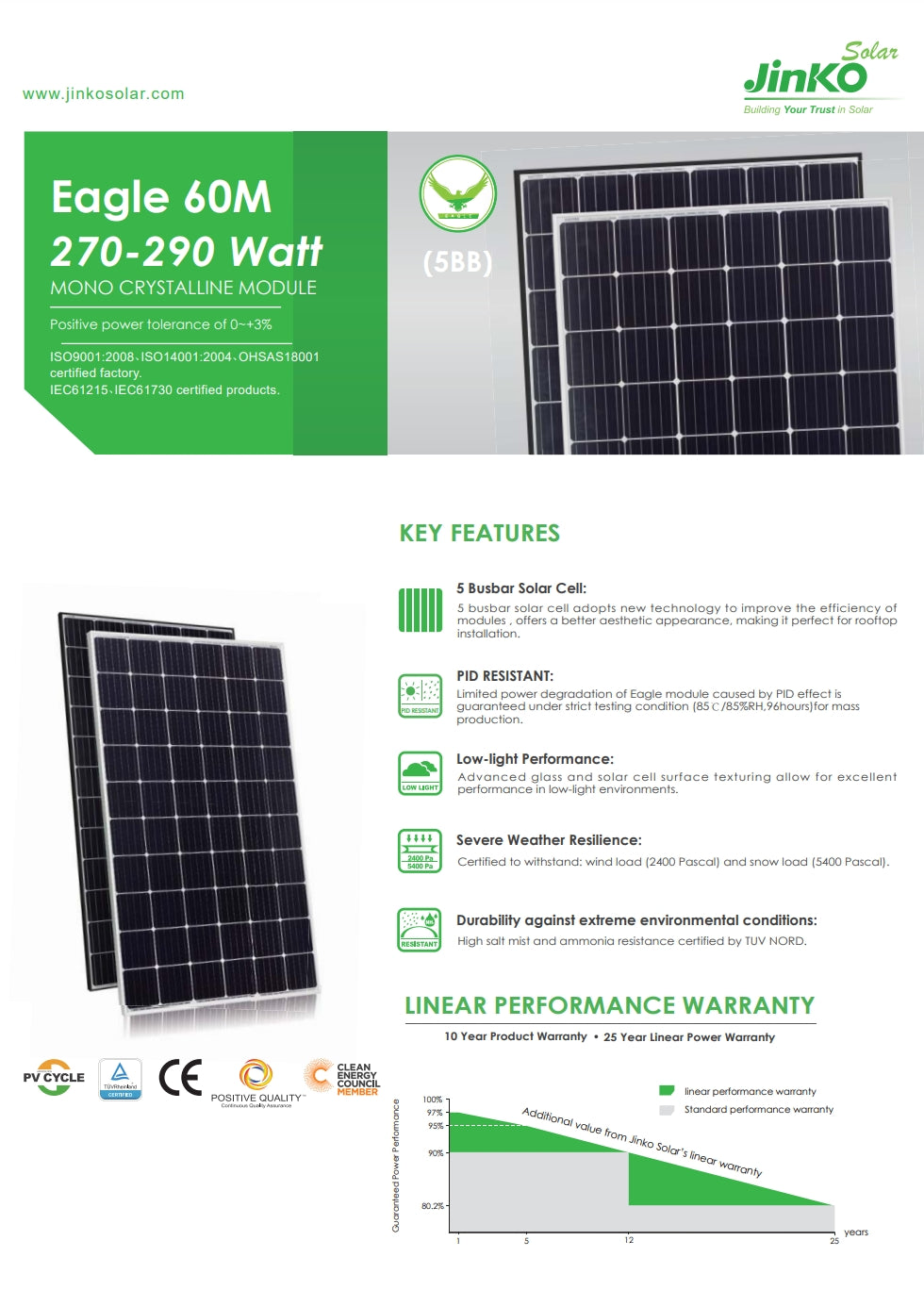

Key Features of Jinko 290 Watt Solar Panel
- 5 Busbar Solar Cell: Enhanced 5-busbar technology increases power efficiency and aesthetics, making it ideal for rooftop installations.
- High Power Output: The Jinko 290W Solar Panel delivers up to 290W of power output, maximizing energy generation.
- PID Resistance: Constructed to withstand potential-induced degradation, ensuring consistent, long-term performance.
- Low-Light Performance: Advanced glass and surface texturing allow for excellent performance in low-light environments, optimizing energy capture.
- Weather Resilience: Certified to handle high wind loads (2400 Pascal) and snow loads (5400 Pascal), suitable for extreme weather.
- Corrosion Resistance: Certified for resistance against salt mist and ammonia, making it suitable for coastal and agricultural environments.
- Temperature Coefficient: Improved temperature coefficient decreases power loss in higher temperatures, maintaining output stability.
Jinko 290W Datasheet
Specifications
- Cell Type: Monocrystalline, 156 x 156 mm (6 inches)
- Number of Cells: 60 (6x10 configuration)
- Dimensions: 1650 x 992 x 40 mm (65.0 x 39.05 x 1.57 inches)
- Weight: 19.0 kg (41.9 lbs)
- Front Glass: 3.2 mm, high-transmission, low-iron, tempered glass with anti-reflection coating
- Frame: Anodized aluminum alloy
- Junction Box: IP67 rated for water and dust protection
- Output Cables: TÜV 1x4.0 mm², customizable cable length
Electrical Performance
- Maximum Power (Pmax): 290W (STC), 216W (NOCT)
- Maximum Power Voltage (Vmp): 32.3V (STC), 30.2V (NOCT)
- Maximum Power Current (Imp): 8.97A (STC), 7.15A (NOCT)
- Open-Circuit Voltage (Voc): 39.6V (STC), 36.6V (NOCT)
- Short-Circuit Current (Isc): 9.55A (STC), 7.81A (NOCT)
- Module Efficiency: 17.72%
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1000V DC (IEC)
- Series Fuse Rating: 20A
- Power Tolerance: 0~+3%
Temperature Coefficients
- Pmax: -0.40%/°C
- Voc: -0.29%/°C
- Isc: +0.05%/°C
Warranty and Certifications
- Product Warranty: 10 years
- Linear Power Warranty: 25 years
- Certifications: ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730
Applications
The Jinko 290W Solar Panel (JKM290M-60) is an ideal solution for residential rooftops, commercial buildings, and off-grid solar installations. Its high efficiency and durability ensure a stable power supply, making it a reliable choice for various energy needs.
The Jinko 290W Solar Panel combines cutting-edge technology with durability, allowing for sustainable energy production across a wide range of applications. With its high power output and advanced design, the Jinko 290W Solar Panel is engineered to deliver optimal performance even in challenging environments.

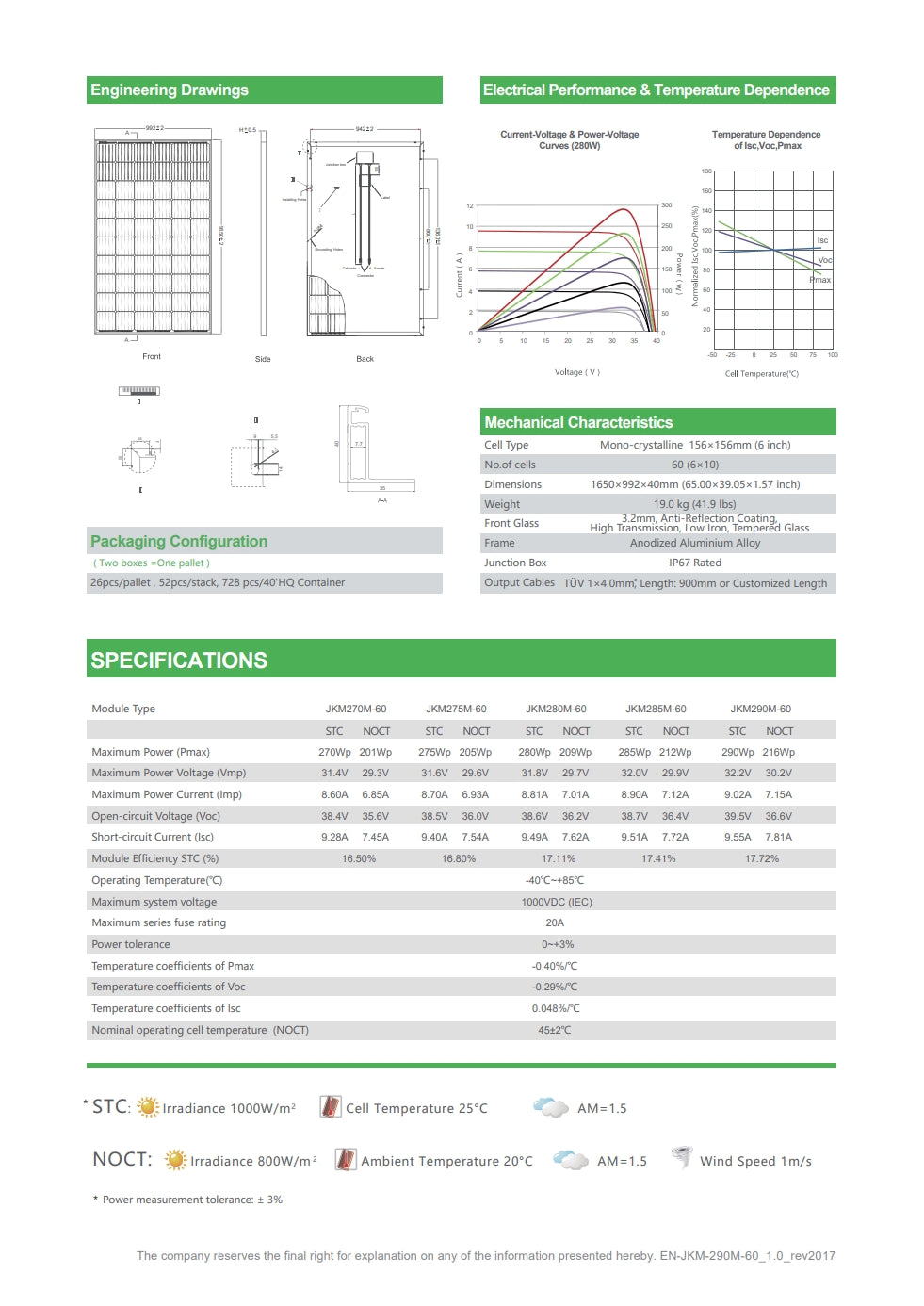

Jinko 290W Solar Panel (JKM290M-60) Engineering Drawings Electrical Performance & Temperature Dependence Current-Voltage, Power-Voltage, Temperature Dependence Curves (280w) Open Circuit Voltage (Voc), Maximum Power (Pmax), and Short-Circuit Current (Isc) Mechanical Characteristics: Cell Type: Mono-crystalline Dimensions: 1650x992*40mm (65.00x39.05*1.57 inch) Weight: 19.0kg (41.9 Ibs) Front Glass: 3.2mm; Anti-Reflection Coating; High Transmission, Low Iron Glass Packaging Configuration: Frame Anodized Aluminium Alloy TO DOXCS One pallet Junction Box: IP67 Rated; 26pcs/ pallet S2pcs/stack; 728 pcs/40'HQ Container Output Cables: TUV 1x4.0mm; Length: 900mm (Customized Length) Specifications: Module Type: JKM290M-60 STC: NCCT STC NOCT STC NOCT STC NOCT STC NOCT Maximum Power (Pmax): 280Wp Maximum Power Voltage (Vmp): 32.2V Maximum Power Current (Imp): 9.02A Open-circuit Voltage (Voc): 38.7v Short-circuit Current (Isc): 9.55A Module Efficiency STC (%5): 17.7280
