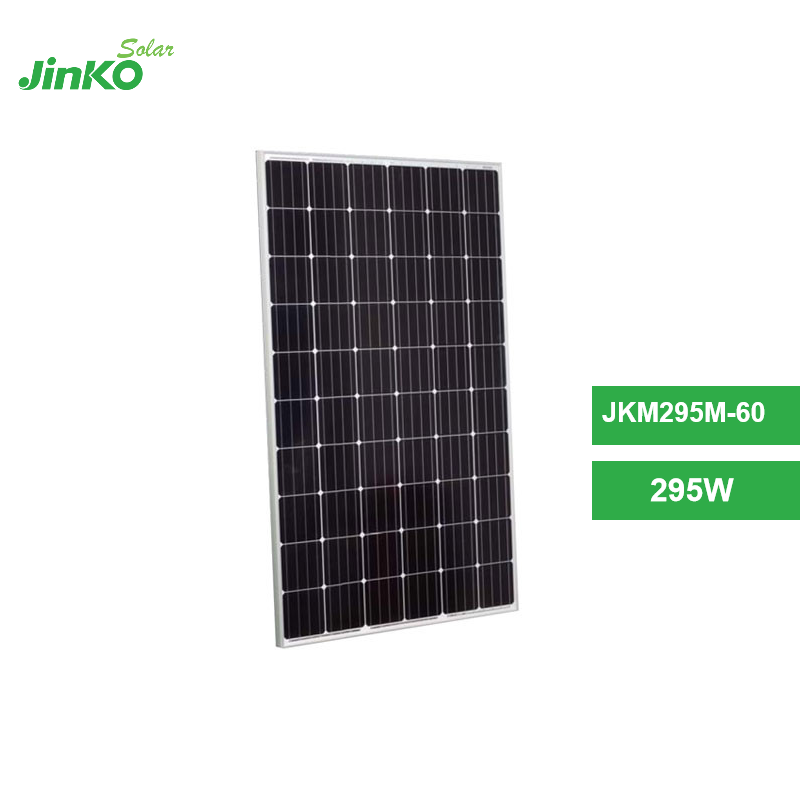

Jinko 295W Solar Panel (JKM295M-60)

The Jinko 295W Solar Panel (JKM295M-60) is a high-efficiency monocrystalline module, ideal for various solar installations requiring reliable and consistent energy output. Designed with advanced 5-busbar technology, this panel provides high power efficiency and durability, making it suitable for both residential and commercial applications. With a maximum power output of 295W, the Jinko 295W Solar Panel ensures optimal performance even in challenging environmental conditions.

Key Features of Jinko 295 Watt Solar Panel

  • 5 Busbar Solar Cell: Incorporates 5-busbar technology for enhanced efficiency and aesthetic appeal, making it perfect for rooftop installations.
  • High Power Output: The Jinko 295W Solar Panel offers a maximum power output of 295W, ensuring high energy generation.
  • PID Resistance: Constructed to resist potential-induced degradation, maintaining stable performance over its lifespan.
  • Low-Light Performance: Advanced glass and surface texturing allow this panel to perform excellently in low-light conditions, maximizing energy harvest.
  • Weather Resilience: Certified to withstand high wind loads (2400 Pascal) and snow loads (5400 Pascal), suitable for extreme weather environments.
  • Corrosion Resistance: High salt mist and ammonia resistance certified by TÜV NORD, making it ideal for coastal and agricultural areas.
  • Temperature Coefficient: Improved temperature coefficient reduces power loss in higher temperatures, ensuring steady output in various climates.

Jinko 295W Datasheet

Specifications

  • Cell Type: Monocrystalline, 156 x 156 mm (6 inches)
  • Number of Cells: 60 (6x10 configuration)
  • Dimensions: 1650 x 992 x 35 mm (65.0 x 39.05 x 1.37 inches)
  • Weight: 19.0 kg (41.9 lbs)
  • Front Glass: 3.2 mm, high-transmission, low-iron, tempered glass with anti-reflection coating
  • Frame: Anodized aluminum alloy
  • Junction Box: IP67 rated for water and dust protection
  • Output Cables: TÜV 1x4.0 mm², customizable cable length

Electrical Performance

  • Maximum Power (Pmax): 295W (STC), 220W (NOCT)
  • Maximum Power Voltage (Vmp): 32.4V (STC), 30.4V (NOCT)
  • Maximum Power Current (Imp): 9.10A (STC), 7.24A (NOCT)
  • Open-Circuit Voltage (Voc): 39.8V (STC), 36.8V (NOCT)
  • Short-Circuit Current (Isc): 9.72A (STC), 7.80A (NOCT)
  • Module Efficiency: 18.02%
  • Operating Temperature: -40°C to +85°C
  • Maximum System Voltage: 1000V DC (IEC)
  • Series Fuse Rating: 20A
  • Power Tolerance: 0~+3%

Temperature Coefficients

  • Pmax: -0.38%/°C
  • Voc: -0.29%/°C
  • Isc: +0.05%/°C

Warranty and Certifications

  • Product Warranty: 10 years
  • Linear Power Warranty: 25 years
  • Certifications: ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730

Applications

The Jinko 295W Solar Panel (JKM295M-60) is suitable for various applications, including residential rooftops, commercial buildings, and off-grid installations. Its high efficiency and resilience ensure consistent energy output, making it a reliable option for long-term energy needs.

The Jinko 295W Solar Panel combines cutting-edge technology with durability, delivering sustainable energy production across a range of applications. With its high power output and robust design, the Jinko 295W Solar Panel is an excellent choice for optimizing energy generation in any solar installation.

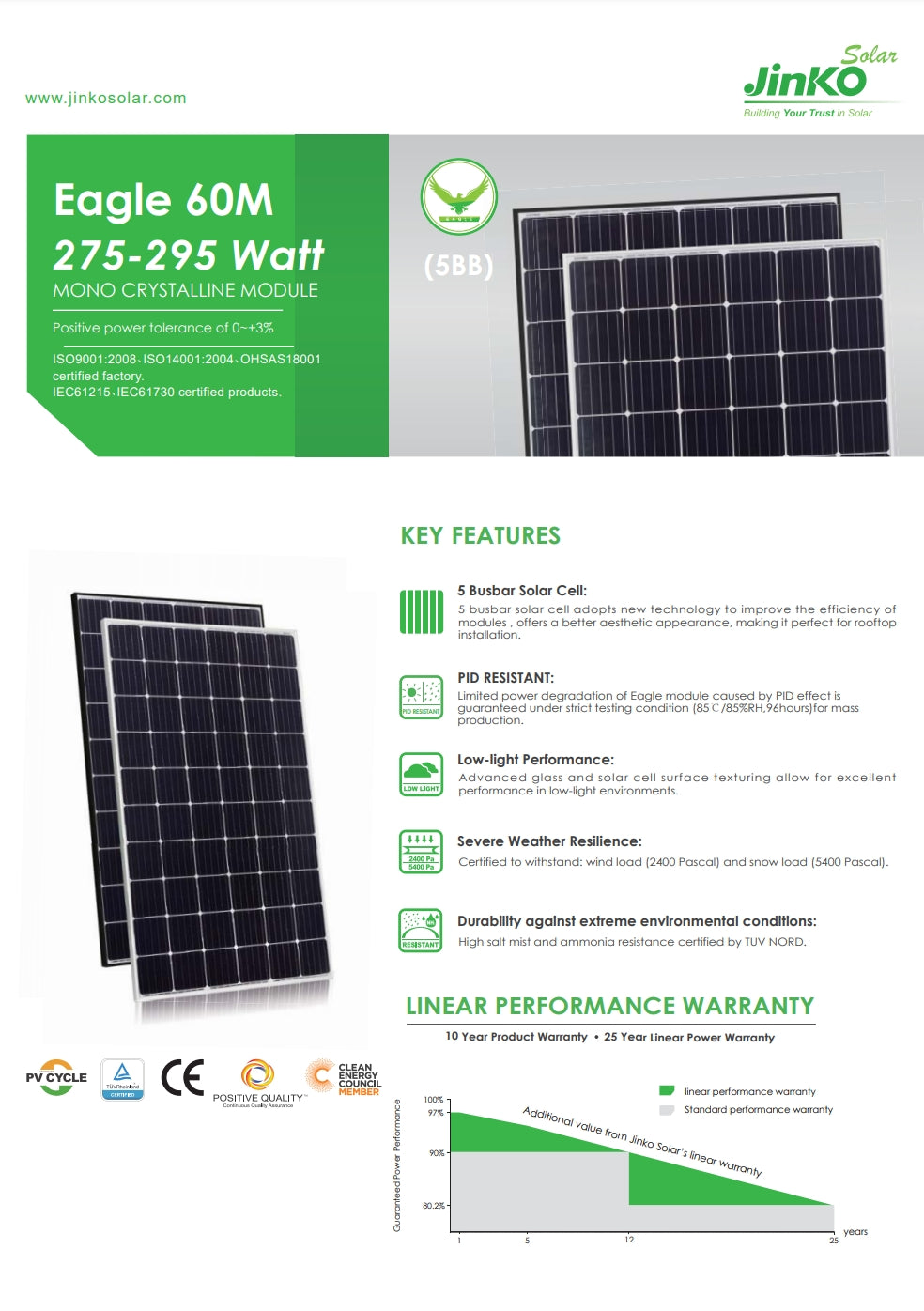

Jinko 295W Solar Panel, Jinko Solar Eagle 60M module features mono crystalline technology, improved efficiency, and certifications from ISO and OHSAS.

Jinko Solar Eagle 60M module offers a power output of 275-295W, featuring mono crystalline technology and a positive power tolerance of +3%. The product meets ISO9001:2008 and OHSAS18001 certification standards. Key features include a 5-busbar solar cell design for improved efficiency and aesthetics, PID-resistant performance, low-light performance, and severe weather resilience certified by CILAn (wind load 2400 Pa and snow load 5400 Pa). The module also features high salt mist and ammonia resistance certified by TUV NORD. Jinko Solar offers a 10-year product warranty and a 25-year linear power warranty.

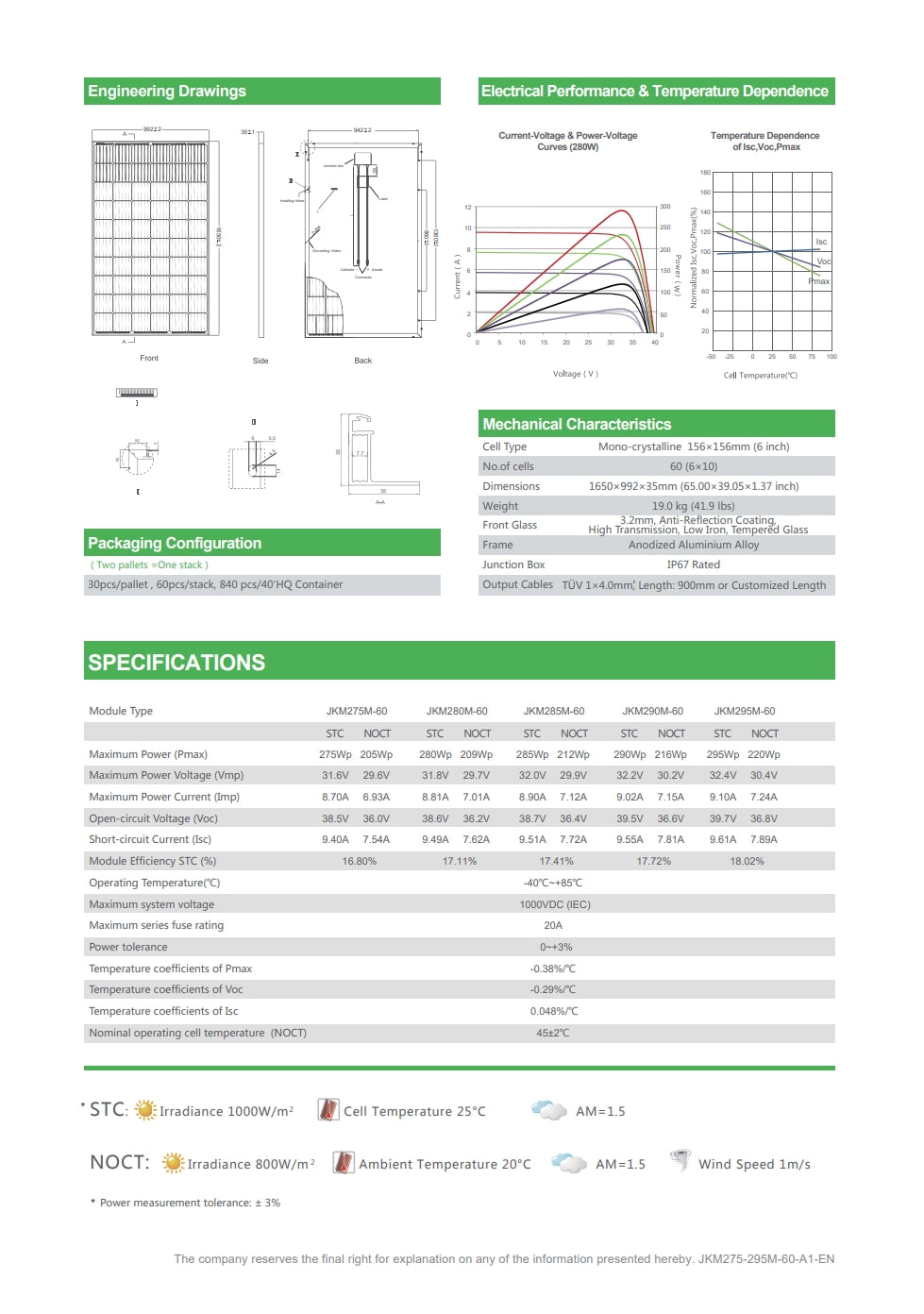

Jinko 295W Solar Panel, The Jinko Solar Panel (JKM295M-60) features mono-crystalline cells, maximum power output of 295W, and operating temperature range from -40°C to +85°C.

Jinko Solar Panel (JKM295M-60) Product Description: The Jinko 295W Solar Panel (JKM295M-60) features a mono-crystalline cell type with a dimension of 1650*992*35mm (65.00x39.05*1.37 inch). The module has a weight of 19.0 kg (419 Ibs) and is packaged in an anodized aluminum alloy frame with two panels and one slack. The solar panel has a maximum power output of 295W, a maximum power voltage of 32.4V, and a maximum power current of 7.24A. The open-circuit voltage is 39.7V, and the short-circuit current is 9.81A. The module efficiency is 18.0290% at STC. The operating temperature range is from -40°C to +85°C, with a maximum system voltage of 1000VDC (IEC) and a maximum series fuse rating of 204. The power tolerance is ±3%. The temperature coefficients are as follows: Pmax = ~0.386/C, Voc = -0.2936FC, and Isc = 0.0489/°C. The nominal operating cell temperature (NOCT) is 45°C, with an irradiance of 1000W/m² at STC and ambient temperature of 25°C. The wind speed is 10m/s. The power measurement tolerance is ±3%.

Jinko 295W Solar Panel, JinkoSolar 295W solar panel features high-efficiency cells, corrosion-resistant frame, and tempered glass for residential and commercial use.

JinkoSolar 295W Solar Panel JKMM-60 features high-efficiency monocrystalline silicon cells, corrosion-resistant aluminum frame, and low iron tempered glass. Ideal for residential and commercial applications, this panel offers reliable performance and durability.
