Jinko 300W Solar Panel Overview
The Jinko 300W Solar Panel (JKM300M-60) is a high-efficiency monocrystalline module designed for optimal energy production and durability. Built with Passivated Emitter Rear Contact (PERC) technology, this panel delivers a maximum power output of 300W, making it suitable for both residential and commercial solar installations. Engineered with a robust design, the Jinko 300W Solar Panel is ideal for installations requiring consistent, long-term performance.
Key Features of Jinko 300 Watt Solar Panel
- 4 Busbar Solar Cell: Incorporates 4-busbar technology to improve module efficiency and aesthetics, making it suitable for rooftop installations.
- High Efficiency: With PERC technology, the Jinko 300W Solar Panel achieves a high conversion efficiency of up to 18.33%.
- PID Resistance: Constructed to resist potential-induced degradation, maintaining performance stability over time.
- Low-Light Performance: Advanced glass and surface texturing enable excellent energy capture in low-light environments, optimizing output.
- Weather Resilience: Certified to withstand high wind loads (2400 Pascal) and snow loads (5400 Pascal), ensuring reliability in extreme weather conditions.
- Corrosion Resistance: Certified for high salt mist and ammonia resistance by TÜV NORD, suitable for coastal and agricultural areas.
- Temperature Coefficient: Improved temperature coefficient minimizes power loss in higher temperatures, enhancing output stability.
Jinko 300W Datasheet
Specifications
- Cell Type: Monocrystalline PERC, 156 x 156 mm (6 inches)
- Number of Cells: 60 (6x10 configuration)
- Dimensions: 1650 x 992 x 40 mm (65.0 x 39.05 x 1.57 inches)
- Weight: 19.0 kg (41.9 lbs)
- Front Glass: 3.2 mm, high-transmission, low-iron, tempered glass with anti-reflection coating
- Frame: Anodized aluminum alloy
- Junction Box: IP67 rated for water and dust protection
- Output Cables: TÜV 1x4.0 mm², customizable length
Electrical Performance
- Maximum Power (Pmax): 300W (STC), 224W (NOCT)
- Maximum Power Voltage (Vmp): 32.6V (STC), 30.6V (NOCT)
- Maximum Power Current (Imp): 9.21A (STC), 7.32A (NOCT)
- Open-Circuit Voltage (Voc): 40.1V (STC), 37.0V (NOCT)
- Short-Circuit Current (Isc): 9.72A (STC), 8.01A (NOCT)
- Module Efficiency: 18.33%
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1000V DC (IEC)
- Series Fuse Rating: 15A
- Power Tolerance: 0~+3%
Temperature Coefficients
- Pmax: -0.39%/°C
- Voc: -0.29%/°C
- Isc: +0.05%/°C
Warranty and Certifications
- Product Warranty: 10 years
- Linear Power Warranty: 25 years
- Certifications: ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730
Applications
The Jinko 300W Solar Panel (JKM300M-60) is suitable for residential, commercial, and off-grid installations. With high efficiency, durability, and reliability, this panel is ideal for environments requiring a dependable power source, providing consistent energy output across various conditions.
The Jinko 300W Solar Panel combines advanced technology with robust construction, making it an excellent choice for optimizing energy production in any solar installation. With a high power output and resilient design, the Jinko 300W Solar Panel ensures stable performance and long-term reliability.

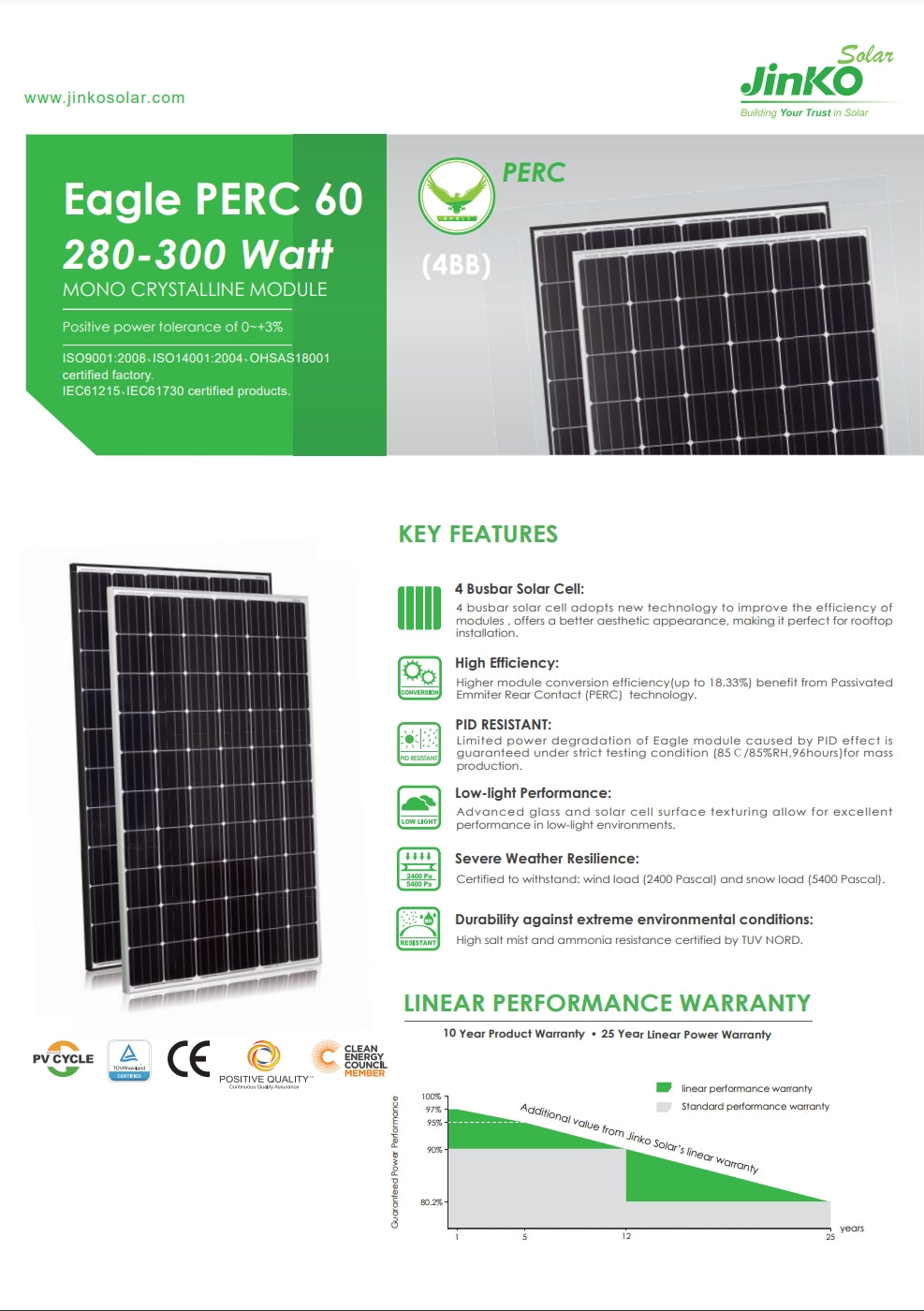

JinkoSolar: Building Trust in Solar PERC Eagle PERC, 280-300W (ABB) MONO CRYSTALLINE MODULE. Posilive power tolerance of +0/+3.76%. ISO9001:2008, ISO14001 certified factory. IEC61215 and IEC61730 certified products. KEY FEATURES: Busbar Solar Cell: New technology improves module efficiency, offering better aesthetic appearance for rooftop installation. High Efficiency: 18.33% conversion efficiency benefits from Passivated Contact (PERC) technology, PID RESISTANT: Limited power degradation due to PID effect guaranteed under testing conditions (85°C/8SFRH, 96hours). Low-light Performance: Advanced glass and solar cell surface texturing ensure excellent performance in low-light environments. Severe Weather Resilience: Gannte Certified for wind load (2400 Pa) and snow load (5400 Pa), durable against extreme environmental conditions. High salt mist and ammonia resistance certified by TUV NORD. LINEAR PERFORMANCE WARRANTY: 10 Year Product Warranty, Linear Power Warranty, PV Cycle Certification CEE 88 MEABER POSITIVE QUALITY LINE.

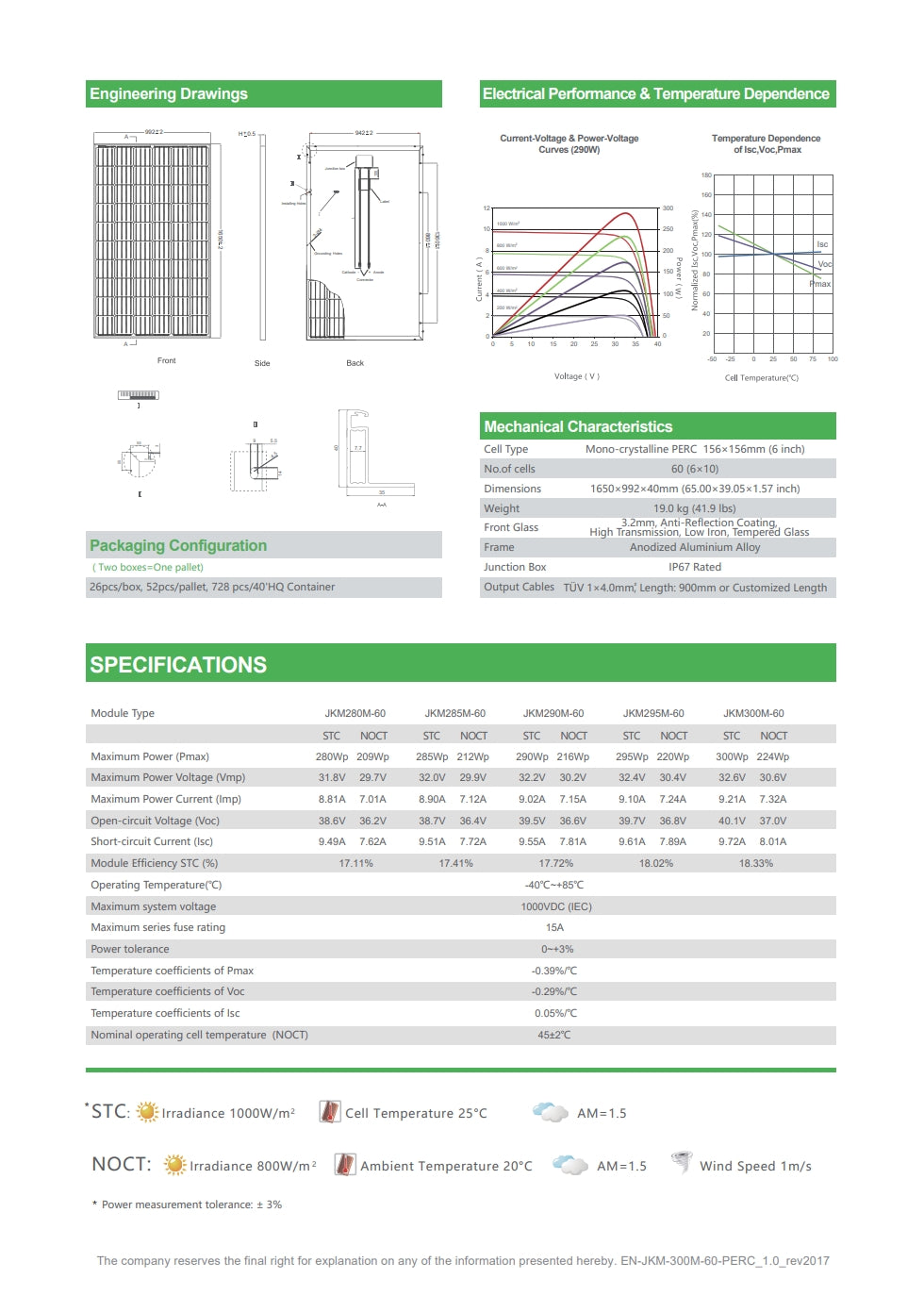

The Jinko 300W Solar Panel (JKM300M-60) features a mono-crystalline PERC design with 156x156mm cells and 60 cells arranged in a 6x10 configuration. The dimensions are 1650x992x40mm, weighing 19kg. The module has an anti-reflection coating and low-tempered glass front. It comes packaged in two boxes per pallet or one container for international shipment. The specifications include maximum power (Pmax), voltage (Vmp), current (Imp), open-circuit voltage (Voc), and short-circuit current (Isc). The module efficiency is 18.3396% with an operating temperature range of -40°C to +85°C.
The Jinko Solar Panel JK300M-60 is a high-efficiency solar panel with a power output of 300W, ideal for residential and commercial applications.
