Jinko 305W Solar Panel Overview
The Jinko 305W Solar Panel (JKM305M-60-V) is a high-performance monocrystalline PERC module designed to meet the demands of both residential and commercial installations. Featuring advanced 5-busbar technology and PERC (Passivated Emitter Rear Contact) cells, this panel offers high efficiency and durability, making it an excellent choice for reliable, long-term energy production. With a maximum power output of 305W, the Jinko 305W Solar Panel provides optimal energy yield in various conditions.
Key Features of Jinko 305 Watt Solar Panel
- 5 Busbar Solar Cell: Enhanced 5-busbar technology improves efficiency and aesthetics, making it ideal for rooftop installations.
- High Voltage Capability: UL and IEC 1500V certified, which reduces Balance of System (BOS) costs and delivers lower Levelized Cost of Energy (LCOE).
- High Efficiency: Leveraging PERC technology, the Jinko 305W Solar Panel achieves a conversion efficiency of up to 18.28%.
- PID Resistance: Built to resist potential-induced degradation, ensuring consistent performance over time.
- Low-Light Performance: Advanced glass and cell surface texturing ensure excellent performance in low-light environments.
- Weather Resilience: Certified to withstand high wind loads (2400 Pascal) and snow loads (5400 Pascal), making it durable in extreme weather.
- Corrosion Resistance: Certified for high salt mist and ammonia resistance by TÜV NORD, making it suitable for coastal and agricultural areas.
Jinko 305W Specifications
- Cell Type: Monocrystalline PERC, 158.75 x 158.75 mm
- Number of Cells: 60 (6x10 configuration)
- Dimensions: 1665 x 1002 x 35 mm (65.55 x 39.45 x 1.38 inches)
- Weight: 19.0 kg (41.9 lbs)
- Front Glass: 3.2 mm, high-transmission, low-iron, tempered glass with anti-reflection coating
- Frame: Anodized aluminum alloy
- Junction Box: IP67 rated for water and dust protection
- Output Cables: TÜV 1x4.0 mm², customizable length
Electrical Performance
- Maximum Power (Pmax): 305W (STC), 227W (NOCT)
- Maximum Power Voltage (Vmp): 32.8V (STC), 30.8V (NOCT)
- Maximum Power Current (Imp): 9.30A (STC), 7.40A (NOCT)
- Open-Circuit Voltage (Voc): 40.3V (STC), 37.2V (NOCT)
- Short-Circuit Current (Isc): 9.83A (STC), 8.12A (NOCT)
- Module Efficiency: 18.28%
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1500V DC (IEC)
- Series Fuse Rating: 20A
- Power Tolerance: 0~+3%
Temperature Coefficients
- Pmax: -0.37%/°C
- Voc: -0.28%/°C
- Isc: +0.048%/°C
Warranty and Certifications
- Product Warranty: 10 years
- Linear Power Warranty: 25 years
- Certifications: ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730, UL1703
Applications
The Jinko 305W Solar Panel (JKM305M-60-V) is a versatile module suitable for residential, commercial, and off-grid installations. Its robust design and high efficiency ensure consistent energy output, making it a reliable choice for long-term energy needs. With certifications for high voltage, durability in extreme weather, and corrosion resistance, the Jinko 305W Solar Panel provides a stable and efficient solution for sustainable energy generation.
The Jinko 305W Solar Panel combines high-efficiency technology with durability, making it an excellent choice for optimizing energy production across various applications. With its advanced design and high power output, the Jinko 305W Solar Panel is engineered to deliver outstanding performance, even in challenging environments.
Jinko 305W Datasheet

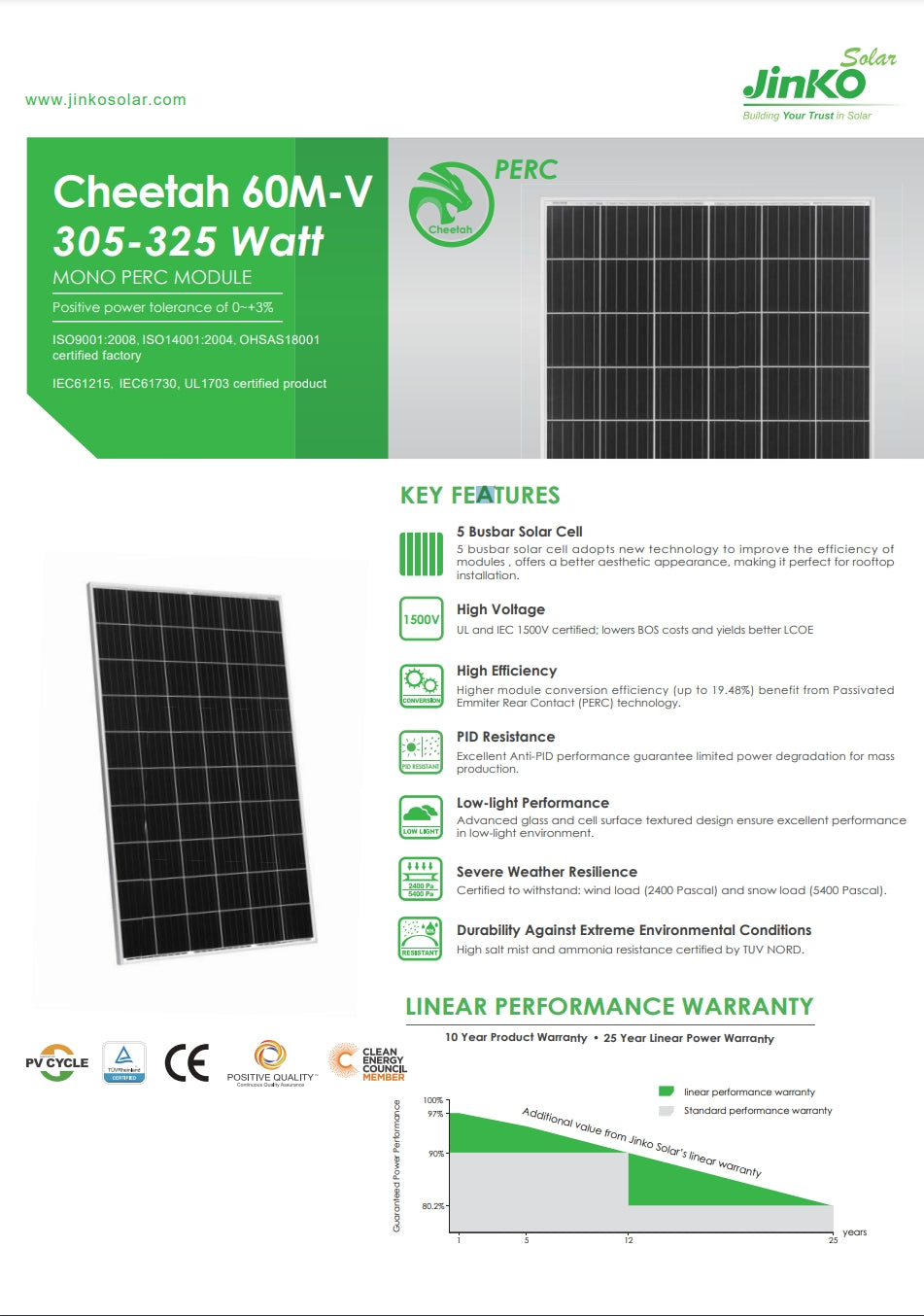

Jinko Solar Panels: Jinko Alluring Your Trust in Solar PERC Cheetah 6OM-V, 305W-325W Mono PERC Module. Positive power tolerance of ±3%. ISO 9001:2008, ISO 14001:2004, OHSAS 8001 certified factory. IEC 61215, IEC 61730, UL 1703 certified product. Key Features: 5-Busbar Solar Cell with new technology for improved efficiency and better aesthetic appearance, perfect for rooftop installation. High Voltage SOV (UL and IEC) certified; lowers BOS costs and yields better LCOE. High Efficiency: Up to 19.487% conversion efficiency benefiting from Passivated Emitter Rear Contact (PERC) technology. PID Resistance Excellent Anti-PID performance guarantee limited power degradation for mass production. Low-Light Performance: Advanced glass and cell surface textured design ensure excellent performance in low-light environment. Severe Weather Resilience: Certified to withstand wind load (2400 Pascal) and snow load (5400 Pascal). Durability Against Extreme Environmental Conditions: High salt mist and ammonia resistance certified by TUV NORD. Linear Performance Warranty: 10-Year Product Warranty, 25-Year Linear Power Warranty.

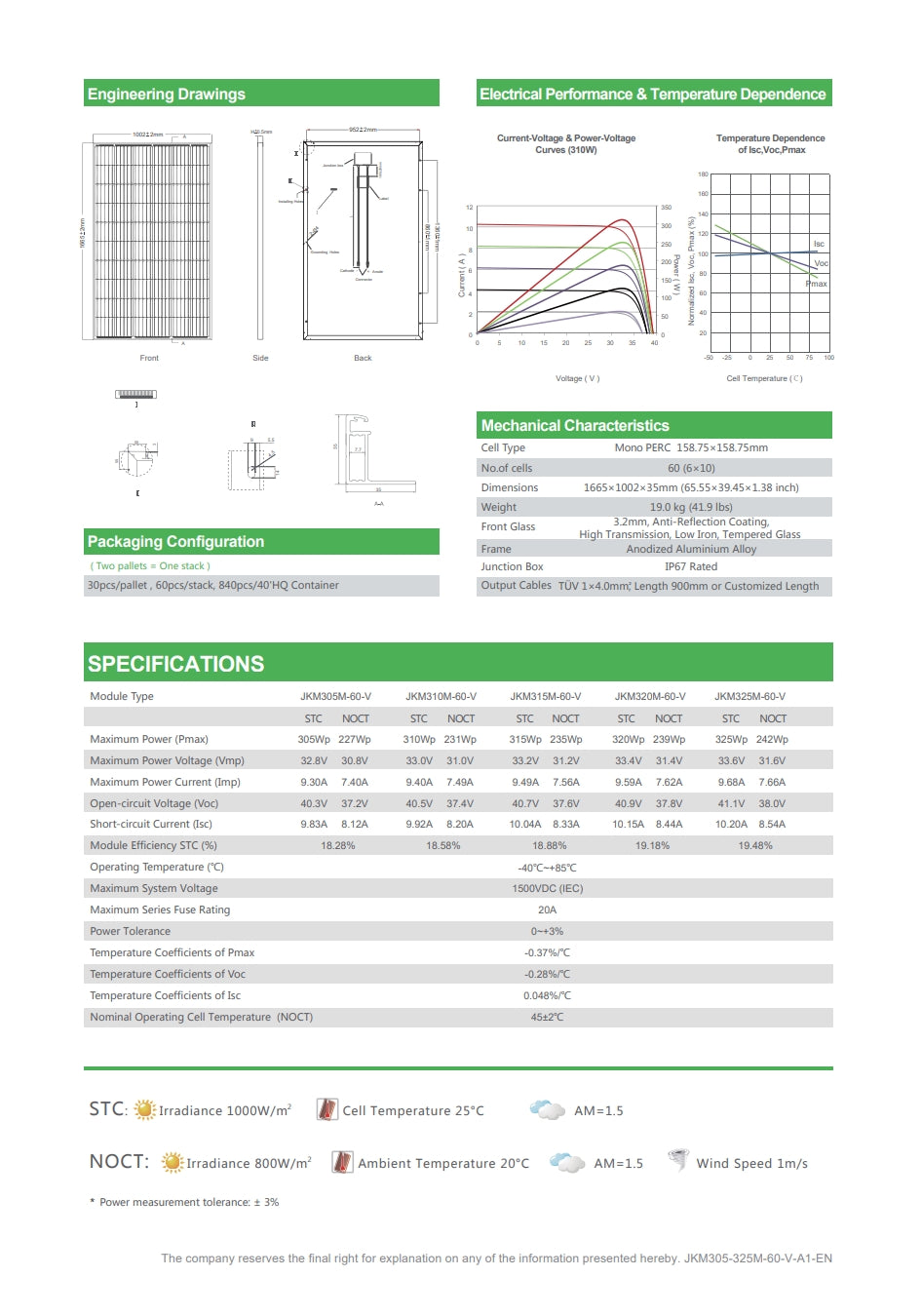

Jinko JKM305M-60V Solar Panel Product Specifications Engineering Drawings: Electrical Performance & Temperature Dependence Current-Voltage, Power-Voltage Temperature Dependence Curves (310W) Open Circuit Voltage, Short-Circuit Current, and Module Efficiency at STC, NOCT, and Temp. Mechanical Characteristics: Cell Type Mono PERC, Dimensions 1665x1002x35mm, Weight 19.0 kg Front Glass: Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass Junction Box IP65 Rated, Output Cables TUV certified Specifications: Module Type: JKM305M-60V STC/NOCT Data: Maximum Power (Pmax): 310W Maximum Power Voltage (Vmp): 37.4V Maximum Power Current (Imp): 9.68A Open-Circuit Voltage (Voc): 40.5V Short-Circuit Current (Isc): 10.04A Module Efficiency: 18.89% Operating Temperature: -40°C to +85°C Maximum System Voltage: 1000VDC (IEC) Maximum Series Fuse Rating: 20A Power Tolerance: ±3% Temperature Coefficients: Pmax: ~0.03790%/°C Voc: -0.0289%/°C Isc: 0.04896%/°C Nominal Operating Cell Temperature (NOCT): 45°C
High-efficiency Jinko 305W solar panel features monocrystalline silicon cells and advanced technology for reliable energy generation.
