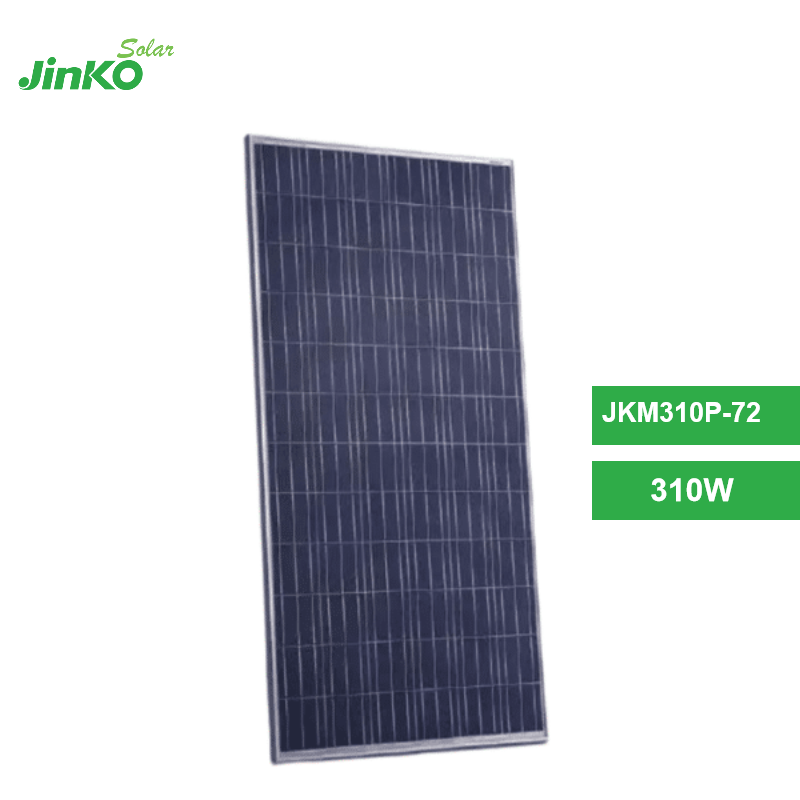

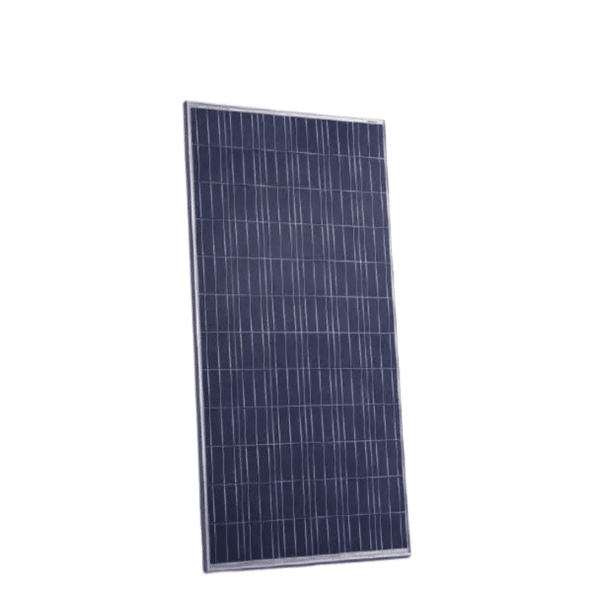

Jinko 310W Solar Panel (JKM310P-72)
The Jinko 310W Solar Panel (JKM310P-72) is a high-efficiency polycrystalline module designed for a range of applications, from residential to commercial solar installations. With advanced 4-busbar technology and robust durability, this panel provides reliable power output and exceptional performance in diverse environments. Rated at a maximum power output of 310W, the Jinko 310W Solar Panel offers efficient energy production, even in low-light conditions.
Key Features of Jinko 310 Watt Solar Panel
- 4 Busbar Solar Cell: Utilizes innovative 4-busbar technology, enhancing efficiency and offering a sleek appearance, perfect for rooftop and large-scale installations.
- High Efficiency: Achieves module conversion efficiency of up to 15.98%, optimizing power generation in varying conditions.
- Low-Light Performance: Designed with advanced glass and solar cell surface texturing to ensure high performance in low-light conditions.
- Severe Weather Resilience: Built to withstand high wind loads (2400 Pascal) and snow loads (5400 Pascal), ensuring longevity and reliability.
- Corrosion Resistant: Certified for high salt mist and ammonia resistance by TÜV NORD, making it suitable for challenging environments, including coastal and agricultural areas.
Jinko 310W Specifications
- Cell Type: Polycrystalline, 156 x 156 mm (6 inches)
- Number of Cells: 72 (6x12 configuration)
- Dimensions: 1956 x 992 x 40 mm (77.0 x 39.0 x 1.57 inches)
- Weight: 26.5 kg (58.4 lbs)
- Front Glass: 4.0 mm, high-transmission, low-iron, tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP67 rated for superior protection against dust and water
- Output Cables: TÜV 1 x 4.0 mm², length 900 mm or customizable
Electrical Performance
- Maximum Power (Pmax): 310W (STC), 230W (NOCT)
- Maximum Power Voltage (Vmp): 37.0V (STC), 34.4V (NOCT)
- Maximum Power Current (Imp): 8.38A (STC), 6.68A (NOCT)
- Open-Circuit Voltage (Voc): 45.9V (STC), 42.7V (NOCT)
- Short-Circuit Current (Isc): 8.96A (STC), 7.26A (NOCT)
- Module Efficiency: 15.98%
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1000V DC (IEC)
- Series Fuse Rating: 15A
- Power Tolerance: 0~+3%
Temperature Coefficients
- Pmax: -0.41%/°C
- Voc: -0.31%/°C
- Isc: +0.06%/°C
Warranty and Certifications
- Product Warranty: 10 years
- Linear Power Warranty: 25 years, ensuring sustained power output over the long term.
- Certifications: ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730
Applications
The Jinko 310W Solar Panel (JKM310P-72) is ideal for various applications, including residential rooftops, commercial installations, and large-scale solar farms. Its durability in extreme weather conditions, coupled with its high efficiency and performance in low-light environments, makes it an optimal choice for consistent, sustainable energy generation.
With a design that emphasizes both reliability and efficiency, the Jinko 310W Solar Panel offers a practical and effective solution for any solar project. Its robust construction and advanced technology ensure long-lasting performance, making it a valuable investment for a greener future.
Jinko 310W Datasheet

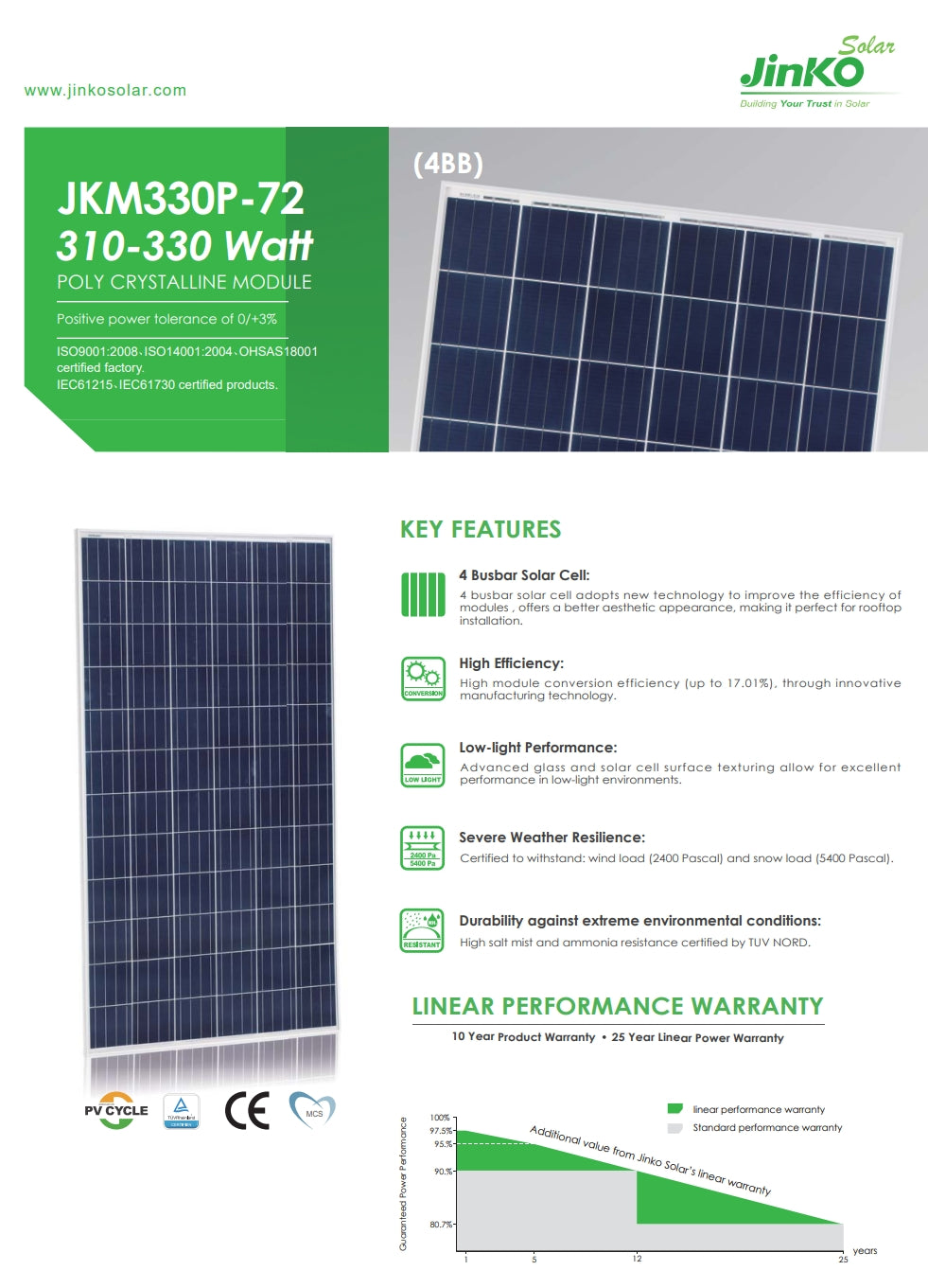

Jinko Solar presents the JKM310P-72, a high-performance solar panel with 310-330 Watt output. This poly-crystalline module boasts a positive power tolerance of 0/+37%. Our factory is OHSAS 18001 certified and our products meet IEC61215 and IEC61730 standards. Key features include: Busbar Solar Cell: Improved efficiency and aesthetics with new technology; High Efficiency: Up to 17.01% conversion efficiency through innovative manufacturing; Low-Light Performance: Excellent performance in low-light environments thanks to advanced glass and solar cell surface texturing; Severe Weather Resilience: Withstands wind loads up to 2400 Pa and snow loads up to 5400 Pa, with durability against extreme environmental conditions. Warranty: Linear Power Warranty: 25 years, with a performance guarantee of 95.76% - 1.70%

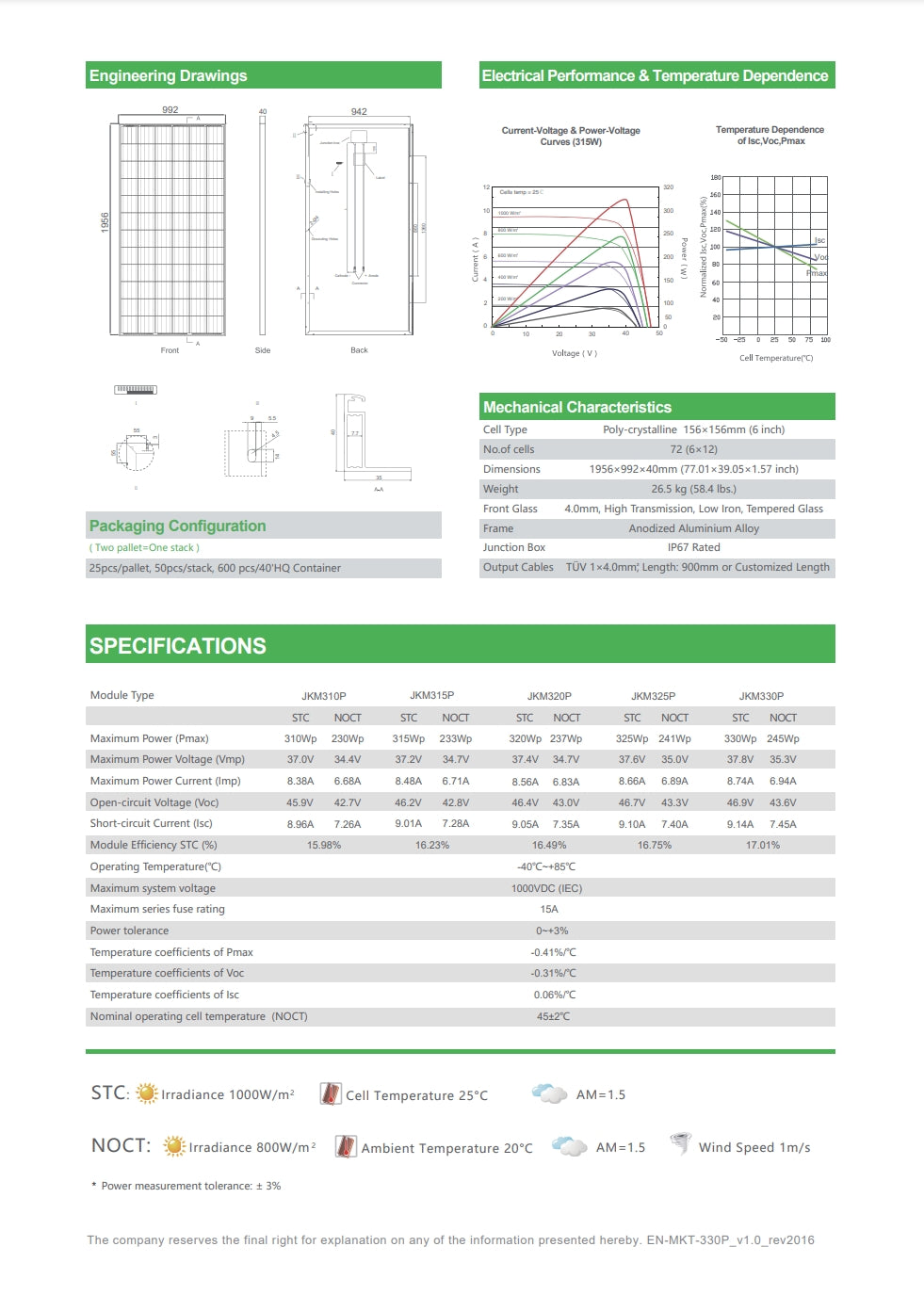

JinkoSolar 310 Watt Solar Panel (JKM310P-72) Electrical Performance: - Maximum Power: 310W - Maximum Power Voltage: 37.0V - Maximum Power Current: 8.38A - Open-circuit Voltage: 45.9V - Short-circuit Current: 8.96A Temperature Dependence: - Current-Voltage-Power Curve - Temperature Coefficient of Pmax: ~0.0419/% - Temperature Coefficient of Voc: ~0.031/% - Temperature Coefficient of Isc: 0.069%/°C Mechanical Characteristics: - Cell Type: Poly-crystalline - Dimensions: 1956*992*40mm (77.01*39.05*1.57 inch) - Weight: 26.5 kg (58.4 lbs) Packaging Configuration: - Frame Material: Anodized Aluminum Alloy - Junction Box: IP67 Rated, 25pcs/pallet; SOpcs/stack 600 pcs/40'HQ Container Output Cables: - TOV: Ix4.0mm; Length: 900mm or Customized Length SPECIFICATIONS: Module Type: JKMBIOP, JKMBISP, JKM3ZOP, JKM32SP, JKM33OP STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT Maximum Power (Pmax): 310Wp, 230Wp, 315Wp, 233Wp, 320Wp, 237Wp, 325Wp, 241Wp, 330Wp, 245Wp Maximum Power Voltage (Vmp): 37.0V, 34AV, 37.2V, 34.7V, 37.4V, 34.7V, 37.6V, 35.0V, 37.8V, 35.3V Maximum Power Current (Imp): 8.38A, 6.884, 8.484, 6.71A, 8.564, 6.834, 8.88A, 6.89A, 8.74A, 6.94A Open-circuit Voltage (Voc): 45.9V, 42.7v, 46.2v, 42.8V, 46.4V, 43.0V, 46.7V, 43.3V, 46.9V, 43.6V Short-circuit Current (Isc): 8.96A, 7.284, 9.01A, 7.28A, 9.054, 7.354, 9.10A, 7.40A, 9.14A, 7.4SA Module Efficiency STC (%): 98.96%, 16.2390%, 16.49%0, 16.7596%, 17.0190% Operating Temperature: -40°F to +85°C Maximum system voltage: 1000VDC (IEC) Maximum series rating: 154 Power tolerance: 0-+3.4% Temperature coefficients of Pmax ~0.0419/°C Temperature coefficients of Voc ~0.031%/°C Temperature coefficients of Isc 0.06908°C Nominal operating ce temperature (NOCT): 45°F to +85°C
