Jinko 315 Watt Solar Panel (JKM315P-72) - Efficient, Durable, and Resilient Solution for Solar Power Needs
The Jinko 315 Watt Solar Panel (JKM315P-72) is a highly efficient polycrystalline module designed for both residential and commercial installations. This panel utilizes advanced technology to maximize energy production, offering superior performance in diverse environmental conditions. With a maximum power output of 315 watts, the JKM315P-72 is an excellent choice for those seeking reliable, long-term solar energy solutions.
Key Features
- 4 Busbar Solar Cell: The 4 busbar solar cell technology enhances efficiency and aesthetics, making it an ideal choice for rooftop installations.
- High Efficiency: Achieves up to 16.23% module efficiency through innovative manufacturing techniques, ensuring maximum energy yield.
- Low-light Performance: Engineered with advanced glass and surface texturing, it delivers optimal performance in low-light conditions, capturing more energy throughout the day.
- Severe Weather Resilience: Certified to withstand a wind load of 2400 Pa and a snow load of 5400 Pa, ensuring durability in challenging climates.
- Environmental Durability: Resistant to high salt mist and ammonia, this panel is certified by TÜV NORD for installation in harsh environments.

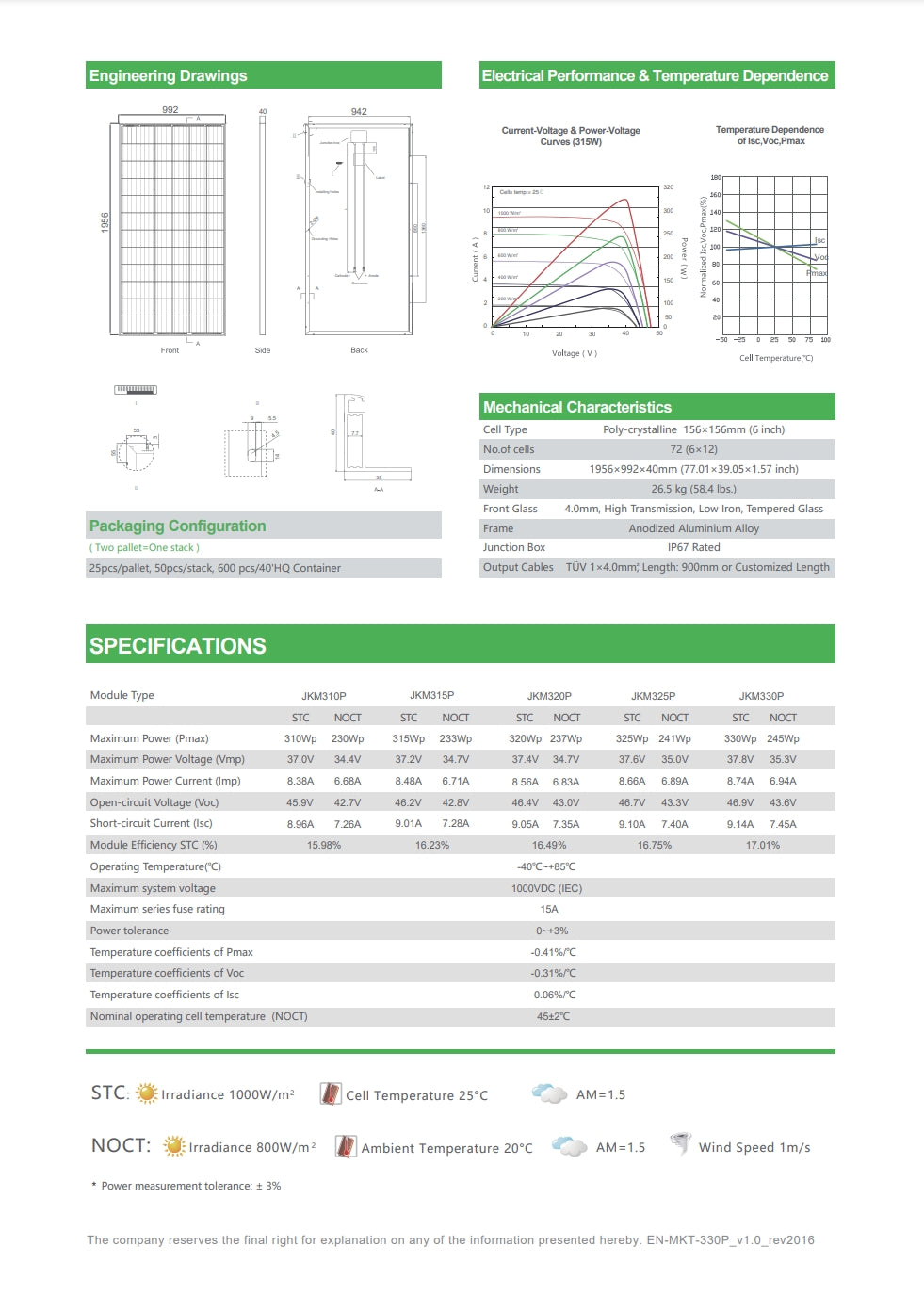

Specifications
| Specification | Value |
|---|---|
| Module Type | JKM315P-72 |
| Maximum Power (Pmax) | 315W (STC), 233W (NOCT) |
| Maximum Power Voltage (Vmp) | 37.8V (STC), 34.7V (NOCT) |
| Maximum Power Current (Imp) | 8.48A (STC), 6.71A (NOCT) |
| Open-circuit Voltage (Voc) | 46.2V (STC), 42.8V (NOCT) |
| Short-circuit Current (Isc) | 8.80A (STC), 7.50A (NOCT) |
| Module Efficiency (STC) | 16.23% |
| Operating Temperature | -40°C to +85°C |
| Power Tolerance | 0 ~ +3% |
| Dimensions | 1956mm x 992mm x 40mm |
| Weight | 26.5 kg (58.4 lbs) |
| Cell Type | Poly-crystalline |
| No. of Cells | 72 (6x12) |
| Front Glass | 4.0mm, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP67 Rated |
Electrical Characteristics
The Jinko 315 Watt Solar Panel (JKM315P-72) is optimized for high performance under various conditions. The temperature coefficients for Pmax (-0.41%/°C), Voc (-0.31%/°C), and Isc (0.06%/°C) ensure minimal loss in efficiency as temperatures fluctuate, making it a reliable choice for both warm and cold climates.
Packaging and Installation
Each pallet includes 25 panels, with 50 panels per stack and a total of 600 panels per 40' HQ container. This efficient packaging helps reduce transportation costs and streamlines installation logistics.
Warranty and Certifications
The JKM315P-72 offers a 10-year product warranty and a 25-year linear power warranty, providing peace of mind for long-term installations. Certified by PV Cycle, CE, TÜV Rheinland, and the Clean Energy Council, this panel meets international standards for quality and sustainability.
This Jinko 315 Watt Solar Panel (JKM315P-72) is an excellent solution for those seeking high performance, durability, and reliability in solar energy systems. With its advanced features and resilient build, it ensures optimal energy production in various environments, making it a preferred choice for residential and commercial solar installations.
