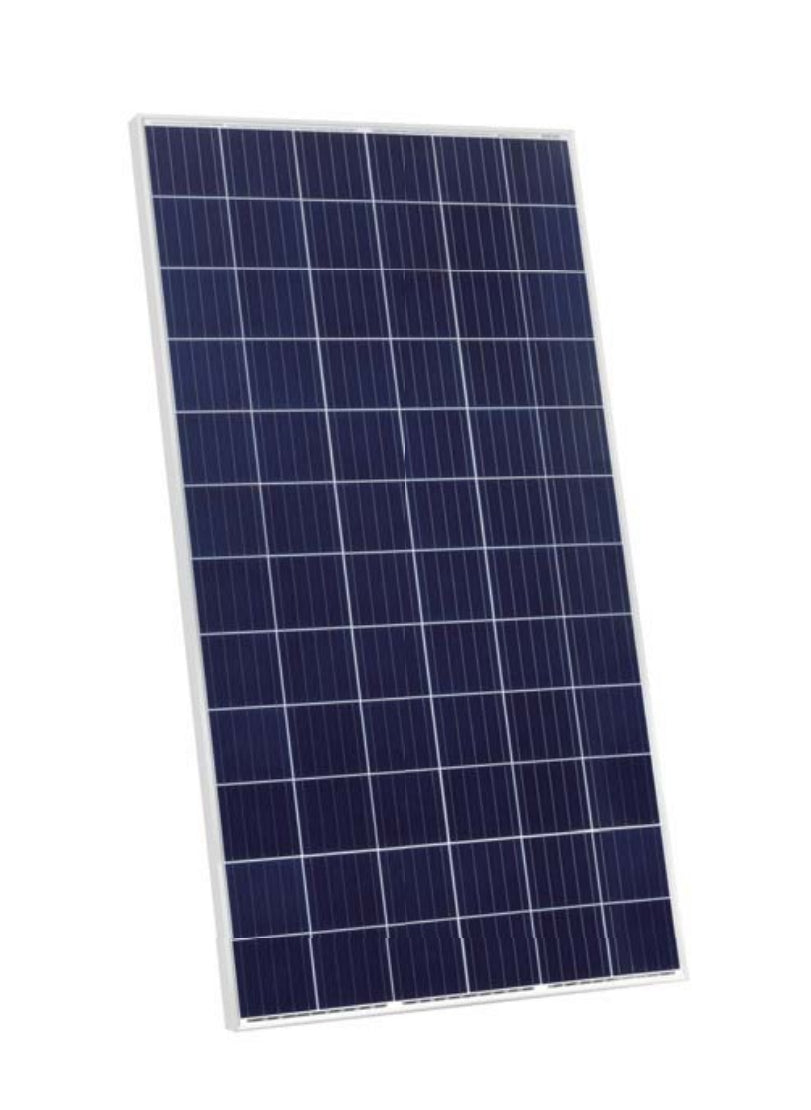

Jinko 320 Watt Solar Panel (JKM320PP-72)
The Jinko 320 Watt Solar Panel (JKM320PP-72) is a high-efficiency polycrystalline module designed for robust performance across a range of conditions. Featuring a 72-cell configuration and advanced 5-busbar technology, this solar panel achieves an output power of up to 340W, making it ideal for rooftop installations and larger solar arrays.
Jinko 320W Solar Panel Key Features
- 5 Busbar Solar Cell: The Jinko 320W panel incorporates 5 busbar technology, enhancing efficiency and reliability. This design also contributes to the aesthetic appeal of the module, suiting rooftop installations.
- High Power Output: With a maximum power of 320W, this polycrystalline 72-cell panel is engineered to deliver optimal energy even in low-light conditions.
- PID Resistance: Jinko’s panels undergo strict testing to ensure resistance against Potential Induced Degradation (PID), which is essential for long-term mass production reliability.
- Low-Light Performance: Advanced glass and solar cell surface texturing allow this panel to perform effectively in low-light environments, maximizing power generation throughout the day.
- Severe Weather Resilience: Certified to endure extreme weather, the JKM320PP-72 can withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa, making it suitable for various climates.
- Environmental Durability: This panel is certified by TÜV NORD for high resistance to salt mist and ammonia, ensuring it remains durable in harsh environmental conditions.
- Temperature Coefficient: Improved temperature coefficient reduces power losses in high temperatures, contributing to more consistent performance in hot climates.
Jinko 320W Datasheet
Technical Specifications
Electrical Characteristics
- Module Type: JKM320PP-72
- Maximum Power (Pmax): 320W (STC), 237W (NOCT)
- Maximum Power Voltage (Vmp): 37.6V (STC), 35.3V (NOCT)
- Maximum Power Current (Imp): 8.51A (STC), 6.88A (NOCT)
- Open-Circuit Voltage (Voc): 46.4V (STC), 43.0V (NOCT)
- Short-Circuit Current (Isc): 9.05A (STC), 7.30A (NOCT)
- Module Efficiency: 16.49% (STC)
- Power Tolerance: 0~+3%
Mechanical Characteristics
- Cell Type: Poly-crystalline, 157 x 157mm (6 inches)
- Number of Cells: 72 (6x12)
- Dimensions: 1956 x 992 x 40mm (77.0 x 39.05 x 1.57 inches)
- Weight: 22.5 kg (49.6 lbs)
- Front Glass: 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
- Frame: Anodized Aluminum Alloy
- Junction Box: IP67 Rated
- Output Cables: TÜV 1 x 4.0mm², Length: 1200mm or Customized
Temperature Ratings
- Operating Temperature: -40°C to +85°C
- Nominal Operating Cell Temperature (NOCT): 45±2°C
-
Temperature Coefficients:
- Pmax: -0.38%/°C
- Voc: -0.31%/°C
- Isc: +0.06%/°C
Certifications
The Jinko 320 Watt Solar Panel (JKM320PP-72) is certified by:
- ISO 9001:2015, ISO 14001:2015, OHSAS 18001
- IEC 61215, IEC 61730
- UL 1703
Packaging Configuration
- Packaging: 27 panels per pallet, 54 panels per stack, totaling 648 panels per 40’HQ container.
Warranty
- Product Warranty: 12 Years
- Linear Power Warranty: 25 Years
The Jinko 320 Watt Solar Panel (JKM320PP-72) is engineered to meet rigorous standards, ensuring reliable performance and long-lasting efficiency. This makes it a solid choice for both residential and commercial installations, supporting sustainable energy solutions for various applications.

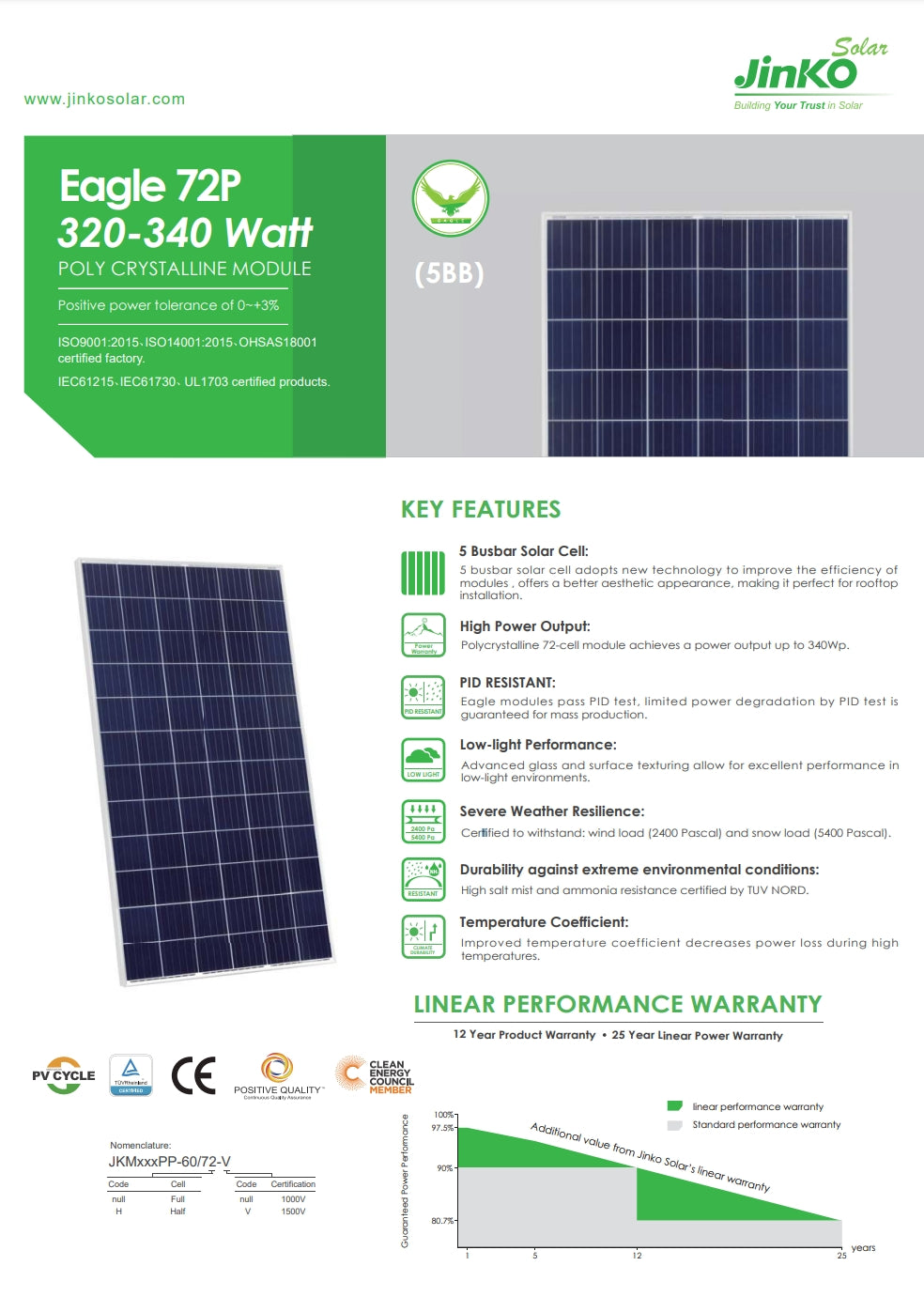

Jinko JKM320PP-72 solar panel features a polycrystalline module with a power output of up to 340Wp. The busbar solar cell design improves efficiency and offers better aesthetics for rooftop installation. The module is PID-resistant, ensuring limited power degradation over time. It also excels in low-light environments and withstands severe weather conditions, including wind and snow loads. Additionally, it features high salt mist and ammonia resistance certified by TUV NORD. Jinko offers a 12-year product warranty and a 25-year linear power warranty. The solar panel is certified to international standards, including IS09001:2015 and IEC61215.

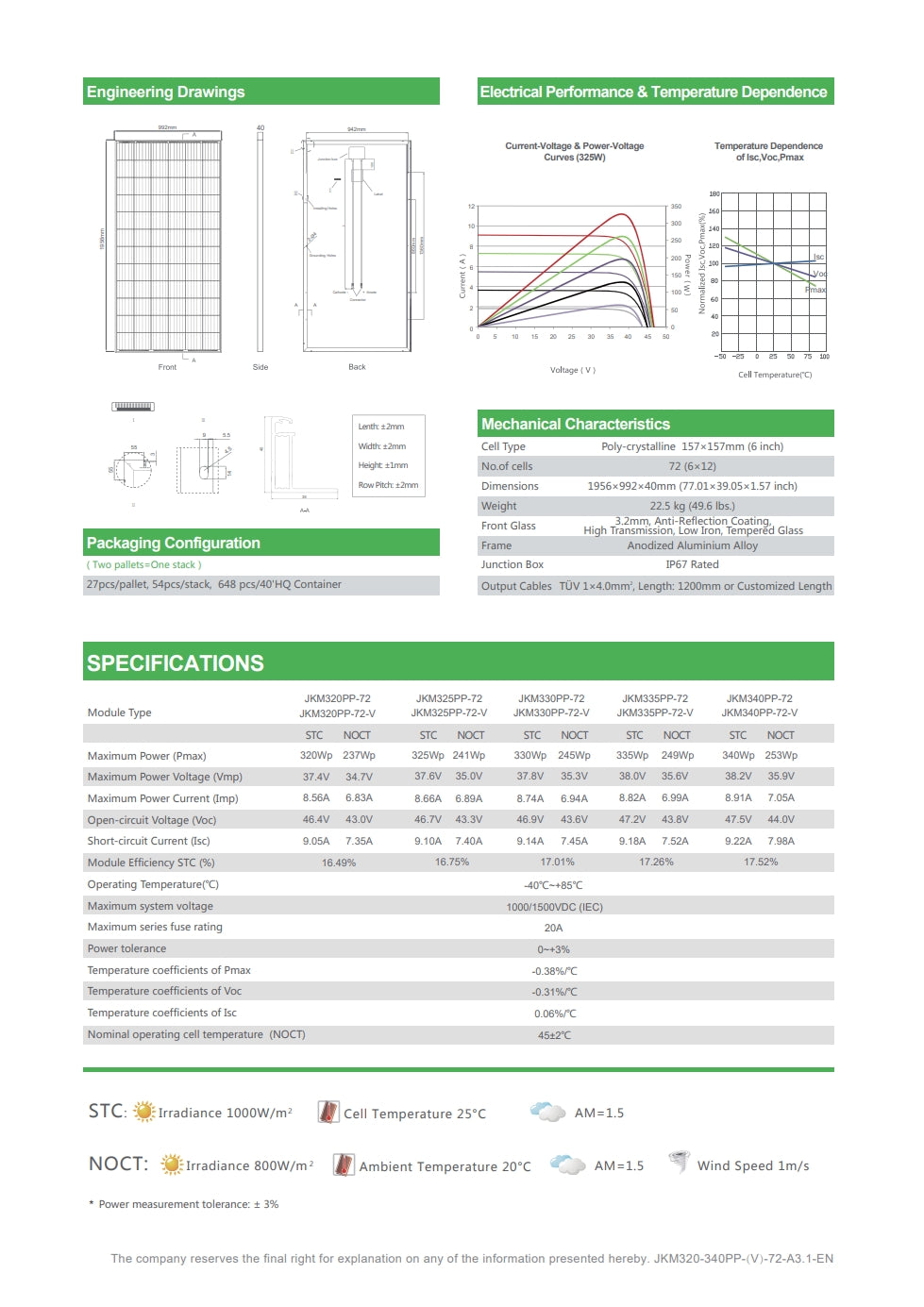

Jinko Solar Panel JKMS2OPP-72, 320Watt Poly-crystalline Module with 157x157mm Cell Size, Rated Maximum Power (Pmax) 320W, Maximum Power Voltage (Vmp) 37.44V, Maximum Power Current (Imp) 8.54A, Open-circuit Voltage (Voc) 46.40V, and Short-circuit Current (Isc) 9.05A. Module Efficiency at STC is 16.50%. Operating Temperature Range is -40°C to +85°C. Dimensions are 1956x992x40mm with a weight of 22.5 kg. Front Glass is 3.2mm Anti-Reflection Coated Low-Temperature Tempered Glass.
High-performance solar panel from Jinko with a power output of 320 watts, ideal for residential and commercial applications. Features durable construction, high-efficiency cells, and a sleek design.
