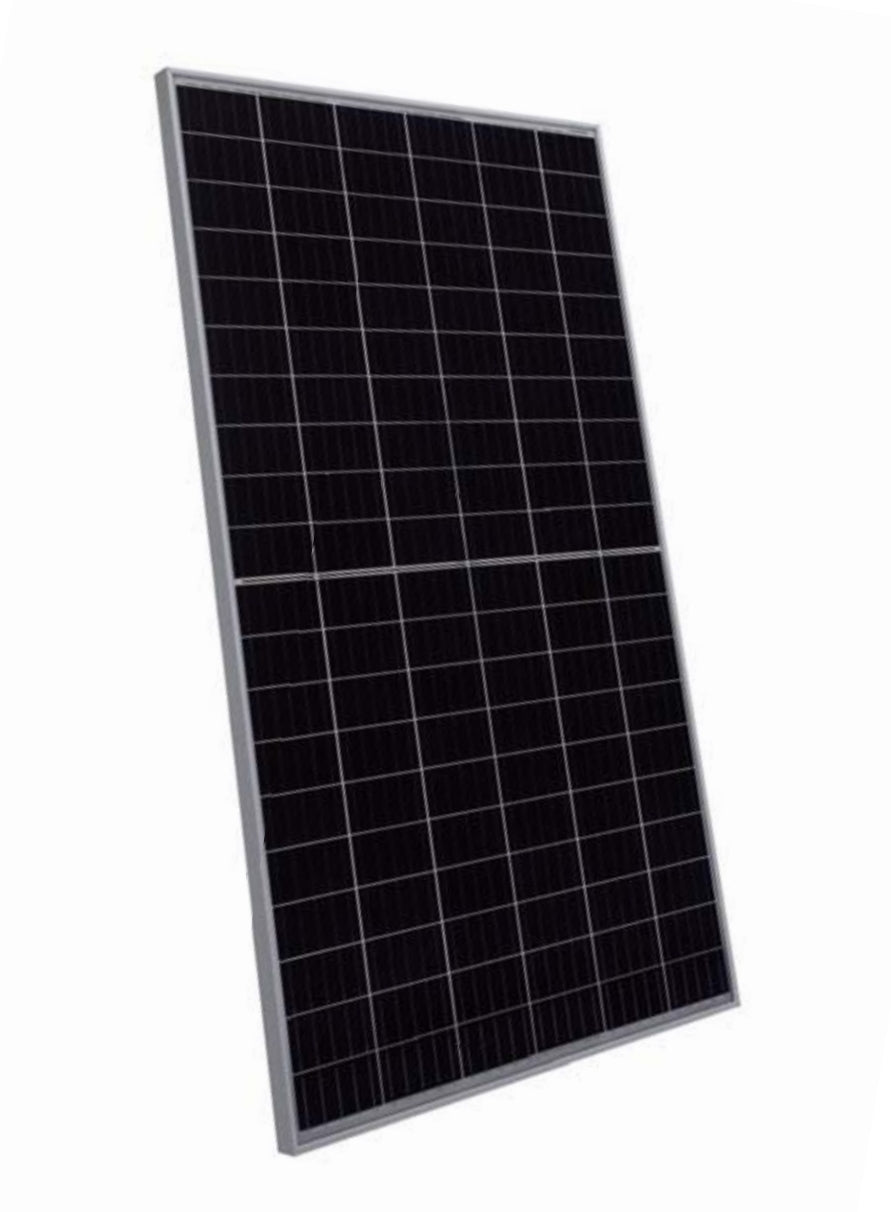

Jinko 325W Solar Panel Overview
The Jinko JKM325M-60H 325W Monocrystalline PERC Half-Cell Solar Panel combines advanced 5-busbar technology with PERC half-cell structure, enhancing power generation efficiency and reducing the impact of hotspots. It’s an ideal choice for rooftop and ground-mounted installations, providing high performance and reliability.
Jinko 325 Watt Solar Panel Key Features
-
5-Busbar Solar Cell: Utilizes a 5-busbar design to further reduce internal resistance, enhancing overall module efficiency. The sleek design makes it suitable for rooftop installations in various scenarios.
-
High Efficiency: Thanks to the monocrystalline PERC half-cell design, this module boasts a conversion efficiency of up to 19.26%, maximizing power output while ensuring excellent photoelectric conversion performance.
-
PID Resistance: Outstanding PID resistance ensures low degradation over time, maintaining stable quality in mass production.
-
Low-Light Performance: Advanced glass and solar cell surface texturing allow the module to perform well even in low-light environments, adapting to diverse weather conditions.
-
Strong Wind and Snow Load Resistance: Certified to withstand 2400Pa wind load and 5400Pa snow load, making it suitable for harsh environments while ensuring stable long-term output.
-
Superior Environmental Durability: Certified by TUV NORD for high resistance to salt mist and ammonia, making it ideal for coastal and agricultural applications.
Jinko 325W Specifications
- Maximum Power (Pmax): 325W (under STC)
- Module Efficiency: 19.26% (STC)
- Maximum Power Voltage (Vmp): 33.6V
- Maximum Power Current (Imp): 9.68A
- Open Circuit Voltage (Voc): 41.1V
- Short Circuit Current (Isc): 10.2A
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1000V / 1500V (IEC)
- Power Tolerance: 0 ~ +3%
-
Temperature Coefficients:
- Pmax: -0.35%/°C
- Voc: -0.29%/°C
- Isc: +0.048%/°C
Mechanical Characteristics
- Cell Type: Monocrystalline PERC, 158.75 x 158.75 mm (6 inches)
- Number of Half-Cells: 120 (6x20)
- Module Dimensions: 1684 x 1002 x 35 mm
- Weight: 19.0 kg (41.9 lbs)
- Front Glass: 3.2mm low iron, high-transmission tempered glass with anti-reflective coating
- Frame: Anodized aluminum alloy for robust protection
- Junction Box: IP67 rated, suitable for harsh environments
- Output Cables: TÜV 1x4.0mm², with lengths of 290mm (positive) and 145mm (negative), or customized upon request
Linear Power Warranty
- Product Warranty: 12 years
-
Linear Power Warranty: 25 years
- Power degradation no more than 2.0% in the first year
- Maintains at least 83.1% of rated power output after 25 years
Certifications and Standards
- Factory Certification: ISO9001:2015, ISO14001:2015, OHSAS18001
- Module Certification: IEC61215, IEC61730, UL1703
The Jinko 325W Solar Panel (JKM325M-60H) is a high-efficiency solar module suitable for a wide range of applications. Its excellent PID resistance, superior low-light performance, and robust environmental durability make it an ideal clean energy solution for coastal, agricultural, and industrial environments.
Jinko 325W Datasheet

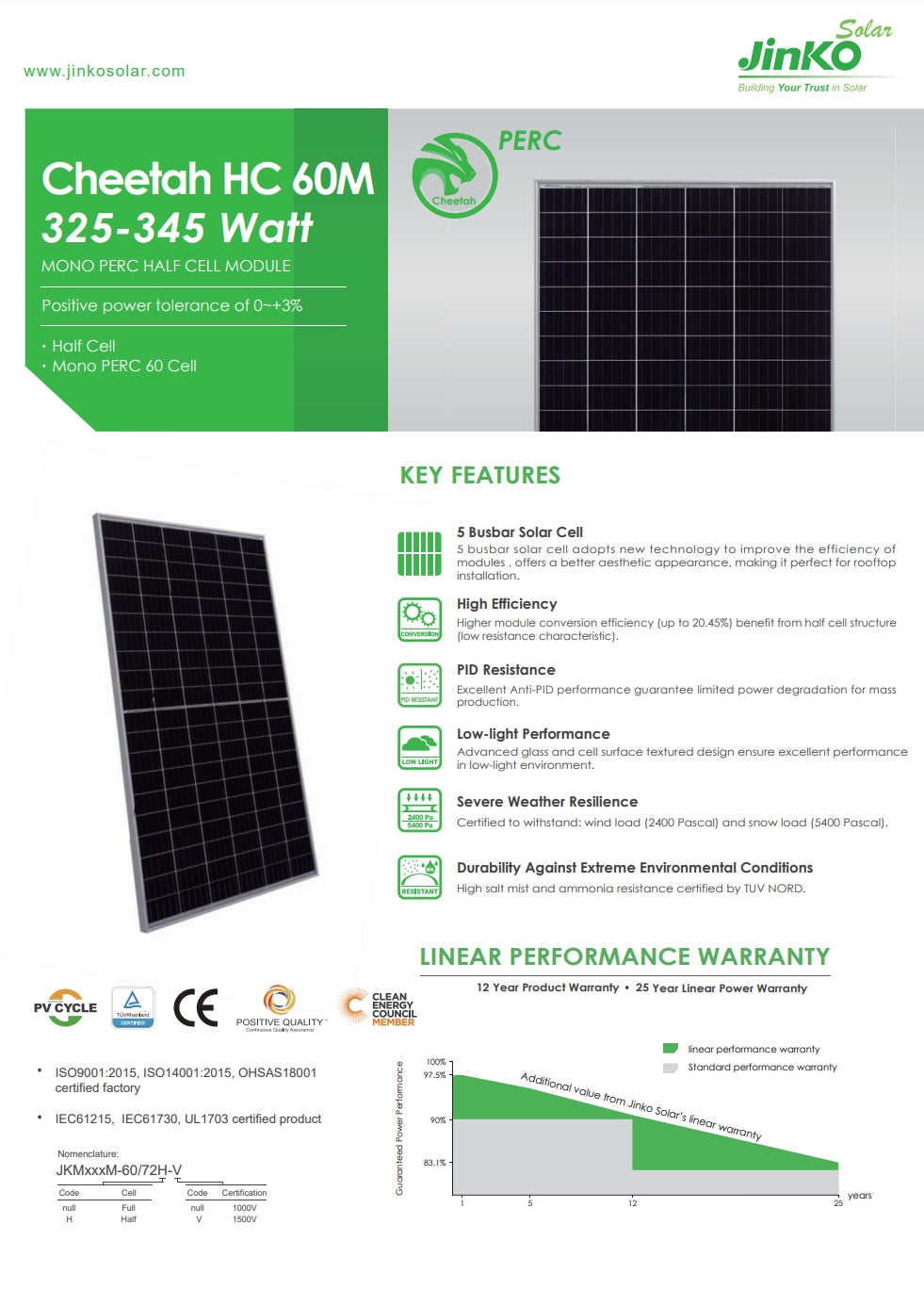

Jinko Solar introduces the JKM325M-60H, a high-performance solar panel featuring half-cell technology. With a power output of 325-345 watts and a positive power tolerance of ±3%, this module offers improved efficiency and reliability. The advanced glass and textured cell surface design ensure excellent performance in low-light conditions. The panel is designed to withstand severe weather conditions, including wind loads and snow loads, making it suitable for rooftop installations. Jinko Solar also provides a 12-year product warranty and a 25-year linear power warranty.

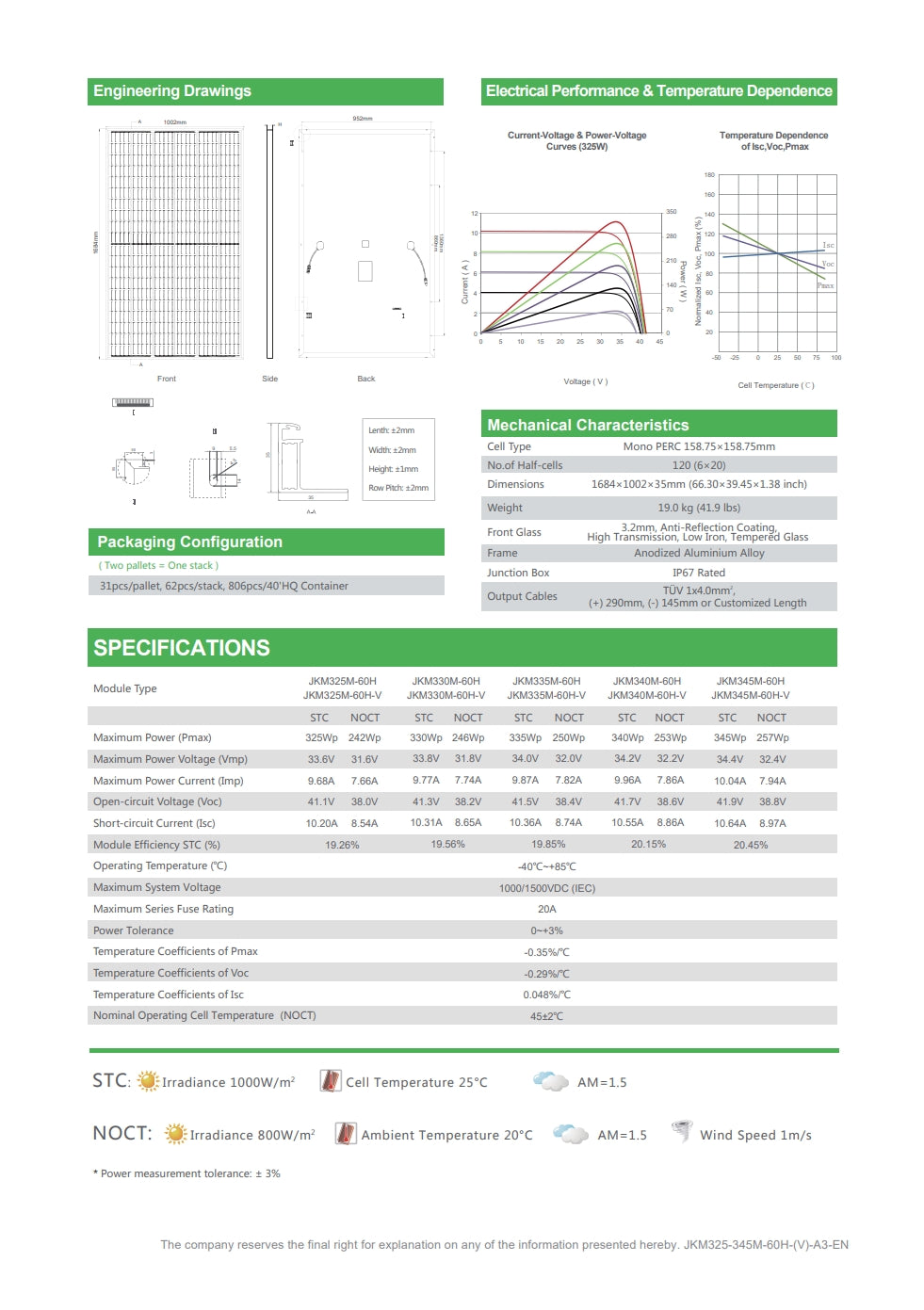

The Jinko Solar Panel (JKM325M-60H) features a 325W power output, with a maximum power voltage of 33.6V and maximum power current of 9.88A. The open-circuit voltage is 41.1V, while the short-circuit current is 10.20A. The module efficiency at STC is 19.27%, with an operating temperature range of -40°C to +85°C. The maximum system voltage is 1000/1500VDC (IEC), and the maximum series rating is 20A. The power tolerance is ±3%. Temperature coefficients are 0.3596°C for Pmax, 0.2996°C for Voc, and 0.048% for Isc. The nominal operating cell temperature is 45°C.
