Jinko 330W Polycrystalline Solar Panel (JKM330PP-72)
The Jinko 330W Polycrystalline Solar Panel, model JKM330PP-72, is designed for efficiency and durability in various weather conditions. This module utilizes a 5-busbar cell technology that enhances the panel's performance, making it ideal for rooftop installations and other applications requiring reliable power generation. This 72-cell module delivers up to 330W of power output, providing a high energy yield even in low-light conditions.
Jinko 330 Watt Solar Panel Key Features:
- 5 Busbar Solar Cell: Enhanced cell design improves module efficiency, delivering a sleek, aesthetically pleasing appearance suitable for rooftop and large-scale installations.
- High Power Output: With a maximum output of 330W, this panel is engineered to provide high efficiency and consistent power generation.
- PID Resistance: The Jinko Eagle series passes rigorous PID tests, ensuring minimal power degradation over time for long-lasting performance.
- Low-Light Performance: Optimized glass and cell surface texturing allow for improved performance in low-light settings, maximizing energy generation throughout the day.
- Severe Weather Resilience: Certified to withstand a wind load of up to 2400 Pa and a snow load of 5400 Pa, ensuring durability under harsh weather conditions.
- Durability Against Extreme Environmental Conditions: This panel is certified for high salt mist and ammonia resistance, making it suitable for coastal and agricultural environments.
- Temperature Coefficient: The improved temperature coefficient reduces power loss in high-temperature environments, enhancing the module's performance under extreme heat.
Jinko 330W Specs
Technical Specifications:
- Module Type: JKM330PP-72
- Maximum Power (Pmax): 330W (STC), 245W (NOCT)
- Maximum Power Voltage (Vmp): 37.8V (STC), 35.3V (NOCT)
- Maximum Power Current (Imp): 8.74A (STC), 6.94A (NOCT)
- Open-Circuit Voltage (Voc): 46.9V (STC), 44.5V (NOCT)
- Short-Circuit Current (Isc): 9.22A (STC), 7.58A (NOCT)
- Module Efficiency: 17.01% at STC
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1000VDC (IEC)
- Maximum Series Fuse Rating: 20A
- Power Tolerance: 0 ~ +3%
-
Temperature Coefficients:
- Pmax: -0.38%/°C
- Voc: -0.31%/°C
- Isc: +0.06%/°C
- Nominal Operating Cell Temperature (NOCT): 45±2°C
Mechanical Characteristics:
- Cell Type: Polycrystalline, 157 x 157mm (6 inch)
- Number of Cells: 72 (6x12)
- Dimensions: 1956 x 992 x 40 mm (77.01 x 39.05 x 1.57 inches)
- Weight: 22.5 kg (49.6 lbs)
- Front Glass: 3.2mm, anti-reflection coating, high transmission, low iron, tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP67 rated for excellent protection against water and dust ingress
- Output Cables: TÜV 1x4.0mm², length 1200mm or customized length
Certifications and Warranty:
- Certifications: IEC61215, IEC61730, UL1703
-
Warranty:
- 12-year product warranty
- 25-year linear power warranty, guaranteeing over 80.7% performance after 25 years
This 330W polycrystalline solar panel is part of Jinko's Eagle 72P series, engineered for high durability and efficiency. With advanced design features, superior environmental resilience, and long-term warranties, it is a reliable solution for residential, commercial, and utility-scale installations.

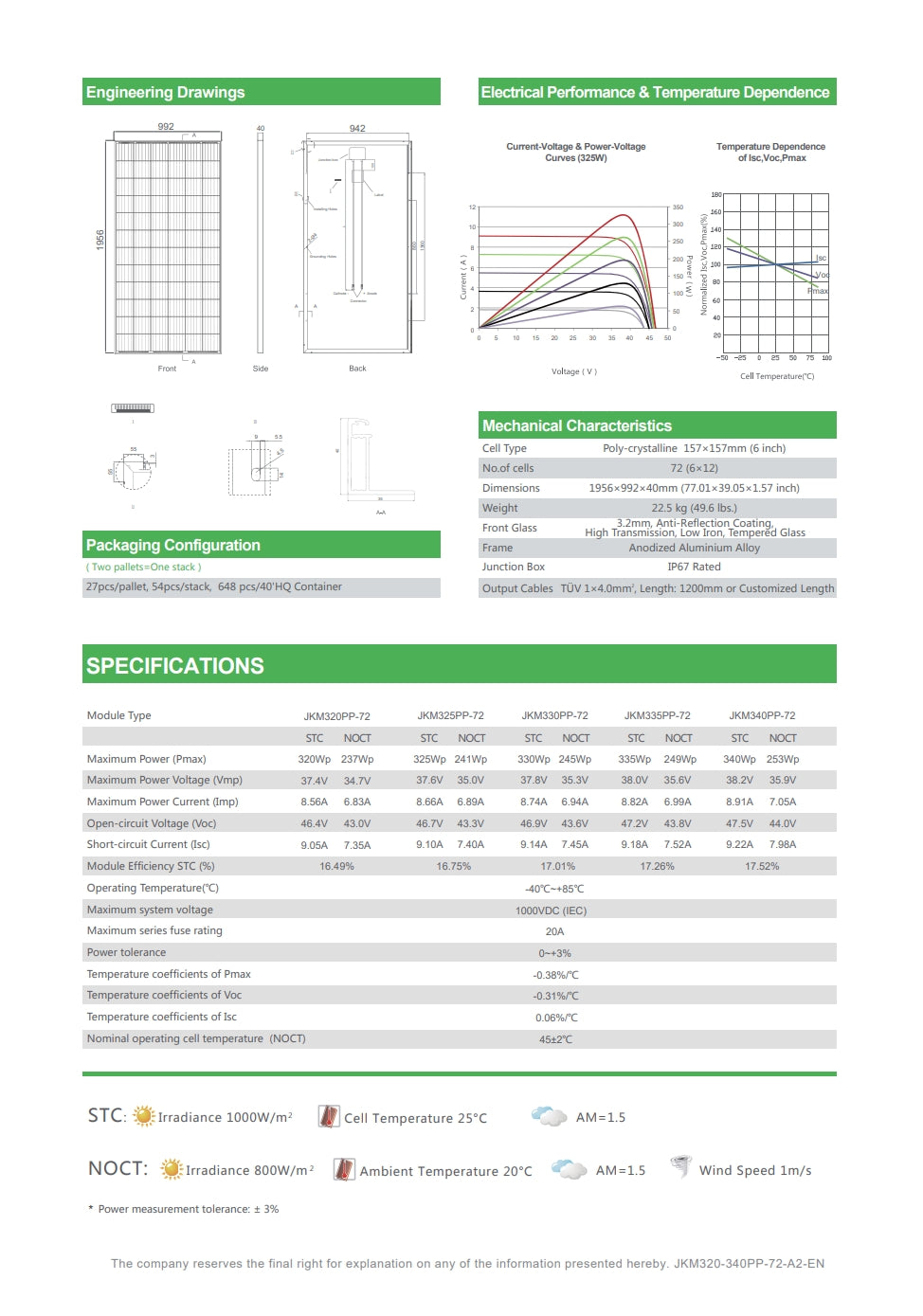

Jinko 330W Datasheet

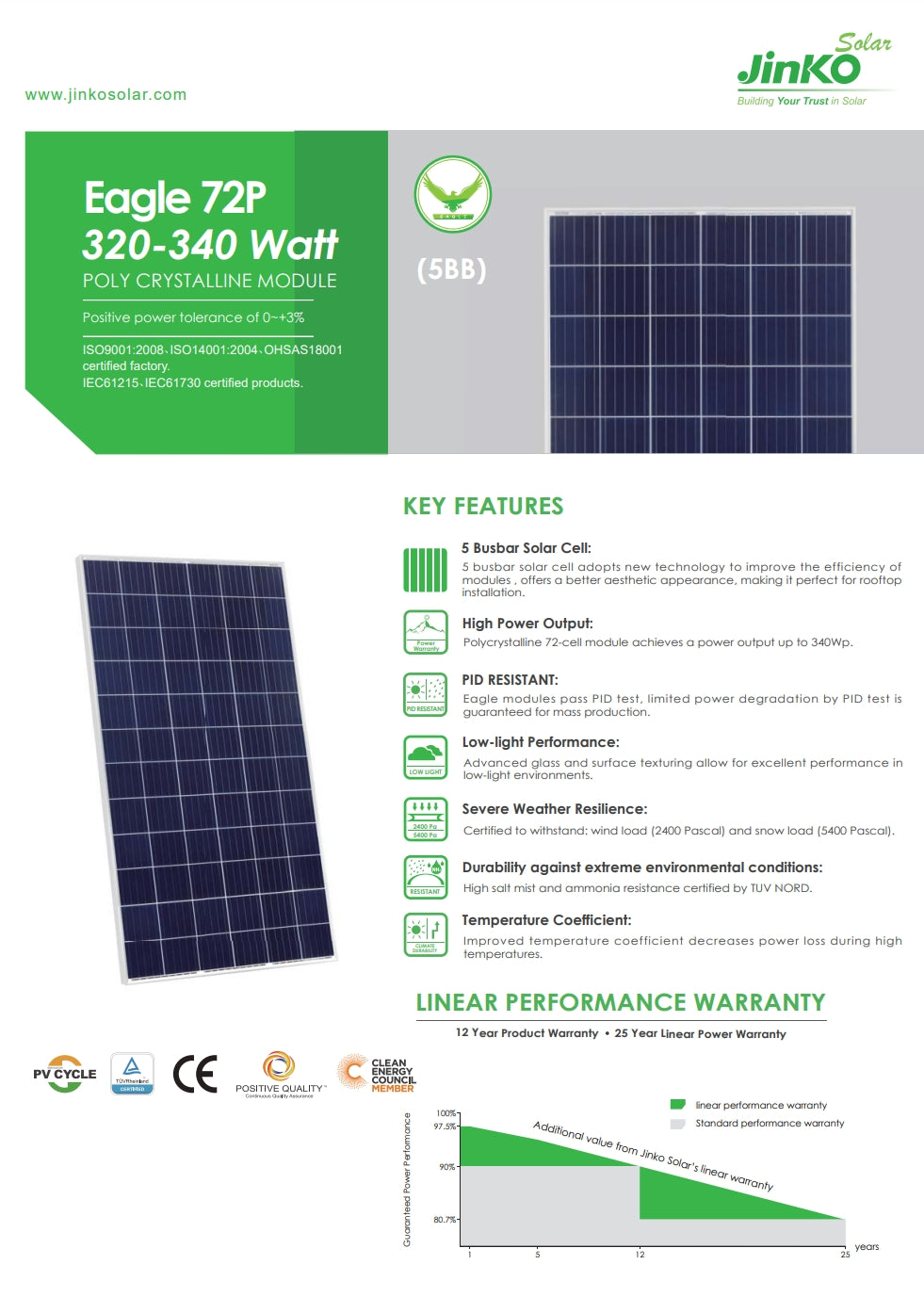

Jinko Solar, building trust in solar energy with their Eagle 72P 320-340 Watt Poly Crystalline Module (SBB). With a positive power tolerance of 0+3%, ISO9001.2008 and ISO14001 certified factory, IEC61215 and IEC61730 certified products. Key Features: 5 Busbar Solar Cell: adopting new technology to improve module efficiency and aesthetics. High Power Output: polycrystalline 72-cell module achieves power output up to 330W. PIDs Resistant: Eagle modules pass PID test, ensuring limited power degradation by PID. Low-Light Performance: advanced glass and surface texturing for excellent performance in low-light environments. Severe Weather Resilience: Jinko Solar certified to withstand wind load (2400 Pa) and snow load (5400 Pa). Durable against extreme environmental conditions: high salt mist and ammonia resistance certified by TUV NORD.
The Jinko 330W Solar Panel (JKM330PP-72) is a high-efficiency photovoltaic module designed for residential and commercial applications. It features a powerful output, excellent durability, and easy installation.
