Jinko

Jinko 335W Solar Panel (JKM335M-60H)

Jinko 335W Solar Panel (JKM335M-60H)

Regular price $5,500.00 USD
Regular price Sale price $5,500.00 USD
Sale Sold out
Shipping calculated at checkout.

2 orders in last 30 days

Quantity
View full details

Jinko 335W Solar Panel - JKM335M-60H

The Jinko 335W Solar Panel (JKM335M-60H) is a high-efficiency, mono PERC half-cell solar module designed for residential and commercial applications, offering reliable performance and durability. This panel uses advanced PERC (Passivated Emitter and Rear Cell) technology and a five-busbar half-cell structure to deliver a high module conversion efficiency of up to 20.15%. With its half-cell design, the JKM335M-60H minimizes resistance losses and enhances low-light performance, ensuring energy generation even under suboptimal conditions.

Jinko 335 Watt Solar Panel Key Features:

  • High Efficiency: Achieves up to 20.15% module efficiency, utilizing mono PERC half-cell technology to reduce resistance and boost power output.
  • 5 Busbar Solar Cell: Enhances efficiency and appearance, suitable for both rooftop and ground installations.
  • PID Resistance: Built to resist Potential Induced Degradation (PID), ensuring consistent power production and long-term reliability.
  • Excellent Low-Light Performance: Advanced glass and surface texturing maximize performance in low-light environments.
  • Extreme Weather Durability: Certified to withstand high wind loads (2400 Pascal) and snow loads (5400 Pascal), making it ideal for various climates.
  • Environmental Resistance: Certified by TÜV NORD for high salt mist and ammonia resistance, ensuring durability in coastal and agricultural environments.
  • Temperature Coefficient Optimization: Improved temperature coefficient minimizes power losses in high-temperature environments, enhancing overall energy yield.

Jinko 335W Specs

Technical Specifications:

  • Maximum Power (Pmax): 335W (Standard Test Conditions - STC)
  • Module Efficiency: 20.15% (STC)
  • Power Tolerance: 0~+3%
  • Maximum System Voltage: 1500V DC (IEC)
  • Dimensions: 1684mm x 1002mm x 35mm (66.3 x 39.5 x 1.38 inches)
  • Weight: 19.0 kg (41.9 lbs)
  • Temperature Range: -40°C to +85°C
  • Nominal Operating Cell Temperature (NOCT): 45±2°C

Electrical Characteristics:

  • Maximum Power Voltage (Vmp): 33.8V (STC)
  • Maximum Power Current (Imp): 9.77A (STC)
  • Open-Circuit Voltage (Voc): 41.8V (STC)
  • Short-Circuit Current (Isc): 10.31A (STC)
  • Temperature Coefficients:
    • Power (Pmax): -0.35%/°C
    • Voltage (Voc): -0.29%/°C
    • Current (Isc): +0.048%/°C

Certifications and Warranty:

  • Certifications: ISO9001:2015, ISO14001:2015, OHSAS18001 certified factory; IEC61215, IEC61730, UL1703 compliant.
  • Product Warranty: 12-year product warranty and 25-year linear performance warranty for enhanced reliability and peace of mind.

Packaging Details:

  • Packing Configuration: 31 panels per pallet, 62 panels per stack, totaling 806 panels per 40' HQ container.
  • Output Cables: TÜV 1x4.0mm², available in lengths of 290mm (+) and 145mm (-) or customized lengths.

The Jinko JKM335M-60H Solar Panel is engineered to deliver reliable, high-efficiency energy for a variety of applications. With robust weather resistance and long-term performance guarantees, it provides an excellent solution for anyone looking to invest in sustainable solar energy.

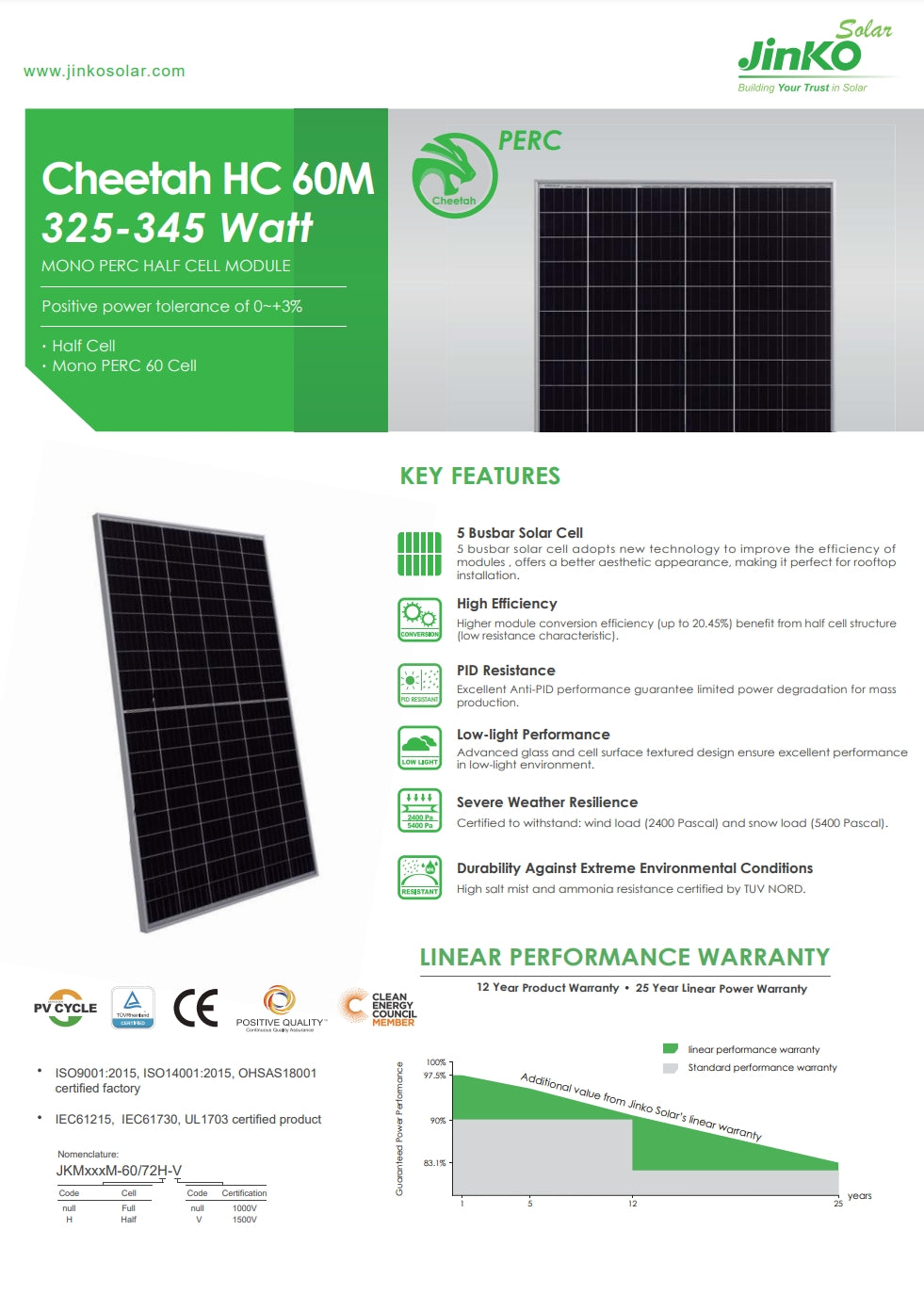

Jinko 335W Datasheet

Jinko 335W Solar Panel, The Jinko JKM335M-60H solar panel offers high performance, reliability, and aesthetic appearance with a conversion efficiency up to 20.45%.

The Jinko JKM335M-60H solar panel is designed to provide high performance and reliability. With a positive power tolerance of 0/+3%, this module features a half-cell mono PERC design for improved efficiency. The solar cell adopts new technology for better aesthetic appearance, making it perfect for rooftop installation. The module conversion efficiency reaches up to 20.45%. The Jinko JKM335M-60H also offers excellent anti-PID performance, ensuring limited power degradation during mass production. Additionally, the panel features advanced glass and cell surface textured design for excellent low-light performance. It certified to withstand severe weather conditions, including wind load (2400 Pascal) and snow load (5400 Pascal).

The Jinko 335W Solar Panel features electrical performance curves, mechanical characteristics, and specifications including STC, NOCT, and operating temperature.

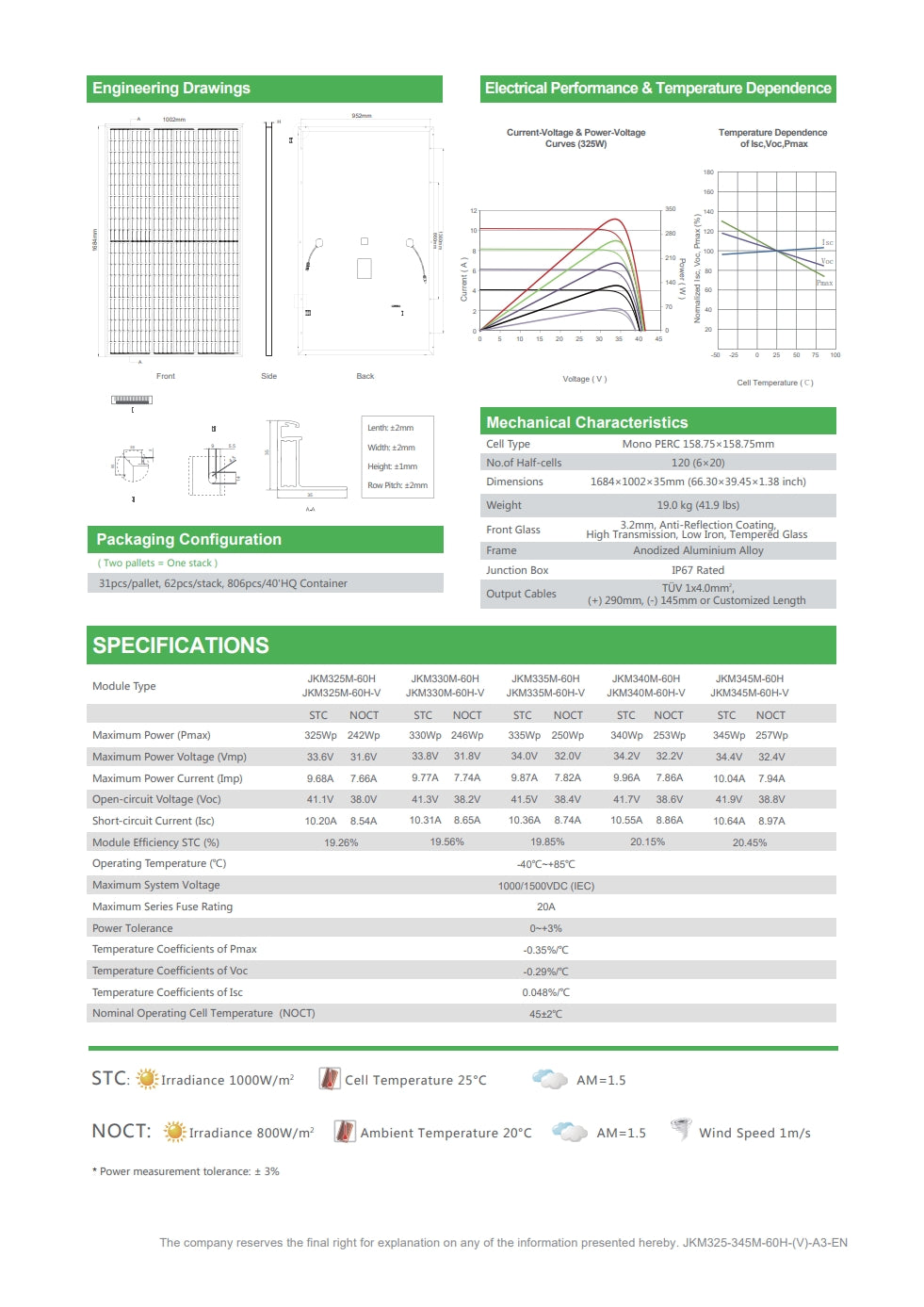

Jinko 335W Solar Panel (JKM335M-60H) Product Information: Engineering Drawings: Electrical Performance & Temperature Dependence Current-Voltage Curve, Power-Voltage Curve, Temperature Dependence Curve Mechanical Characteristics: Dimensions: 1684*1002*35mm, Weight: 19.0kg (41.9 Ibs) Front Glass: 3.5mm, Anti-Reflection Coating; Packaging Configuration: High Transmission; Low Iron; Tempered Glass Frame; Frame Material: Anodized Aluminium Alloy; Junction Box IP67 Rated Specifications: STC, NOCT, Maximum Power, Maximum Voltage, Maximum Current, Open-circuit Voltage, Short-circuit Current, Module Efficiency, Operating Temperature, and more.
