Jinko 430W Solar Panel Overview

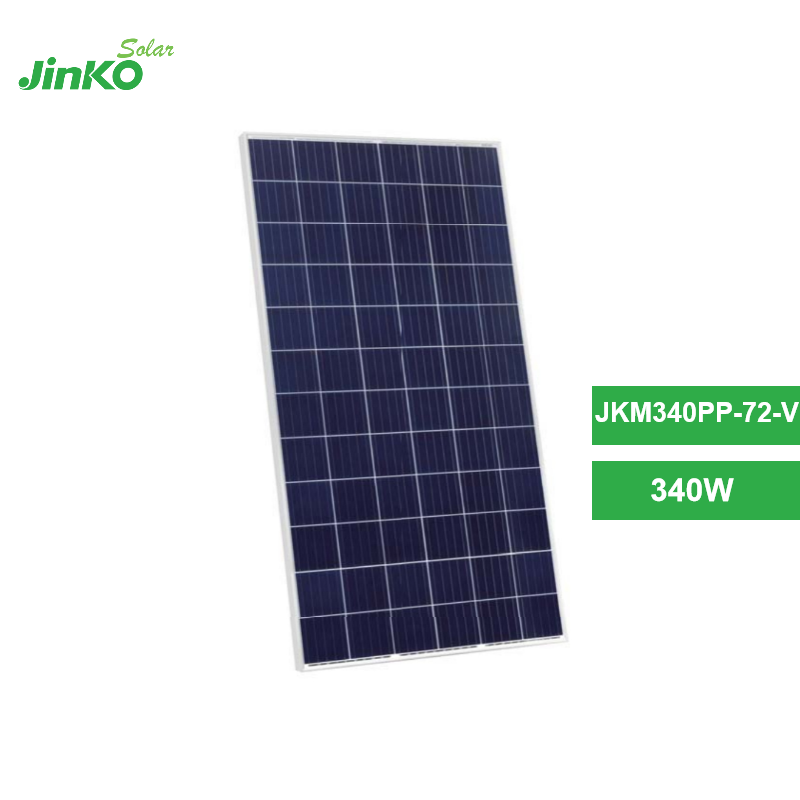

The Jinko 340W Solar Panel (JKM340PP-72-V) combines efficiency, durability, and reliability, making it an ideal choice for various solar installations. This Jinko 340 Watt Solar Panel features innovative polycrystalline technology with a 72-cell layout, engineered to deliver high power output and superior performance even in low-light conditions. With a positive power tolerance of 0~+3%, the Jinko 340W Specs ensure consistent energy production that meets or exceeds expectations.
Jinko 430 Watt Solar Panel Key Features
- High Voltage: UL and IEC 1500V certified, reducing BOS costs and optimizing LCOE for large-scale projects.
- PID Free: Advanced cell reinforcement prevents degradation, enhancing long-term stability.
- 5-Busbar Polycrystalline Technology: Increased efficiency and better module aesthetics with five busbars for improved current collection.
- Enhanced Low-Light Performance: Designed to maintain output in low-light environments, ensuring steady energy generation.
- Robust Durability: Withstands high wind (2400Pa) and snow loads (5400Pa), making it suitable for extreme environmental conditions.
- Salt Mist and Ammonia Resistance: Certified for resilience in coastal and agricultural areas, expanding deployment options.
Jinko 340W Specs
- Module Type: Polycrystalline, 157 x 157mm cells, 72-cell layout.
- Maximum Power (Pmax): 340W (STC), 253W (NOCT).
- Maximum Power Voltage (Vmp): 38.5V (STC), 35.9V (NOCT).
- Maximum Power Current (Imp): 8.82A (STC), 7.05A (NOCT).
- Open-Circuit Voltage (Voc): 47.5V (STC), 44.0V (NOCT).
- Short-Circuit Current (Isc): 9.22A (STC), 7.98A (NOCT).
- Module Efficiency: Up to 17.52%.
- Temperature Coefficients: -0.38%/°C (Pmax), -0.31%/°C (Voc), 0.06%/°C (Isc).
- Operating Temperature: -40°C to +85°C.
- Maximum System Voltage: 1500V (UL and IEC).
- Power Tolerance: 0~+3%.
Mechanical Specifications
- Dimensions: 1956 x 992 x 40mm (77.01 x 39.06 x 1.57 inches).
- Weight: 22.5 kg (49.6 lbs).
- Front Glass: 3.2mm, anti-reflection, low iron, high transmission tempered glass.
- Frame: Anodized aluminum alloy, ensuring robust and lightweight construction.
- Junction Box: IP67 rated for superior waterproofing.
- Output Cables: 12 AWG, 1200mm length (47.24 inches), customizable upon request.
Certifications and Warranty
The Jinko 340W Datasheet highlights its certifications, including IEC 61215, IEC 61730, ISO 9001, and UL certifications, ensuring compliance with international standards for safety and performance. Backed by a 12-year product warranty and a 25-year linear power warranty, the Jinko 340W Solar Panel guarantees reliability and peace of mind, with expected power degradation minimized for sustained output over time.
Whether you are seeking reliable Jinko 340W Solar Panel specs for residential, commercial, or large-scale utility projects, this panel’s robust design and high efficiency make it an optimal choice across diverse environments.

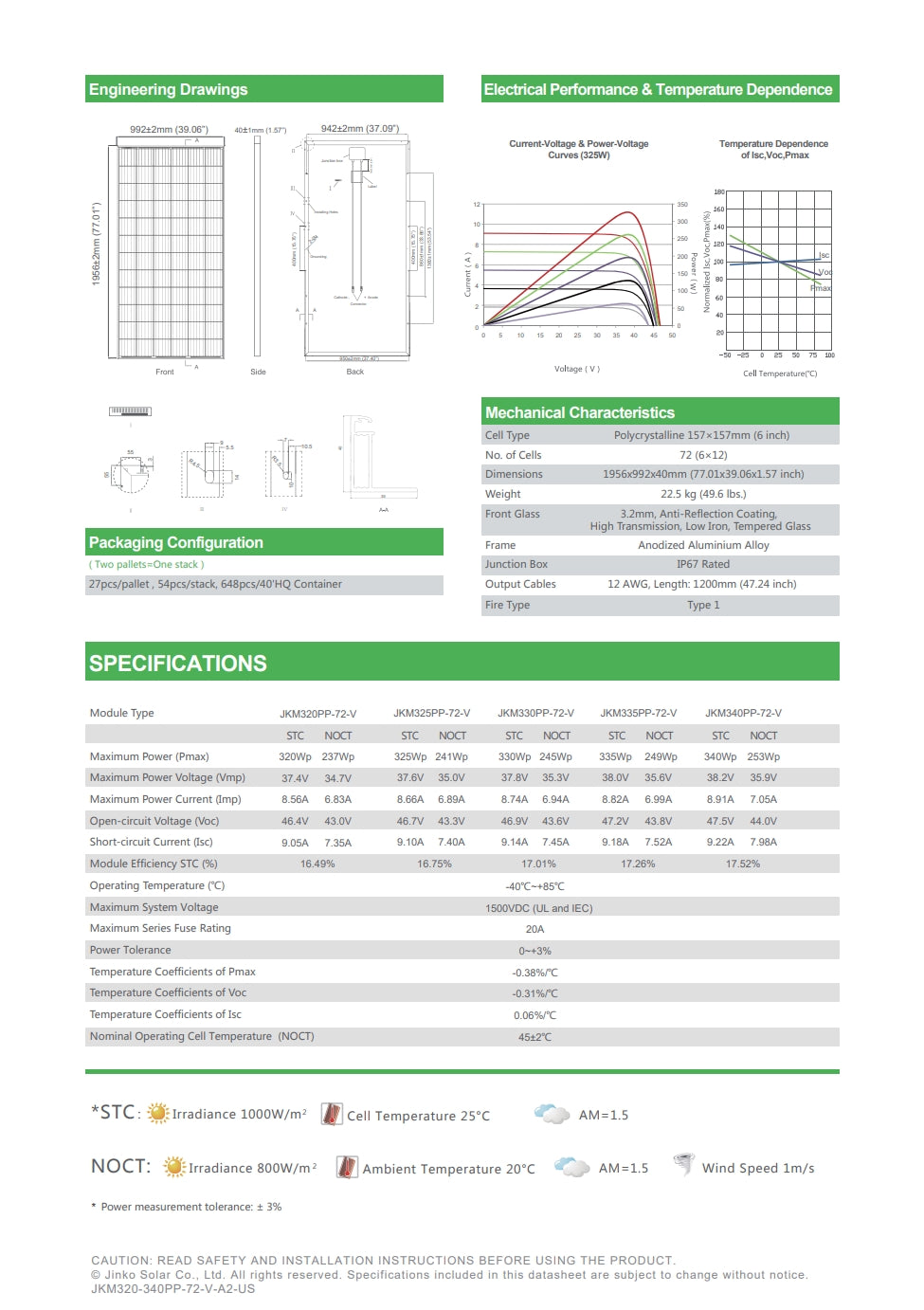

Jinko 340W Datasheet

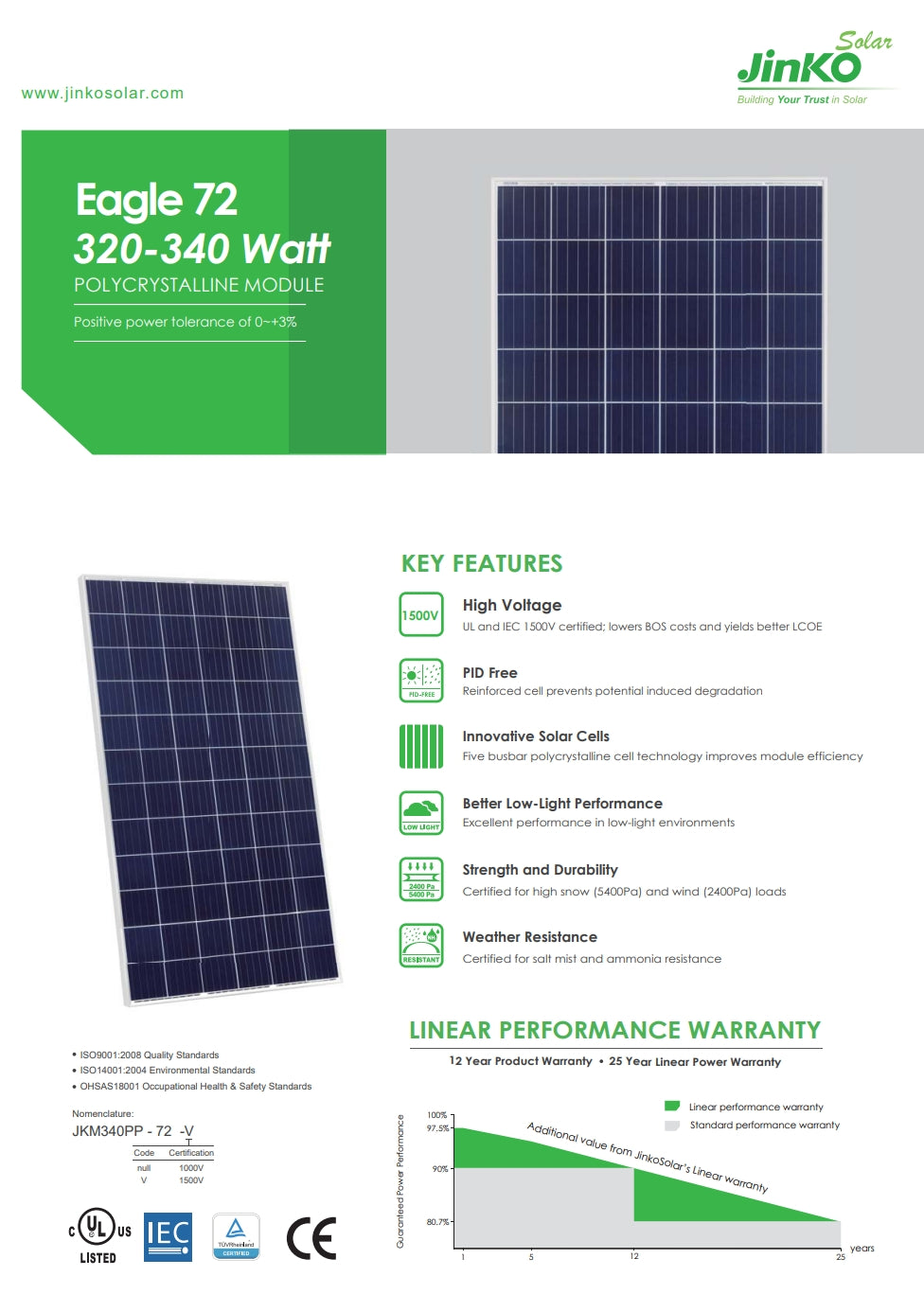

JinkoSolar: Building Trust in Solar. Eagle 72, 320-340W Polycrystalline Module. Key Features: High Voltage (50V UL and IEC), Positive Power Tolerance (+3%), PID-Free, Reinforced Cell prevents potential induced degradation. Innovative Solar Cells with Five Busbar Polycrystalline Cell Technology improves module efficiency. Better Low-Light Performance, Excellent performance in low-light environments. Strength and Durability: 2400 Pa Snm Certified for high snow (540Pa) and wind (240Pa) loads. Weather Resistance: Certified for hail, mist, and ammonia resistance.
Jinko 340W Solar Panel (JKM340PP-72-V) Product Description: The Jinko 340W Solar Panel (JKM340PP-72-V) is a high-performance solar panel designed for residential and commercial applications. It features a polycrystalline silicon cell type with an efficiency of 16.4980% at STC. Key Specifications: * Maximum Power: 340Wp * Maximum Power Voltage: 38.2V * Maximum Power Current: 8.91A * Open-circuit Voltage: 46.4V * Short-circuit Current: 9.22A * Module Efficiency (STC): 16.4980% * Operating Temperature Range: -40°C to +85°C * Maximum System Voltage: 1000VDC (UL and IEC) * Power Tolerance: ±3% Physical Characteristics: * Dimensions: 1956x992x40mm (77.0inx3.5 inch) * Weight: 22.5 kg (49.6 lbs) * Front Glass: 4mm, Anti-Reflection Coating; High Transmission; Low Iron, Tempered Glass Output Cables: * Length: 1200mm (47.24 inch) * AWG: 12 Junction Box: * Rated IP67 * Number of Pallets/Stack: 2/1 * Output Cables Quantity per Container: 648 pieces
