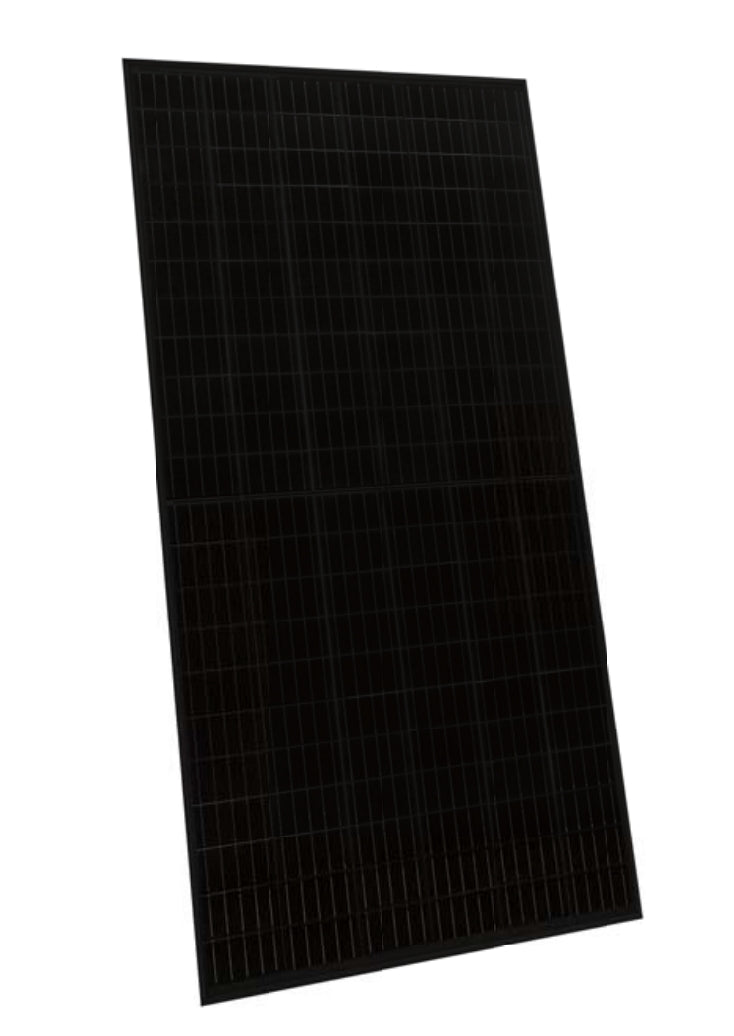

Jinko 345W Solar Panel Overview
The Jinko 345W Solar Panel (JKM345M-66HB), part of the Cheetah Plus HC 66MB series, is a cutting-edge, high-efficiency solar module designed with Mono PERC half-cell technology. This module is engineered to deliver robust performance in diverse environments, making it suitable for residential and commercial installations where reliability and durability are paramount.
Jinko 345 Watt Solar Panel Key Features:
- 5 Busbar Solar Cell: The panel uses a 5-busbar design, which enhances module efficiency and improves power output by reducing internal resistance.
- High Efficiency: The Jinko 345W Solar Panel achieves a high conversion efficiency of up to 19.52%, leveraging half-cell technology for reduced resistance and optimized power generation.
- PID Resistance: Tested and certified for PID (Potential Induced Degradation) resistance, ensuring stable, long-term power output even under high voltage stress.
- Enhanced Low-Light Performance: Engineered to perform excellently in low-light conditions, this panel’s advanced glass and surface texturing maximize energy yield even during cloudy days or early morning and evening hours.
- Severe Weather Resilience: Certified to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa, making it suitable for installations in areas prone to extreme weather conditions.
- Durability Against Harsh Environments: The JKM345M-66HB is resistant to high salt mist and ammonia levels, certified by TUV NORD, which makes it ideal for coastal and agricultural installations where harsh conditions are common.
Jinko 345W Specs
Technical Specifications:
- Module Type: JKM345M-66HB
- Rated Maximum Power (Pmax): 345W (Standard Test Conditions - STC), 257W (Nominal Operating Cell Temperature - NOCT)
- Maximum Power Voltage (Vmp): 36.63V (STC), 33.51V (NOCT)
- Maximum Power Current (Imp): 9.42A (STC), 7.66A (NOCT)
- Open Circuit Voltage (Voc): 41.09V (STC), 38.63V (NOCT)
- Short Circuit Current (Isc): 10.13A (STC), 8.18A (NOCT)
- Module Efficiency: 19.24%
- Operating Temperature Range: -40°C to +85°C
-
Temperature Coefficients:
- Power (Pmax): -0.35%/°C
- Voltage (Voc): -0.28%/°C
- Current (Isc): +0.048%/°C
- Nominal Operating Cell Temperature (NOCT): 45±2°C
- Power Tolerance: 0~+3%, ensuring consistent energy output
Mechanical Characteristics:
- Cell Type: Mono PERC 158.75×158.75 mm, half-cell configuration
- Number of Cells: 132 (6×22 configuration)
- Dimensions: 1841 × 1002 × 30 mm (72.48 × 39.45 × 1.18 inches)
- Weight: 20 kg (44.09 lbs)
- Front Glass: 3.2 mm high transmission, low iron, anti-reflective tempered glass, optimizing light absorption and durability
- Frame: Anodized aluminum alloy, providing robustness and lightweight for easier installation
- Junction Box: IP67 rated, ensuring protection against dust and water ingress for long-lasting reliability
- Output Cables: TÜV 1×4.0 mm², length 1200 mm or customized to meet specific project requirements
- Fire Type: Type 1, certified for fire safety in applicable installation environments
Packaging and Installation:
- Packaging Configuration: 24 panels per pallet, with 48 panels per stack, making a total of 840 panels per 40' HQ container for efficient storage and transport.
- Mounting Compatibility: Designed to be compatible with standard racking systems, simplifying installation in both rooftop and ground-mounted systems.
Certifications and Standards:
- ISO Certifications: Manufactured in a facility certified under ISO9001:2015 (Quality), ISO14001:2015 (Environmental), and ISO45001:2018 (Occupational Health and Safety).
- IEC Standards: IEC61215 and IEC61730 certified, meeting global standards for performance and safety.
- Additional Certifications: UL1703 and CE certified, compliant with various regional safety and quality regulations.
Warranty:
- Product Warranty: 12-year product warranty covers manufacturing defects, ensuring reliable performance.
- Performance Warranty: 25-year linear power warranty guarantees a maximum degradation rate of 2% in the first year, followed by an annual degradation rate of 0.55% per year thereafter, retaining 83.1% of the original power output by the 25th year. This warranty provides peace of mind and a high return on investment.
The Jinko 345W Solar Panel (JKM345M-66HB) is a high-performance solar module designed for demanding applications. Its robust construction, high efficiency, and durability in harsh environments make it a leading choice for solar installations worldwide. Whether you need reliable energy for commercial or residential projects, this panel offers the longevity, efficiency, and resilience required to meet diverse energy needs.
Jinko 345W Datasheet

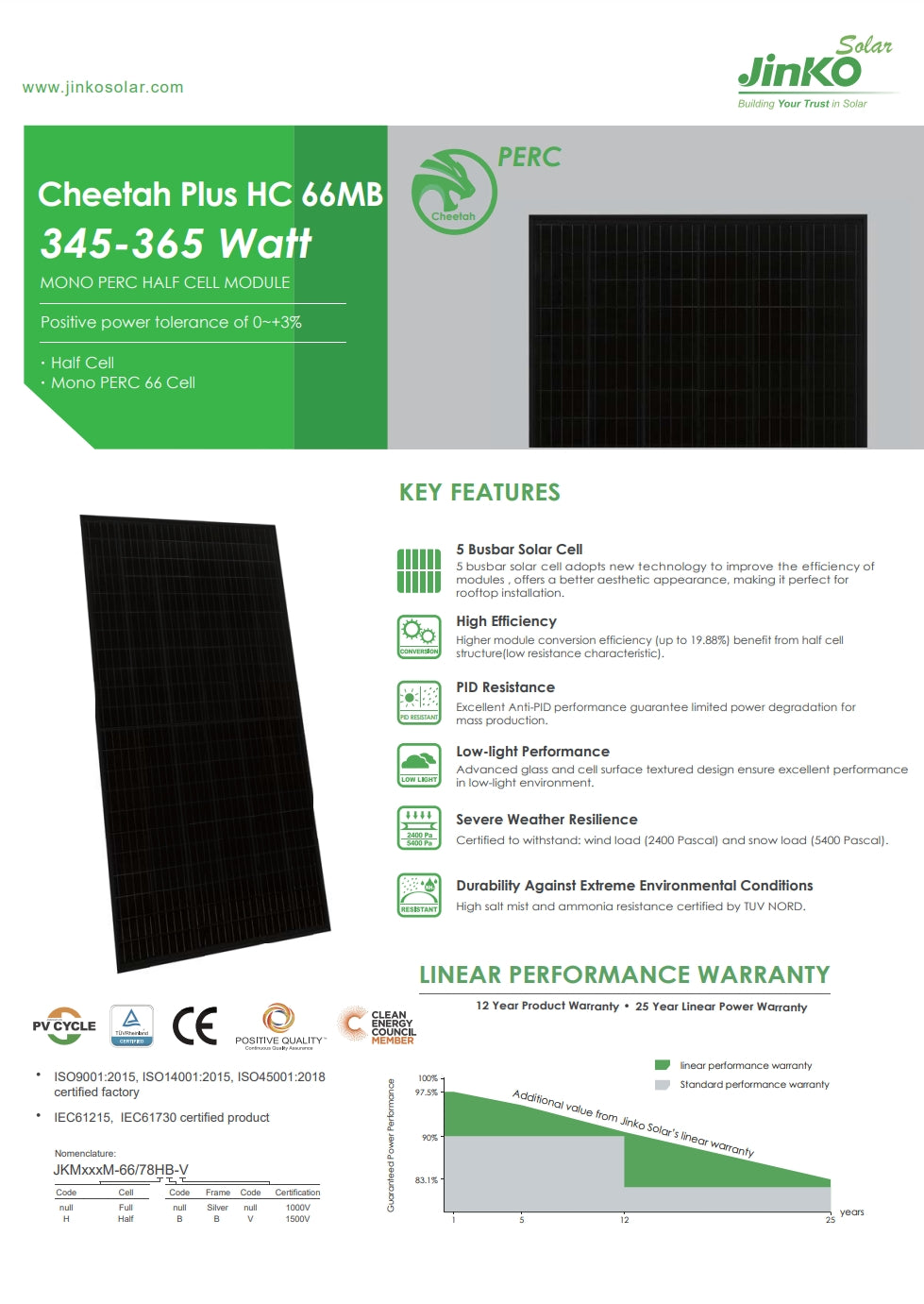

The Jinko 345W Solar Panel (JKM345M-66HB) offers a high-efficiency PERC half-cell module with a positive power tolerance of 0-+3%. The module features 66 cells and a busbar design for improved efficiency. It also has PID resistance, excellent anti-PID performance, and low-light performance ensured by advanced glass and cell surface textures. The panel can withstand severe weather conditions, including high winds (2400 Pa) and snow loads (5400 Pa), certified by TUV Nord. The product comes with a 12-year product warranty and a 25-year linear power warranty. Jinko solar panel is ISO9001:2015, IEC61215, and IEC61730 certified, ensuring high-quality performance.

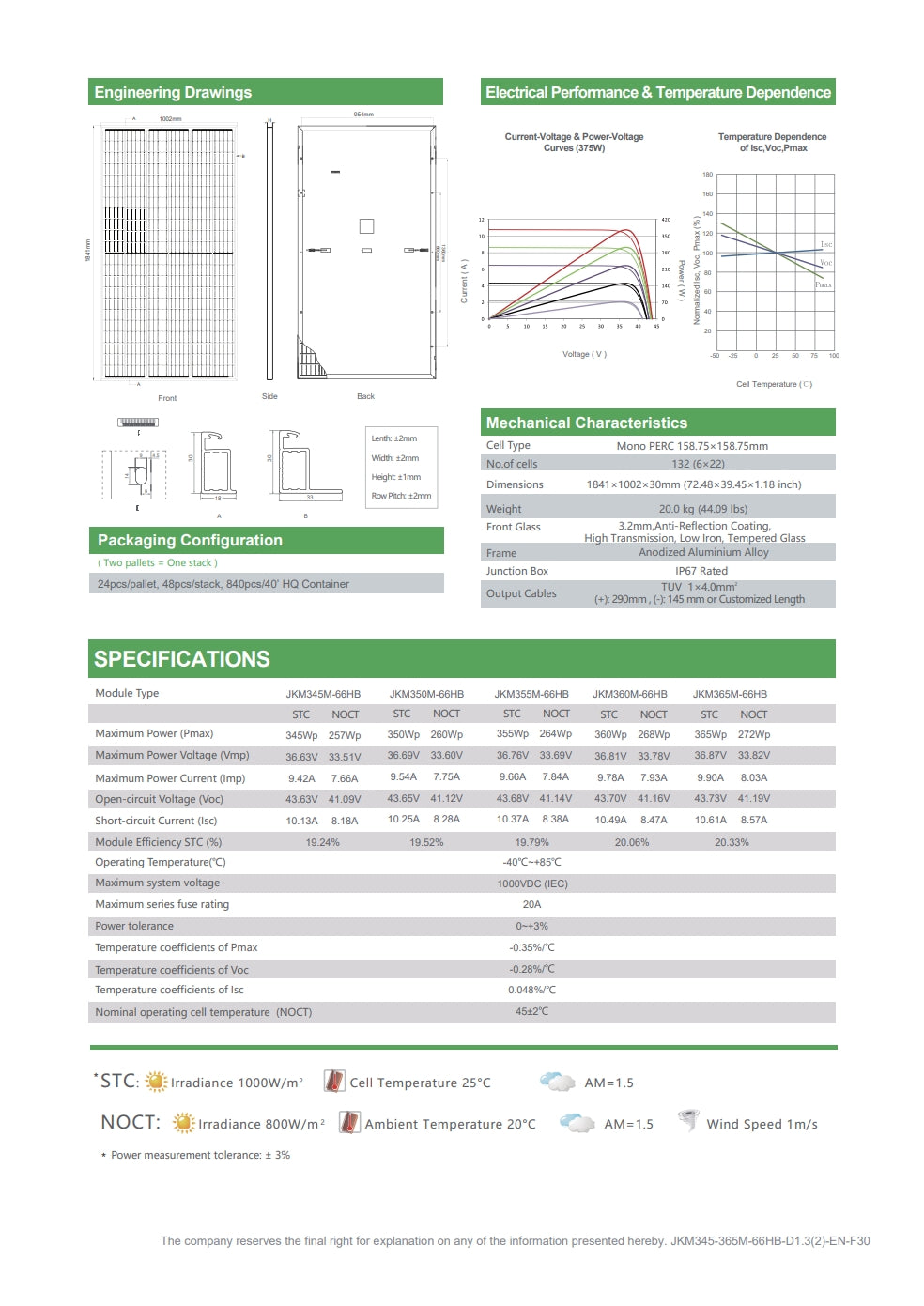

The Jinko 345W Solar Panel (JKM345M-66HB) features a module type of JKM34SM-BBHB, with a maximum power output of 345W. The electrical performance includes an open-circuit voltage of 43.63V, short-circuit current of 10.13A, and maximum power current of 42A. The temperature dependence curves show the effects on Isc, Voc, and Pmax at various temperatures. The mechanical characteristics include a cell type of mono PERC, with dimensions of 158.75mm x 158.75mm and a weight of 20kg. The junction box is IP67 rated and has an anti-reflection coating. Packaging includes high transmission low iron tempered glass frame and anodized aluminum alloy.
The Jinko 345W Solar Panel (JKM345M-66HB) product features high-efficiency mono-crystalline silicon cells for optimal energy harvesting.
