Jinko 350W Solar Panel (JKM350M-66HB) – High-Efficiency Mono PERC Half Cell Module
The Jinko 350W Solar Panel (JKM350M-66HB) is designed with advanced Mono PERC half-cell technology, offering superior efficiency and reliability for residential and commercial rooftop applications. This high-performance module combines Jinko's proven reliability with optimized power output, ensuring maximum energy yield and long-term durability.
Jinko 350 Watt Solar Panel Key Features
-
5 Busbar Solar Cell: Utilizes a five-busbar configuration to increase energy efficiency, providing a sleek appearance ideal for rooftop installations.
-
High Efficiency: Achieves a high module efficiency of up to 20.15%, taking advantage of low resistance characteristics from the half-cell structure to optimize power conversion.
-
PID Resistance: Certified for Potential Induced Degradation (PID) resistance, ensuring consistent performance and reduced degradation for enhanced reliability in mass production.
-
Low-Light Performance: Features advanced glass and cell surface texturing, enhancing performance in low-light conditions, making it suitable for various geographic regions and climates.
-
Severe Weather Resilience: Tested and certified to withstand high wind loads of up to 2400 Pascals and snow loads of up to 5400 Pascals, ensuring robustness under extreme weather conditions.
-
Extreme Environmental Durability: Certified for salt mist and ammonia resistance, making it highly durable in coastal and agricultural environments.
Jinko 350W Specs
Technical Specifications
- Module Type: JKM350M-66HB
- Cell Type: Mono PERC (Passivated Emitter Rear Cell)
- Dimensions: 1840 x 998 x 35 mm (72.44 x 39.29 x 1.38 inches)
- Weight: 20 kg (44.09 lbs)
- Front Glass: 3.2 mm high-transmission, low-iron tempered glass with anti-reflective coating
- Frame: Anodized aluminum alloy for enhanced structural integrity
- Junction Box: IP67 rated for superior moisture and dust protection
- Output Cables: TUV 1x4.0 mm², Length: (+) 290 mm, (-) 145 mm or customized length
Electrical Characteristics (STC - Standard Test Conditions)
- Maximum Power (Pmax): 350 Wp
- Module Efficiency (STC): 20.15%
- Maximum Power Voltage (Vmp): 36.89 V
- Maximum Power Current (Imp): 9.49 A
- Open-Circuit Voltage (Voc): 43.56 V
- Short-Circuit Current (Isc): 10.25 A
- Power Tolerance: 0 ~ +5 W
- Temperature Coefficient of Pmax: -0.35%/°C
- Temperature Coefficient of Voc: -0.28%/°C
- Temperature Coefficient of Isc: +0.048%/°C
Performance Under NOCT (Nominal Operating Cell Temperature)
- Maximum Power (Pmax): 260 Wp
- Maximum Power Voltage (Vmp): 33.60 V
- Maximum Power Current (Imp): 7.75 A
- Open-Circuit Voltage (Voc): 41.12 V
- Short-Circuit Current (Isc): 8.28 A
Certifications and Warranty
- Certifications: IEC61215, IEC61730, ISO9001:2015, ISO14001:2015, and OHSAS18001 standards ensure quality, environmental responsibility, and workplace safety.
- Warranty: 12-year product warranty and 25-year linear performance warranty, guaranteeing up to 83.1% of nominal power output at the 25th year.
Environmental and Operating Conditions
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1000V (IEC) and 1500V (UL)
- Fire Rating: Class C
- NOCT: 45 ± 2°C
This Jinko 350W Solar Panel (JKM350M-66HB) is optimized for efficiency and reliability in diverse environmental conditions, making it a premium choice for anyone looking to harness solar power for both on-grid and off-grid applications. Whether you’re installing on a residential roof or a large-scale commercial setup, the Jinko 350W Solar Panel offers unmatched durability, performance, and long-term value.

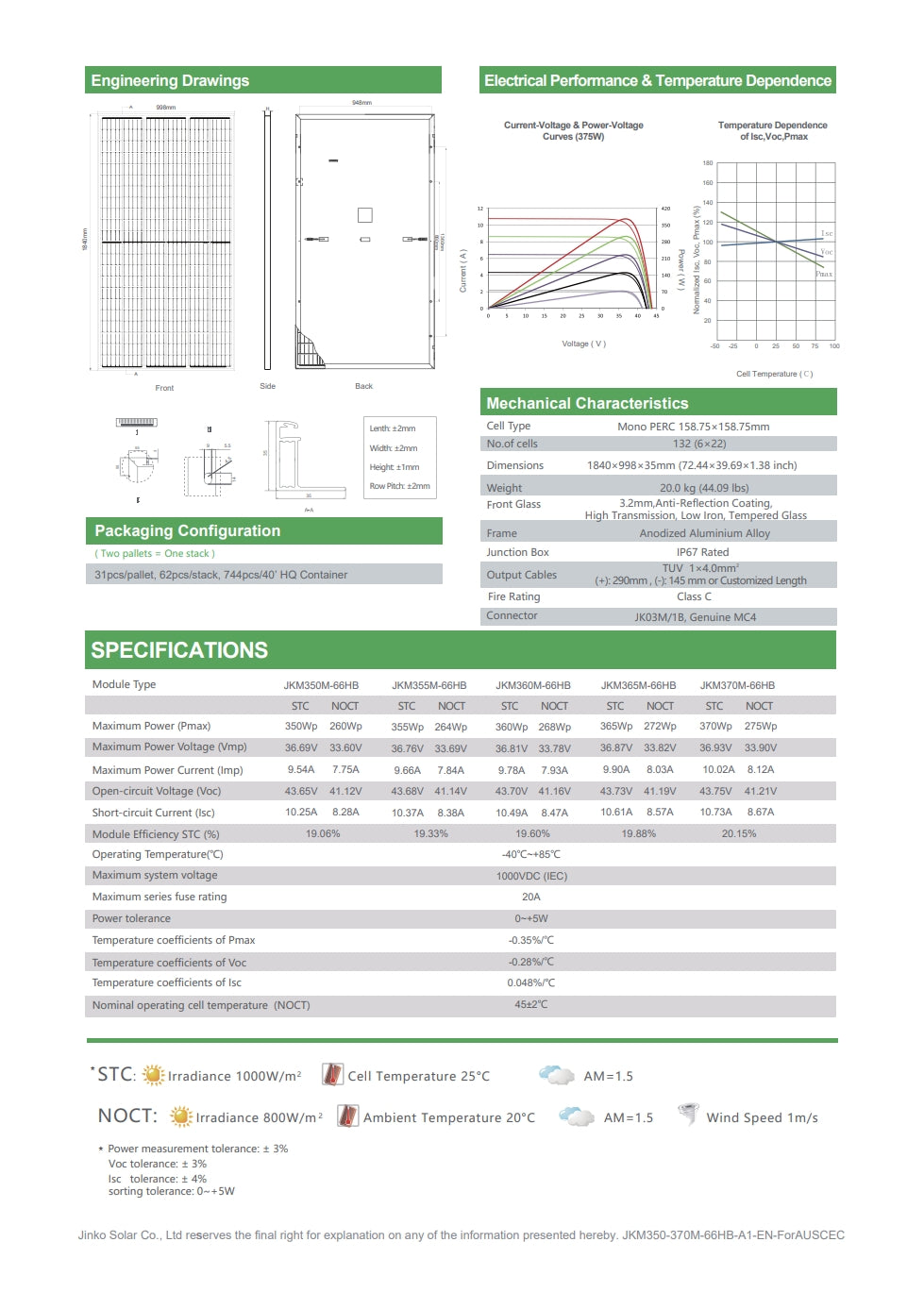

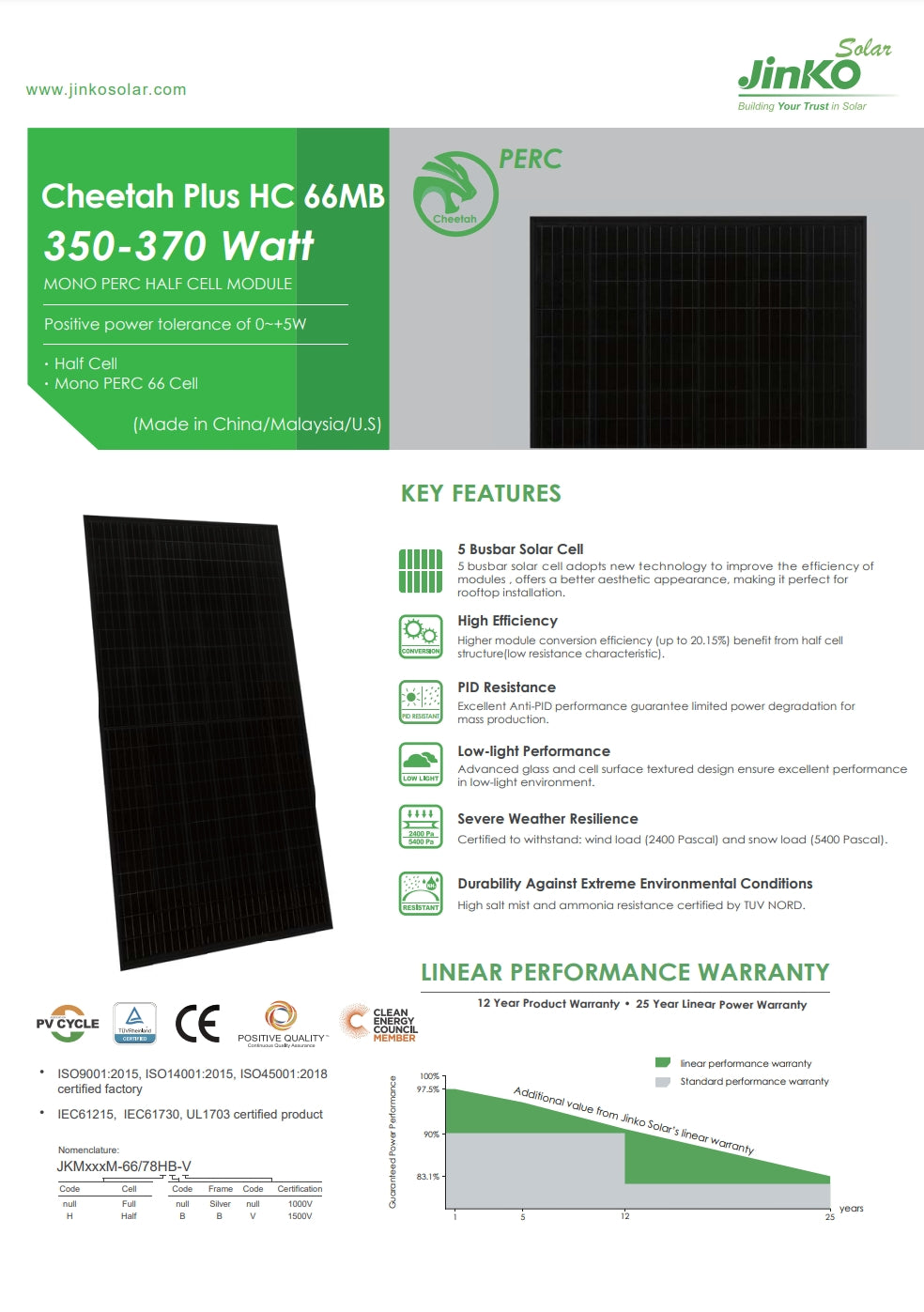

Jinko 350W Datasheet
Jinko Solar presents its high-performance solar panel, JKM350M-66HB. This PERC Half Cell Mono module boasts a power output of 350-370 watts and a positive power tolerance of 0/+5W. Key features include improved efficiency thanks to a new busbar technology, excellent anti-PID performance, and low-light performance enabled by advanced glass and cell surface textured design. Additionally, this product is certified for severe weather conditions, including wind load (2400 Pascal) and snow load (5400 Pascal). Jinko Solar backs its products with a 12-year product warranty and a 25-year linear power warranty.
