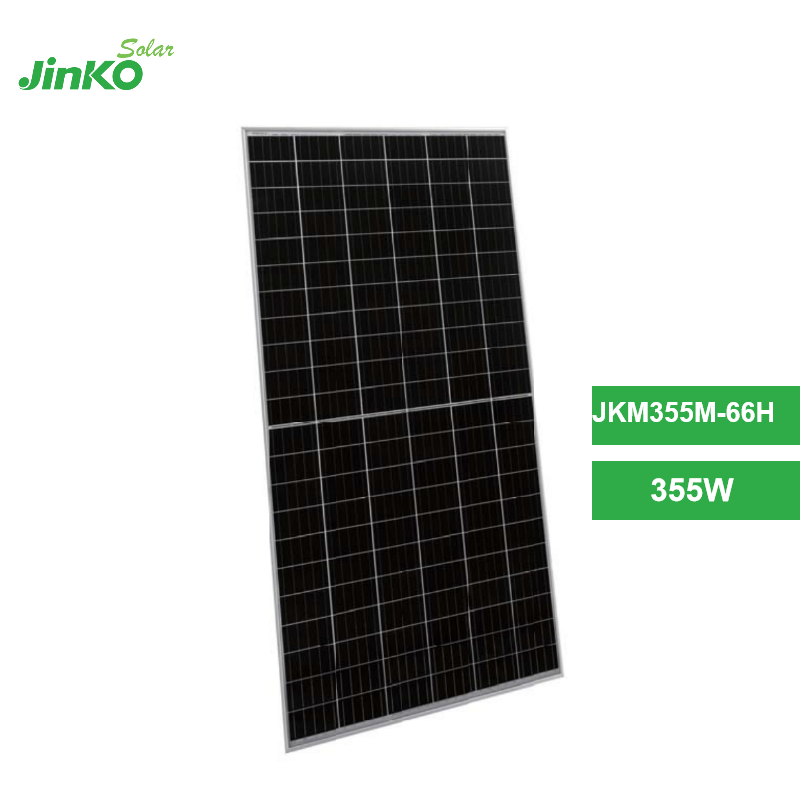

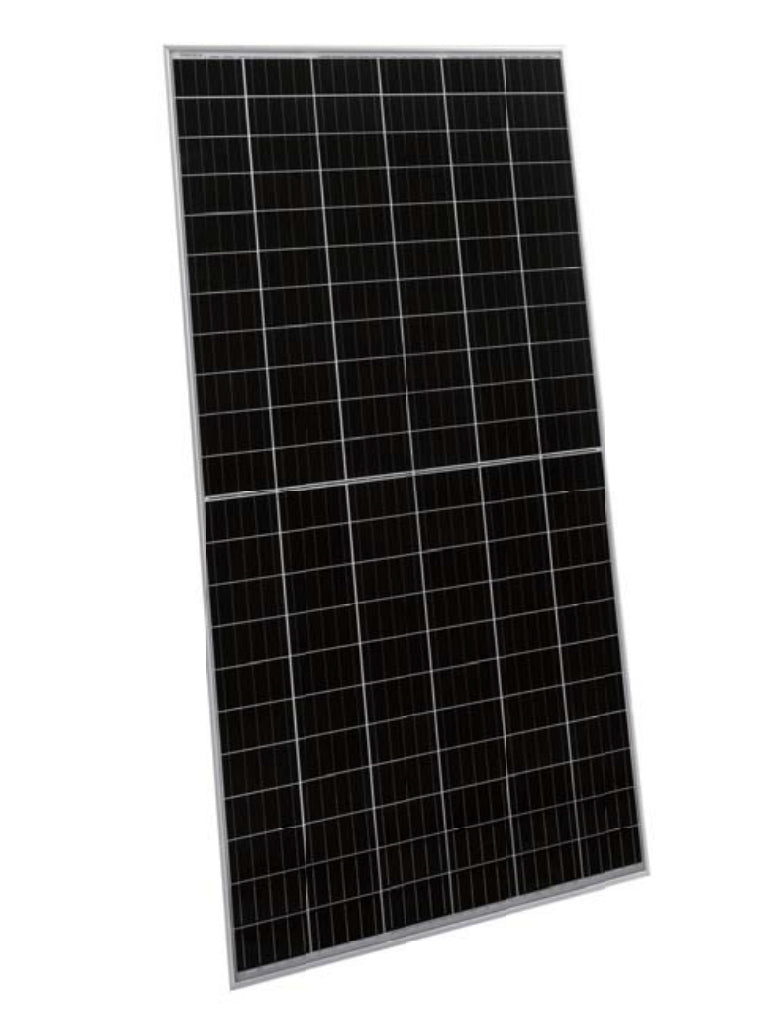

Jinko 355W Solar Panel Overview
The Jinko 355W Solar Panel (JKM355M-66H) is a high-performance module from the Cheetah Plus HC 66M series, designed to maximize energy output and efficiency for various installations. This mono PERC half-cell module combines cutting-edge technology with robust construction, making it suitable for both residential and commercial applications.
Jinko 355 Watt Solar Panel Key Features
- 5 Busbar Solar Cell Technology: Incorporates 5 busbar mono PERC cells to enhance efficiency, delivering up to 20.33% module efficiency under standard conditions (STC).
- High Power Output: Rated at 355W with positive power tolerance of 0~+3%, ensuring greater output consistency.
- PID Resistance: Excellent anti-PID performance ensures minimal power degradation over time, enhancing module longevity.
- Low-Light Performance: Advanced glass and cell surface texturing enable superior performance in low-light conditions, optimizing energy yield even in cloudy environments.
- Extreme Weather Resilience: Certified to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa, suitable for harsh environments.
- Environmental Durability: Certified against salt mist and ammonia corrosion, making it ideal for coastal and agricultural areas.
Jinko 355W Specs
Specifications
- Maximum Power (Pmax): 355W (STC) / 272Wp (NOCT)
- Maximum Power Voltage (Vmp): 33.86V (STC) / 31.99V (NOCT)
- Maximum Power Current (Imp): 9.84A (STC) / 8.50A (NOCT)
- Open-Circuit Voltage (Voc): 43.49V (STC) / 41.00V (NOCT)
- Short-Circuit Current (Isc): 10.41A (STC) / 8.48A (NOCT)
- Module Efficiency: 20.33% (STC)
Mechanical Characteristics
- Cell Type: Mono PERC 158.75×158.75mm
- Number of Cells: 132 (6×22)
- Dimensions: 1841×1002×30mm (72.48×39.45×1.18 inches)
- Weight: 20.0 kg (44.09 lbs)
- Front Glass: 3.2mm, anti-reflection coating, high transmission, low iron, tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP67 rated
- Output Cables: TÜV 1×4.0mm², length 1200mm (47.24 inches)
Electrical Performance and Temperature Coefficients
- Operating Temperature: -40°C~+85°C
- Temperature Coefficient of Pmax: -0.35%/°C
- Temperature Coefficient of Voc: -0.28%/°C
- Temperature Coefficient of Isc: 0.048%/°C
- Nominal Operating Cell Temperature (NOCT): 45±2°C
Certifications and Warranty
- Certifications: IEC61215, IEC61730, UL1703 certified
- Quality Standards: ISO9001:2015, ISO14001:2015, ISO45001:2018
- Warranty: 12-year product warranty, 25-year linear power warranty
The Jinko 355W Solar Panel (JKM355M-66H) is engineered for efficiency and durability, designed to perform reliably in challenging conditions, providing an optimal choice for sustainable energy generation in diverse environments.
Jinko 355W Datasheet

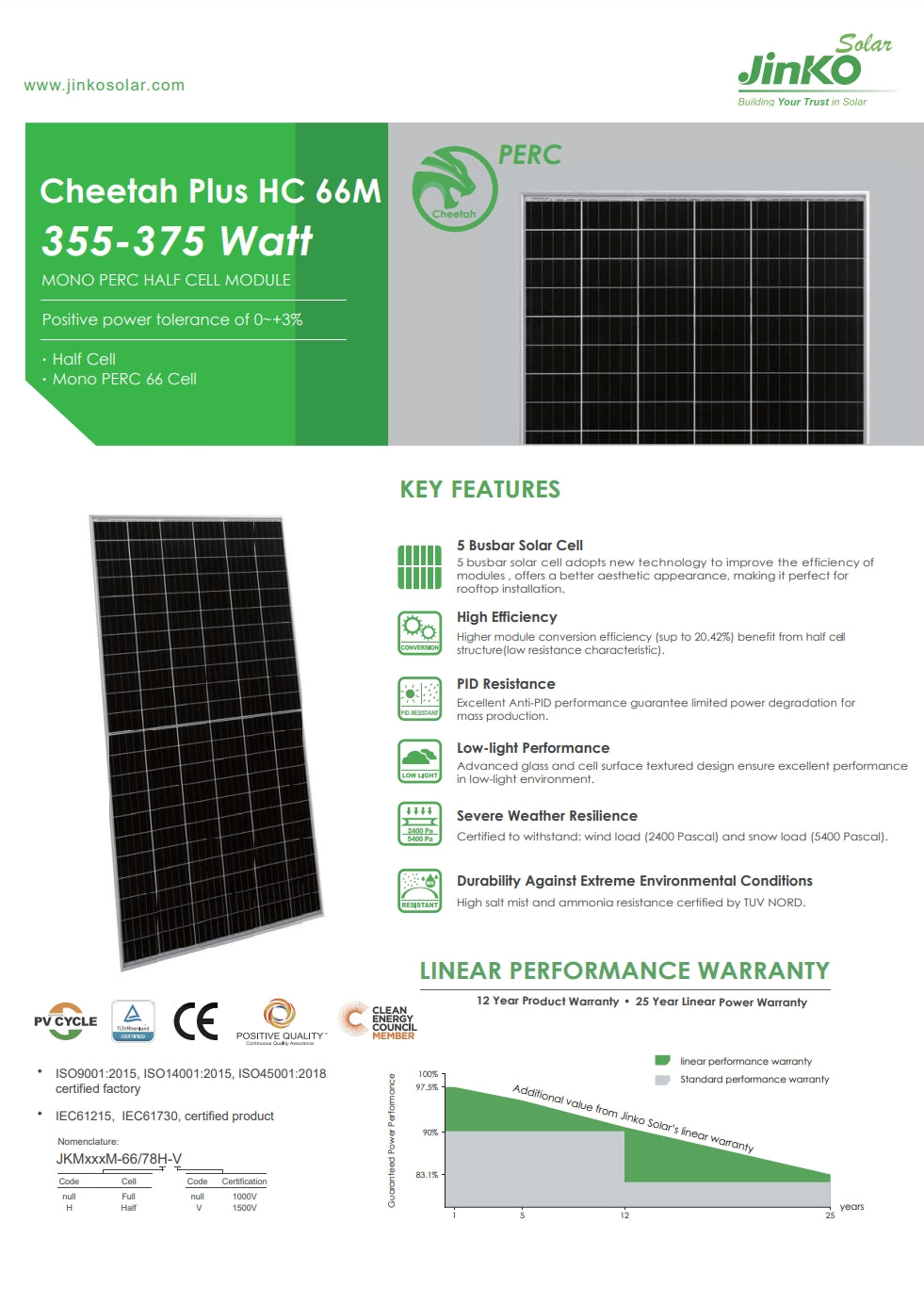

Jinko Building Your Trust in Solar. Introducing the Cheetah Plus HC Mono PERC Half Cell Module, featuring a Positive Power Tolerance of 0-3%. Key features include Busbar Solar Cells with improved efficiency and aesthetics for rooftop installations. The module boasts high efficiency (20.427%) due to its n-type cell structure and low resistance characteristic. Additionally, it offers PID Resistance, Low-light Performance, and Severe Weather Resilience. The product comes with a 12-year Product Warranty and 25-year Linear Power Warranty.

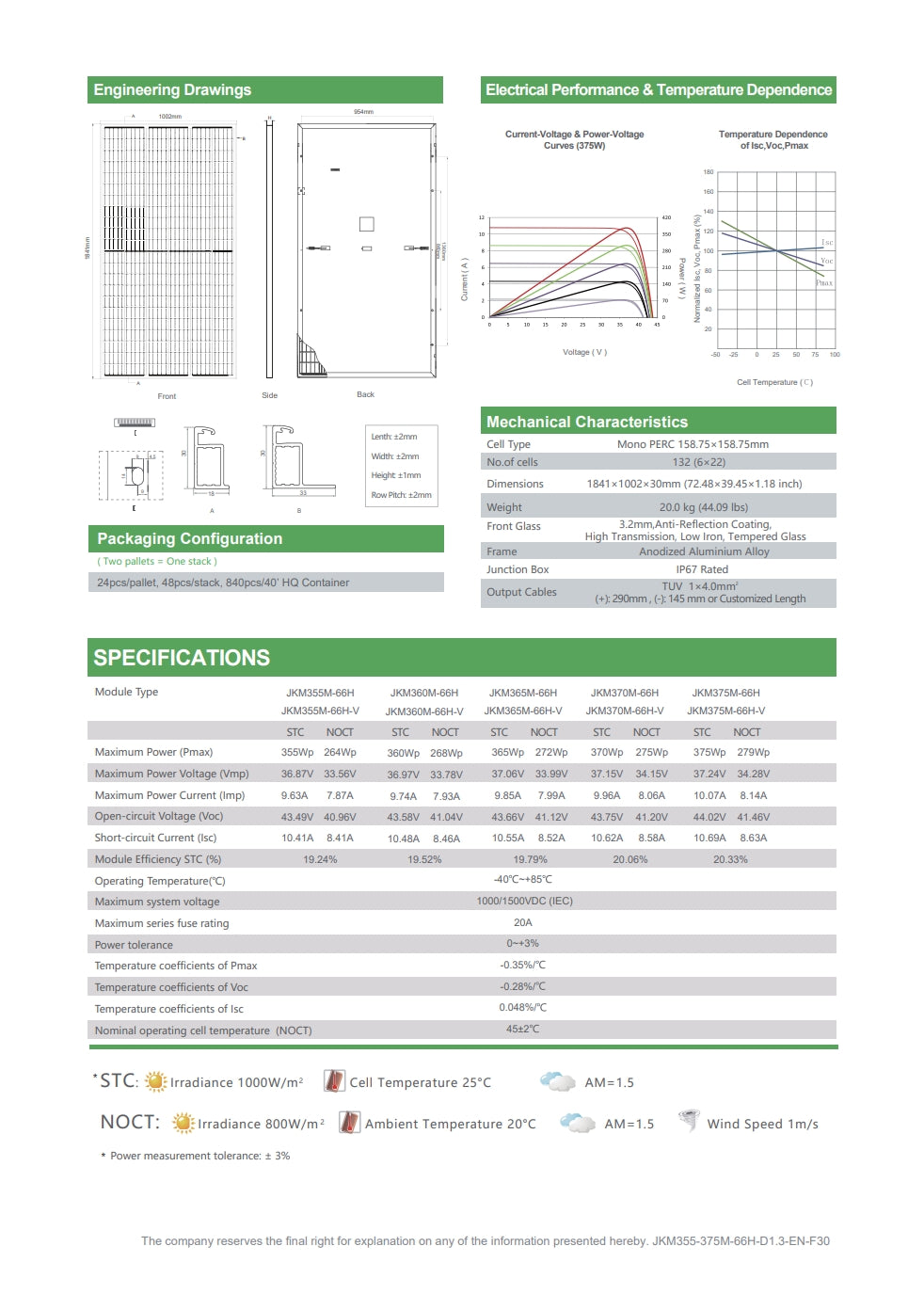

Engineering Drawings, Electrical Performance & Temperature Dependence, Current-Voltage, Power-Voltage, Temperature Dependence, Cunjet: 355W (Jinko) Specifications Module Type: JKM355M-66H Mechanical Characteristics: Length: 158.75 x 158.75 mm (6.25 in) Cell Type: Mono-PERC Number of Cells: 132 (22x6) Height: 1841 x 1002 x 30 mm (72.48 x 39.45 x 1.18 in) Weight: 20.0 kg (44.09 lbs) Front Glass: 3.0 mm, Anti-Reflection Coating Packaging Configuration: High Transmission, Low Iron Tempered Glass Frame, Anodized Aluminium Alloy (CWO pallets, One stack) Junction Box: IP67 Rated Output Cables (+1.29 m, Customized Length SPECIFICATIONS
