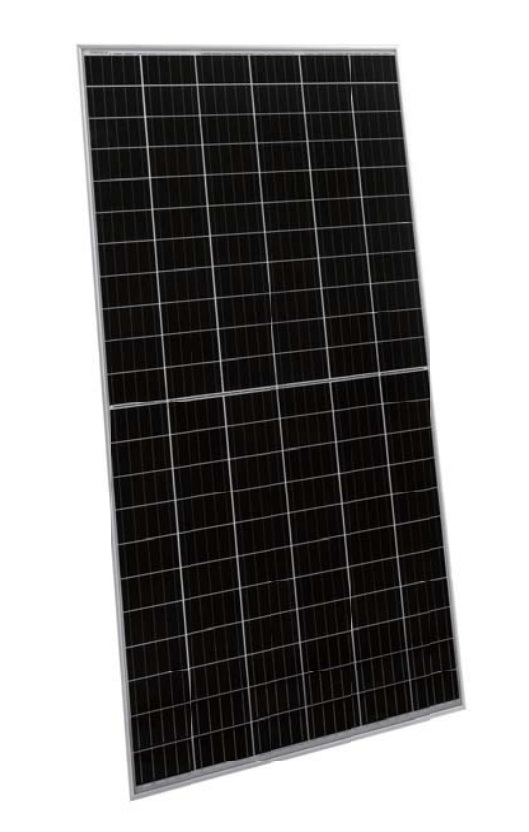

Jinko 360W Solar Panel (JKM360M-66H-V) Overview
The Jinko 360 Watt Solar Panel (JKM360M-66H-V) is a high-efficiency Mono PERC half-cell module designed to provide optimal energy output in both residential and commercial applications. This module features advanced technologies and certifications, making it suitable for installation in various environments, including those with challenging weather conditions.
Jinko 360 Watt Solar Panel Key Features:
-
High Efficiency with Mono PERC Technology: The 5-busbar Mono PERC cell technology significantly enhances the panel’s performance, delivering up to 19.80% efficiency. The half-cell structure minimizes power loss, ensuring maximum energy production, even under partial shading conditions.
-
PID Resistance: Engineered with superior PID resistance, the JKM360M-66H-V minimizes power degradation, ensuring sustained energy output over time. It’s especially suitable for large-scale solar projects where long-term durability and reliability are critical.
-
Enhanced Low-Light Performance: With an advanced glass and cell surface design, this panel achieves excellent low-light performance, generating more power during dawn, dusk, and cloudy conditions.
-
Extreme Weather Durability: Certified to withstand severe weather conditions, this module endures a wind load of up to 2400 Pascal and a snow load of up to 5400 Pascal. The anodized aluminum alloy frame and IP67-rated junction box offer additional durability against environmental factors, including salt mist and ammonia.
-
Temperature Coefficients and Tolerance: The Jinko 360W Solar Panel operates efficiently in extreme temperatures, with an operational range from -40°C to +85°C. The temperature coefficients are optimized to reduce power loss under high temperatures, with a Pmax coefficient of -0.35%/°C.
Jinko 360W Specs
Technical Specifications:
- Maximum Power (Pmax): 360W (STC); 268W (NOCT)
- Maximum Power Voltage (Vmp): 33.97V (STC); 31.36V (NOCT)
- Maximum Power Current (Imp): 9.74A (STC); 8.54A (NOCT)
- Open-Circuit Voltage (Voc): 43.97V (STC); 41.04V (NOCT)
- Short-Circuit Current (Isc): 10.37A (STC); 8.93A (NOCT)
- Module Efficiency: 19.80% at STC
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1500V (IEC)
- Maximum Series Fuse Rating: 20A
- Power Tolerance: 0~+5W
Mechanical Characteristics:
- Cell Type: Mono PERC, 158.75 x 158.75 mm
- Number of Cells: 132 (6x22 configuration)
- Dimensions: 1840 x 998 x 35 mm (72.44 x 39.29 x 1.38 inches)
- Weight: 20 kg (44.09 lbs)
- Glass: 3.2 mm high-transmission, anti-reflection coated, low-iron, tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP67 rated for enhanced protection
- Output Cables: TUV 1x4.0 mm², (+)290 mm / (-)145 mm or customized length
- Connector: MC4 EVO2, JKM3/2B
Certifications and Warranty:
- Certified to international standards, including ISO9001, ISO14001, and OHSAS18001.
- Meets IEC61215 and IEC61730 standards for reliability.
- 12-year product warranty and a 25-year linear performance warranty, promising no less than 83.1% power output at 25 years.
The Jinko 360 Watt Solar Panel (JKM360M-66H-V) offers an ideal solution for sustainable energy projects, with its high efficiency, reliable performance, and long-term durability.

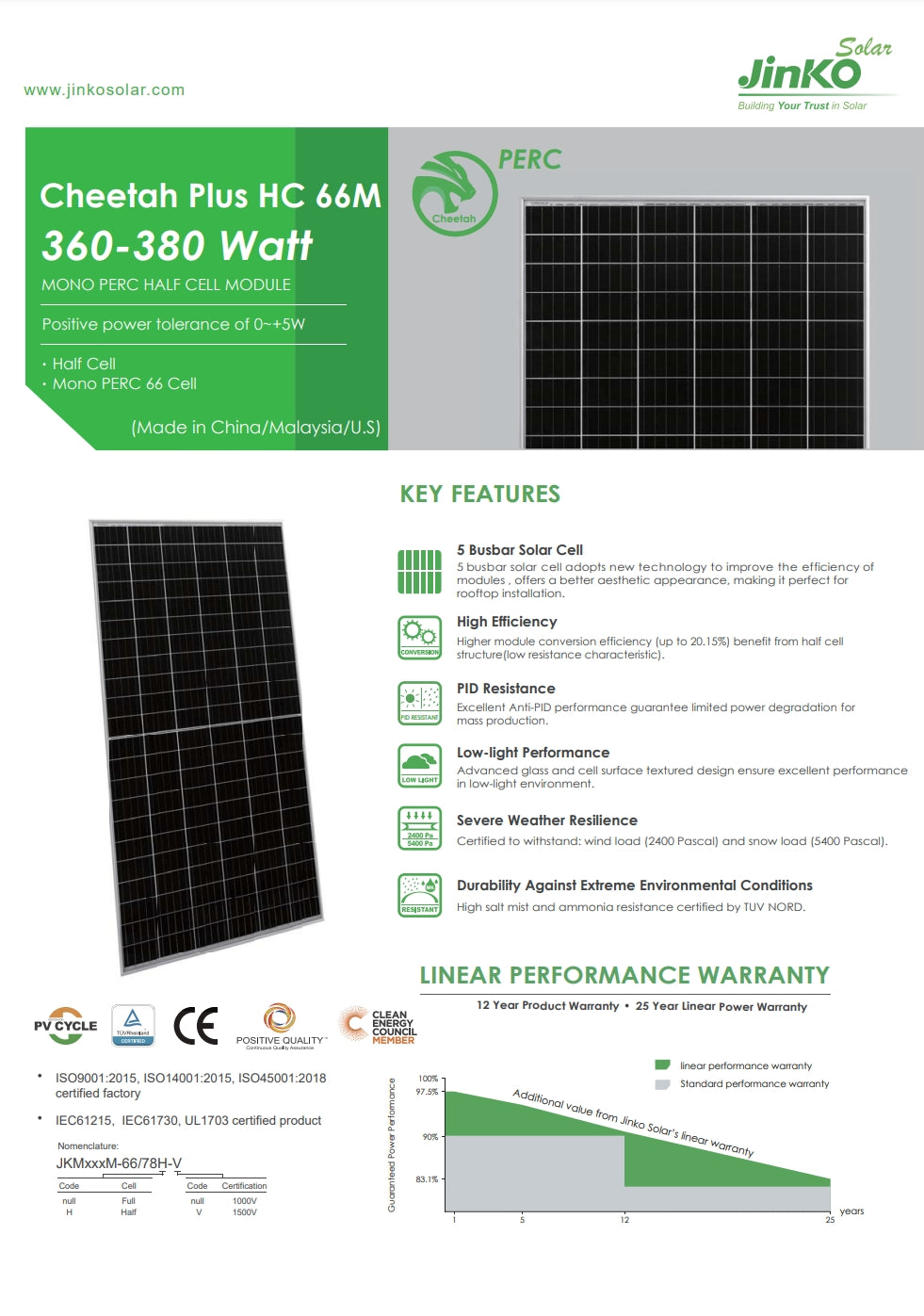

Jinko 360W Datasheet
The Jinko Solar Panel, model JKM360M-66H-V, features high efficiency with a power output of 360-380 watts. The module is designed with half-cell mono PERC technology and has a positive power tolerance of ±5W. Its busbar solar cell adopts new technology for improved efficiency and aesthetic appearance. With PID resistance, excellent anti-PID performance guarantees limited power degradation. The panel also features advanced glass and cell surface textured design for excellent low-light performance. It is designed to withstand severe weather conditions, including wind loads up to 2400 Pascal and snow loads up to 5400 Pascal.

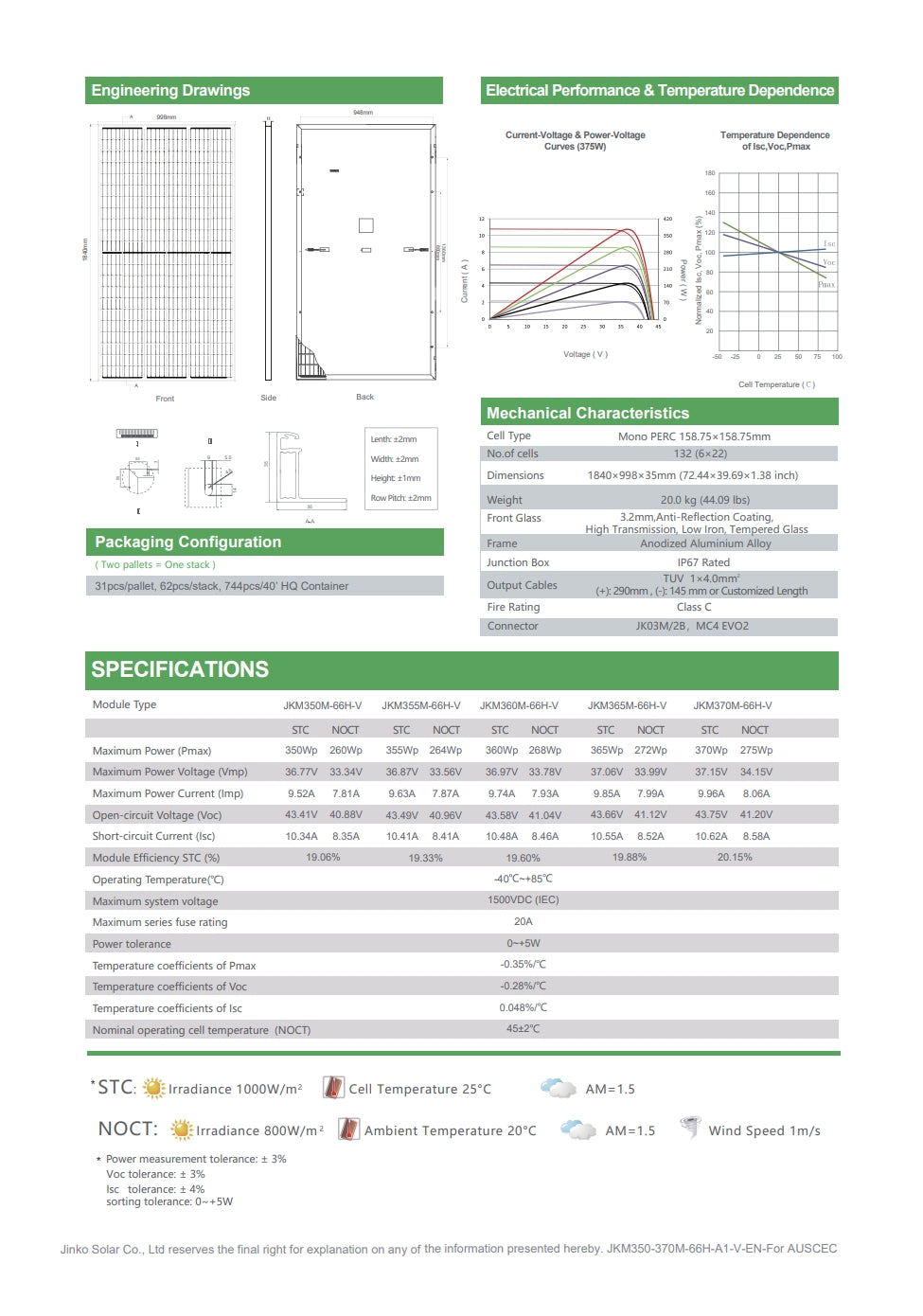

Engineering Drawings: Electrical Performance: Current-Voltage, Power-Voltage; Temperature Dependence: Current-Voltage, Power-Voltage Mechanical Characteristics: Length 158.75*158.75mm, Cell Type Mono PERC, Height 1840*998x35mm (72.44*39.69*1.38 inch) Packaging Configuration: Frame Anodized Aluminium Alloy pallets One stack Specifications: Module Type: JKM360M-66H-V STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT Maximum Power (Pmax): 360Wp, Maximum Power Voltage (Vmp): 36.97V, Maximum Power Current (Imp): 9.744A Open-circuit Voltage (Voc): 43.58V, Short-circuit Current (Isc): 10.484A, Module Efficiency STC (%6): 20.1590 Operating Temperature (°C): 40-85°C, Maximum system voltage: 1000VDC, Maximum series fuse rating: 20A, Power tolerance: ±5W Temperature coefficients of Pmax: -0.3590/°C, Temperature coefficients of Voc: +0.289/C, Temperature coefficients of Isc: +0.04886/°C
