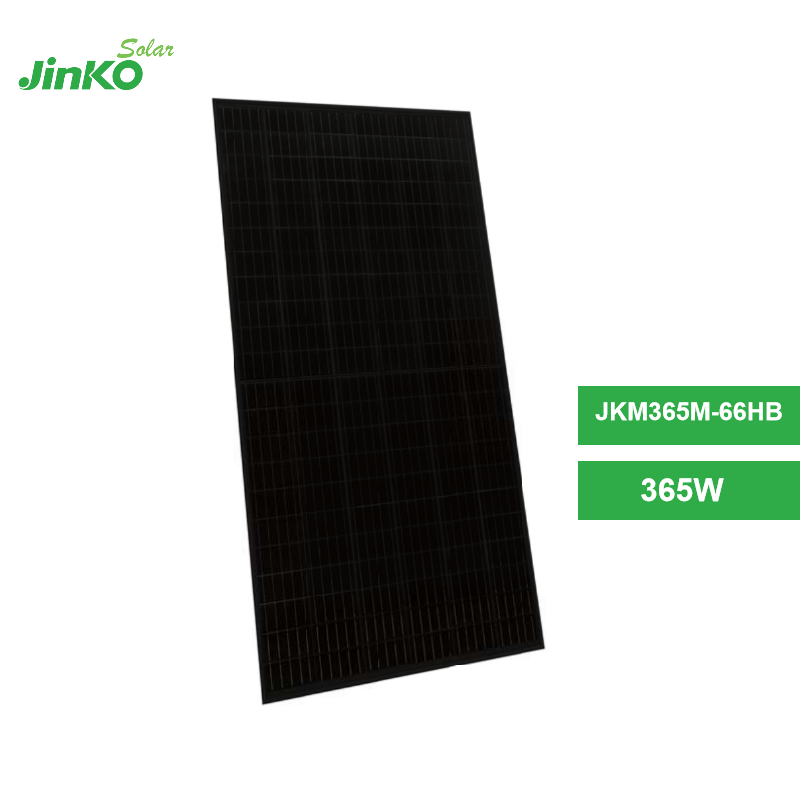

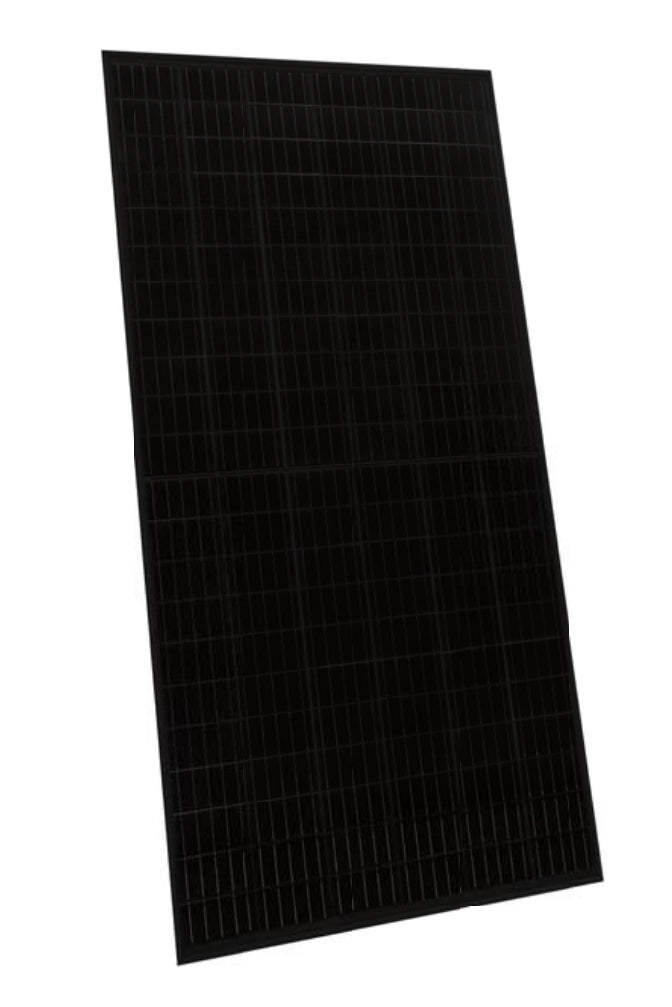

Jinko 365W Solar Panel (JKM365M-66HB)
The Jinko 365W Solar Panel (JKM365M-66HB) is a high-performance Mono PERC half-cell module designed to deliver reliable and efficient energy. With a power output of 365 watts, a module efficiency of 20.08%, and a durable construction suited for extreme weather, this panel is ideal for both residential and commercial applications. Its advanced 5-busbar cell technology and low-light performance further enhance energy yield, making it a highly efficient choice for rooftop or ground-mounted installations.
Jinko 365 Watt Solar Panel Key Features:
- 5 Busbar Solar Cell: Utilizes advanced 5-busbar cell technology to improve efficiency, appearance, and reliability, optimizing the panel for rooftop installations.
- High Efficiency: Achieves up to 20.08% module efficiency, maximizing energy output from limited space with a lower resistance characteristic.
- PID Resistance: Excellent Anti-PID performance, ensuring minimal degradation in power output, backed by Jinko’s stringent quality standards.
- Low-Light Performance: Designed with advanced glass and surface texturing to perform effectively in low-light conditions, optimizing output during cloudy or low-sunlight hours.
- Severe Weather Resilience: Certified to withstand wind loads of up to 2400 Pa and snow loads of up to 5400 Pa, making it suitable for various climates.
- Environmental Durability: Certified for high resistance to salt mist and ammonia, suitable for coastal and agricultural areas.
Jinko 365W Specs
Technical Specifications:
- Model: JKM365M-66HB
- Maximum Power Output (Pmax): 365W (STC), 272Wp (NOCT)
- Maximum Power Voltage (Vmp): 33.97V (STC), 31.87V (NOCT)
- Maximum Power Current (Imp): 10.75A (STC), 8.54A (NOCT)
- Open-Circuit Voltage (Voc): 41.16V (STC), 38.47V (NOCT)
- Short-Circuit Current (Isc): 10.88A (STC), 8.62A (NOCT)
- Module Efficiency: 20.08%
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1500V DC (IEC)
- Power Tolerance: 0 to +5W
Mechanical Characteristics:
- Cell Type: Mono PERC 158.75×158.75 mm
- Number of Cells: 132 (6×22 configuration)
- Dimensions: 1841×1002×30 mm
- Weight: 20 kg (44.09 lbs)
- Front Glass: 3.2mm, anti-reflection, high-transmission, low-iron tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP67 rated for maximum protection
- Output Cables: TÜV 1x4.0mm² with length options (+)290mm, (-)145mm or customized lengths
- Connector: Compatible with JM03/MB or MC4 EVO2
Certifications and Warranty:
- Standards and Compliance: ISO9001:2015, ISO14001:2015, ISO45001:2018 certified, IEC61215, IEC61730, UL1703 compliant
- Warranty: 12-year product warranty and a 25-year linear power warranty, ensuring sustained energy output with only 2% degradation in the first year and an annual degradation of 0.55% thereafter.
Applications:
The Jinko 365W Solar Panel (JKM365M-66HB) is perfect for diverse applications, from residential rooftops to large-scale commercial and industrial installations. Its high efficiency, durability against harsh environmental conditions, and stable power output make it an excellent choice for a wide range of energy projects.
Jinko 365W Datasheet

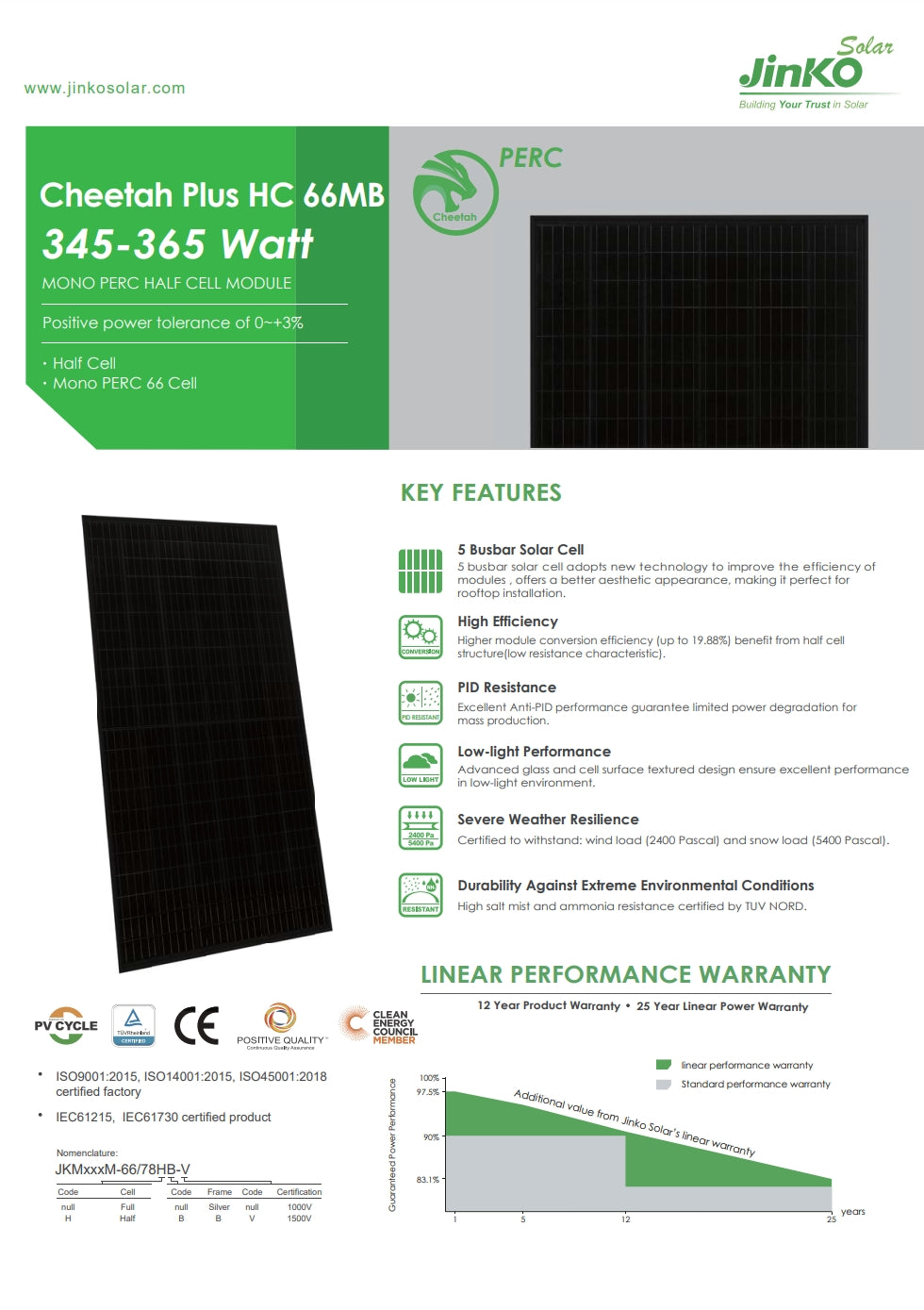

Jinko Solar, Building Your Trust in Solar PERC Cheetah Plus HC, 66MB Checkalah, 345-365 Watt Mono PERC Half Cell Module. Positive power tolerance of ±3%. Key Features: 5 Busbar Solar Cell busbar solar cell adopts new technology to improve the efficiency of modules, offering better aesthetic appearance, making perfect for rooftop installation. High Efficiency: Higher module conversion efficiency (up to 19.88%) benefit from half-cell structure, low resistance characteristic). PID Resistance: Excellent Anti-PID performance guarantee limited power degradation for mass production. Low-Light Performance: Advanced glass and cell surface textured design ensure excellent performance in low-light environment. Severe Weather Resilience: Certified to withstand wind load (2400 Pascal) and snow load (5400 Pascal). Durability Against Extreme Environmental Conditions: High salt mist and ammonia resistance certified by IEC. Linear Performance Warranty: 25-year product warranty, year linear power warranty. PV Cycle: Positive Quality Control Member of ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 or Standard performance warranty certified factory.

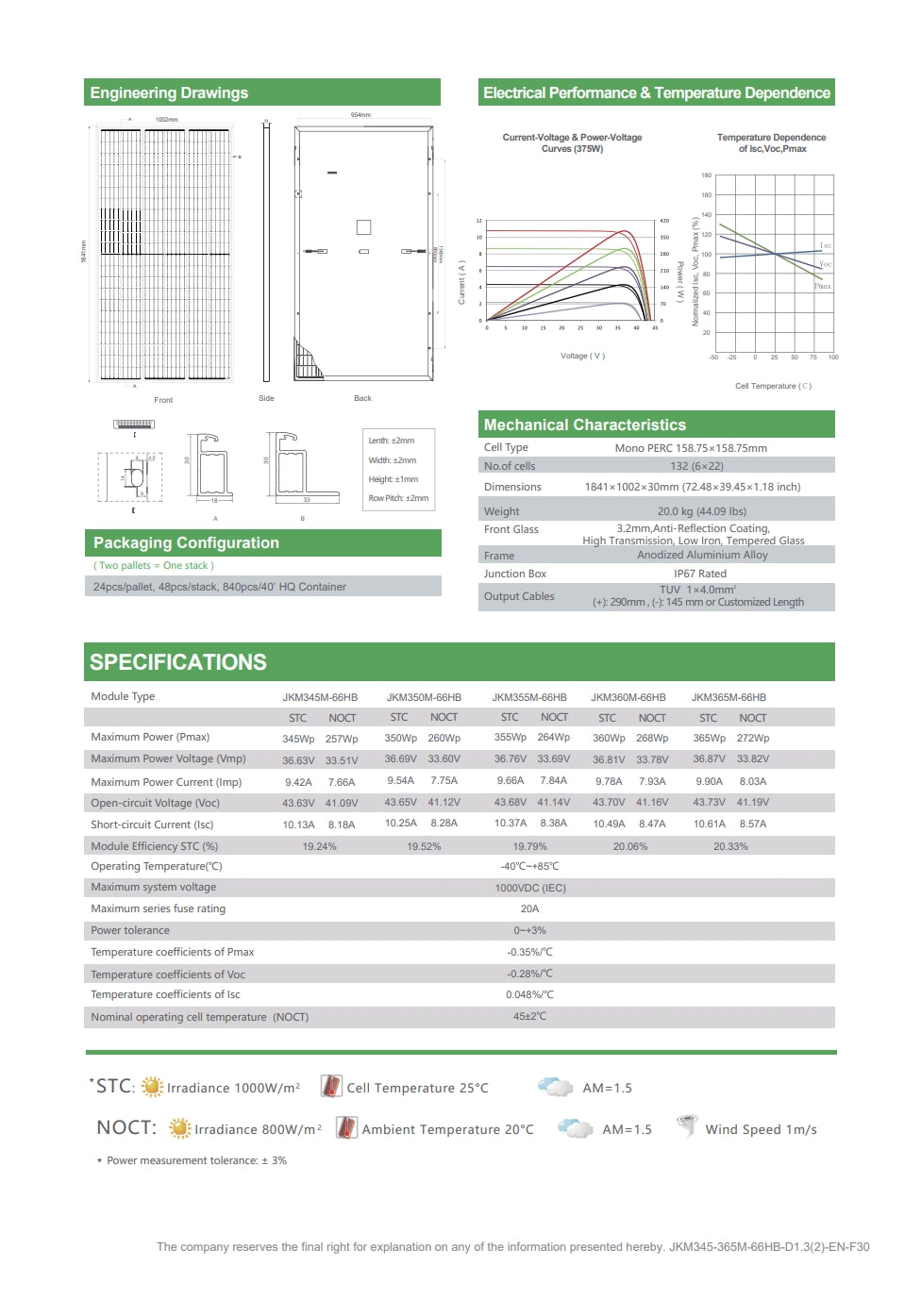

Jinko Solar Panel Specifications. Module Type: JKM365M-66HB. Maximum Power: 365Wp. Maximum Power Voltage (Vmp): 36.87V. Maximum Power Current (Imp): 9.90A. Open-circuit Voltage (Voc): 43.73V. Short-circuit Current (Isc): 10.61A. Module Efficiency STC (%): 20.3390. Operating Temperature: -40°C to +85°C. Maximum system voltage: 1000VDC (IEC). Maximum series fuse rating: 20A. Power tolerance: ±3%. Temperature coefficients of Pmax: -0.359%/°C. Temperature coefficients of Voc: -0.289%/°C. Temperature coefficients of Isc: 0.04896/°C. Nominal operating cell temperature (NOCT): 45°C.
