Jinko 370W Solar Panel (JKM370M-6RL3-B)

Jinko 370W Solar Panel (JKM370M-6RL3-B)

The Jinko 370W Solar Panel, model JKM370M-6RL3-B, is a high-efficiency monocrystalline module designed for both residential and commercial installations. With a peak power output of 370 watts, it combines advanced tiling ribbon (TR) technology and a 9BB half-cell design to maximize power generation, even under partial shading conditions. Certified for exceptional weather durability, this panel can withstand snow loads of up to 5400 Pa and wind pressures of 2400 Pa, ensuring long-term resilience in harsh environments.

Jinko 370 Watt Solar Panel Key Features:

1. Tiling Ribbon (TR) Technology: Eliminates cell gaps, enhancing efficiency and output.
2. 9BB Half-Cell Configuration: Improves performance in shaded areas and increases energy production.
3. Durability and Reliability: Built with anodized aluminum alloy and anti-reflective tempered glass, the panel is IP67 rated, offering resistance to salt mist and ammonia exposure, making it ideal for coastal and agricultural environments.
4. High Efficiency: Reaching up to 20.17% efficiency, the Jinko 370W panel optimizes energy capture in limited space installations.

Jinko 375W Specs

Technical Specifications:

• Power Output: 370W (STC), 275W (NOCT)
• Module Efficiency (STC): 19.38%
• Dimensions: 1855mm x 1029mm x 35mm
• Weight: 21.3 kg
• Cell Type: 132 monocrystalline cells (6x22 configuration)
• Operating Temperature Range: -40°C to +85°C
• Maximum System Voltage: 1000V DC
• Temperature Coefficients: Pmax (-0.35%/°C), Voc (-0.28%/°C), Isc (0.048%/°C)

Electrical Characteristics:

• Maximum Power Voltage (Vmp): 36.71V (STC), 33.49V (NOCT)
• Maximum Power Current (Imp): 10.08A (STC), 8.22A (NOCT)
• Open-Circuit Voltage (Voc): 42.02V (STC), 41.55V (NOCT)
• Short-Circuit Current (Isc): 10.90A (STC), 8.80A (NOCT)

Performance and Reliability:

• Weather Resistance: Certified to withstand high snow loads (5400 Pa) and strong winds (2400 Pa).
• Long-Term Warranty: 12-year product warranty and a 25-year linear power warranty, with guaranteed 98% power output in the first year and a maximum degradation of 0.55% annually.

Certifications:

• Quality Standards: ISO9001:2008, ISO14001:2004, OHSAS18001
• International Standards: IEC61215, IEC61730
• Additional Certifications: UL1703, IEC 61730 for safe and efficient energy production in various environments, ensuring compliance with global safety and performance standards.

This Jinko 370W Solar Panel (JKM370M-6RL3-B) combines high performance, advanced technology, and reliability, making it a robust choice for maximizing solar energy generation across diverse climates and conditions.

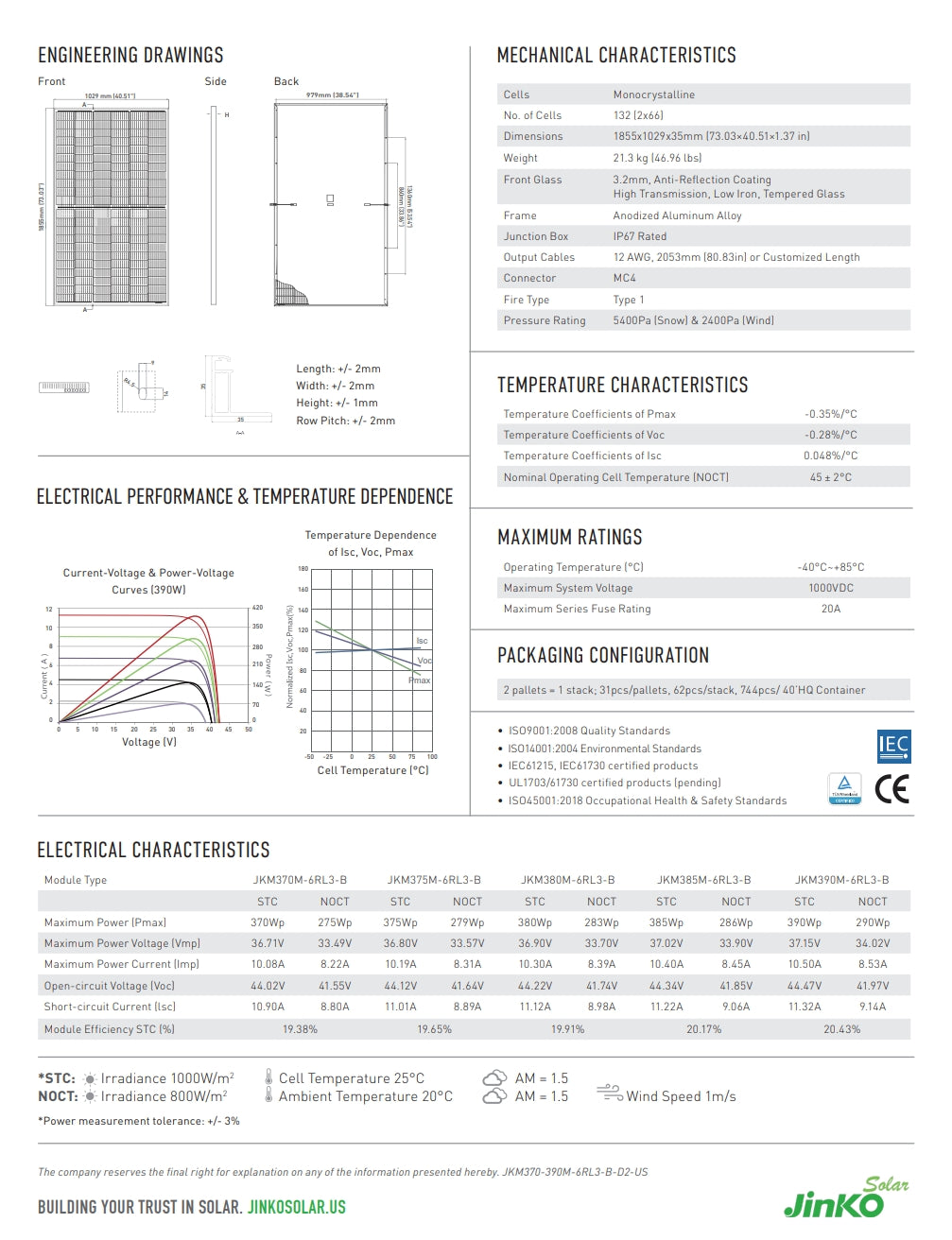

Jinko 370W Datasheet

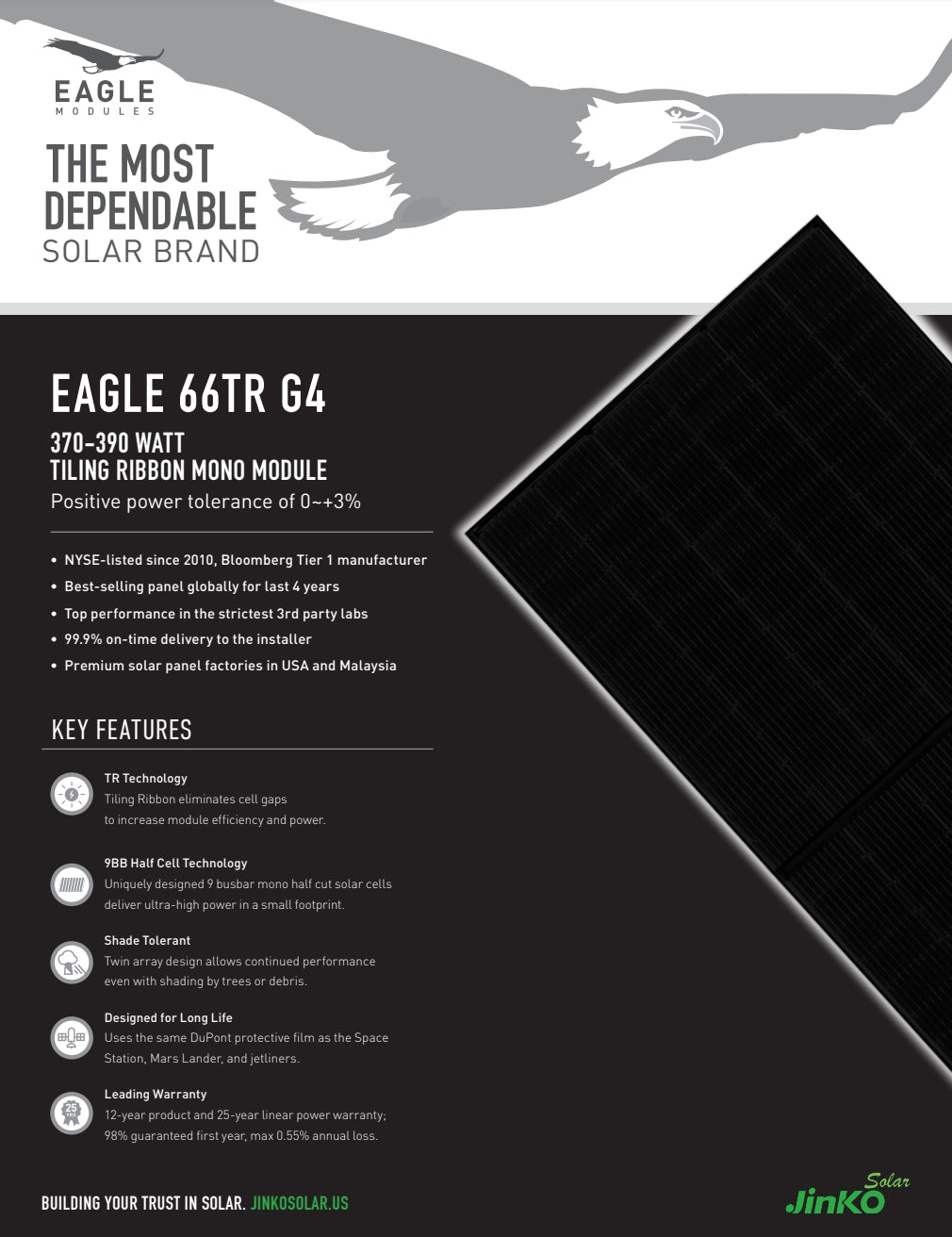

Eagle Ultra, the most dependable solar brand, introduces its newest module, the 370-390 watt tiling ribbon mono module. This product boasts a positive power tolerance of ±3%. As a NYSE-listed company since 2010 and Bloomberg Tier manufacturer, Eagle Ultra has established itself as a leading player in the industry. Its modules undergo rigorous testing in strict third-party labs, ensuring a performance rate of 99.9%. With on-time delivery to installers at 98%, this product prioritizes reliability. The key features include TR Technology Ribbon, which eliminates cell gaps for increased efficiency and power, and 9BB Half Cell Technology, designed to deliver high power in a compact footprint.
