Jinko 375W Solar Panel (JKM375M-6RL3-B) - High Efficiency with Advanced TR Technology
The Jinko 375W Solar Panel (JKM375M-6RL3-B) represents a cutting-edge solution for efficient and reliable solar energy production. Built with advanced Tiling Ribbon (TR) technology and a 9-busbar half-cell configuration, this module is designed to maximize power output and ensure excellent performance in diverse conditions. Key features such as high module efficiency, superior durability, and enhanced weather resilience make it ideal for residential and commercial installations.
Jinko 375 Watt Solar Panel Key Features and Benefits:
- TR Technology + Half Cell: The Tiling Ribbon (TR) technology, combined with half-cell architecture, effectively eliminates cell gaps, enhancing module efficiency up to 19.91%.
- 9BB Half Cell Design: The innovative 9-busbar layout minimizes the distance between busbars and fingers, reducing resistance and improving power generation.
- Enhanced Durability: Certified for withstanding wind loads up to 2400Pa and snow loads up to 5400Pa, this panel is built to endure extreme environmental conditions.
- Long-Term Warranty: Comes with a 12-year product warranty and a 25-year linear power warranty, ensuring a low annual degradation rate of 0.6% and reliable long-term performance.
- Reduced Power Loss: The 9BB design minimizes the risk of micro-cracks and other structural damages, extending the lifespan and reliability of the panel.
Jinko 375W Specs
Technical Specifications:
- Maximum Power (Pmax): 375W at STC, 279W at NOCT
- Maximum Power Voltage (Vmp): 36.8V (STC)
- Maximum Power Current (Imp): 10.2A (STC)
- Open-Circuit Voltage (Voc): 44.1V (STC)
- Short-Circuit Current (Isc): 10.9A (STC)
- Module Efficiency: 19.12%
- Temperature Coefficient of Pmax: -0.35%/°C
- Operating Temperature: -40°C to +85°C
Mechanical Characteristics:
- Cell Type: P-type Monocrystalline, 158.75x158.75mm cells
- Number of Cells: 132 (6x22)
- Dimensions: 1855 x 1029 x 30mm
- Weight: 20.8 kg
- Glass: 3.2mm, high transmission, low iron, anti-reflective tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP67 rated
- Output Cables: 12 AWG, 2053mm length
- Connector: MC4 compatible
Electrical Characteristics at Standard Testing Conditions (STC):
- Maximum System Voltage: 1000V DC (IEC)
- Nominal Operating Cell Temperature (NOCT): 45±2°C
-
Temperature Coefficients:
- Power (Pmax): -0.35%/°C
- Voltage (Voc): -0.28%/°C
- Current (Isc): 0.048%/°C
Certifications and Quality Standards:
- Certified under ISO9001:2015, ISO14001:2015, and ISO45001:2018 standards, ensuring high-quality manufacturing processes.
- IEC61215 and IEC61730 certified, meeting stringent international standards for safety and performance.
- Recognized by PV Cycle and CE, attesting to environmental responsibility and compliance with EU regulations.
Packaging Configuration:
- Packaging: 35 panels per pallet, 70 panels per stack, 840 panels per 40-foot HQ container.
This Jinko 375W Solar Panel (JKM375M-6RL3-B) is a versatile, efficient, and durable choice, making it suitable for a variety of installation environments. With its advanced design and comprehensive warranty, this panel promises reliability and sustained energy production, even under challenging environmental conditions.

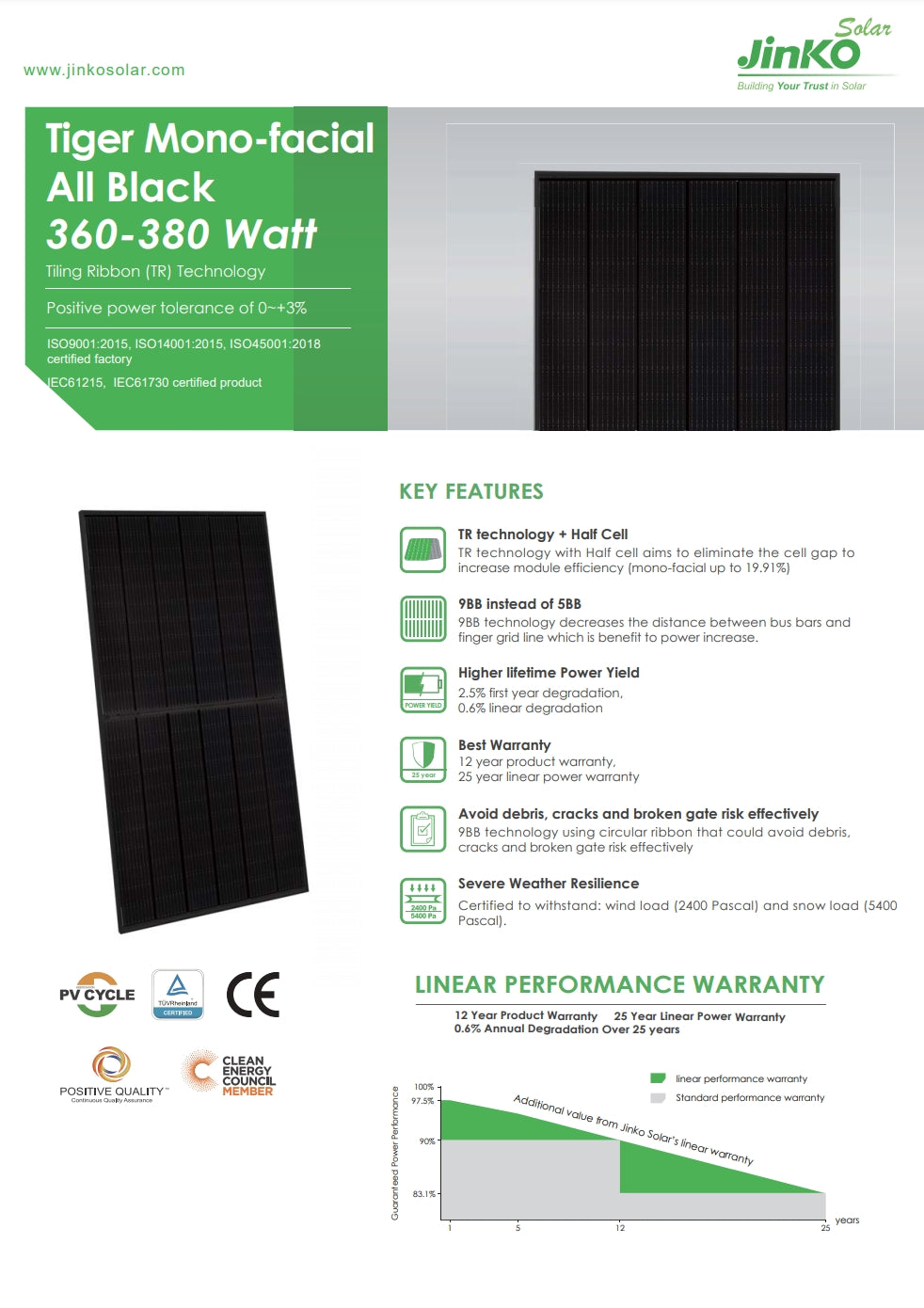

Jinko 375W Datasheet
Jinko Solar presents the JKM375M-6RL3-B, a high-performance solar panel. Built with trust and reliability in mind, this product features Mono-facial technology and Positive Power Tolerance of ±0%. With a certified factory and product certifications from various organizations, you can be assured of its quality. Key highlights include Half-cell TR technology for increased efficiency, Higher Lifetime Power Yield, and Best Warranty. The 9BB technology eliminates cell gaps and reduces finger grid line distance, resulting in higher power output. Additionally, this solar panel is designed to withstand severe weather conditions.

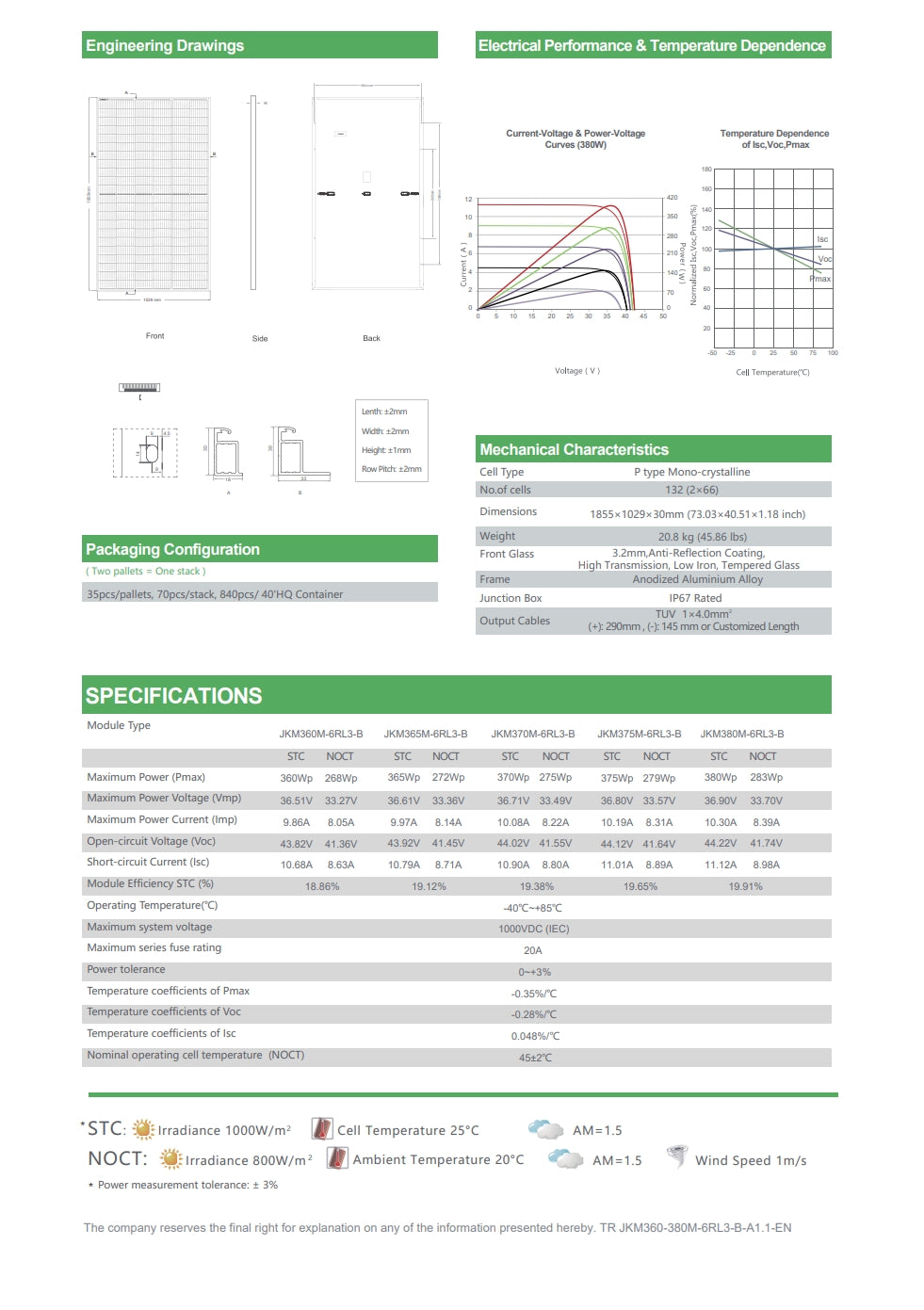

The Jinko Solar Panel (JKM375M-6RL3-B) features a monocrystalline cell type with 132 cells. The dimensions are 1855x1029x30mm (73.03x40.51x1.18 inch), and the weight is 20.8 kg (45.86 lbs). The module has an anodized aluminum alloy frame, and the junction box is IP67 rated. The maximum power output is 375W, with a voltage of 36.80V and current of 10.194A. The open-circuit voltage is 44.12v, and the short-circuit current is 11.01A. The module efficiency is 18.8690% at STC.
