Jinko 380W Solar Panel (JKM380M-6RL3-B)

Jinko 380W Solar Panel (JKM380M-6RL3-B) Overview

The Jinko 380W Solar Panel (JKM380M-6RL3-B) combines cutting-edge Tiling Ribbon (TR) technology with high-efficiency monocrystalline P-type cells to maximize power output and space utilization. This panel is an ideal choice for both residential and commercial installations, offering exceptional durability and a robust warranty.

Jinko 380 Watt Solar Panel Key Features:

1. TR Technology + Half Cell Design: The innovative Tiling Ribbon technology eliminates cell gaps, thereby boosting the module efficiency up to 19.91%. This design enables a more compact, high-output module suitable for diverse installation spaces.
2. Enhanced Performance with 9BB: Featuring 9 Busbar (9BB) technology, the JKM380M-6RL3-B panel reduces the distance between the busbars and the cell fingers, improving power output and reliability by minimizing risks related to cracks and shading.
3. Superior Low-Light Performance: The module is engineered with low iron and anti-reflective glass, which enhances performance under low-light conditions, ensuring consistent energy generation even in less-than-optimal weather.
4. Reliable Weather Resilience: Certified to endure harsh environmental conditions, this module withstands high wind loads of 2400 Pa and snow loads up to 5400 Pa, ensuring durability and reliability across diverse climates.
5. Long-Term Warranty: Jinko Solar offers a 12-year product warranty and a 25-year linear power warranty, guaranteeing only 0.6% annual degradation, with 98% performance in the first year, ensuring dependable long-term performance.

Jinko Solar 380W Specs

Technical Specifications:

• Cell Type: Monocrystalline P-type
• Cell Configuration: 132 cells (6x22)
• Dimensions: 1855 x 1029 x 30 mm (73.03 x 40.51 x 1.18 inches)
• Weight: 20.8 kg (45.86 lbs)
• Front Glass: 3.2mm, anti-reflective, low iron, tempered glass
• Frame: Anodized aluminum alloy
• Junction Box: IP67 rated
• Output Cables: TUV 1x4.0 mm², with customizable length options (290mm or 145mm)
• Connector: MC4

Electrical Characteristics:

• Maximum Power (Pmax): 380W
• Open-Circuit Voltage (Voc): 41.82V
• Short-Circuit Current (Isc): 11.06A
• Maximum Power Voltage (Vmp): 36.80V
• Maximum Power Current (Imp): 10.34A
• Module Efficiency: 19.91%
• Nominal Operating Cell Temperature (NOCT): 45 ± 2°C

Temperature Coefficients:

• Power (Pmax): -0.35%/°C
• Voltage (Voc): -0.28%/°C
• Current (Isc): +0.048%/°C

Operating Conditions:

• Temperature Range: -40°C to +85°C
• Maximum System Voltage: 1000V DC (IEC)
• Maximum Series Fuse Rating: 20A
• Power Tolerance: 0~+3%

Certifications:

• Quality Standards: ISO9001:2015, ISO14001:2015, ISO45001:2018
• Product Certifications: IEC61215, IEC61730
• Safety Standards: UL1703, ISO45001
• Environmental Certification: TUV NORD for high salt mist and ammonia resistance

With Jinko's Tiger Mono-facial All Black Series, the JKM380M-6RL3-B solar panel provides a combination of aesthetic appeal and high-efficiency performance, making it suitable for installations with high visibility requirements. Its robust build and certified durability offer a reliable, long-term solar solution for sustainable energy needs.

Jinko 380W Datasheet

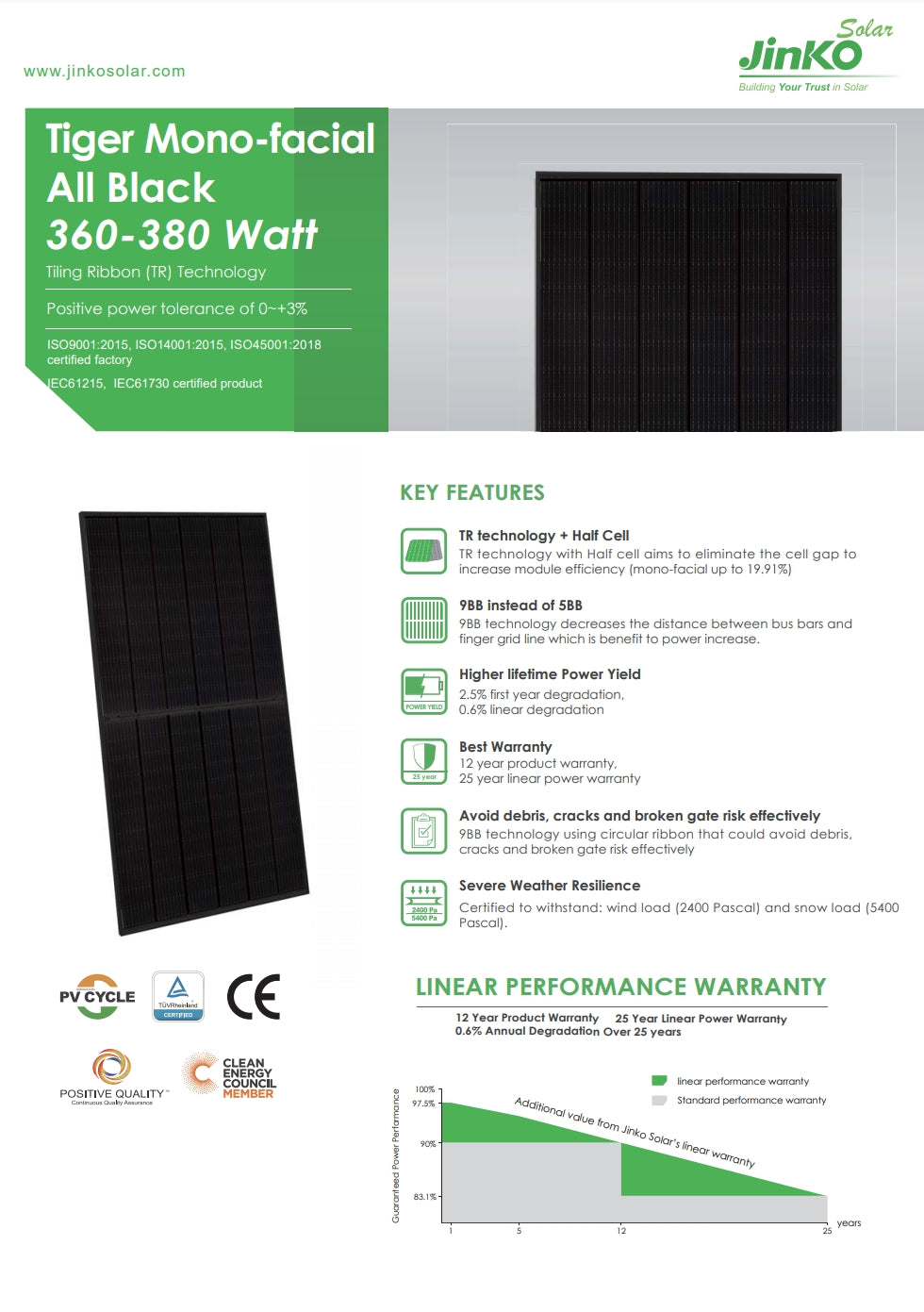

Jinko Solar, Building Your Trust in Solar. Tiger Mono-Facial All Black 380W Ribbon (TR) Technology. Positive power tolerance of +3%. IS09001:2015, IS014001:2015, and IS045001:2018 certified factory. EC61215 and IEC61730 certified product. KEY FEATURES: TR technology with Half-Cell aims to eliminate cell gaps to increase module efficiency (up to 19.91% mono-facial). 9BB instead of SBB. 9BB technology decreases the distance between bus bars and finger grid lines, benefiting power increase. Higher lifetime Power Yield: 2.59% first-year degradation; 0.6% linear degradation. Best Warranty: 12-year product warranty; 25-year linear power warranty. Avoid debris, cracks, and broken gate risk effectively with circular ribbon technology. Severe Weather Resilience: Maju Fr certified to withstand wind load (2400 Pascal) and snow load (5400 E4CO PJ Pascal). Pv CYCLE: Linear Performance Warranty - 12-Year Product Warranty; 25-Year Linear Power Warranty; 0.67% annual degradation over 25 years.

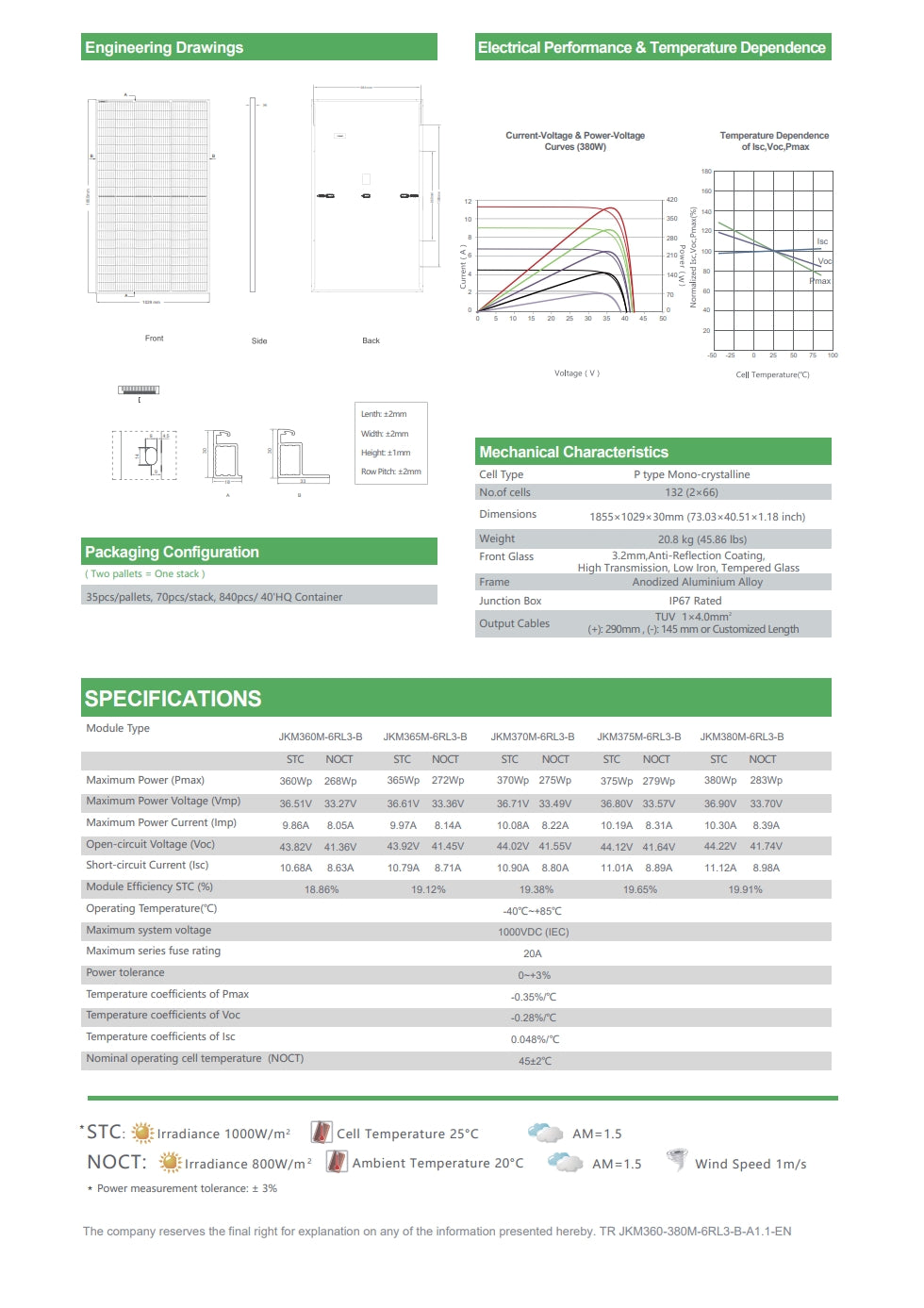

The Jinko 380W Solar Panel (JKM380M-6RL3-B) features a mono-crystalline design with 132 cells. Its dimensions are 1855*1029*30mm and it weighs 20.8 kg. The module has an IP67-rated junction box and anti-reflection coating on the front glass. It comes in a packaging configuration of two pallets, one slack, and seven stacks per container. The specifications include maximum power output (Pmax) of 380Wp, open-circuit voltage (Voc) of 44.22v, and short-circuit current (Isc) of 11.124A.
