Jinko 385W Solar Panel (JKM385M-72HBL-V)
The Jinko 385W Solar Panel, model JKM385M-72HBL-V, is designed for high-efficiency energy generation with a power output of 385W. Featuring advanced mono PERC half-cell technology, this panel delivers enhanced performance even in low-light conditions and shaded environments. The panel offers a robust power tolerance of 0~+3%, ensuring reliable output in various environmental conditions. With a high-efficiency rating of up to 19.13%, this panel is ideal for residential, commercial, and industrial installations.
Jinko 385 Watt Solar Panel Key Features
- Diamond Half-Cell Technology: Utilizing world-record-breaking efficient mono PERC half-cells, this panel maximizes power generation in a compact footprint.
- Durability and Toughness: Built with a 3.2mm thick, anti-reflective tempered glass and anodized aluminum alloy frame, it is tested to withstand snow loads up to 5400Pa and wind loads up to 2400Pa, along with hailstone impact resistance.
- High Aesthetic Appeal: With a black frame and backsheet, this panel is optimized for visual appeal, making it ideal for residential settings.
- Shade Tolerance: The twin array design allows it to maintain performance even with partial shading from nearby structures or vegetation.
- Wide Environmental Compatibility: Certified for resistance to humidity, heat, salt mist, and ammonia, ensuring longevity in diverse climates.
Jinko Solar 385W Specs
Electrical Specifications
- Maximum Power (Pmax): 385W (STC); 283Wp (NOCT)
- Maximum Power Voltage (Vmp): 39.37V (STC)
- Maximum Power Current (Imp): 7.71A (STC)
- Open-Circuit Voltage (Voc): 47.0V (STC)
- Short-Circuit Current (Isc): 10.38A (STC)
- Module Efficiency: 19.13%
Mechanical Characteristics
- Cell Type: Mono PERC Diamond Half-Cell, 158.75 x 158.75mm
- Number of Half Cells: 144 (6x24 configuration)

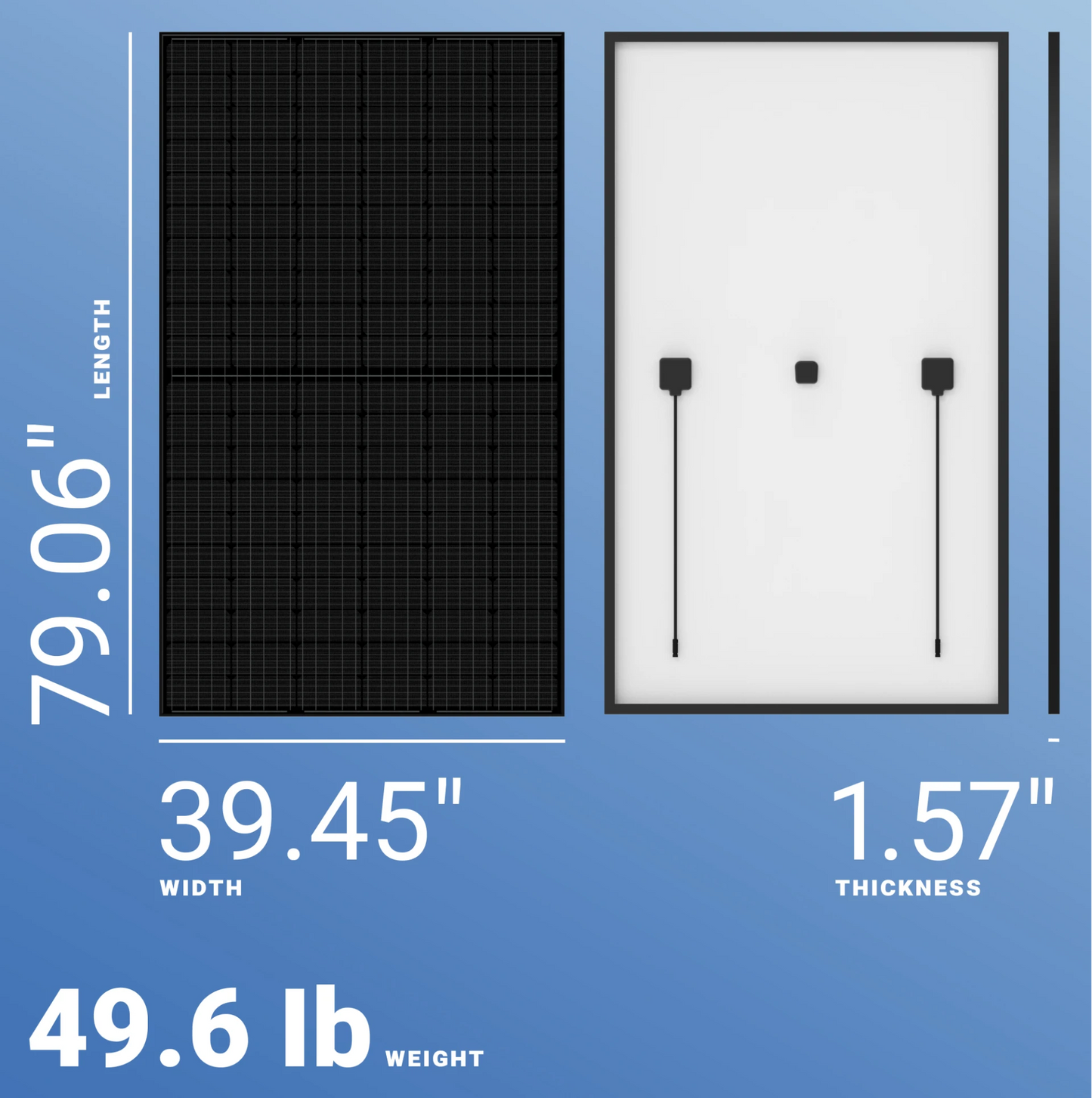

- Dimensions: 2008 x 1002 x 35mm (79.06 x 39.45 x 1.57 inches)
- Weight: 22.5 kg (49.6 lbs)
- Junction Box: IP68 rated
- Connector: Staubli MC4 series
- Output Cables: 12 AWG, 1400mm (55.12 inches) or customizable
Temperature Characteristics
- Operating Temperature Range: -40°C to +85°C
-
Temperature Coefficients:
- Pmax: -0.35%/°C
- Voc: -0.29%/°C
- Isc: 0.048%/°C
- Nominal Operating Cell Temperature (NOCT): 45±2°C
Certifications and Standards
- Certifications: ISO9001, ISO14001, ISO45001, IEC61215, IEC61730, UL1703
- Quality and Safety Standards: UL and IEC certified for maximum system voltage of 1500V DC, Fire Type 1 rated
- Assembly: Assembled in the USA with components sourced globally
Warranty
- Product Warranty: 25 years
- Performance Warranty: Ensures less than 2.5% degradation in the first year, with a maximum of 0.6% degradation per year thereafter, guaranteeing 83.1% of the original output at 25 years.
This Jinko 385W Solar Panel offers reliable energy production, durable design, and is ideal for high-efficiency energy solutions in residential and commercial applications. With rigorous certifications and robust warranties, this panel ensures long-lasting performance across various environmental conditions.
Jinko 385W Datasheet

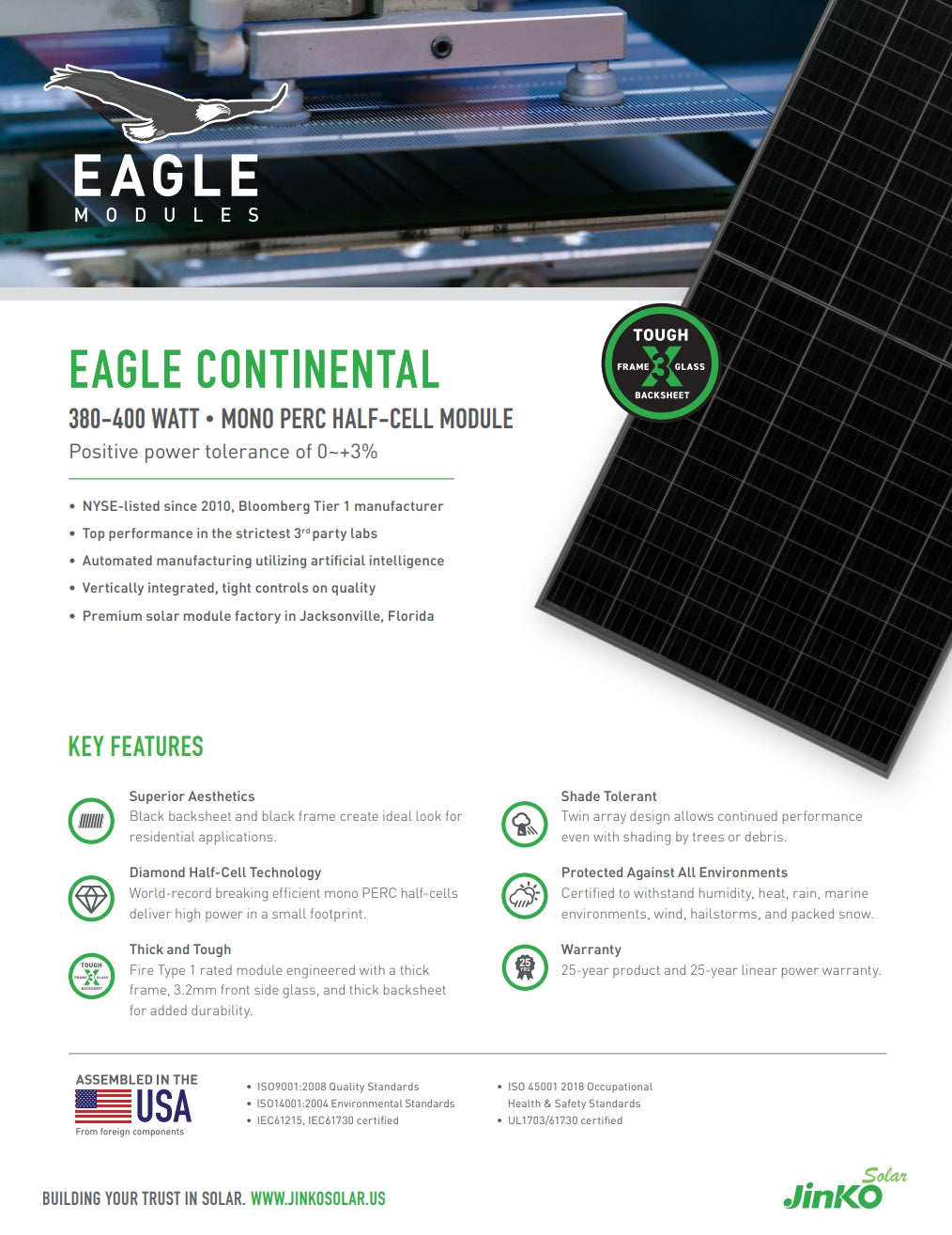

Jinko 385W Solar Panel (JKM385M-72HBL-V) product image. Features include Eagle M Series, Durable and Rugged Design, Black Frame and Backsheet for Aesthetics and Shade Tolerance, Diamond Half-Cell Technology for High Efficiency, Certified to Withstand Humidity, Heat, Rain, Marine Environments, Wind, Hailstorms, and Packed Snow. 25-Year Product and Linear Power Warranty, Assembled in the USA.

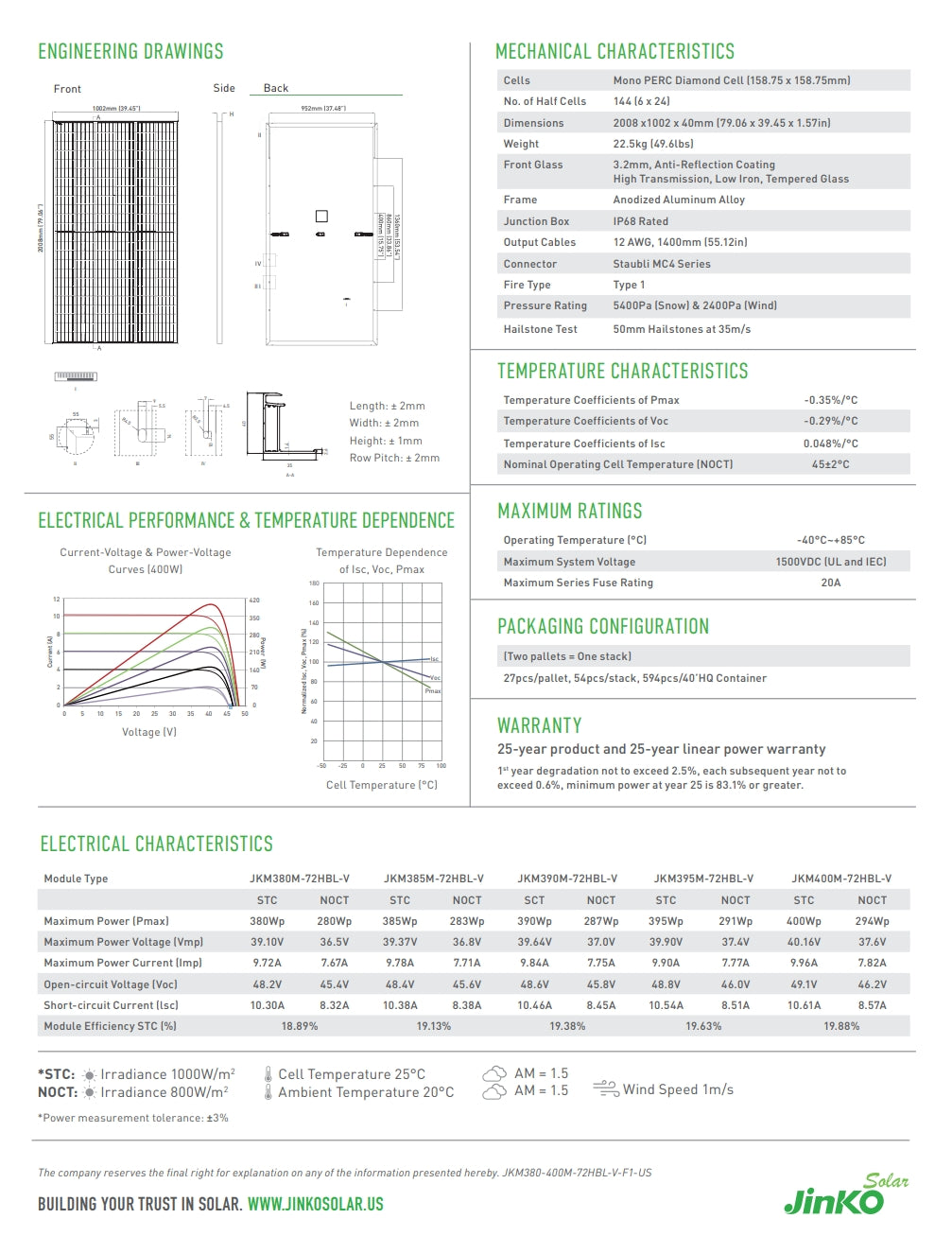

Jinko 385W Solar Panel Product Information Mechanical Characteristics: * Cells: Mono PERC Diamond Cell * Front Side/Back No. of Half Cells: 1L4 [6 x 241, 7i, 13) * Dimensions: 2008 x 1002 mm (79.06 x 39.45 in) * Weight: 22.5 kg (49.6 lbs) * Frame: Anodized Aluminum Alloy * Junction Box: IP68 Rated Output Cables: * Length: 1,000 mm (55.12 in) * Connector: Staubli MCL Series Temperature Characteristics: * Temperature Coefficients of Pmax: -0.35%/°C * Nominal Operating Cell Temperature (NOCT): 4522°C * Maximum System Voltage: 1500 V (UL and IEC) Electrical Performance & Temperature Dependence: * Maximum Power Ratings: + Operating Temperature: +40°C to +85°C + Current-Voltage-Power-Temperature * Maximum Series Fuse Rating: 20A * Packaging Configuration: [Two pallets, One stack], 27pcs/pallet; 54 pcs/stack Warranty: * 25-year product warranty and linear power warranty * 1-year degradation not to exceed 2.59% each subsequent year, with minimum power at year 25 of 83.1% or greater
