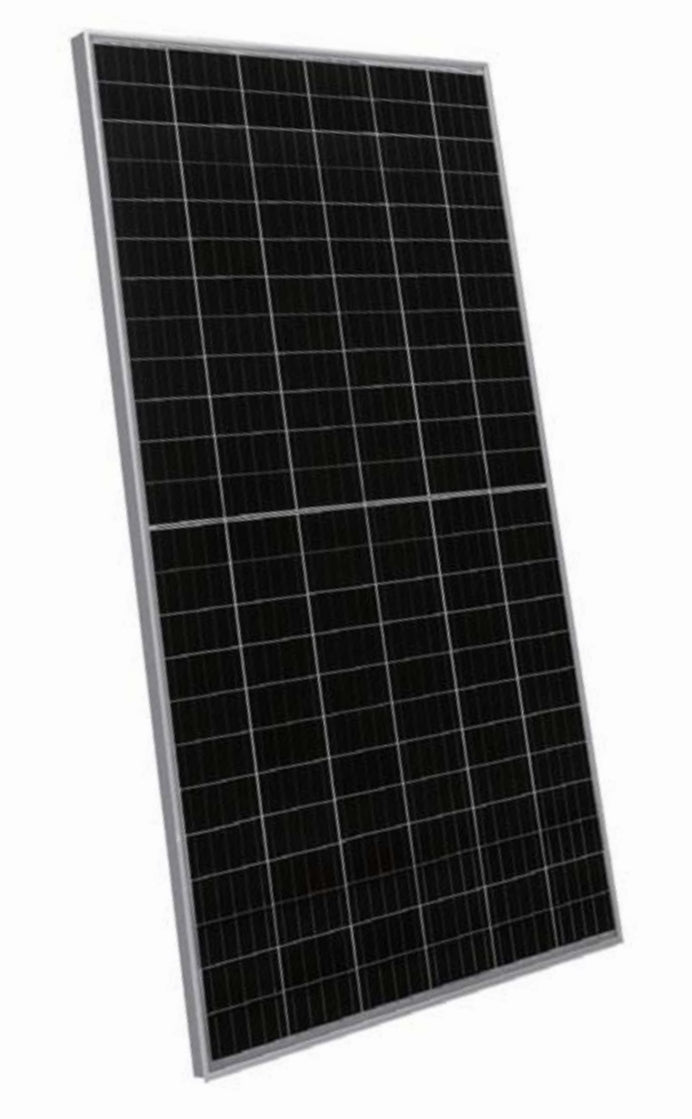

Jinko 390W Solar Panel (JKM390M-72HL-V)
The Jinko 390W Solar Panel (JKM390M-72HL-V) is a high-efficiency mono PERC half-cell module designed for optimal energy output and durability. Featuring advanced Diamond Cell Technology, this solar panel ensures higher efficiency and lower degradation rates, making it a reliable choice for residential, commercial, and utility-scale solar installations.
Key Features
-
Diamond Cell Technology:
- Uniquely designed 5-busbar mono PERC half-cell technology for enhanced performance.
- Improved energy yield and reduced power loss.
-
High Voltage Compatibility:
- Certified for UL and IEC standards with 1500V system voltage, reducing balance of system (BOS) costs.
-
Higher Module Power:
- Superior power output with reduced current loss for improved overall efficiency.
-
PID Resistance:
- Advanced materials prevent potential-induced degradation (PID), ensuring long-term reliability.
-
Enhanced Shade Tolerance:
- Twin array design minimizes power losses under shading conditions.
-
Strength and Durability:
- Certified to withstand high snow loads (5400 Pa) and wind loads (2400 Pa).
Jinko Solar 390W Specifications
| Module Type | JKM390M-72HL-V |
|---|---|
| Maximum Power (Pmax) | 390W (STC), 294W (NOCT) |
| Module Efficiency | 19.38% |
| Open-circuit Voltage (Voc) | 49.8V (STC), 47.0V (NOCT) |
| Maximum Power Voltage (Vmp) | 41.1V |
| Maximum Power Current (Imp) | 9.49A |
| Dimensions | 2008×1002×40mm |
| Weight | 22.5kg (49.6 lbs) |
| Cell Type | Mono PERC Diamond (158.75×158.75mm) |
| Number of Cells | 144 (6×24) |
| Operating Temperature | -40°C to +85°C |
| Maximum Fuse Rating | 20A |
Certifications and Standards
- ISO 9001:2008 and ISO 14001:2004
- IEC 61215, IEC 61730
- UL and CE certified for safety and reliability.
Warranty and Performance
- 10-Year Product Warranty
-
25-Year Linear Power Warranty
- Maintains 80.2% of rated output by the 25th year.
- Outperforms standard warranties with enhanced long-term performance.
Applications
The Jinko 390 Watt Solar Panel is ideal for diverse applications:
- Residential Installations: Maximize energy efficiency in limited spaces.
- Commercial Systems: Reduce operational costs with high output.
- Utility-scale Projects: Achieve low Levelized Cost of Electricity (LCOE).

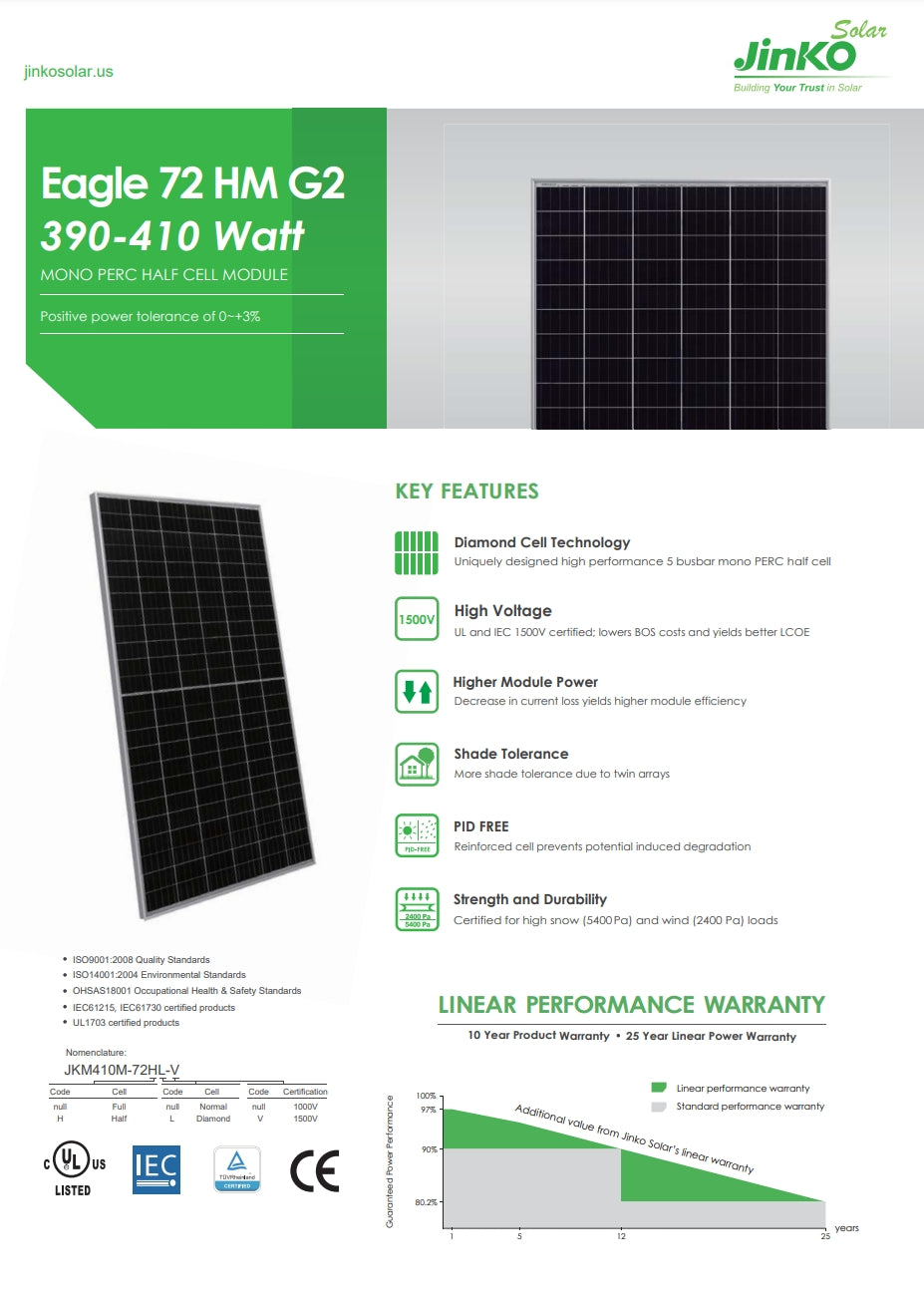

Jinko 390W Datasheet
The Jinko 390W Solar Panel (JKM390M-72HL-V) features Diamond Cell Technology, a high-performance busbar mono-PERC half-cell module. It boasts positive power tolerance of +3% and offers key benefits such as higher module power, reduced current loss for increased efficiency, shade tolerance, and PID-free design. The reinforced cell prevents potential induced degradation, ensuring strength and durability. Certified to withstand high snow (5400 Pa) and wind loads (2400 Pa), this product meets ISO 9001:2008 quality standards and IEC 61215 and IEC 61730 safety certifications.

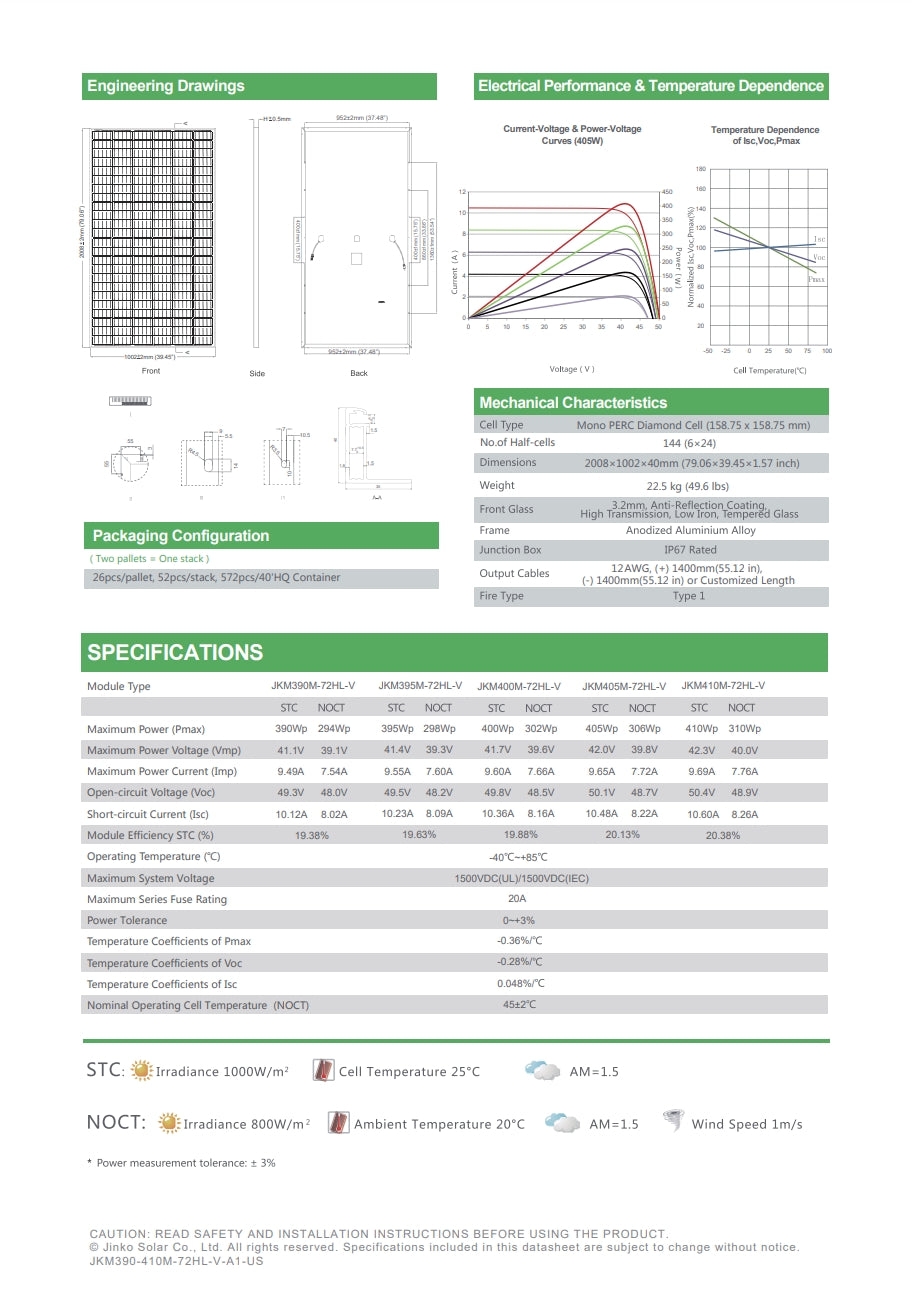

The Jinko 390W Solar Panel (JKM390M-72HL-V) features a Mono PERC Diamond Cell with dimensions of 2008mm x 1002mm x 40mm. The module weighs 22.5 kg and has a front glass coating for high transmission and low iron content. The packaging configuration includes a junction box rated IP67, output cables with 12AWG and a length of 1400mm. Specifications include maximum power (Pmax) at 405W, maximum power voltage (Vmp) at 39.6V, maximum current (Imp) at 7.664A, open-circuit voltage (Vac) at 48.5V, and short-circuit current (Isc) at 16A.
