Jinko 395W Solar Panel (JKM395M-72HL-V)
The Jinko 395W Solar Panel (JKM395M-72HL-V) is a premium choice for efficient and reliable solar energy solutions. Designed with Diamond Cell Technology and a durable mono PERC half-cell structure, this solar panel is engineered to maximize energy output and withstand extreme environmental conditions. Its advanced features make it ideal for residential, commercial, and utility-scale projects.
Overview
- Model: JKM395M-72HL-V
- Maximum Power Output: 395W
- Module Efficiency: 19.63%
- Cell Technology: Mono PERC Diamond Cell (5-busbar)
- Durability: Certified for high snow loads (5400 Pa) and wind loads (2400 Pa)
- Warranty: 10-Year Product Warranty and 25-Year Linear Power Warranty
Jinko 395 Watt Solar Panel Key Features
-
Diamond Cell Technology:
- Innovative design with high-performance 5-busbar mono PERC half cells.
- Increased energy yield and reduced resistance loss.
-
High Voltage Compatibility:
- Certified for 1500V UL and IEC systems, reducing BOS costs and enhancing system compatibility.
-
Enhanced Power Output:
- Decreases current losses to achieve higher module efficiency and reliability.
-
PID Resistance:
- Advanced reinforcement prevents potential-induced degradation, ensuring long-term efficiency.
-
Superior Shade Tolerance:
- Twin array design optimizes performance even under partial shading.
-
Strength and Durability:
- Robust design certified for extreme environmental conditions like heavy snow and strong winds.
Certifications
- ISO 9001:2008 (Quality Standards)
- ISO 14001:2004 (Environmental Standards)
- OHSAS 18001 (Occupational Health & Safety Standards)
- IEC 61215, IEC 61730
- UL and CE certifications for global reliability.
Warranty
- Product Warranty: 10 years
-
Linear Power Warranty: 25 years
- Retains over 80.2% of its original output by the 25th year.
Mechanical Characteristics
- Cell Type: Mono PERC Diamond Cell (158.75 × 158.75mm)
- No. of Cells: 144 (6 × 24)
- Dimensions: 2008 × 1002 × 40mm
- Weight: 22.5kg (49.6 lbs)
- Glass: 3.2mm, anti-reflection coated, tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP67 rated
- Output Cables: 12 AWG, customizable lengths
Jinko Solar 395W Specifications
| Parameter | STC | NOCT |
|---|---|---|
| Maximum Power (Pmax) | 395W | 298W |
| Open-Circuit Voltage (Voc) | 49.9V | 47.0V |
| Maximum Power Voltage (Vmp) | 41.1V | 39.1V |
| Maximum Power Current (Imp) | 9.65A | 7.63A |
| Short-Circuit Current (Isc) | 10.23A | 8.30A |
| Temperature Coefficient of Pmax | -0.36%/°C | |
| Nominal Operating Cell Temperature (NOCT) | 45 ± 2°C |
Packaging
-
Pallet Configuration:
- 26 pieces per pallet
- 52 pieces per stack
- 572 pieces per 40ft HQ container
Applications
The Jinko 395W Solar Panel is suitable for:
- Residential Systems: High energy yield in limited spaces.
- Commercial Installations: Improved efficiency for larger systems.
- Utility-Scale Projects: Optimized for lower LCOE and high reliability.
Jinko 395W Datasheet

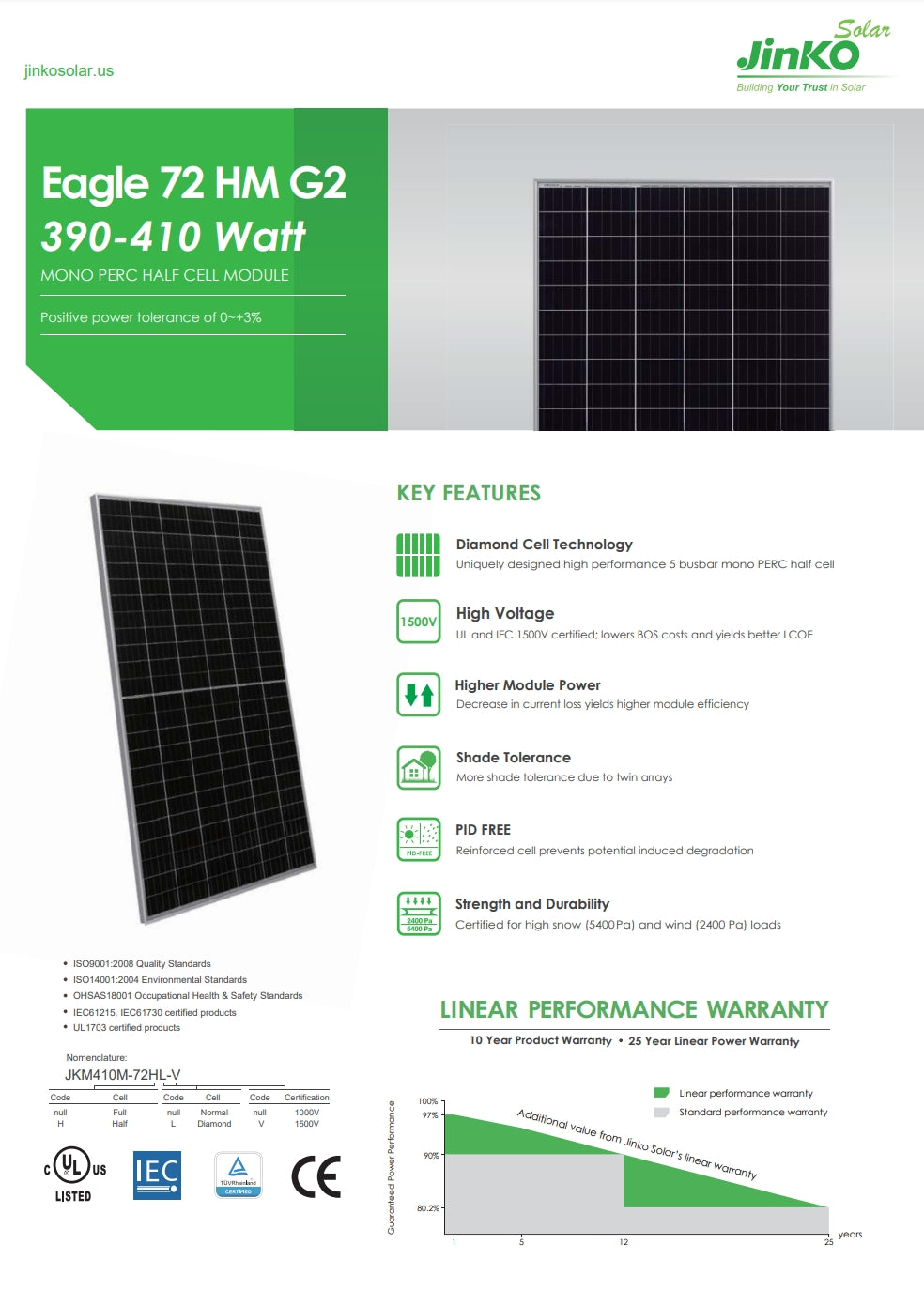

The Jinko 395W Solar Panel (JKM395M-72HL-V) product image. Jinko building trust in solar energy. JinKo Eagle 72 HM G2 module, with a power output of 390-410 Watts, featuring Mono PERC half-cell technology. KEY FEATURES: * Diamond Cell Technology: high-performance busbar mono PERC half-cell design * High Voltage UL and IEC certified; reduces BOS costs and yields better LCOE * Higher Module Power: decreases current loss for higher module efficiency * Shade Tolerance: more shade tolerance up to 2 times the rated power * PID-Free: reinforced cell prevents potential induced degradation * Strength and Durability: Klam Certified for high snow (400 Pa) and wind (2400 Pascals) ISO9001.2008, quality standards

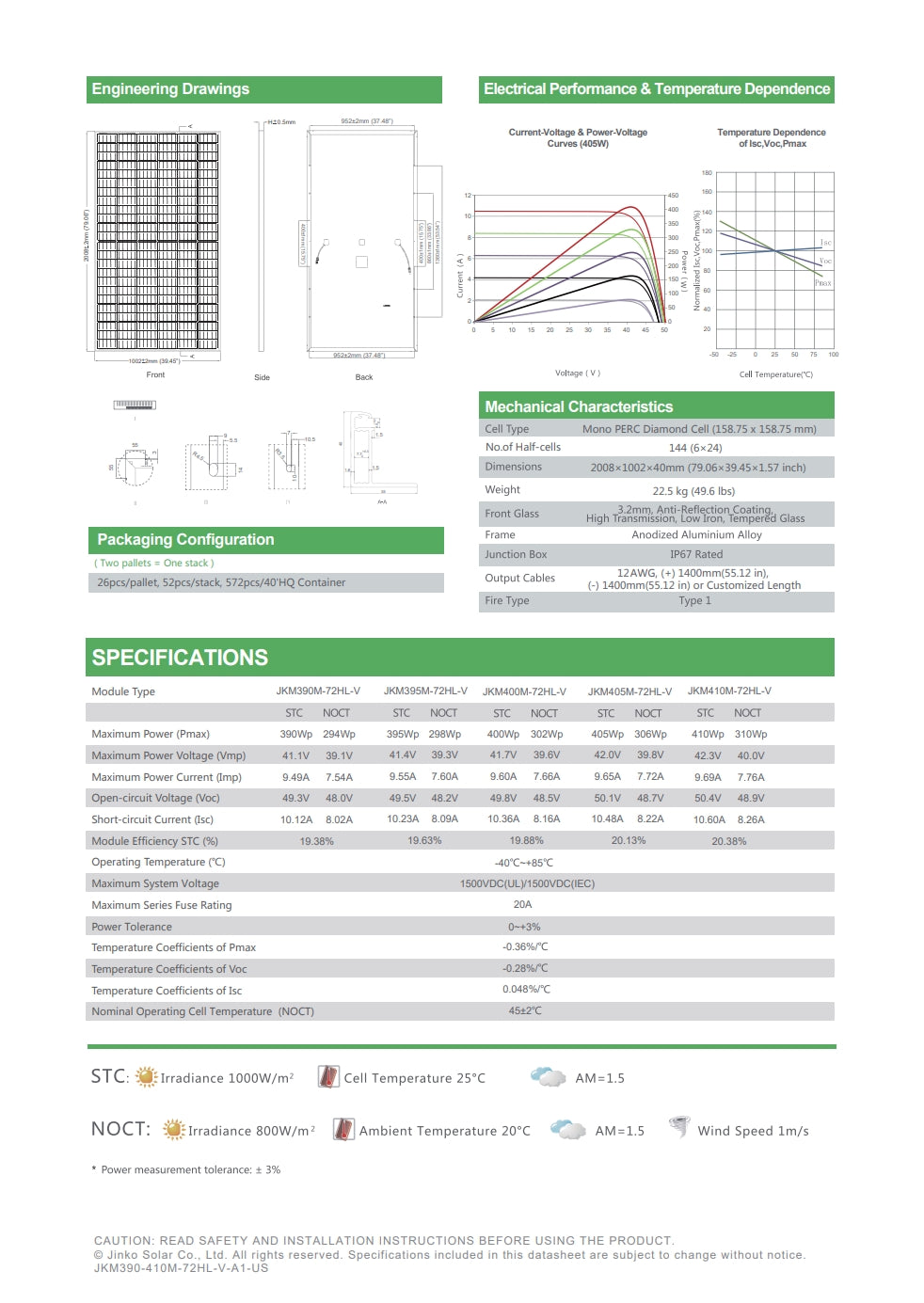

The Jinko Solar Panel, model JKM395M-72HL-V, features a mono-PERC diamond cell design with 144 half-cells. Its mechanical characteristics include dimensions of 2008x1002x40mm and a weight of 22.5 kg. The front glass has anti-reflection treatment, and the junction box is IP65 rated. The module type is suitable for various applications, including residential and commercial use.
