Jinko 400W Solar Panel (JKM400M-72HL-TV)
The Jinko 400W Solar Panel (JKM400M-72HL-TV) combines advanced Bifacial Mono PERC Half-Cell Technology with a robust and durable design, making it a top-tier solution for maximizing energy output in residential, commercial, and utility-scale applications. With its bifacial power gain and exceptional shade tolerance, this panel ensures efficiency in diverse environmental conditions.
Jinko Solar 400 Watt Overview
- Model: JKM400M-72HL-TV
- Maximum Power Output: 400W
- Module Efficiency: 19.54%
- Cell Technology: Mono PERC Diamond Bifacial Half-Cell
- Durability: Certified to withstand harsh environmental conditions, including high snow and wind loads
- Warranty: 30-Year Performance Warranty
Key Features
-
Diamond Half-Cell Technology:
- Breakthrough mono PERC bifacial design enhances energy yield on both sides.
- Improves energy capture with reduced resistance loss.
-
Bifacial Power Gain:
- Rear-side energy generation adds up to 25% extra power output.
- Ideal for applications with reflective surfaces.
-
Transparent Backsheet:
- Enables easier installation and lowers balance-of-system costs compared to dual-glass solutions.
-
Designed for Longevity:
- Utilizes DuPont protective film for maximum lifespan, as used in aerospace and industrial applications.
-
Shade Tolerance:
- Twin array design minimizes performance loss under shading conditions.
-
Environmental Protection:
- Certified to resist humidity, heat, rain, hailstorms, and harsh environmental conditions.
Certifications
- ISO 9001:2015 (Quality Standards)
- ISO 14001:2015 (Environmental Standards)
- OHSAS 18001 (Occupational Health & Safety Standards)
- IEC 61215, IEC 61730
- UL and CE certified
Warranty
-
Performance Warranty: 30 years
- Retains over 80% of its rated output by the 30th year.
- Exceeds standard warranties with enhanced long-term reliability.
Mechanical Characteristics
- Cell Type: Mono PERC Diamond Cell (158.75 × 158.75mm)
- Number of Cells: 144 (6×24)
- Dimensions: 2031 × 1008 × 40mm
- Weight: 23.3kg (51.3 lbs)
- Glass: 3.2mm, anti-reflective coated tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP67 rated
- Output Cables: 12 AWG, customizable lengths
- Pressure Rating: Certified for 5400 Pa (snow) and 2400 Pa (wind)
Jinko 400W Specifications
| Parameter | STC | NOCT |
|---|---|---|
| Maximum Power (Pmax) | 400W | 297W |
| Open-Circuit Voltage (Voc) | 49.8V | 47.4V |
| Maximum Power Voltage (Vmp) | 41.4V | 39.4V |
| Maximum Power Current (Imp) | 9.66A | 7.55A |
| Short-Circuit Current (Isc) | 10.20A | 8.38A |
| Temperature Coefficient of Pmax | -0.36%/°C | |
| Nominal Operating Cell Temperature (NOCT) | 45 ± 2°C |
Packaging
-
Pallet Configuration:
- 27 panels per pallet
- 54 panels per stack
- 594 panels per 40ft HQ container
Applications
The Jinko 400W Solar Panel is versatile and suitable for:
- Residential Use: High energy efficiency in compact spaces.
- Commercial Installations: Ideal for large-scale systems with bifacial power gain.
- Utility-Scale Projects: Low Levelized Cost of Electricity (LCOE) and reliable performance in harsh environments.
Jinko 400W Datasheet

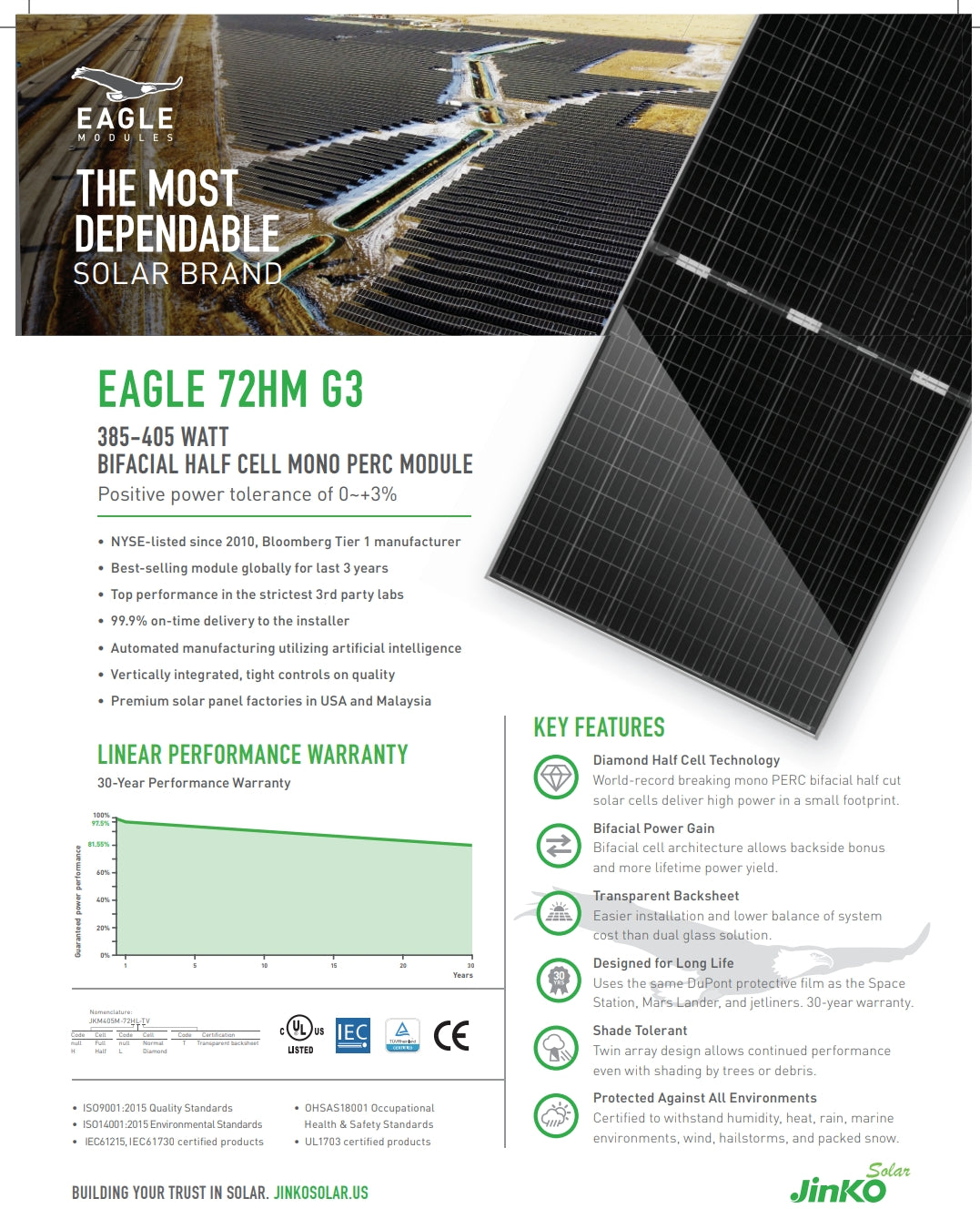

JinkoSolar 400W Solar Panel (JKM400M-72HL-TV) offers exceptional performance with a positive power tolerance of 0/+3%. As a leading solar brand, JinkoSolar has been listed on NYSE since 2010 and holds Bloomberg Tier manufacturer status. Our top-performing modules have achieved 99.9% on-time delivery to installers. With automated manufacturing utilizing artificial intelligence, our vertically integrated production process ensures tight quality control. Key features include a linear performance warranty, diamond half-cell technology, and a 30-year performance warranty. The bifacial design with a world-record breaking mono PERC architecture delivers high power in a small footprint, offering bifacial power gain and increased lifetime power yield. Our transparent backsheet simplifies installation and reduces balance-of-system costs compared to dual-glass solutions. The module is designed for long life and tear resistance, using the same DuPont protective film as the Space Station, Mars Lander, and jetliners (30-year warranty). It also features IEC 61215 and IEC 61730 certified products, ensuring reliability in various environments, including shade tolerance, twin array design, and protection against all environmental factors.

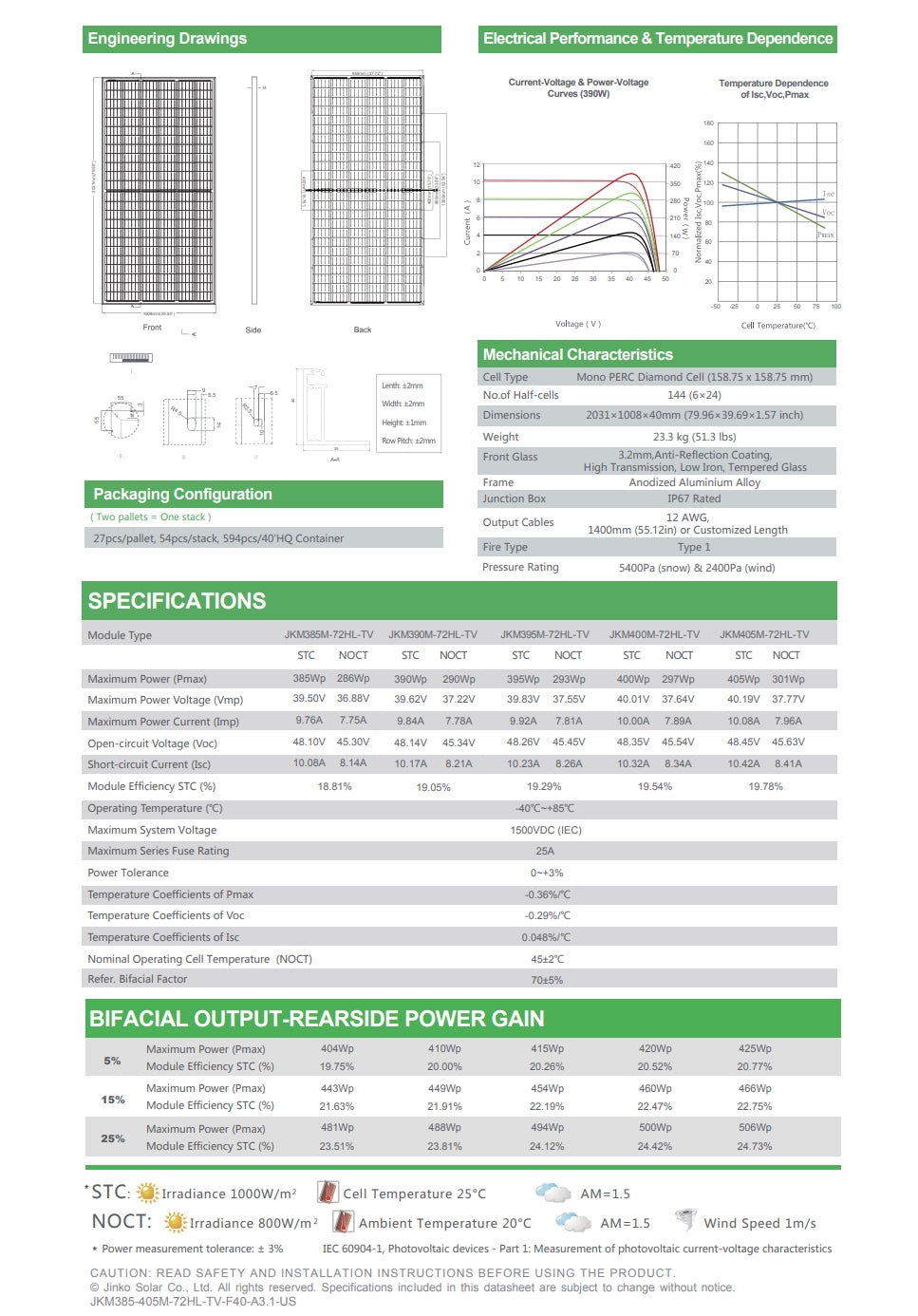

Jinko 400W Solar Panel (JKM400M-72HL-TV) Product Specifications: Maximum Power (Pmax): 400W, Maximum Power Voltage (Vmp): 39.5V, Maximum Power Current (Imp): 9.76A, Open-circuit Voltage (Voc): 48.1V, Short-circuit Current (Isc): 10.08A, Module Efficiency STC: 18.8190%, Operating Temperature: -40°C to +85°C, Maximum System Voltage ISOVDLC (IEC): 1000V, Maximum Series Fuse Rating: 254A. Nominal Operating Cell Temperature (NOCT): 45°C, Refer. Bifacial Factor: 70%. Bifacial Output-Reverse Power Gain: Maximum Power (Pmax): 404Wp, 410Wp, 415WP, 420Wp, 425Wp, 430Wp. Module Efficiency STC (%): 19.7596%, 20.0090%, 20.2690%
