Jinko

Jinko 405W Solar Panel (JKM405M-72HL-V)

Jinko 405W Solar Panel (JKM405M-72HL-V)

Regular price $4,888.00 USD
Regular price Sale price $4,888.00 USD
Sale Sold out
Shipping calculated at checkout.

4 orders in last 30 days

Quantity
View full details

Jinko 405W Solar Panel (JKM405M-72HL-V)

The Jinko 405W Solar Panel (JKM405M-72HL-V) utilizes cutting-edge Diamond Mono PERC Half-Cell Technology to deliver outstanding energy efficiency and reliability. Designed for optimal performance in residential, commercial, and utility-scale solar installations, this panel features a maximum power output of 405W, a module efficiency of 19.90%, and robust durability to withstand high snow loads (5400 Pa) and strong winds (2400 Pa). Backed by a 10-year product warranty and a 25-year linear power warranty, it ensures long-term energy output and exceptional value.


Jinko 405 Watt Solar Panel Key Features

  1. Diamond Cell Technology:

    • High-performance 5-busbar mono PERC half cells.

    • Enhanced energy yield and lower power losses.

  2. High Voltage Compatibility:

    • Certified for 1500V UL and IEC systems, reducing BOS costs.

  3. Higher Power Output:

    • Improved current loss reduction for superior module efficiency.

  4. PID Resistance:

    • Advanced reinforced cell structure prevents potential-induced degradation.

  5. Shade Tolerance:

    • Twin array design minimizes efficiency losses under shaded conditions.

  6. Robust Durability:

    • Certified to withstand challenging environments, including snow, wind, and extreme temperatures.


Certifications

  • ISO 9001:2008 (Quality Standards)

  • ISO 14001:2004 (Environmental Standards)

  • OHSAS 18001 (Occupational Health & Safety Standards)

  • IEC 61215, IEC 61730

  • UL and CE certified


Warranty

  • Product Warranty: 10 years

  • Linear Power Warranty: 25 years

    • Maintains over 80.2% of its original output after 25 years.


Mechanical Characteristics

  • Cell Type: Mono PERC Diamond Cell (158.75 × 158.75mm)

  • Number of Cells: 144 (6×24)

  • Dimensions: 2008 × 1002 × 40mm

  • Weight: 22.5kg (49.6 lbs)

  • Glass: 3.2mm, anti-reflection coated tempered glass

  • Frame: Anodized aluminum alloy

  • Junction Box: IP67 rated

  • Output Cables: 12 AWG, customizable lengths


Jinko Solar 405W Specifications

Parameter STC NOCT
Maximum Power (Pmax) 405W 306W
Open-Circuit Voltage (Voc) 50.0V 47.2V
Maximum Power Voltage (Vmp) 41.7V 39.8V
Maximum Power Current (Imp) 9.72A 7.72A
Short-Circuit Current (Isc) 10.26A 8.22A
Temperature Coefficient of Pmax -0.36%/°C
Nominal Operating Cell Temperature (NOCT) 45 ± 2°C

Packaging

  • Pallet Configuration:

    • 26 panels per pallet

    • 52 panels per stack

    • 572 panels per 40ft HQ container


Applications

The Jinko 405W Solar Panel is suitable for:

  • Residential Installations: Maximize energy output in small spaces.

  • Commercial Systems: Achieve cost-efficient large-scale installations.

  • Utility-Scale Projects: Deliver low Levelized Cost of Electricity (LCOE) with reliable performance.


For additional information or bulk orders, please contact our sales team at service@tsolar.top. This panel embodies Jinko Solar's commitment to innovation and renewable energy solutions.

Jinko 405W Datasheet

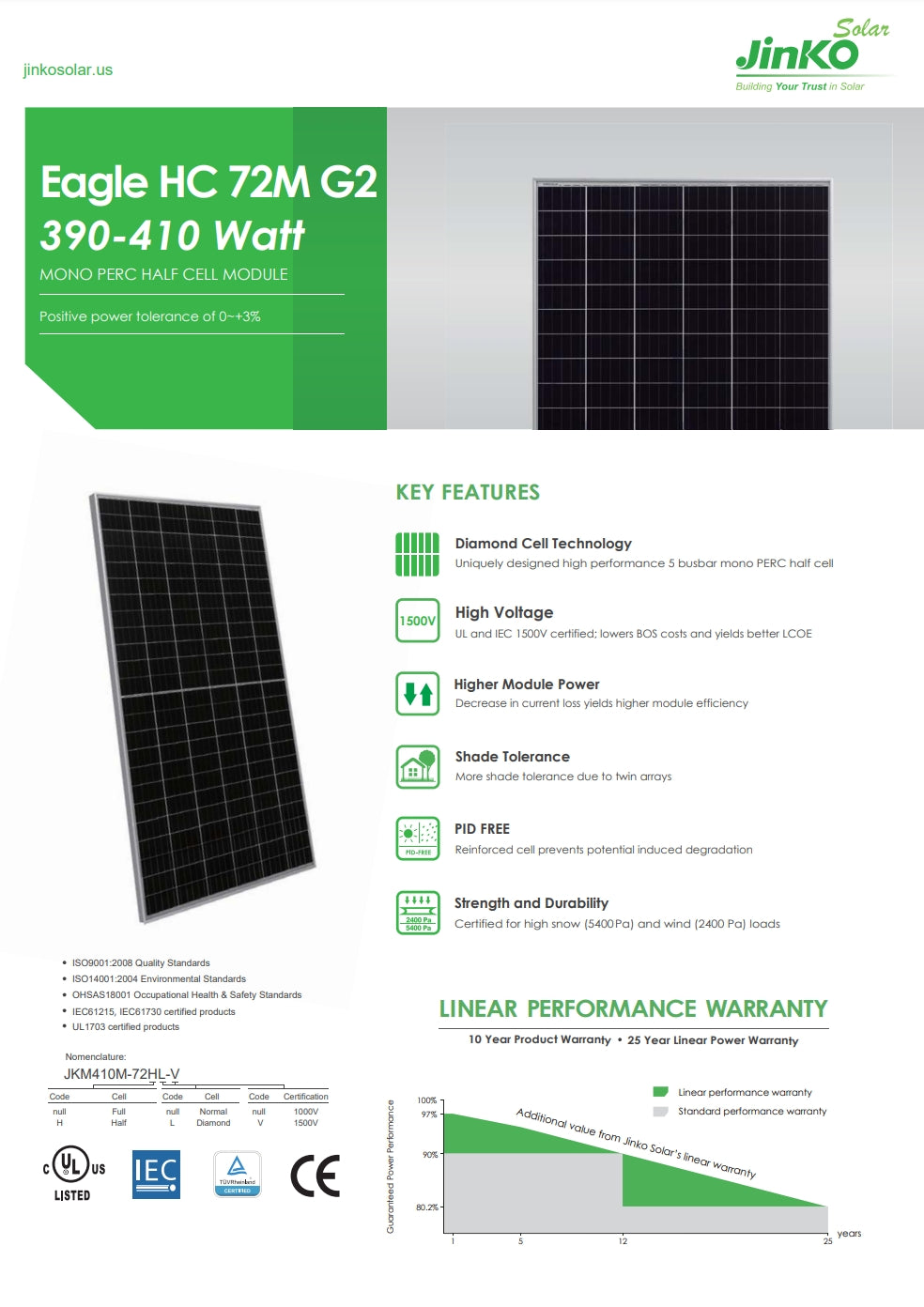

Jinko 405W Solar Panel, The Jinko Solar Panel features Diamond Cell Technology for high performance, with benefits including improved efficiency, shade tolerance, and certifications.

The Jinko Solar Panel (JKM405M-72HL-V) features Diamond Cell Technology, uniquely designed for performance. It has a positive power tolerance of +/-3%. Key benefits include high voltage UL and IEC certifications, lower BOS costs, and improved LCOE. The module boasts higher power, decreased current loss, and increased efficiency. It also offers shade tolerance up to 10%, PID-free design, and reinforced cells for potential induced degradation prevention. Jinko product meets high standards: ISO9001:2008, IEC61215, and IEC81730 certified. Additionally, it comes with a linear performance warranty, 10-year product warranty, and 25-year linear power warranty.

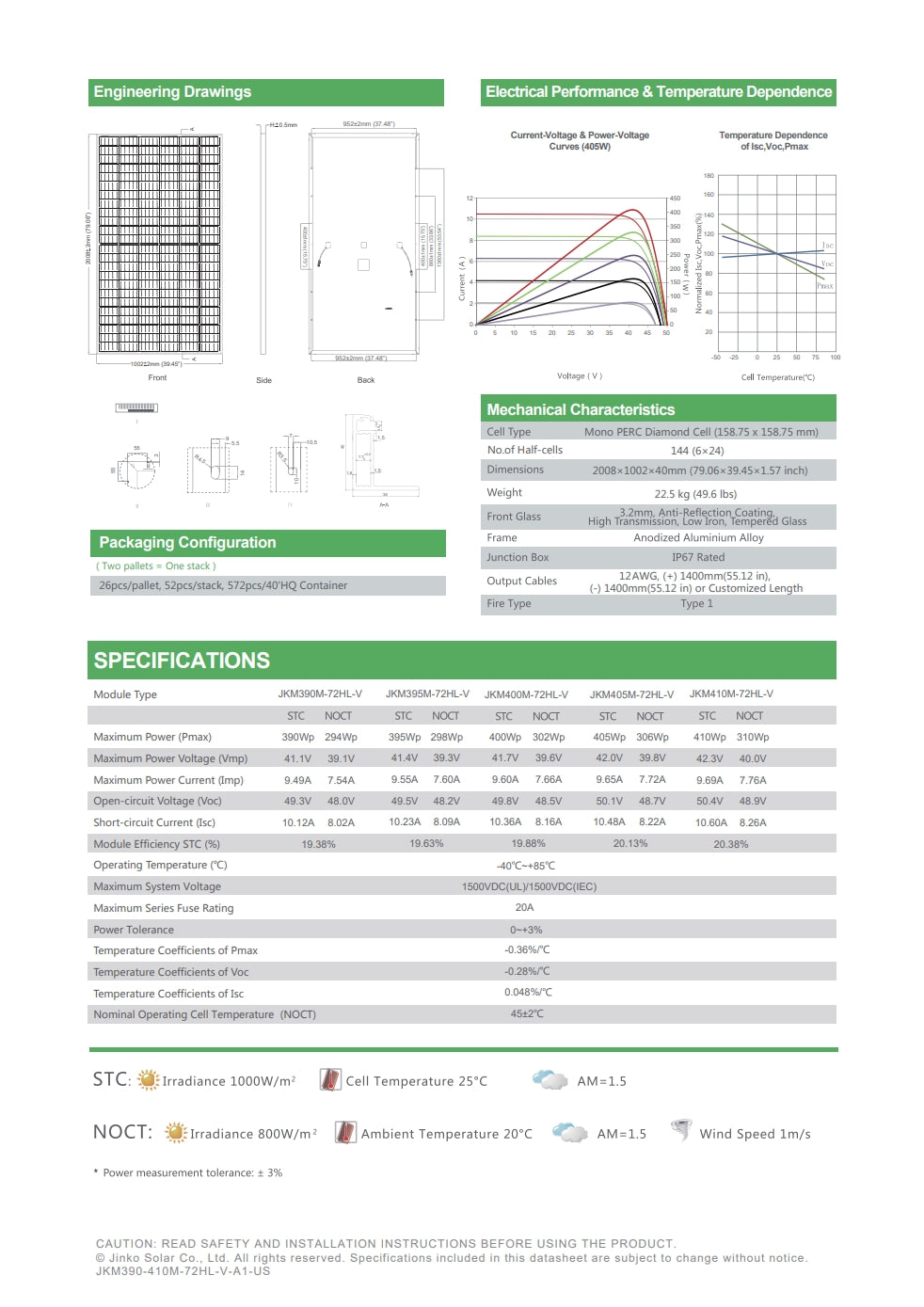

The Jinko 405W Solar Panel has a mono PERC diamond cell with 144 half-cells, measures 2008*1002*40mm, and weighs 22.5 kg.

Jinko 405W Solar Panel specifications, including electrical performance and mechanical characteristics. The panel features a mono PERC diamond cell with 144 half-cells, measures 2008*1002*40mm, and weighs 22.5 kg. Maximum power is 405Wp, with an open-circuit voltage of 49.3V and maximum power current of 9.654A.
