Jinko 410W Solar Panel Overview
The Jinko 410W Solar Panel (JKM410M-72HL-V) combines exceptional efficiency, durability, and reliability. With a maximum power output of 410W, a module efficiency of 20.38%, and robust Mono PERC half-cell technology, this panel is designed for high performance in diverse conditions. Certified for 1500V systems and capable of withstanding extreme snow (5400 Pa) and wind loads (2400 Pa), it is an ideal solution for residential, commercial, and utility-scale solar installations.
Jinko Solar 410W Key Features
-
Diamond Cell Technology: Enhanced performance with 5-busbar Mono PERC half-cell design.
-
High Voltage Compatibility: UL and IEC 1500V certified for reduced Balance of System (BOS) costs and improved Levelized Cost of Energy (LCOE).
-
Superior Module Power: Optimized for decreased current loss and higher efficiency.
-
Shade Tolerance: Twin-array configuration for better performance in partial shading conditions.
-
PID Resistance: Reinforced cell design prevents potential-induced degradation.
-
Strength and Durability: Withstands high snow loads (5400 Pa) and wind loads (2400 Pa).
Jinko 410W Datasheet
Mechanical Characteristics
-
Cell Type: Mono PERC Diamond Cell (158.75 x 158.75 mm)
-
Number of Half-Cells: 144 (6 x 24)
-
Dimensions: 2008 mm x 1002 mm x 40 mm (79.06 in x 39.45 in x 1.57 in)
-
Weight: 22.5 kg (49.6 lbs)
-
Front Glass: 3.2 mm, anti-reflection, low iron tempered glass
-
Frame: Anodized aluminum alloy
-
Junction Box: IP67 rated
-
Output Cables: 1200 mm or customizable lengths
-
Fire Type: Type 1
Jinko 410W Specifications
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 410W |
| Maximum Power Voltage (Vmp) | 41.00V |
| Maximum Power Current (Imp) | 9.76A |
| Open Circuit Voltage (Voc) | 49.89V |
| Short Circuit Current (Isc) | 10.22A |
| Module Efficiency (STC) | 20.38% |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500V (IEC/UL) |
| Power Tolerance | 0~+3% |
| NOCT Efficiency | 19.13% |
Package Configuration
-
Per Pallet: 26 pieces
-
Per Stack: 52 pieces
-
Per 40HQ Container: 572 pieces
Certifications
-
Standards Complied:
-
ISO9001:2008 (Quality Standards)
-
ISO14001:2004 (Environmental Standards)
-
OHSAS18001 (Occupational Health & Safety)
-
IEC61215, IEC61730
-
UL 1703
-
Warranty
-
Product Warranty: 10 years
-
Linear Power Performance Warranty: 25 years
-
Guarantees 80.2% power output after 25 years.
-
Applications
The Jinko 410 Watt Solar Panel is ideal for:
-
Residential Installations: Rooftops with limited space demanding high efficiency.
-
Commercial Projects: Offices, factories, and warehouses aiming for energy savings.
-
Utility-Scale Installations: Solar farms seeking reliable and durable panels for large-scale energy production.
This enhanced solar panel offers top-tier efficiency, outstanding durability, and comprehensive certifications, making it a perfect fit for your sustainable energy needs.

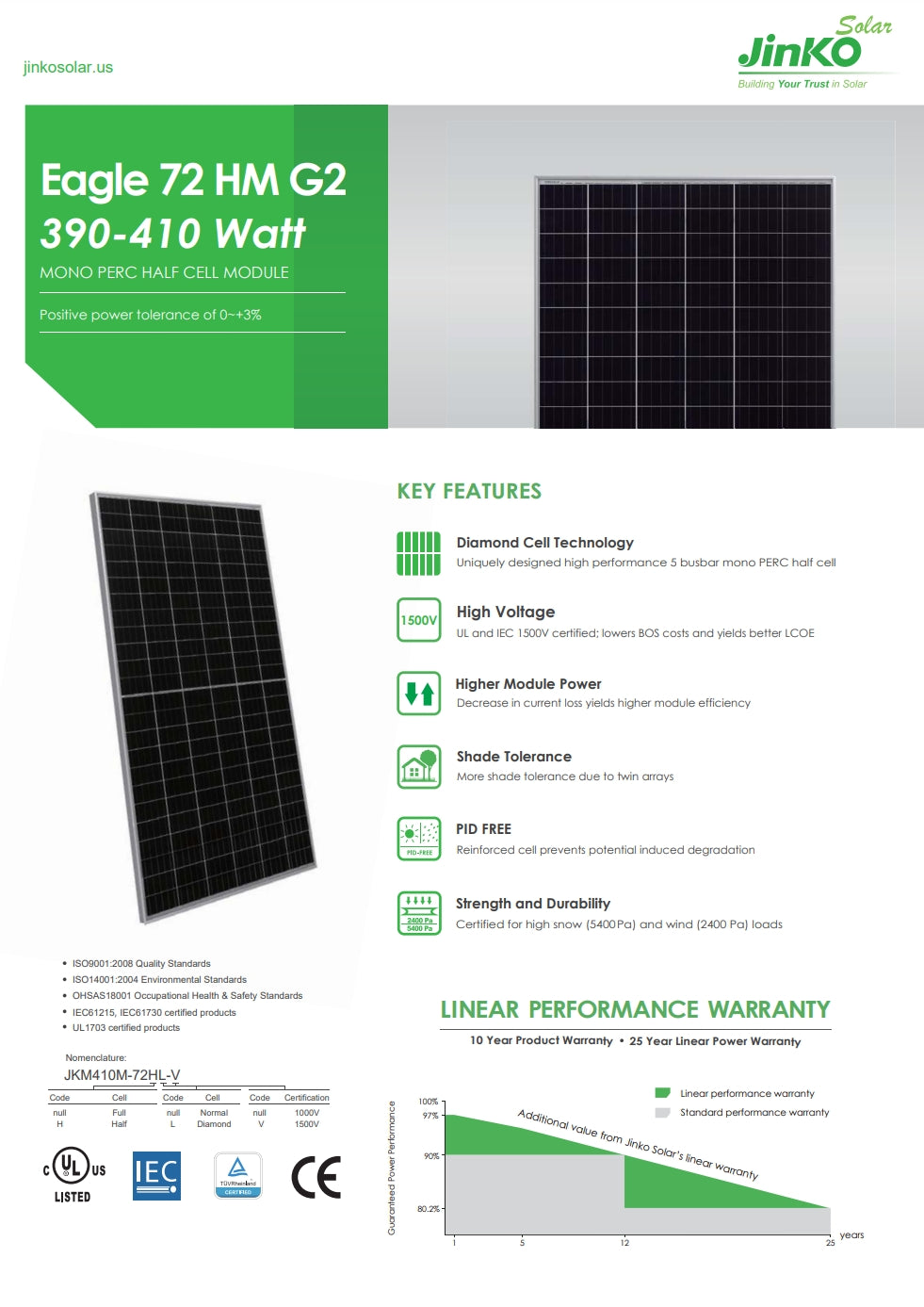

Jinko Building Your Trust in Solar - Eagle 72HM G2, 390-410W Mono Perc Half Cell Module. Key Features: Diamond Cell Technology; high-performance busbar design for unique performance and efficiency. Positive power tolerance of +0/+37%. Other features include high voltage UL and IEC ISO certified, lower BOS costs and yields better LCOE.

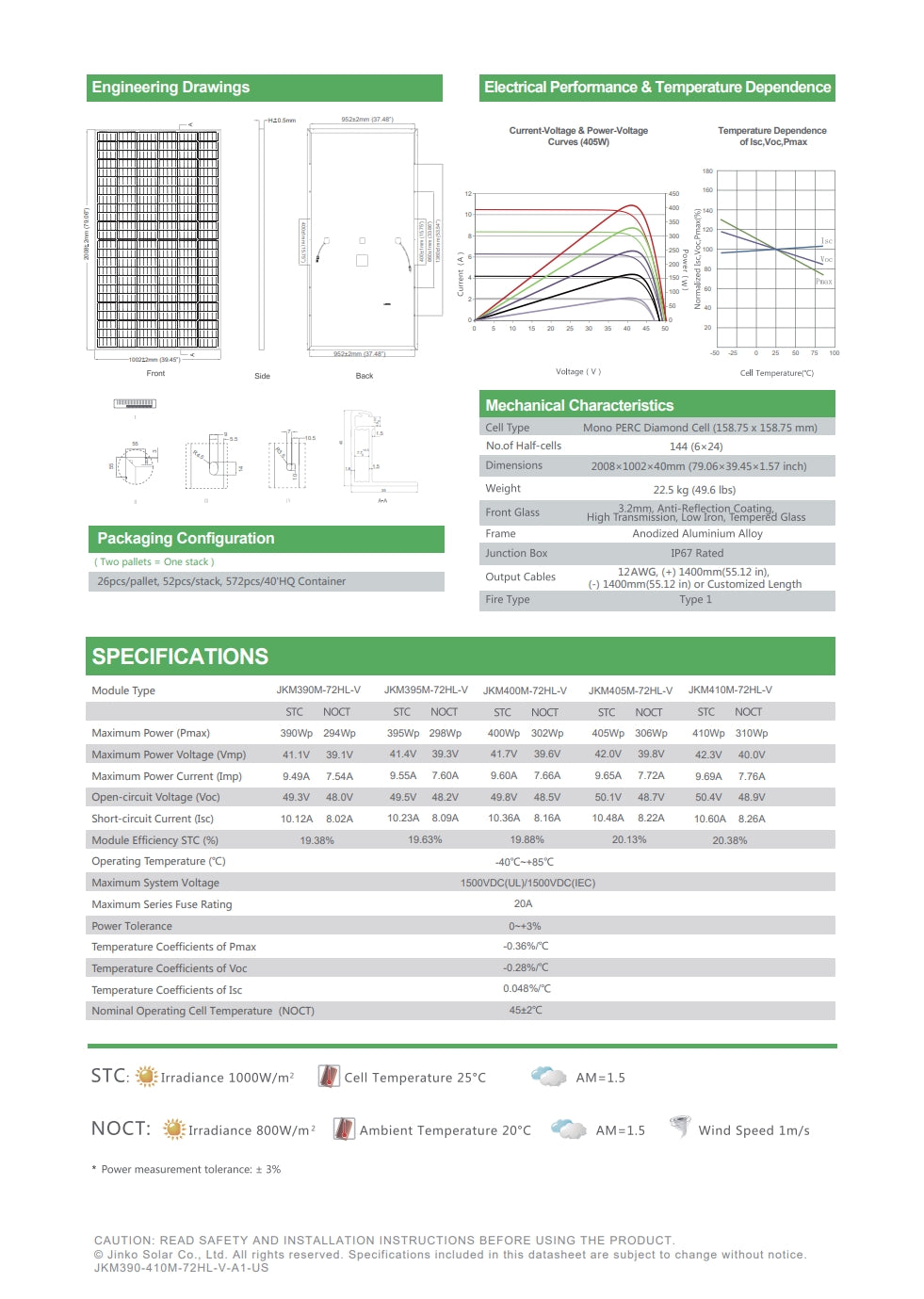

The Jinko Solar Panel, model JKM410M-72HL-V, features a Mono PERC Diamond Cell design with 144 half-cells. The dimensions are 2008mm x 1002mm x 40mm (79.06" x 39.45" x 1.57"), and the weight is 22.5 kg (49.6 lbs). The module efficiency is STC 19.3890%. The operating temperature range is -40°C to +85°C, with a maximum system voltage of 1000V DC. The power tolerance is ±0-3%, and the temperature coefficients are -0.3680/C for Pmax, -0.2890/C for Voc, and 0.04896/C for Isc. The nominal operating cell temperature (NOCT) is 45°C.
