Jinko 415W Solar Panel (JKM415M-72HL-V)

Jinko 415W Solar Panel Overview

The Jinko 415W Solar Panel (JKM415M-72HL-V) delivers industry-leading performance and durability. With a maximum power output of 415W, module efficiency of 20.63%, and robust Mono PERC half-cell technology, this panel ensures reliable energy production. Certified for 1500V systems, it withstands extreme snow loads (5400 Pa) and wind loads (2400 Pa), while also performing effectively in low-light conditions, making it ideal for residential, commercial, and utility-scale installations.

Jinko 415 Watt Solar Panel Key Features

• Diamond Half-Cell Technology: High-performance mono PERC half-cell solar cells ensure record-breaking efficiency.

• Thick and Tough Design: Fire Type 1-rated module with a thick frame, 3.2 mm tempered glass, and durable backsheet.

• Cloudy Weather Boost: Special film technology diffuses light, maintaining strong performance in shaded conditions.

• All-Environment Protection: Certified to endure heat, humidity, rain, hailstorms, and other challenging conditions.

• Shade Tolerance: Twin-array design ensures uninterrupted power output, even with shading from trees or debris.

• Comprehensive Warranty: Includes a 12-year product warranty and a 25-year linear power performance warranty.

Jinko Solar 415 Specs

Mechanical Characteristics

• Cell Type: Mono PERC Diamond Cell (158.75 x 158.75 mm)

• Number of Half-Cells: 144 (6 x 24)

• Dimensions: 2008 mm x 1002 mm x 40 mm (79.06 in x 39.45 in x 1.57 in)

• Weight: 22.5 kg (49.6 lbs)

• Front Glass: 3.2 mm anti-reflection, low-iron tempered glass

• Frame: Anodized aluminum alloy

• Junction Box: IP67 rated

• Output Cables: 1200 mm (customizable lengths)

• Fire Type: Type 1

• Pressure Ratings: 5400 Pa (Snow), 2400 Pa (Wind)

• Hailstone Resistance: Withstands hailstones up to 50 mm at 35 m/s

Specifications

Package Configuration

• Per Pallet: 27 pieces

• Per Stack: 54 pieces

• Per 40HQ Container: 594 pieces

Certifications

• Quality and Safety Standards:

  • ISO9001:2008 (Quality Standards)

  • ISO14001:2004 (Environmental Standards)

  • OHSAS18001 (Occupational Health & Safety Standards)

  • IEC61215, IEC61730

  • UL1703/61730 certified

Warranty

• Product Warranty: 12 years

• Linear Power Performance Warranty: 25 years

  • Guarantees 80.25% power output after 25 years

Applications

The Jinko 415W Solar Panel is suitable for:

• Residential Use: Maximizes energy output for rooftop installations.

• Commercial Use: Provides consistent energy for offices, factories, and warehouses.

• Utility-Scale Projects: Delivers reliable performance for large-scale solar farms.

With its advanced features, high durability, and robust warranties, the Jinko 415W Solar Panel (JKM415M-72HL-V) is an excellent choice for sustainable energy projects.

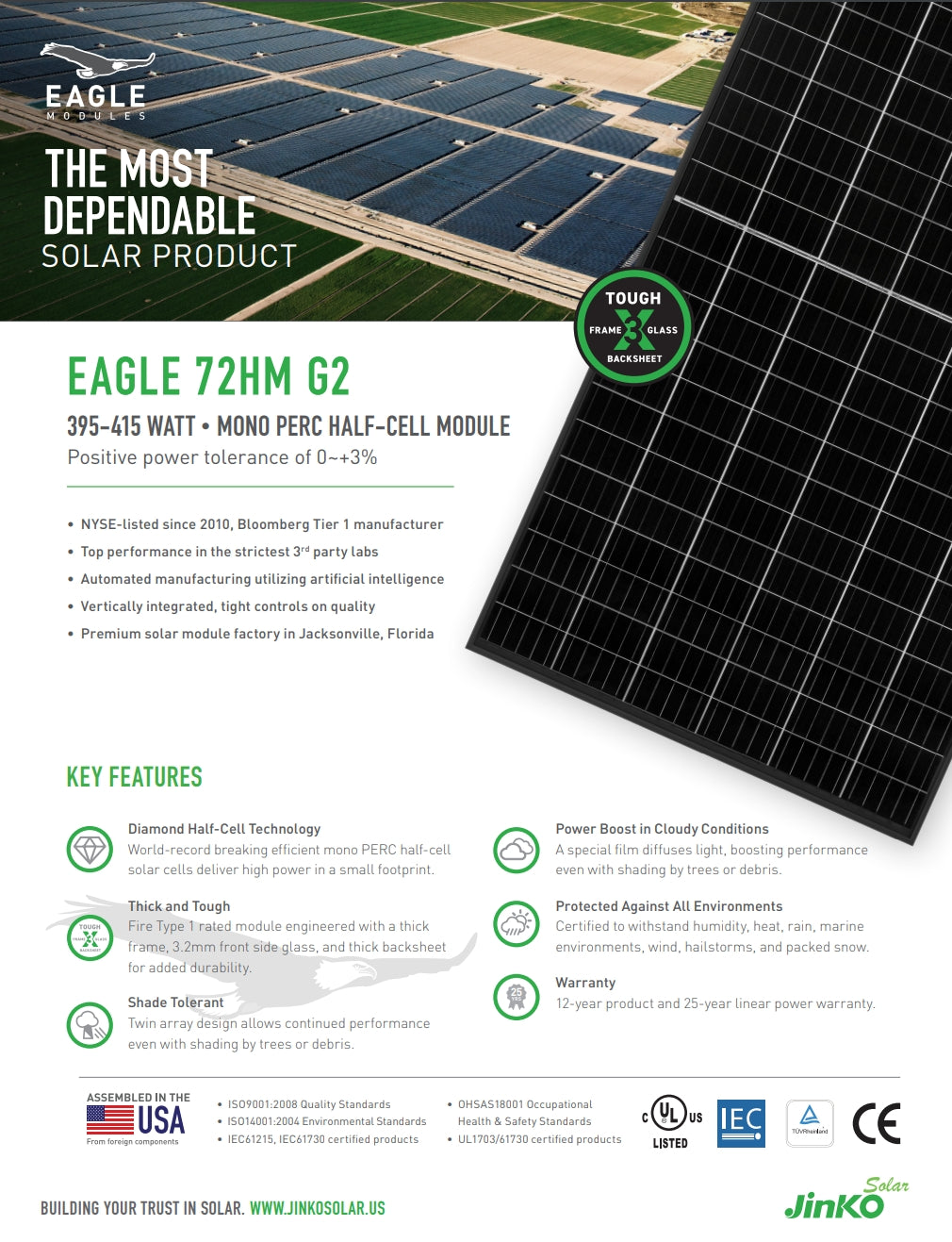

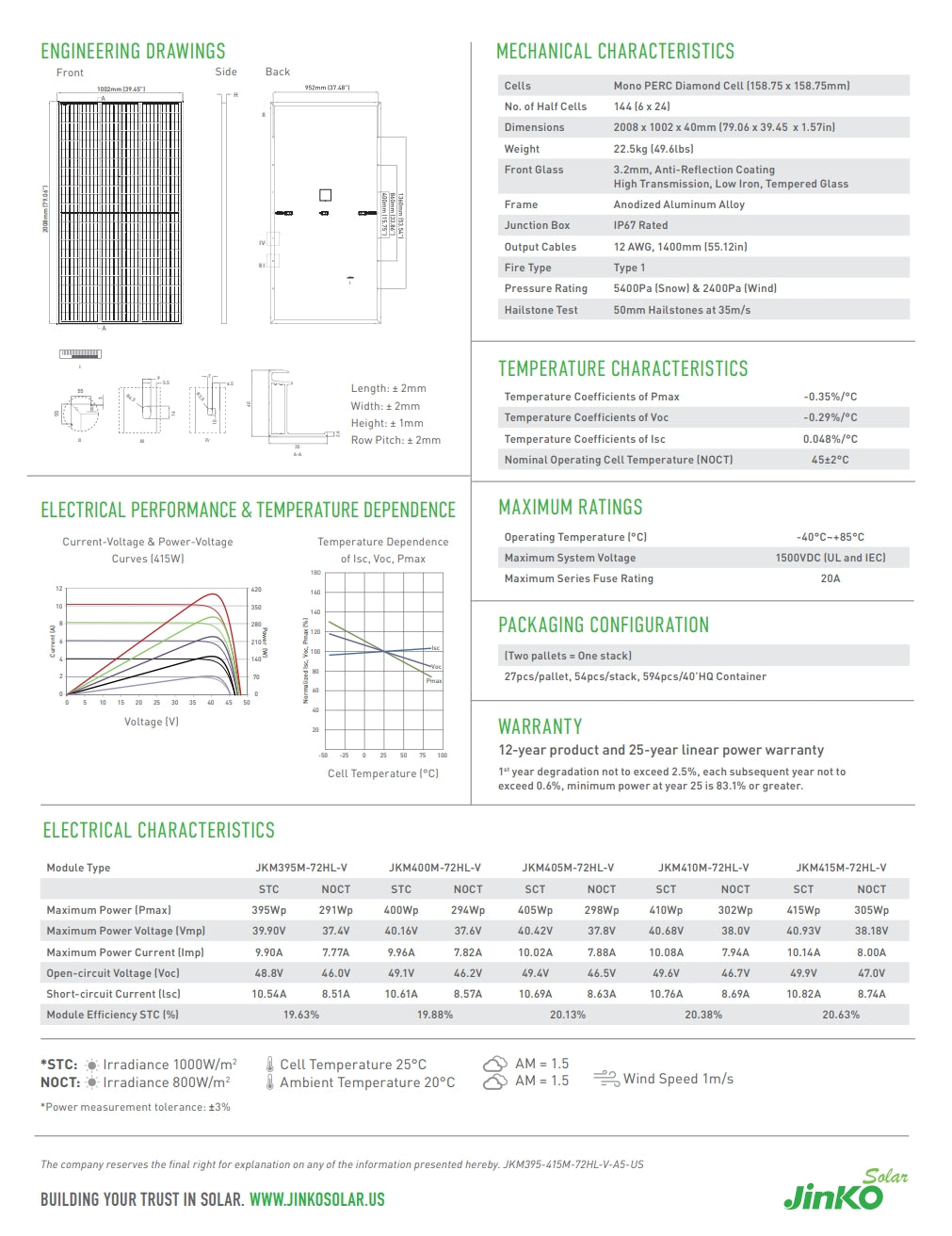

Jinko 415W Datasheet

Eagle 0 DU [E] The Most Dependable Solar Product: Tough Frame, Glass Backsheet, Eagle 72HM-62, 395-415 Watt Mono Perc Half-Cell Module. Positive power tolerance of +/-3%. NYSE-listed since 2010, Bloomberg Tier manufacturer. Top performance in the strictest 3rd party labs. Automated manufacturing utilizing artificial intelligence. Vertically integrated, tight controls on quality. Premium solar module factory in Jacksonville, Florida. KEY FEATURES: Diamond Half-Cell Technology - Power Boost in Cloudy Conditions. World-record breaking efficient mono PERC half-cell. A special film diffuses light, boosting performance. Solar cells deliver high power in small footprint even with shading by trees or debris. Thick and Tough, protected against all environments: fire, humidity, hail, rain, marine, wind, and snow. Warranty: Shade Tolerant - 12-year product and 25-year linear power warranty. Twin array design allows continued performance even with shading by trees or debris.
