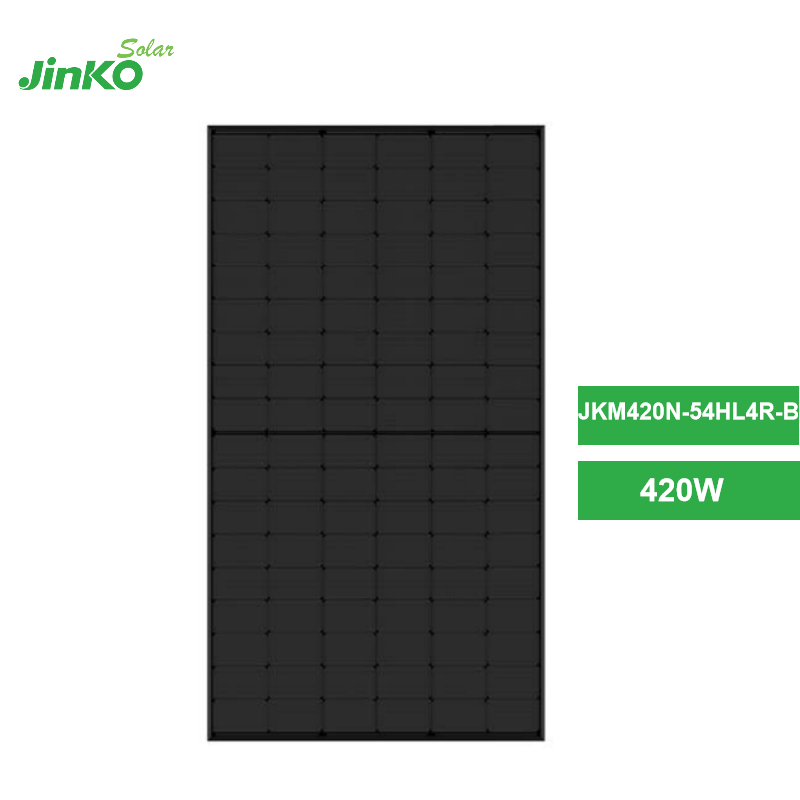

Jinko 420W Solar Panel (JKM420N-54HL4R-B)

Jinko 420W Solar Panel Overview

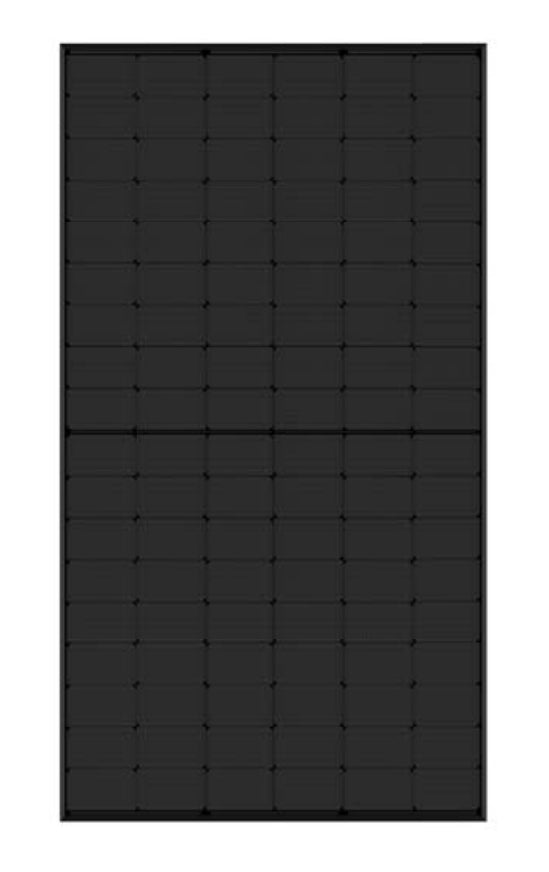

The Jinko 420W Solar Panel (JKM420N-54HL4R-B) is a state-of-the-art, all-black N-type module designed for high efficiency and durability. With a maximum power output of 420W, module efficiency of 21.02%, and advanced N-type mono-crystalline technology, this panel delivers superior performance even in extreme environmental conditions. Certified for 1000V systems and capable of withstanding heavy snow loads (6000 Pa) and wind loads (4000 Pa), it is an excellent choice for residential, commercial, and industrial solar installations.

Jinko 420 Watt Solar Panel Key Features

• SMBB Technology: Enhanced light trapping and current collection for improved module reliability and power output.

• Hot 2.0 Technology: Advanced N-type module design ensures better reliability and reduces LID/LeTID degradation.

• PID Resistance: Guarantees optimal anti-PID performance through precise material and production control.

• Enhanced Mechanical Load: Certified to withstand up to 6000 Pa snow load and 4000 Pa wind load.

• Durability Against Harsh Environments: High resistance to salt mist and ammonia, making it ideal for coastal and agricultural installations.

• Extended Warranty: 25-year product warranty and 30-year linear power performance warranty.

Jinko Solar 420W Specs

Mechanical Characteristics

• Cell Type: N-type Mono-crystalline (182 x 91 mm)

• Number of Cells: 108 (6 x 18)

• Dimensions: 1726 mm x 1134 mm x 30 mm (69.56 in x 44.65 in x 1.18 in)

• Weight: 22 kg (48.5 lbs)

• Front Glass: 3.2 mm anti-reflection, low-iron tempered glass

• Frame: Anodized aluminum alloy

• Junction Box: IP68 rated

• Output Cables: TUV 1 x 4.0 mm², 1400 mm length (customizable)

Specifications

Package Configuration

• Per Pallet: 36 pieces

• Per Stack: 72 pieces

• Per 40HQ Container: 936 pieces

Certifications

• Quality and Safety Standards:

  • IEC61215(2016), IEC61730(2016)

  • ISO9001:2015 (Quality Management System)

  • ISO14001:2015 (Environmental Management System)

  • ISO45001:2018 (Occupational Health & Safety Standards)

  • CE and PV Cycle certifications

Warranty

• Product Warranty: 25 years

• Linear Power Performance Warranty: 30 years

  • Guarantees 87.4% power output after 30 years

Applications

The Jinko 420W Solar Panel is suitable for:

• Residential Use: Elegant all-black design enhances rooftop aesthetics while delivering high efficiency.

• Commercial Installations: Maximizes energy output for offices, warehouses, and retail buildings.

• Industrial and Utility-Scale Projects: Reliable and robust performance for large-scale solar farms.

With advanced N-type technology, superior durability, and an extended warranty, the Jinko 420W Solar Panel (JKM420N-54HL4R-B) offers a high-efficiency solution for diverse solar applications.

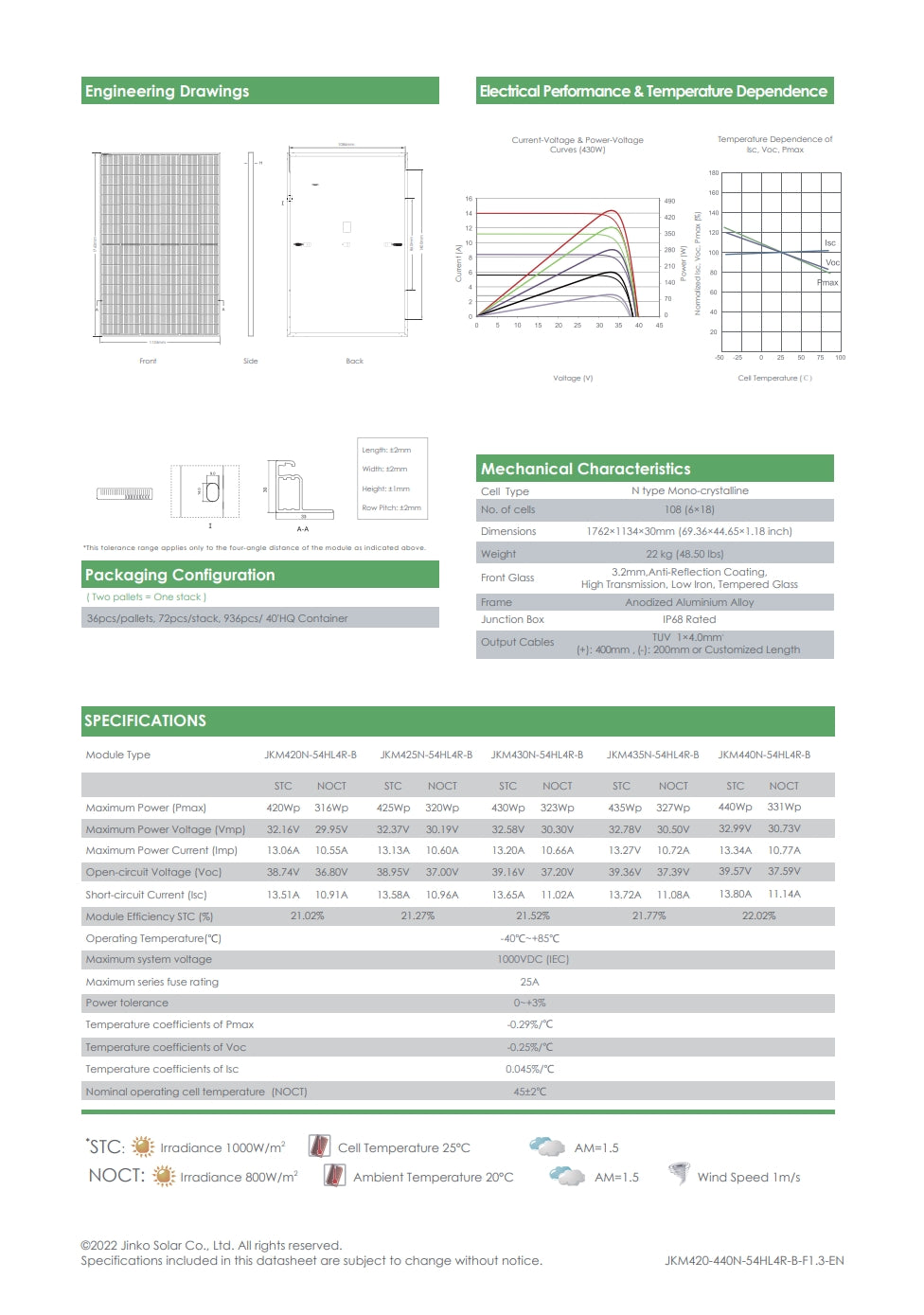

Jinko 420W Datasheet

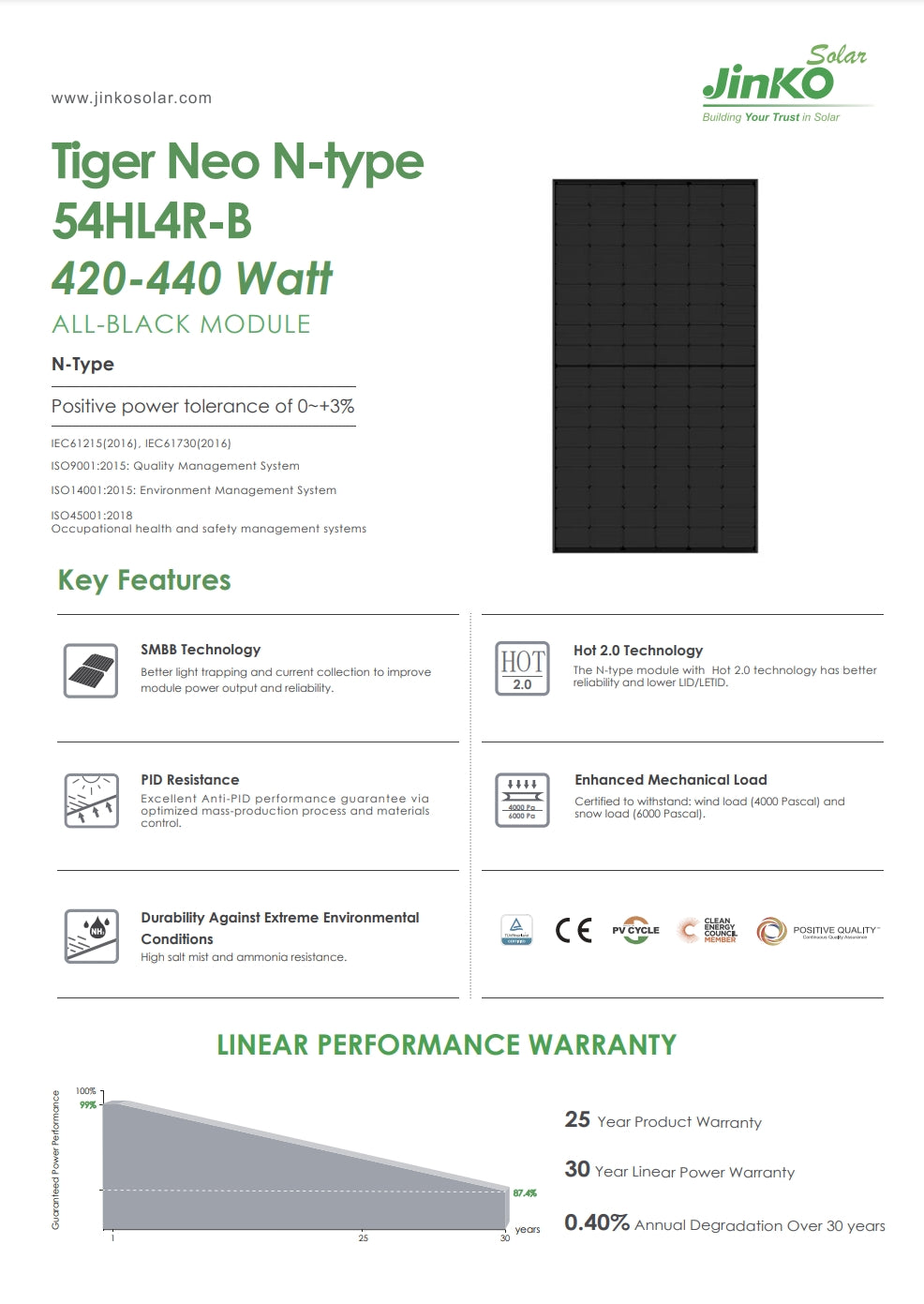

JinkoSolar: Building Your Trusting Solar Energy Tiger Neo N-type, 420-440 Watt ALL-BLACK MODULE, N-Type Positive Power Tolerance of 0±3%. Meets IEC61215 (2016), IEC61730 (2016) and ISO9001 (2015): Quality Management System. Features SMBB Technology, Hot 2.0 Technology for better light trapping and current collection, improving module power output and reliability. The N-type module with Hot 2.0 technology offers lower LIDILETID PID resistance. Enhanced Mechanical Load and excellent Anti-PID performance guarantee via certified tests against wind load (4000 Pascal) and snow load (6000 Pascal). Durable against extreme environmental conditions.

The Jinko 420W Solar Panel (JKM420N-54HL4R-B) features a mono-crystalline design with 108 cells. It has dimensions of 1762*1134*30mm and weighs approximately 22kg. The panel is packaged with a tempered glass sheet, anti-reflection coating, and anodized aluminum alloy frame. The junction box is IP67 rated and has an output cable length of up to 20 meters. The module type is JKMAZON-54HLAR-B, with maximum power output of 420W, voltage of 32.16V, and current of 13.064A.
