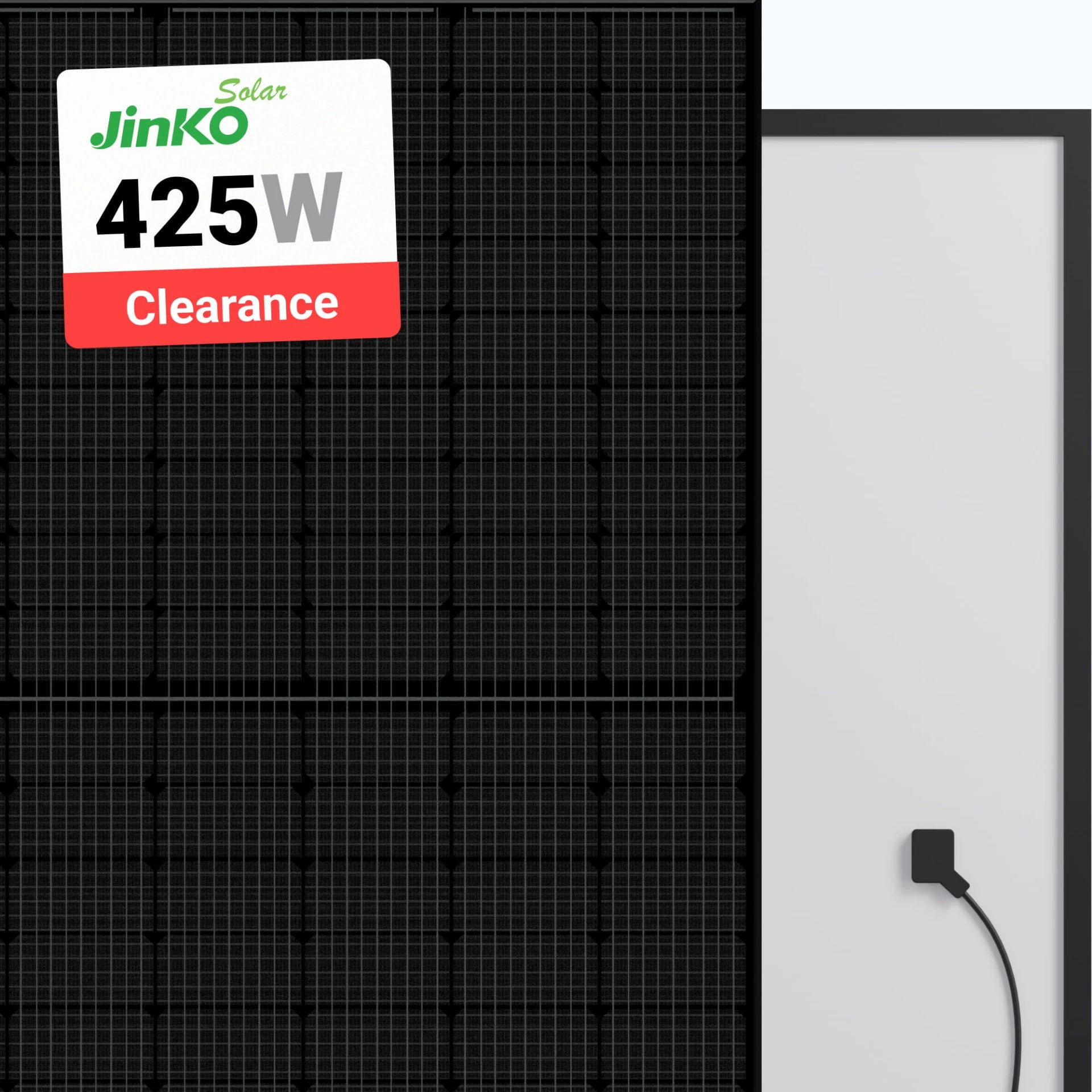

Jinko 425W Solar Panel Overview
The Jinko 425W Solar Panel (JKM425N-54HL4-B) is a state-of-the-art solar module from the EAGLE® 54 G6R series, designed to deliver high efficiency and reliability. With a rated power output of 425W, cell efficiency of 21.76%, and dimensions of 67.79 × 44.65 × 1.38 inches, this panel is engineered for both residential and commercial applications. It features advanced PERC technology and half-cut cell design to minimize resistive losses and enhance performance. The sleek, all-black aesthetics make it a visually appealing choice for any installation.
Jinko 425 Watt Solar Panel Key Features
- High Efficiency: Rated efficiency of 21.76%, maximizing energy output.
- Advanced Technology: PERC technology and 108 half-cut monocrystalline cells reduce resistive losses and improve shade tolerance.
- Durability: Certified to withstand extreme environmental conditions, including PID, salt, acid, and ammonia. Mechanical load resistance up to 5400 Pa (front) and 2400 Pa (back).
- Aesthetic Design: All-black design with smooth surface and uniform cell color.
- Warranty: 25-year product warranty and 30-year linear performance warranty.
Jinko 425W Specs
Electrical and Mechanical Specifications
| Parameter | Value |
|---|---|
| Rated Power Output | 425 W |
| Voltage (VOC) | 32.73 V |
| Maximum String Voltage | 1000 V |
| Number of Cells | 108 (Half-cut) |
| Cell Type | Monocrystalline PERC |
| Rated Efficiency | 21.76% |
| Connector Type | MC4 from Staubli |
| Backsheet Color | Black |
| Frame Color | Black |
| Dimensions (LxWxH) | 67.79 × 44.65 × 1.38 in |
| Weight | 46.3 lbs |
| Operating Temperature Range | −40°F to +185°F |
| Pallet Quantity | 31 |
Performance Under Environmental Conditions
| Parameter | Value |
|---|---|
| Operating Temperature Range | −40°F to +185°F |
| Temperature Coefficient (Pmax) | -0.29%/°C |
| PID Resistance | Excellent |
| Mechanical Load Resistance | 5400 Pa (front), 2400 Pa (back) |
| Environmental Resistance | PID, salt, acid, ammonia |
Application Scope
- Residential: Ideal for home installations, offering high efficiency and sleek aesthetics.
- Commercial: Suitable for commercial solar energy systems, providing reliable performance and durability.
- Off-Grid: Perfect for off-grid applications, ensuring consistent power output.
- Grid-Tie: Compatible with grid-tied systems for enhanced energy production.
Reliability and Degradation Resistance
Jinko guarantees limited degradation over 30 years. The panel's performance will degrade by a maximum of 1% in the first year and only by a maximum of 0.40% annually thereafter. After 30 years, the panel will still retain at least 87.4% of its original capacity.
Advanced Technologies
- PERC Technology: Ensures excellent power output with an additional reflective layer to absorb more sunlight.
- Half-Cut Cell Technology: Reduces resistive losses and improves shade tolerance.
- N-Type Technology: Offers superior performance and reliability with Jinko's in-house TOPCon technology.
Certified Quality
- Standards: ISO9001:2015, ISO14001:2015, ISO45001:2018, IEC61215, IEC61730.
- Fire Rating: Type 1 rated, suitable for various environments.
- Warranty: 25-year product warranty and 30-year linear performance warranty.
Packaging
| Packaging Unit | Quantity |
|---|---|
| Pieces per Pallet | 31 |
| Pieces per Stack | 62 |
| Pieces per 40ft Container | 806 |
Engineering Drawings and Mechanical Characteristics
- Dimensions: 1722 × 1134 × 35 mm
- Weight: 21.0 kg (46.3 lbs)
- Glass: 3.2 mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
- Frame: Anodized Aluminum Alloy
- Junction Box: IP68 Rated
- Connector: Staubli MC4
- Fire Type: Type 1
- Pressure Rating: 5400 Pa (front) & 2400 Pa (back)
Electrical Performance & Temperature Dependence
- Maximum Power (Pmax): 425 W (STC), 320 W (NOCT)
- Maximum Voltage (Vmp): 32.73 V (STC), 30.73 V (NOCT)
- Maximum Current (Imp): 13.00 A (STC), 10.40 A (NOCT)
- Open Circuit Voltage (Voc): 38.76 V (STC), 36.75 V (NOCT)
- Short Circuit Current (Isc): 13.61 A (STC), 11.44 A (NOCT)
- Module Efficiency: 21.76% (STC)
The Jinko 425W Solar Panel (JKM425N-54HL4-B) integrates advanced technologies and a robust design, making it a reliable and efficient choice for various solar energy applications. Whether for residential or commercial use, this panel promises long-term performance and durability, backed by comprehensive warranties and certifications.
Dimensions: 16 inches width, 1.38 inch thickness, weighs 46.3 pounds.

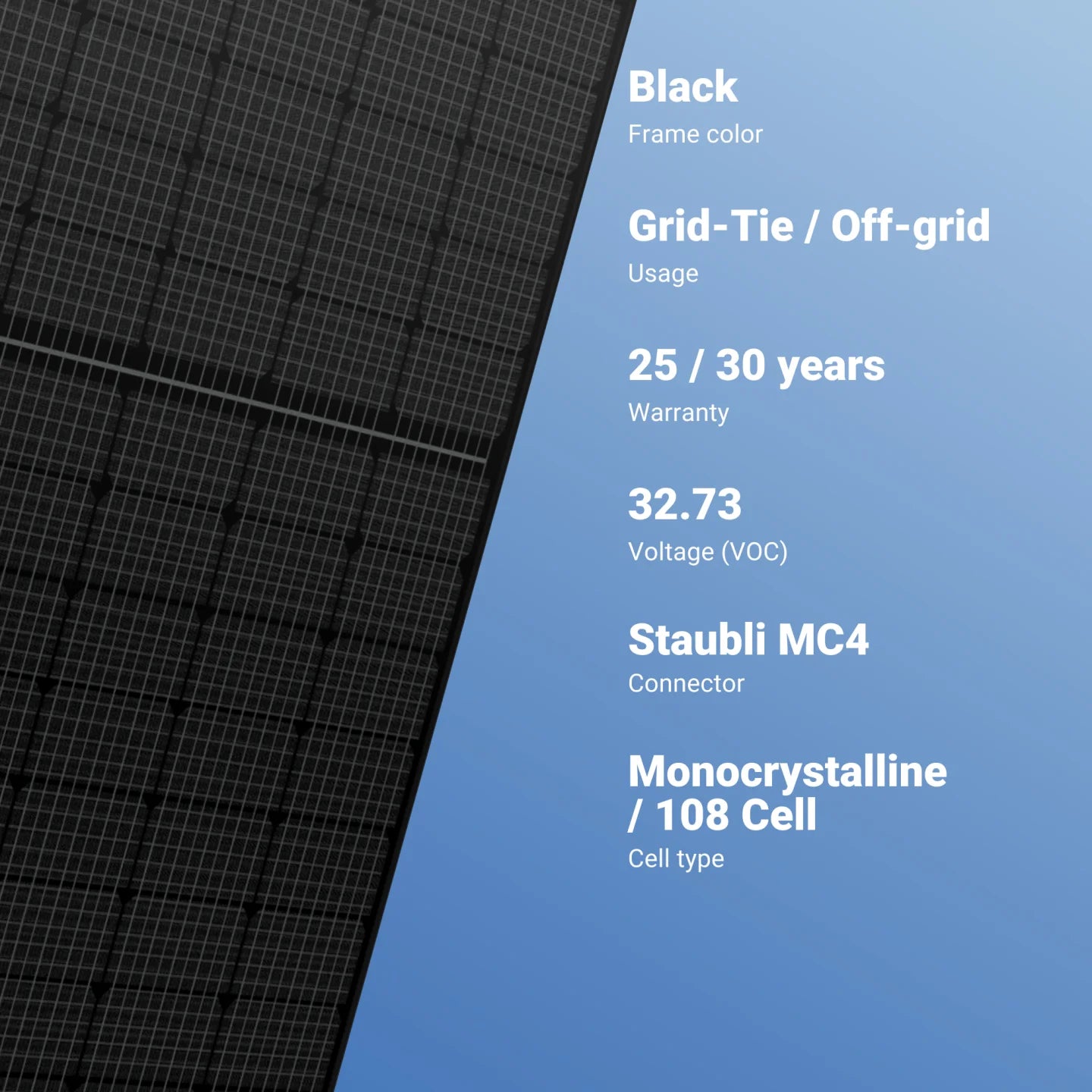

Jinko 425W Solar Panel features a monocrystalline design with 108 cells, a black frame and grid-tie/off-grid usage. It boasts a 30-year warranty, Staubli MC4 connector, and a voltage of 32.73V (VOC) at 25°C.

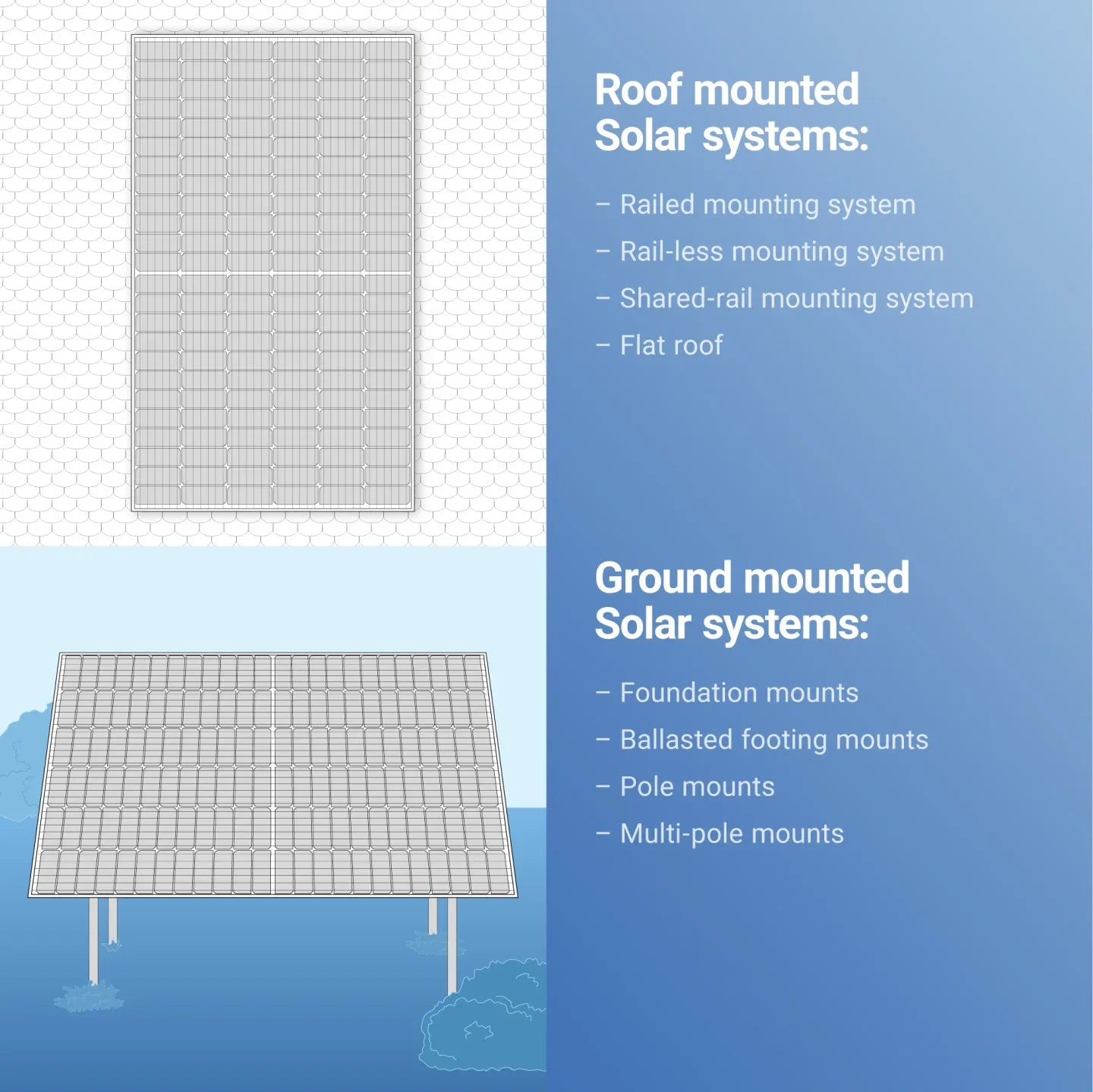

Jinko 425W solar panel features top-notch performance and durability, suitable for various installations including flat roofs and ground-mounted systems with foundation or ballasted footings.
Save money on electricity bills or eliminate them entirely with Jinko's 425W solar panel, certified to withstand extreme conditions. Enjoy government incentives like the Federal Solar Tax Credit, which eliminates 26% of costs. Plus, reduce your carbon footprint and contribute to a sustainable planet.
Jinko 425W Datasheet

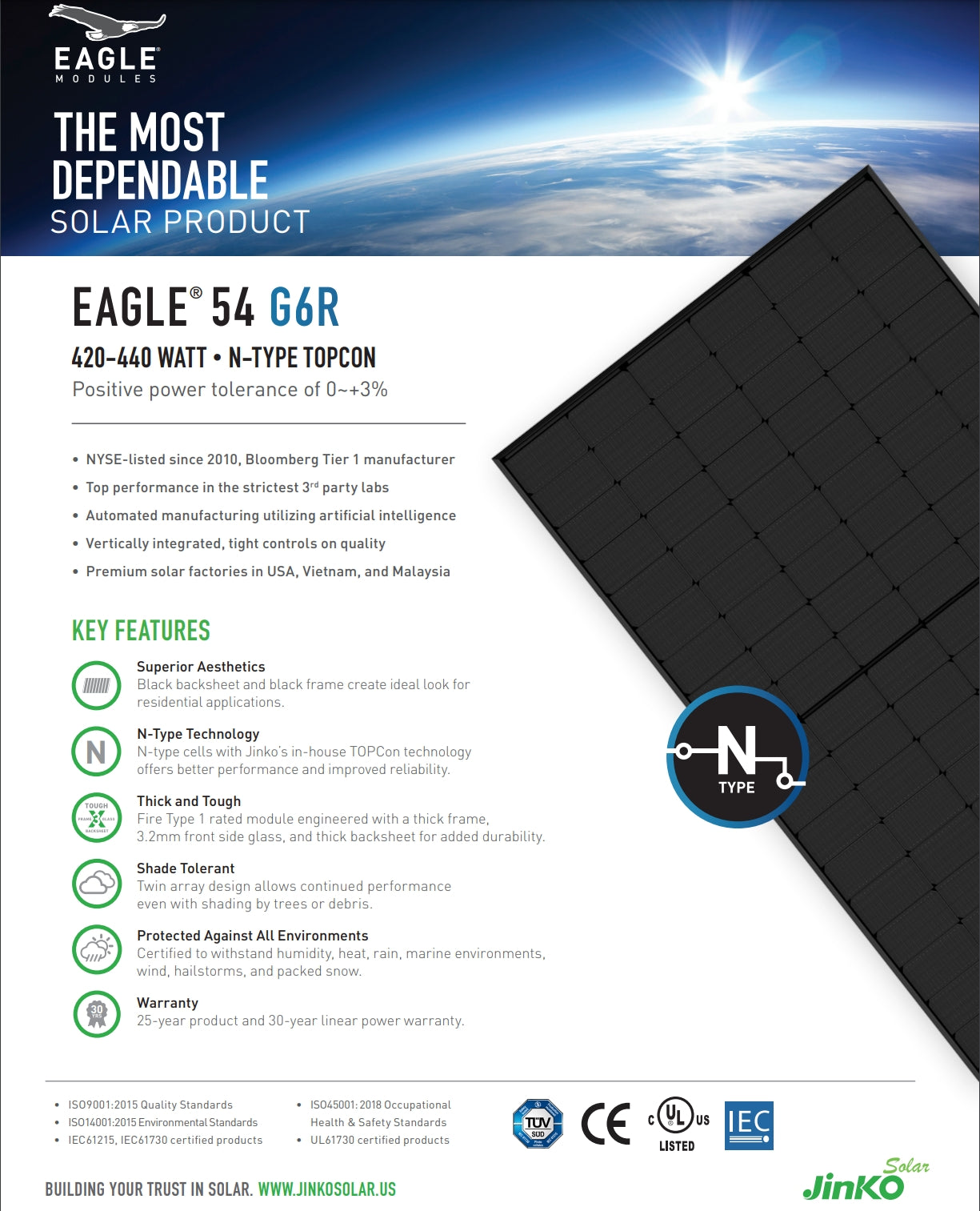

Introducing Jinko's 425W Solar Panel, featuring N-type TOPCon technology for superior performance and reliability. Enjoy a 25-year product warranty and 30-year linear power guarantee, with certifications from UL, IEC, and US safety standards.

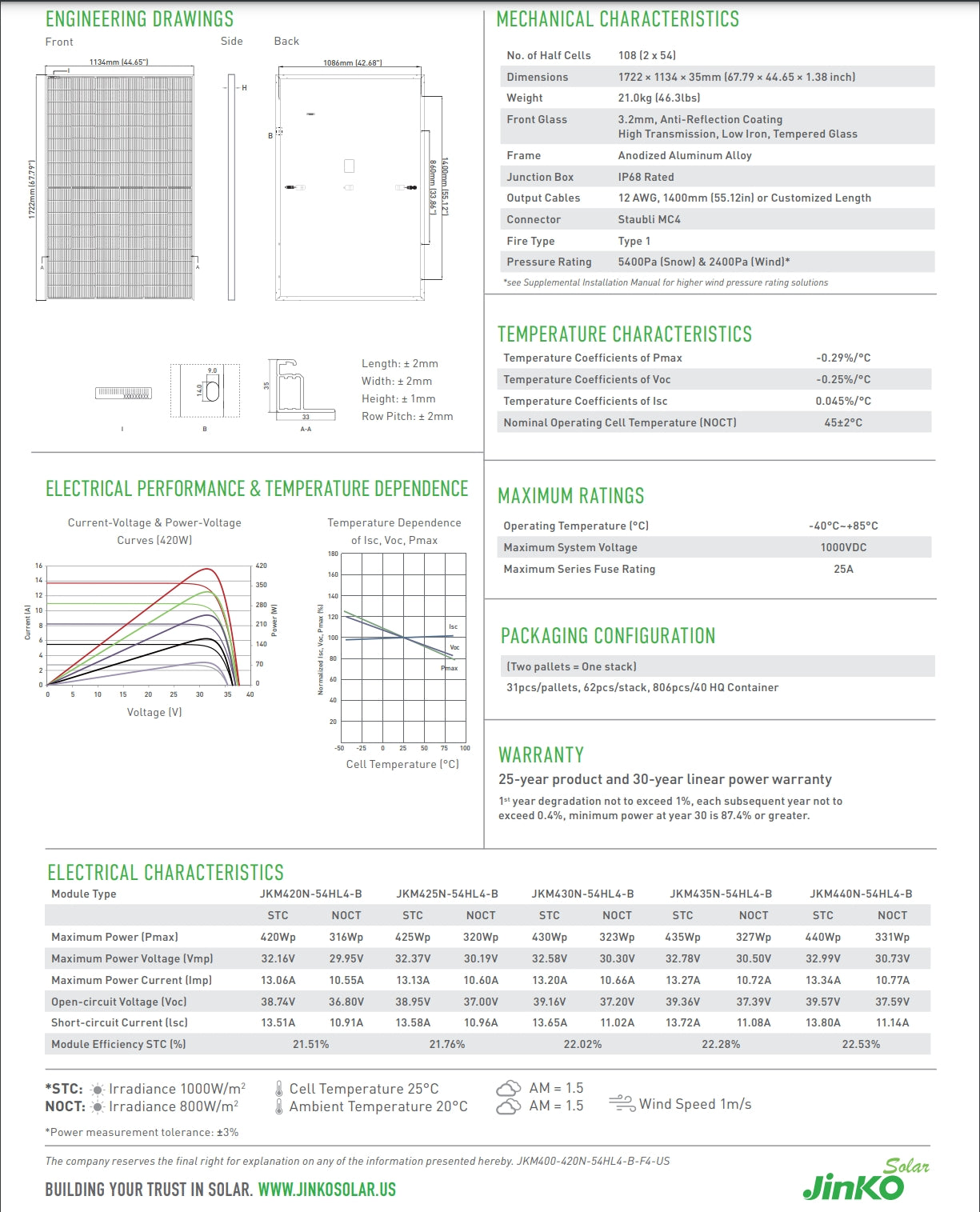

Jinko 425W Solar Panel Specifications: * Front Side: Back No. + Half Cells: 108 (2 x 54) * Dimensions: 1722mm * 1134mm * 35mm (67.79in * 44.65in * 1.38in) * Weight: 21.0kg (46.3lbs) * Frame: Anodized Aluminum Alloy * Junction Box: IP68 Rated * Output Cables: 12 AWG, 1400mm (55.12in) or Customized Length * Connector: Staubli MC4 Fire Type * Temperature Characteristics: + Nominal Operating Cell Temperature (NOCT): 45.12°C + Temperature Coefficients of Pmax: 0.29%/°C, Voc: -0.25%/°C, Isc: 0.045%/°C * Electrical Performance & Temperature Dependence: + Maximum Ratings: Current-Voltage- Power-Temperature Curves + Operating Temperature (PC): 20°C to +85°C
