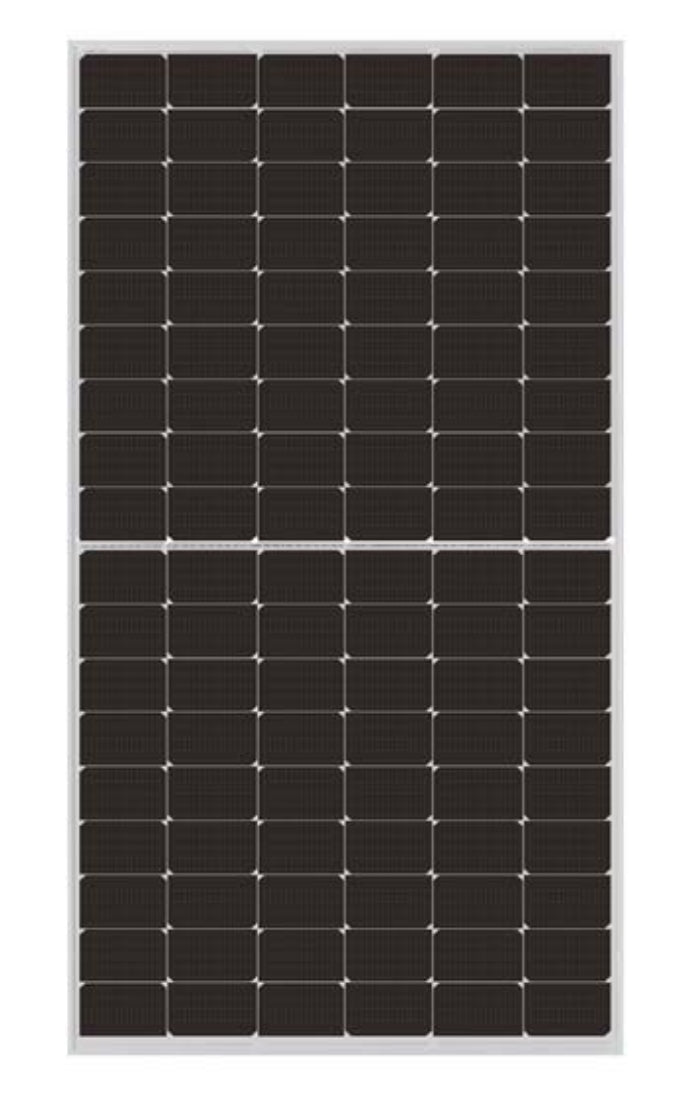

Jinko 430W Solar Panel (JKM430N-54HL4)

Jinko 430W Solar Panel Overview

The Jinko 430W Solar Panel (JKM430N-54HL4) offers exceptional performance with advanced N-type mono-crystalline technology. Delivering a maximum power output of 430W and a module efficiency of 21.75%, this panel is engineered to handle diverse environmental conditions. It features a lightweight design and superior durability, making it suitable for residential, commercial, and utility-scale applications. With the ability to withstand heavy snow loads (5400 Pa) and strong wind loads (2400 Pa), it is a reliable solution for sustainable energy needs.

Jinko 430 Watt Solar Panel Key Features

• SMBB Technology: Enhanced light trapping and current collection for improved module reliability and performance.

• Hot 2.0 Technology: Advanced N-type module reduces LID/LeTID degradation, ensuring long-term efficiency.

• PID Resistance: Optimized production and materials control guarantee excellent anti-PID performance.

• Enhanced Mechanical Load: Certified for up to 5400 Pa snow load and 2400 Pa wind load.

• Extreme Environmental Resistance: High resistance to salt mist and ammonia, suitable for coastal and agricultural installations.

• Extended Warranty: 15-year product warranty and 30-year linear power performance warranty.

Jinko Solar 430W Specs

Mechanical Characteristics

• Cell Type: N-type Mono-crystalline (182 x 91 mm)

• Number of Cells: 108 (6 x 18)

• Dimensions: 1722 mm x 1134 mm x 30 mm (67.79 in x 44.65 in x 1.18 in)

• Weight: 22 kg (48.5 lbs)

• Front Glass: 3.2 mm anti-reflection, low-iron tempered glass

• Frame: Anodized aluminum alloy

• Junction Box: IP68 rated

• Output Cables: TUV 1 x 4.0 mm², 1400 mm length (customizable)

Specifications

Package Configuration

• Per Pallet: 36 pieces

• Per Stack: 72 pieces

• Per 40HQ Container: 936 pieces

Certifications

• Quality and Safety Standards:

  • IEC61215(2016), IEC61730(2016)

  • ISO9001:2015 (Quality Management System)

  • ISO14001:2015 (Environmental Management System)

  • ISO45001:2018 (Occupational Health & Safety Standards)

  • CE and PV Cycle certifications

Warranty

• Product Warranty: 15 years

• Linear Power Performance Warranty: 30 years

  • Guarantees 87.4% power output after 30 years

Applications

The Jinko 430W Solar Panel is ideal for:

• Residential Installations: High efficiency and sleek design enhance energy output and aesthetics.

• Commercial Projects: Reliable performance for offices, warehouses, and other business facilities.

• Utility-Scale Solar Farms: Robust design ensures long-lasting energy generation.

Jinko 430W Datasheet

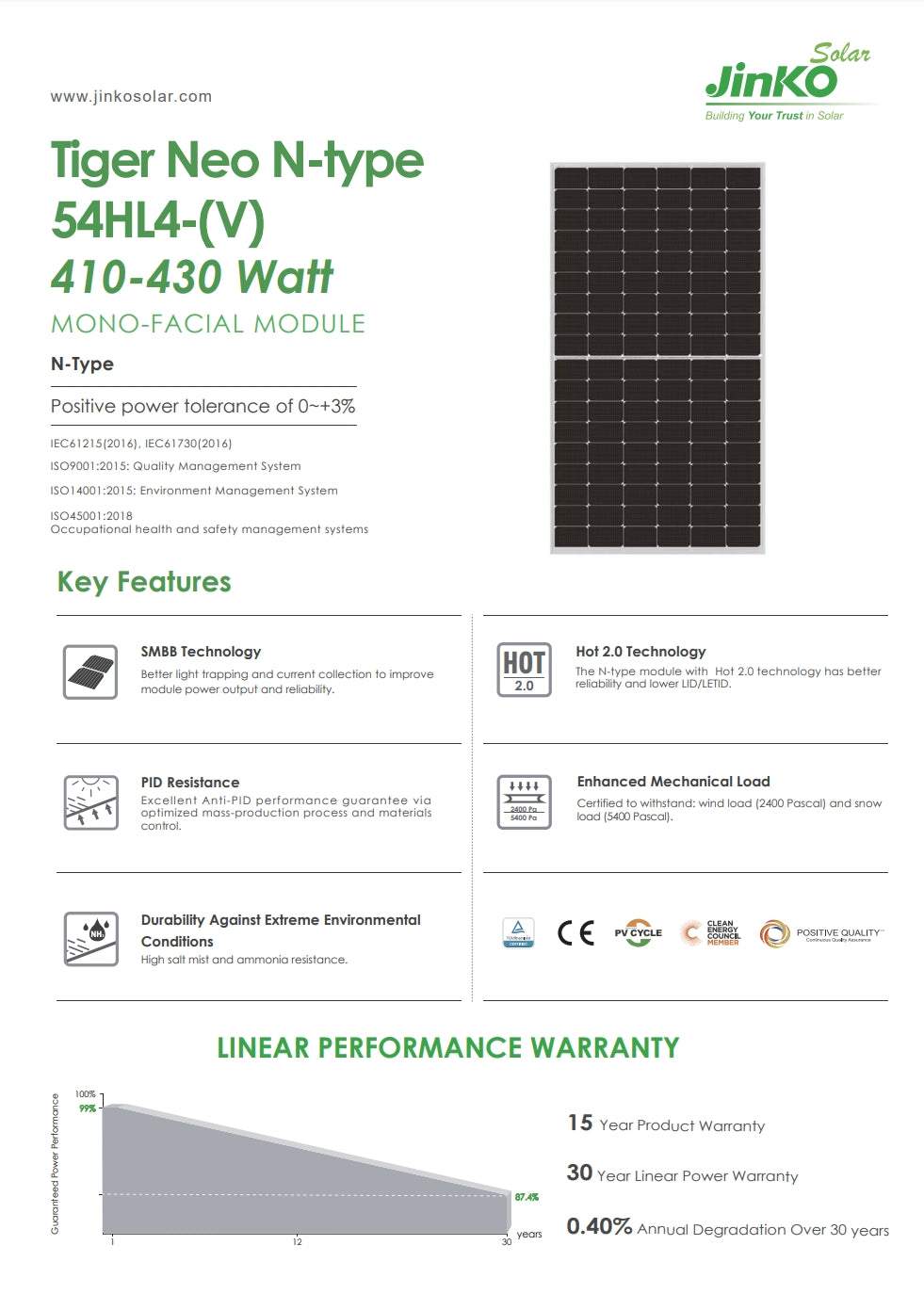

Jinko Solar: Buy Directly from Your Trustworthy Solar Tiger Neo N-type 54HL4-(V) 410-430 Watt MONO-FACED MODULE N-Type Positive Power Tolerance of ±39% IEC61215/2016, IEC61730/2016] ISO 9001:2015, Quality Management System; ISO 14001.2018, Environment Management System; OHSAS 18001.2007, Occupational Health and Safety Management Systems. Features: SMBB Technology Hot 2.0 Technology for better light trapping and current collection to improve module power output and reliability PID Resistance Excellent Anti-PID performance guarantee against certified withstand wind load (2400 Pa) and snow load (5400 Pa) Optimized mass-production process and materials for enhanced mechanical load and durability against extreme environmental conditions including high saline mist and ammonia resistance Linear Performance Warranty 100% for 15 years Product Warranty 30 years

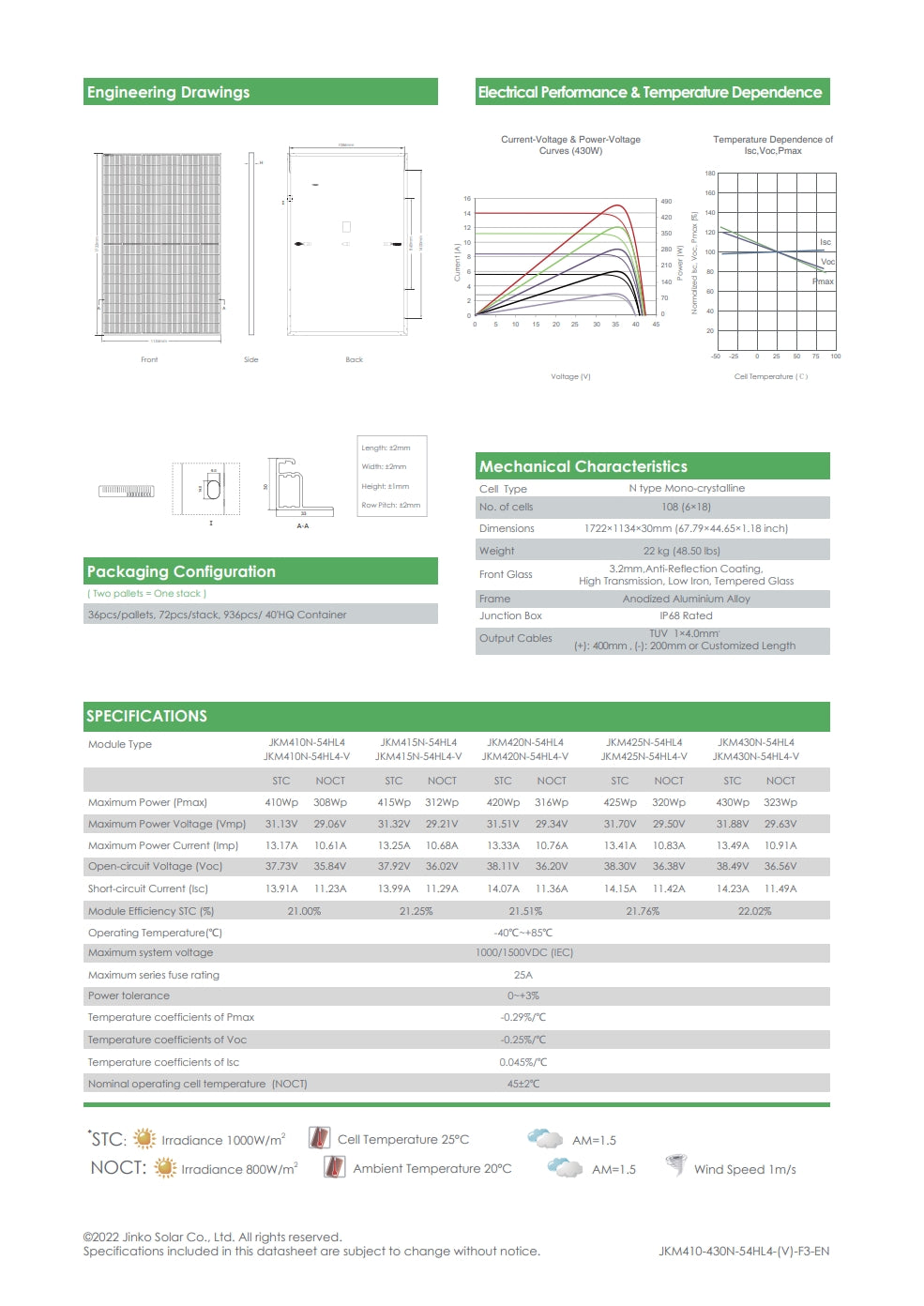

The Jinko 430W Solar Panel (JKM430N-54HL4) product image includes engineering drawings, electrical performance, temperature dependence, and mechanical characteristics. The module type is JKMAION-54HL4, with a maximum power output of 430Wp, open-circuit voltage of 31.88V, and short-circuit current of 13.49A. The operating temperature range is -40°C to +85°C, and the nominal operating cell temperature (NOCT) is 45±2°C.
