Jinko

Jinko 435W Solar Panel (JKM435M-78H)

Jinko 435W Solar Panel (JKM435M-78H)

Regular price $5,859.00 USD
Regular price Sale price $5,859.00 USD
Sale Sold out
Shipping calculated at checkout.

4 orders in last 30 days

Quantity
View full details

Jinko 435W Solar Panel Overview

The Jinko 435W Solar Panel (JKM435M-78H) is a high-efficiency Mono PERC half-cell module designed to meet the demands of modern solar applications. With a maximum power output of 435W and a module efficiency of 20.24%, it provides reliable energy generation in a variety of conditions. This panel is built to withstand severe weather conditions, including snow loads of 5400 Pa and wind loads of 2400 Pa, making it ideal for residential, commercial, and utility-scale installations.


Jinko 435 Watt Solar Panel Key Features

  • 5 Busbar Solar Cell: Enhanced technology improves efficiency and provides a sleek aesthetic, ideal for rooftop installations.

  • High Efficiency: Delivers up to 20.24% module efficiency with reduced resistance losses.

  • PID Resistance: Optimized mass production ensures minimal power degradation over time.

  • Low-Light Performance: Advanced cell design ensures excellent performance in low-light conditions.

  • Severe Weather Resilience: Certified to withstand 5400 Pa snow load and 2400 Pa wind load.

  • Environmental Durability: Resistant to salt mist and ammonia, certified by TUV NORD.


Jinko Solar 435W Specs

Mechanical Characteristics

  • Cell Type: Mono PERC (158.75 x 158.75 mm)

  • Number of Cells: 156 (6 x 26)

  • Dimensions: 2166 mm x 1002 mm x 35 mm (85.28 in x 39.45 in x 1.38 in)

  • Weight: 24 kg (52.91 lbs)

  • Front Glass: 3.2 mm anti-reflection, low-iron tempered glass

  • Frame: Anodized aluminum alloy

  • Junction Box: IP67 rated

  • Output Cables: TUV 1 x 4.0 mm² (+): 250 mm, (-): 150 mm (customizable lengths available)


Specifications

Parameter Value
Maximum Power (Pmax) 435W
Maximum Power Voltage (Vmp) 43.59V
Maximum Power Current (Imp) 9.98A
Open Circuit Voltage (Voc) 51.43V
Short Circuit Current (Isc) 10.48A
Module Efficiency (STC) 20.24%
Operating Temperature -40°C to +85°C
Maximum System Voltage 1000V/1500V (IEC)
Power Tolerance 0~+3%
Nominal Operating Cell Temperature (NOCT) 45°C

Package Configuration

  • Per Pallet: 31 pieces

  • Per Stack: 62 pieces

  • Per 40HQ Container: 620 pieces


Certifications

  • Standards Complied:

    • ISO9001:2015 (Quality Management System)

    • ISO14001:2015 (Environmental Management System)

    • ISO45001:2018 (Occupational Health & Safety Standards)

    • IEC61215, IEC61730

    • UL1703 certified

    • Clean Energy Council Member certification


Warranty

  • Product Warranty: 12 years

  • Linear Power Performance Warranty: 25 years

    • Guarantees 83.1% power output after 25 years


Applications

The Jinko 435W Solar Panel is perfect for:

  • Residential Use: High efficiency and aesthetic design make it ideal for home rooftops.

  • Commercial Use: Reliable performance ensures consistent energy generation for businesses.

  • Utility-Scale Installations: Robust design provides long-term reliability for solar farms.

Jinko 435W Datasheet

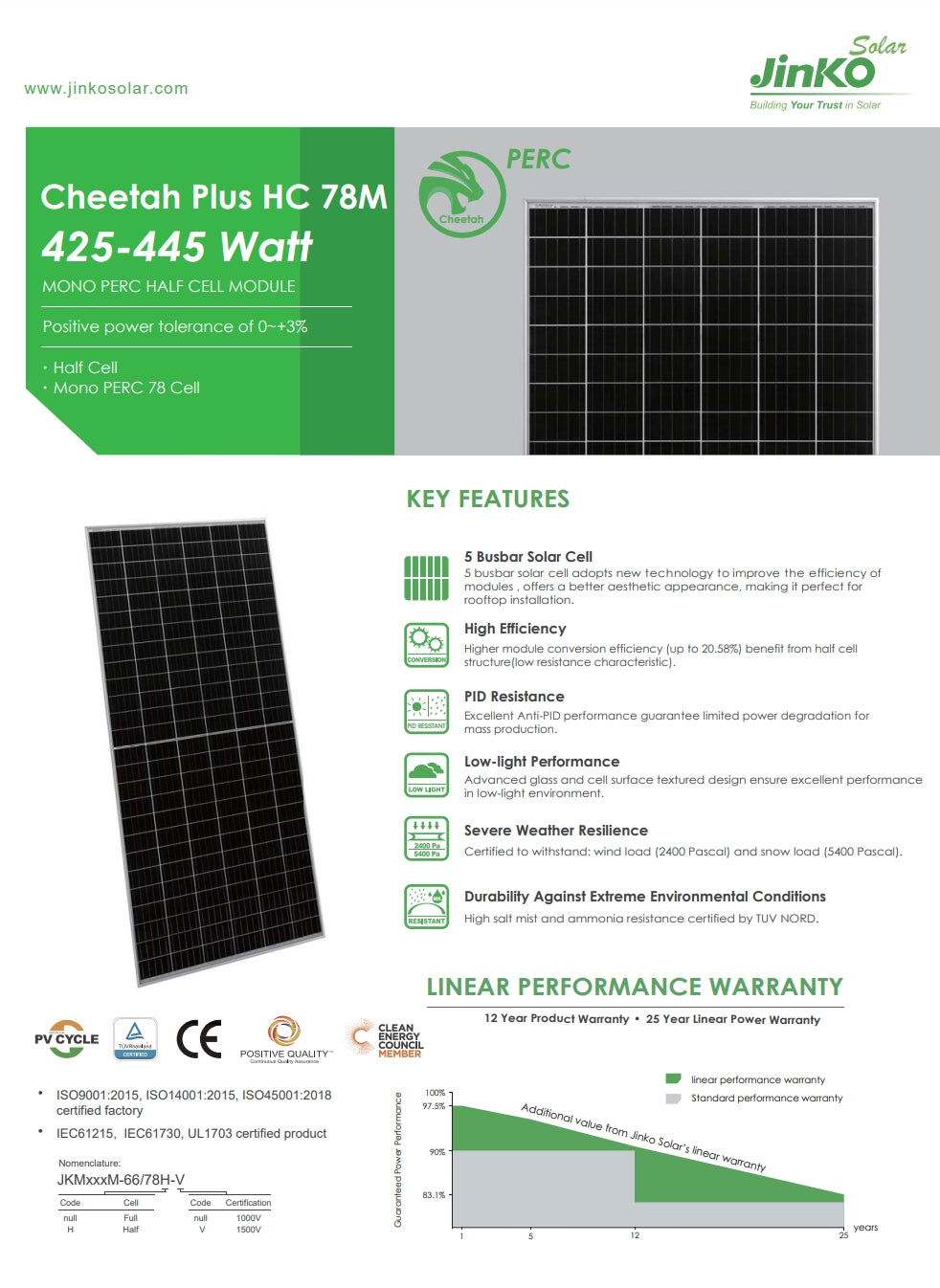

Jinko 435W Solar Panel, Jinko Solar presents Building Trust in Solar PERC Cheetah Plus HC module with high efficiency, PID resistance, and severe weather resilience.

Jinko Solar presents their Builiding Trust in Solar PERC Cheetah Plus HC, a 78-cell module with a power output of 425-445 watts. This half-cell mono PERC module features a positive power tolerance of 0+3%. Key benefits include high efficiency (up to 20.58%), PID resistance, and excellent low-light performance. The module is designed for severe weather resilience, certified to withstand wind load (2400 Pascal) and snow load (5400 Pascal). A 12-year product warranty and 25-year linear power warranty are included. Jinko products meet ISO standards and undergo rigorous testing.

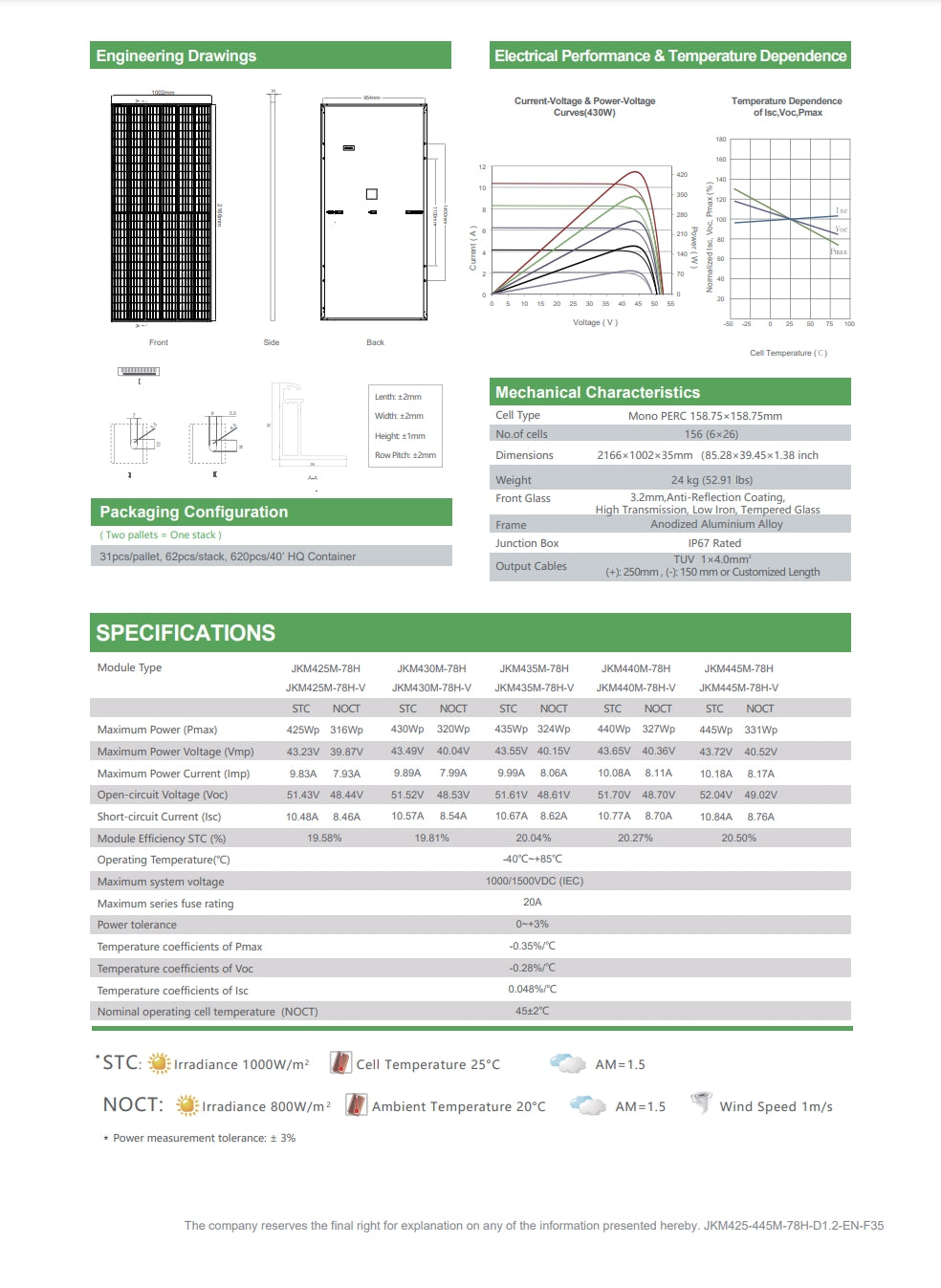

The Jinko 435W Solar Panel has a power output of 435Wp at STC, with max voltage and current ratings.

Jinko 435W Solar Panel (JKM435M-78H) Specifications: The module type is JKM435M-78H with a power output of 435Wp at STC. The maximum power voltage and current are 43.55V and 9.99A, respectively. The open-circuit voltage is 51.61V, and the short-circuit current is 10.67A. The module efficiency at STC is 20.5096%. The operating temperature range is -40°C to +85°C, with a maximum system voltage of 1000/1500VDC (IEC). The dimensions are 2166*1002*35mm (85.28*39.45*1.38 inch), and the weight is 24 kg (52.91 lbs).
