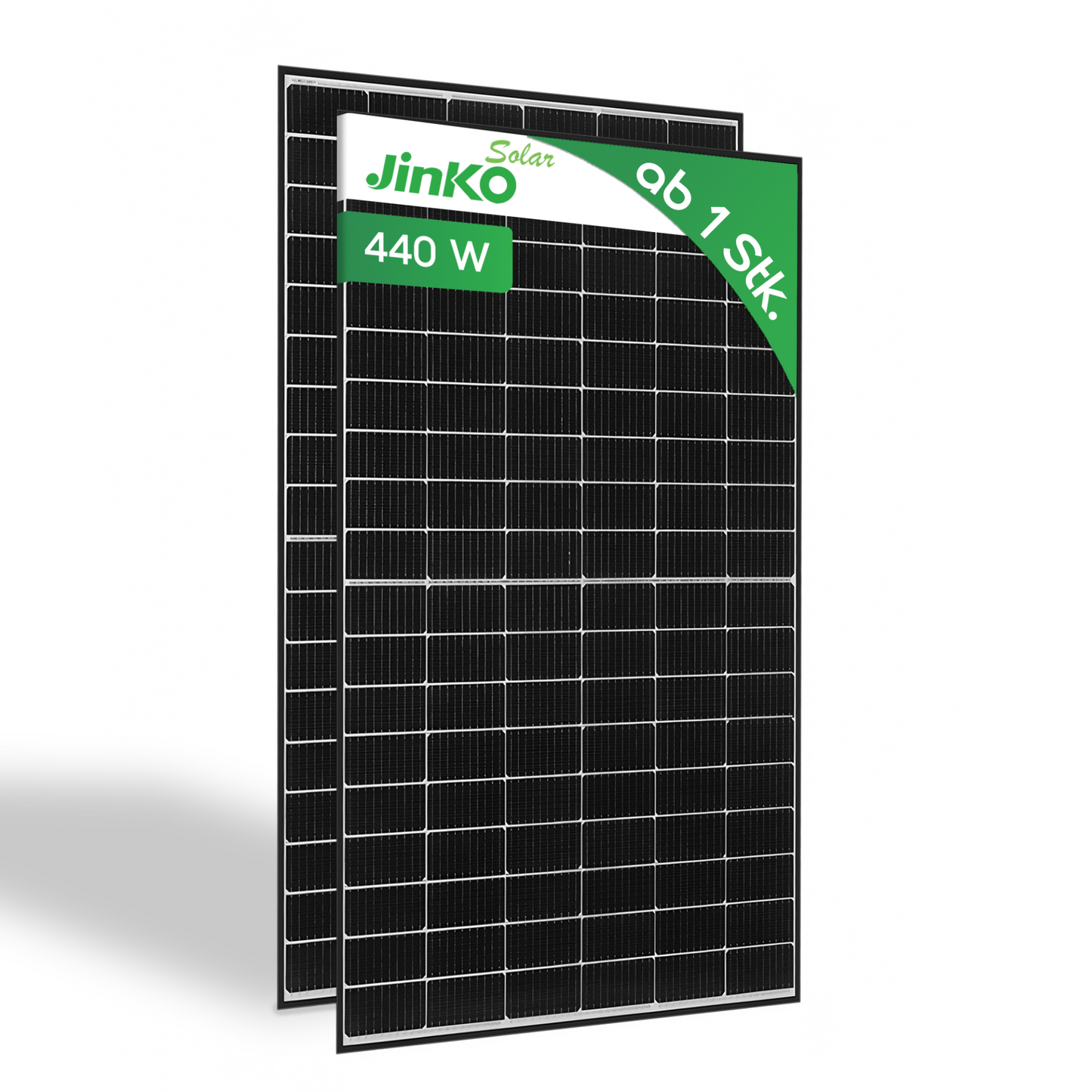

Jinko 440W Solar Panel Overview
The Jinko 440W Solar Panel (JKM440N-54HL4R-V) stands out with its innovative technologies and robust design, making it a top choice for efficient and reliable solar energy production. Featuring super multi-busbar technology, this panel minimizes losses from microcracks and shortens the current transmission path by 50%, enhancing overall cell efficiency. With an impressive efficiency rate of over 22%, the panel also incorporates HOT 2.0 technology for superior passivation and electrical conductivity. Certified to withstand wind and snow loads between 4000-6000 Pa and resistant to salt and ammonia, the Jinko 440 Watt Solar Panel ensures durability in extreme environmental conditions. Additionally, it comes with a low-iron, tempered glass with high light transmission, an anti-reflective coating, and an anodized aluminum alloy frame.
Jinko 440W Solar Panel Key Features
- Super Multi-Busbar Technology: Reduces shading and resistance, increasing efficiency.
- PID Resistance: Optimized production processes ensure excellent anti-PID performance.
- Positive Power Tolerance: Offers a tolerance range of 0~+3%.
- High Efficiency: Achieves an efficiency rate of over 22%.
- Durability: Certified to withstand wind and snow loads between 4000-6000 Pa and high resistance to salt and ammonia.
- Superior Glass and Frame: Equipped with a low-iron, tempered glass with high light transmission and an anti-reflective coating, and a durable anodized aluminum alloy frame.
- Certifications: IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001.
- Warranty: 15-year product warranty and 30-year linear performance warranty.
Jinko 440 Watt Solar Panel Electrical and Mechanical Specifications
Parameter | Value (STC) | Value (NOCT) |
---|---|---|
Maximum Power (Pmax) | 440 Wp | 327 Wp |
Maximum Voltage (Vmp) | 32.38 V | 30.10 V |
Maximum Current (Imp) | 13.61 A | 10.86 A |
Open Circuit Voltage (Voc) | 38.75 V | 36.75 V |
Short Circuit Current (Isc) | 14.35 A | 11.49 A |
Module Efficiency | 21.80% | - |
Dimensions | 1762 × 1134 × 30 mm | - |
Weight | 22 kg | - |
Glass | 3.2 mm, anti-reflective coating, high transmission, tempered glass | - |
Frame | Anodized aluminum alloy | - |
Junction Box | Protection rating IP68 | - |
Connector Cables | 4.0 mm², 40 cm length (standard); 200 mm customizable | - |
Performance Under Environmental Conditions
Parameter | Value |
---|---|
Operating Temperature Range | -40°C to +85°C |
Maximum System Voltage | 1000/1500 VDC (IEC) |
Maximum Series Fuse Rating | 25 A |
Power Temperature Coefficient | -0.29%/°C |
Voltage Temperature Coefficient | -0.25%/°C |
Current Temperature Coefficient | +0.045%/°C |
Nominal Operating Cell Temperature (NOCT) | 45±2°C |
Packaging
Packaging Unit | Quantity |
---|---|
Pieces per Pallet | 36 |
Pieces per Stack | 72 |
Pieces per 40ft Container | 936 |
Jinko 440W Solar Panel Advanced Technologies
- HOT 2.0 Technology: Utilizes advanced passivation contact technology with micro-nano tunnelling and carrier-selective lamination, significantly enhancing passivation performance and electrical conductivity, thereby boosting cell efficiency and power generation.
- N-Type Technology: Offers superior performance with different doping technology compared to P-type products. Enhanced bifacial factor and optimized operating temperature result in higher performance gains and significantly reduced LCOE (levelized cost of energy) compared to conventional P-type modules.
The Jinko 440W Solar Panel (JKM440N-54HL4R-V) integrates these cutting-edge technologies and robust construction, ensuring efficient, reliable, and durable solar energy production. This makes it an ideal choice for various applications, promising long-term performance and sustainability.
Jinko 440W Datasheet

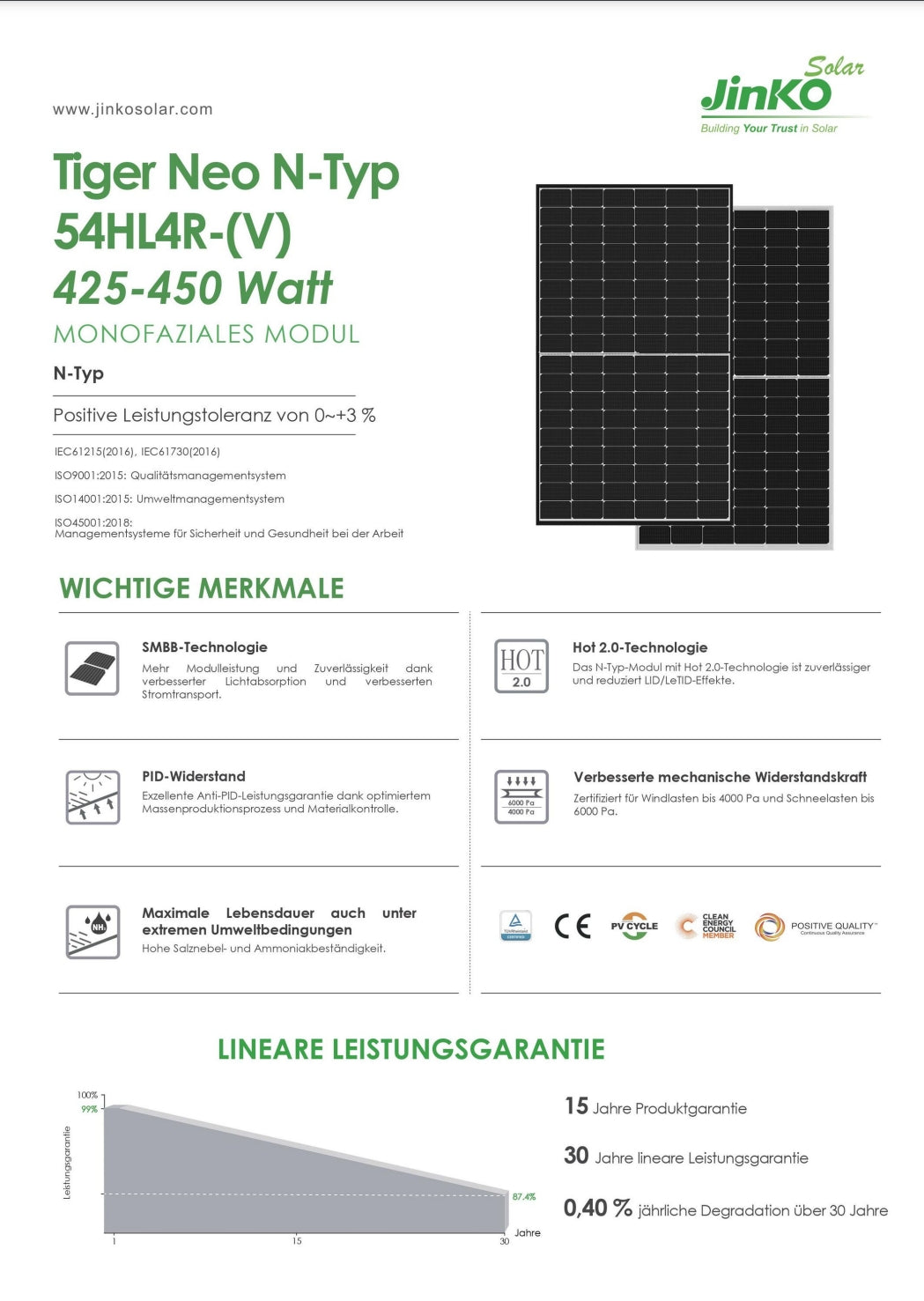

Quote: 'Jinko Solar's 440W mono-facial solar panel with a power tolerance of +/-3% meets IEC standards for quality and environmental management. Its hot 2.0 technology ensures higher module efficiency, reliability, and improved light absorption. The N-type module boasts excellent anti-PID performance, mechanical resistance, and a comprehensive warranty that covers product degradation over 30 years.'

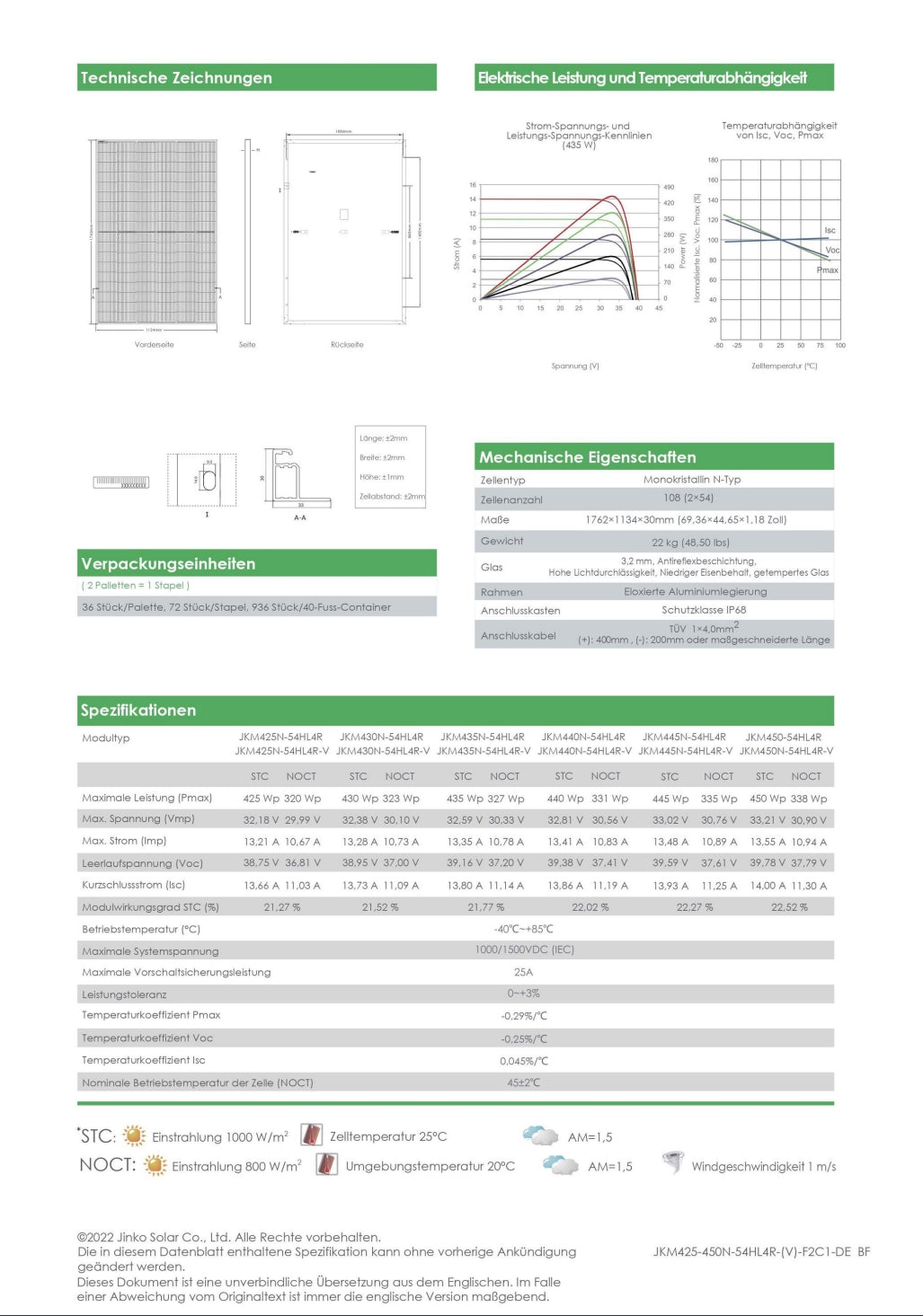

Product specifications include technical drawings, performance and temperature characteristics, including maximum power output (425-450W), open-circuit voltage (Voc) and short-circuit current (Isc); module efficiency; mechanical properties of monocrystalline N-type solar cells; dimensions: 1762*1134*30mm; weight: 22kg; packaging: glass with anti-reflection coating, housing: aluminum alloy frame; included accessories: MC4 connector, DC cable, anodized aluminum frame; operating temperature range: -40°C to +85°C; maximum system voltage: 1000VDC; maximum power output under standard test conditions (STC): 440W.
