Jinko 450W Solar Panel (425-450W All Black Bifacial Module with Dual Glass)
The Jinko 450W Solar Panel from the Tiger Neo 54HL4R-BDB series is a cutting-edge, all-black bifacial solar module designed for enhanced power generation. This dual-glass module offers power outputs ranging from 425W to 450W, with a module efficiency reaching up to 22.52%. Built with N-type monocrystalline cells and dimensions of 1762 x 1134 x 30 mm, this panel ensures high energy yield in both residential and commercial applications. Weighing 24.5 kg, it offers a robust structure with 2.0 mm front and back glass, enhancing its durability. Additionally, the IP68-rated junction box and the ability to withstand 6000 Pa front load and 4000 Pa rear load make this panel ideal for harsh environmental conditions. With the advanced HOT 3.0 technology, the Jinko 450W Solar Panel ensures reliable performance even in low-light scenarios.
Jinko 450W Solar Panel Key Features:
- High Power Output: Delivers 425W to 450W, with module efficiency reaching up to 22.52%.

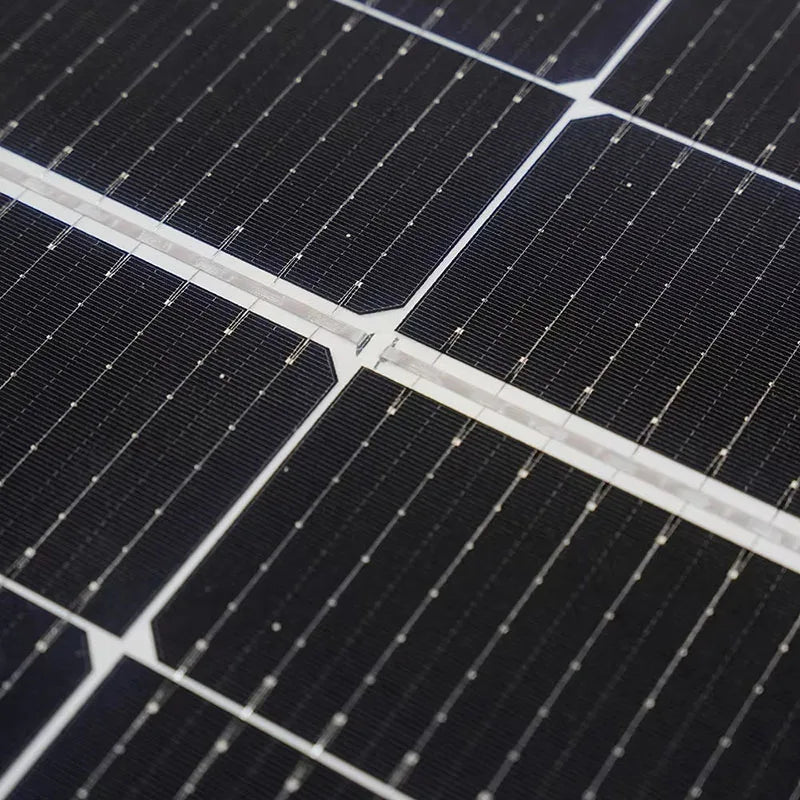

- Bifacial Power Generation: Generates additional power from the backside, maximizing energy yield.
- N-type Technology: Provides lower LID/LeTID degradation and improved low-light performance.
- Durability: Certified to withstand extreme environmental conditions, including high salt mist and ammonia.
- Mechanical Load Enhanced: Supports up to 6000 Pa front load and 4000 Pa rear load.
- Anti-PID Guarantee: Minimizes the risk of potential-induced degradation, extending the operational life of the module.

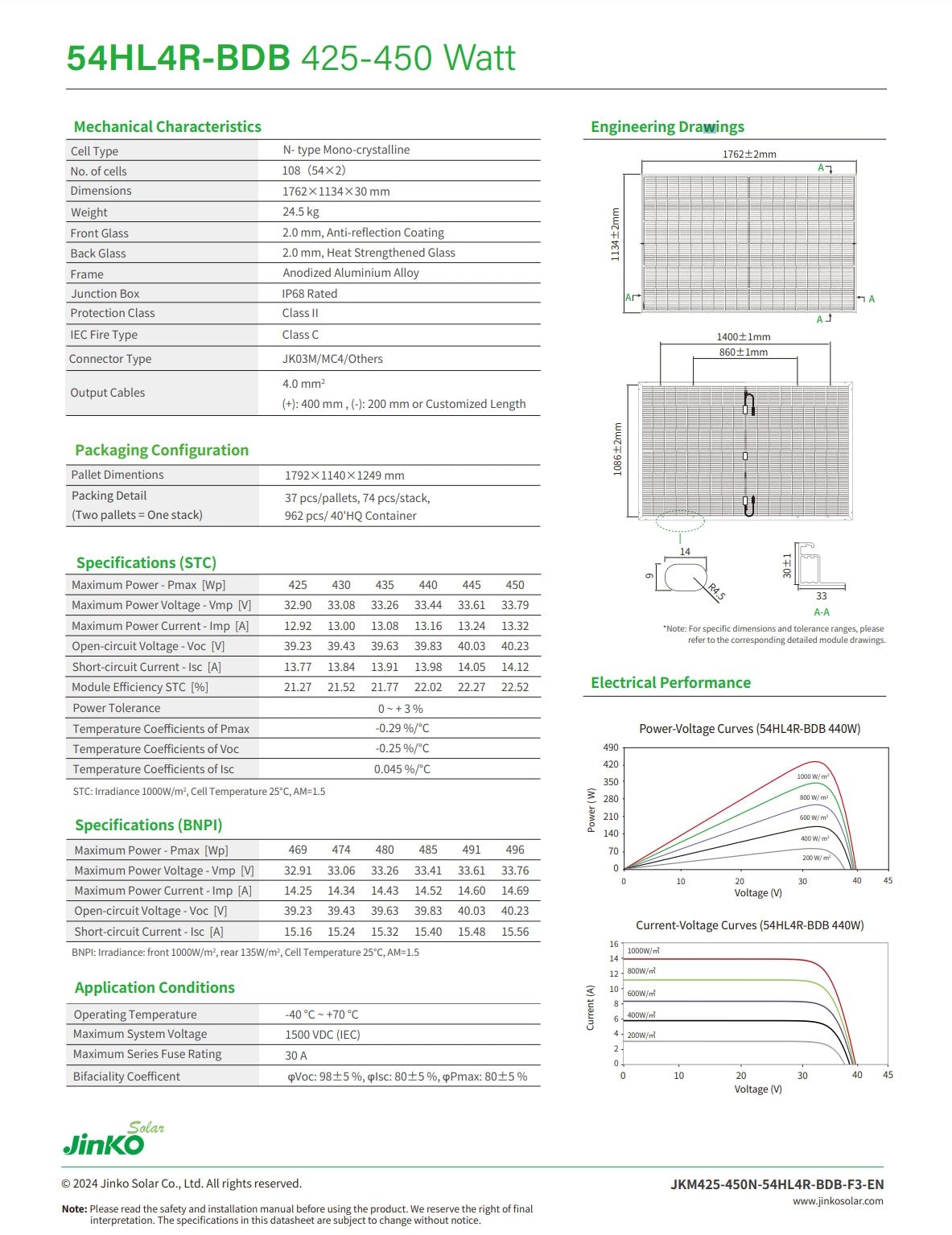

Jinko 450W Datasheet
Specifications Table:
| Category | Details |
|---|---|
| Cell Type | N-type Mono-crystalline |
| Number of Cells | 108 (54 x 2) |
| Dimensions | 1762 x 1134 x 30 mm |
| Weight | 24.5 kg |
| Front Glass | 2.0 mm, Anti-reflection Coating, Tempered Glass |
| Back Glass | 2.0 mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Connector Type | MC4 / Others |
| Output Cables | 4.0 mm² (±400 mm, customizable length) |
Performance Metrics (STC):
| Parameter | 425W | 430W | 435W | 440W | 445W | 450W |
|---|---|---|---|---|---|---|
| Maximum Power Current (Imp) | 12.92 A | 13.03 A | 13.08 A | 13.16 A | 13.24 A | 13.32 A |
| Open-circuit Voltage (Voc) | 39.23 V | 39.39 V | 39.54 V | 39.70 V | 39.85 V | 40.03 V |
| Short-circuit Current (Isc) | 13.77 A | 13.83 A | 13.91 A | 13.97 A | 14.03 A | 14.09 A |
| Module Efficiency | 21.27 % | 21.52 % | 21.71 % | 22.00 % | 22.27 % | 22.52 % |
| Power Tolerance | 0 ~ +3% |
Bifacial Power Generation (BNPI):
| Parameter | 469W | 474W | 480W | 485W | 491W | 496W |
|---|---|---|---|---|---|---|
| Maximum Power Current (Imp) | 14.25 A | 14.34 A | 14.43 A | 14.52 A | 14.60 A | 14.69 A |
| Open-circuit Voltage (Voc) | 39.23 V | 39.34 V | 39.48 V | 39.60 V | 39.80 V | 40.03 V |
| Short-circuit Current (Isc) | 15.16 A | 15.24 A | 15.32 A | 15.40 A | 15.48 A | 15.56 A |
Temperature Coefficients:
- Pmax: -0.29% / °C
- Voc: -0.25% / °C
- Isc: 0.045% / °C
Application Conditions:
| Parameter | Details |
|---|---|
| Operating Temperature | -40°C to +70°C |
| Maximum System Voltage | 1500 VDC (IEC) |
| Maximum Series Fuse Rating | 30 A |
| Bifaciality Coefficient | qVoc: 98±5 %, qIsc: 80±5 %, qPmax: 80±5 % |
Mechanical Load:
- Front Load: 6000 Pa
- Rear Load: 4000 Pa

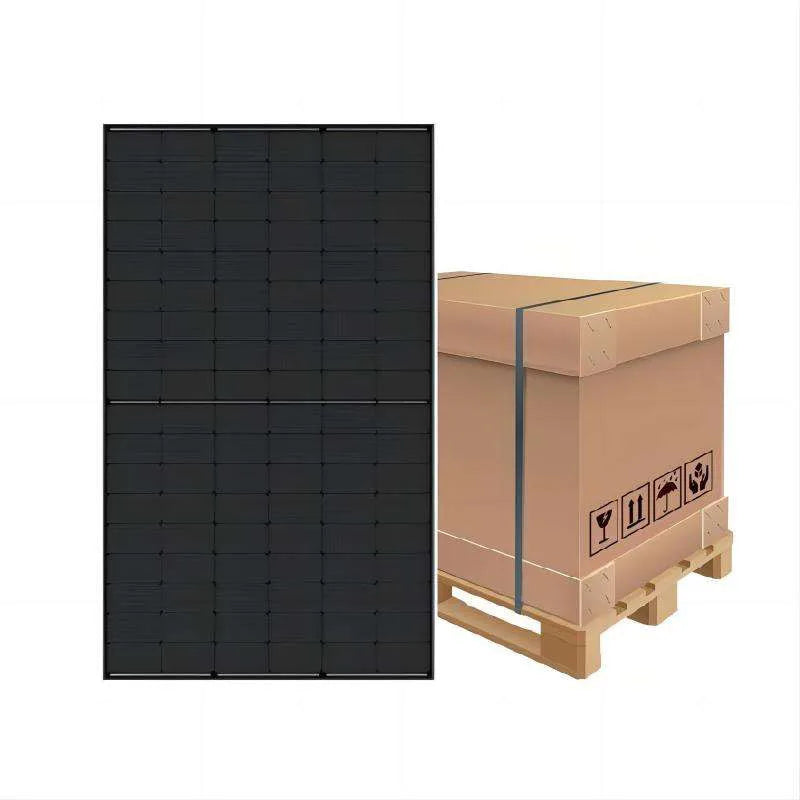

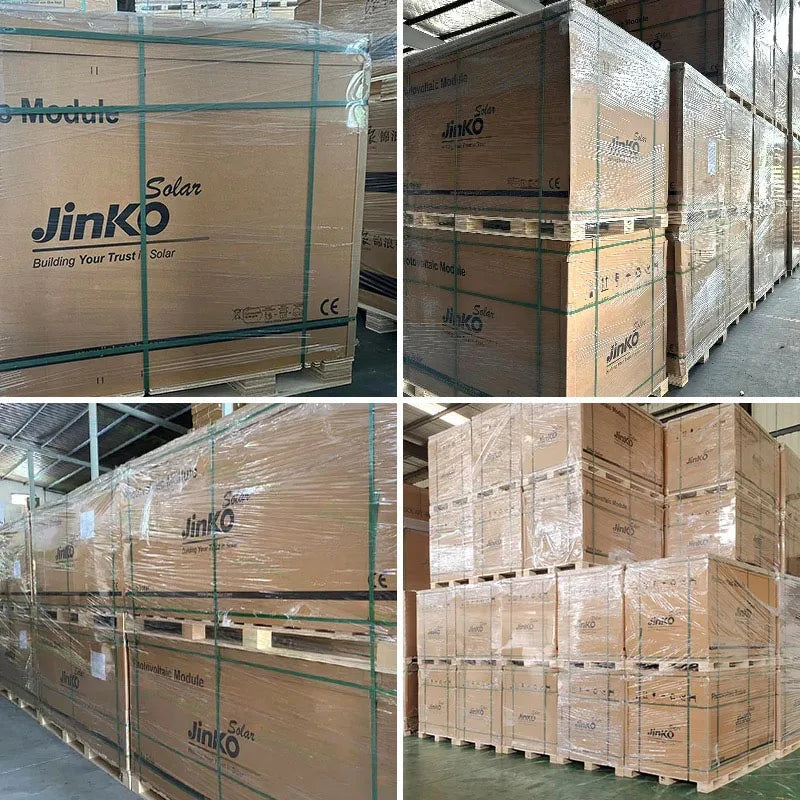

Packaging Configuration:
| Parameter | Details |
|---|---|
| Pallet Dimensions | 1792 x 1140 x 1249 mm |

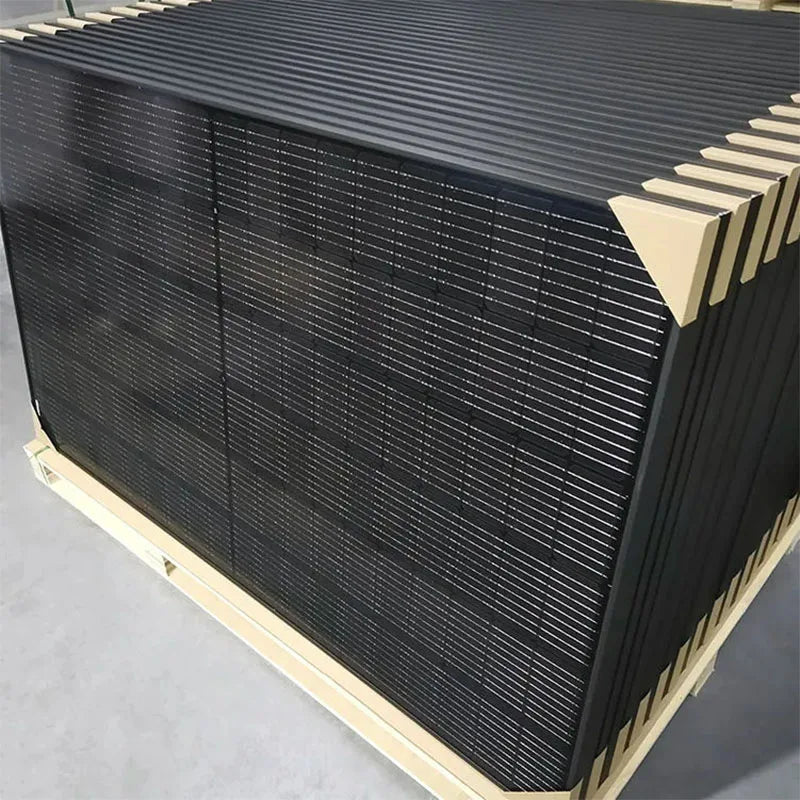

| Pallet Packing | 37 pcs/pallets, 74 pcs/stack |
| Container Capacity | 962 pcs/40'HQ Container |
Certifications & Warranty:
- 25-Year Product Warranty
- 30-Year Linear Power Warranty
- First-Year Degradation: 1%
- Annual Degradation Over 30 Years: 0.40%
- Certifications: IEC61215:2021, IEC61730:2023, IEC61701, IEC62716, IEC60068, IEC62804, ISO9001:2015 (Quality Management System), ISO14001:2015 (Environmental Management System), ISO45001:2018 (Occupational Health and Safety Management Systems)
The Jinko 450W Solar Panel with dual glass design and bifacial technology offers significant energy production benefits, especially in installations where the backside can capture additional sunlight. Its robust structure and advanced technology make it a reliable choice for long-term solar investments. The Jinko 450W Solar Panel is ideal for both residential and commercial applications, ensuring high efficiency and superior durability.

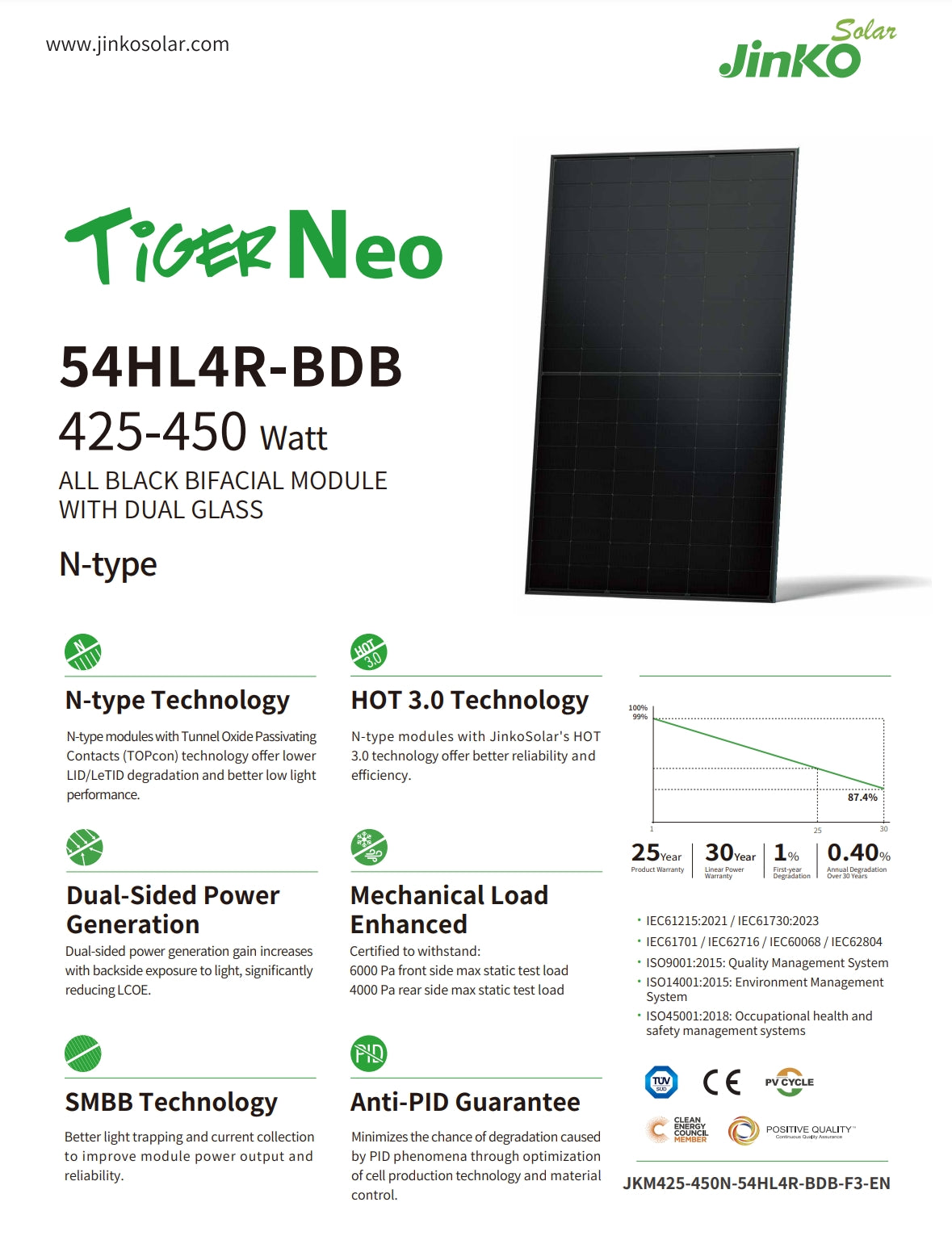

JinkoSolar TiberNeo S4HL4R-BDB is a high-performance bifacial module featuring dual glass and N-type technology. With HOT 3.0 technology, it offers improved reliability and reduced LID/LeTID degradation. The module features JinkoSolar proprietary TOPcon technology for enhanced low-light efficiency. Its specifications include an output power of 425-450W, with a maximum power voltage of 38.7V and a current of 10.92A. The module is designed to withstand exposure to light on both sides, with a front side max static test load of 6000 Pa and a rear side max static test load of 4000 Pa.
