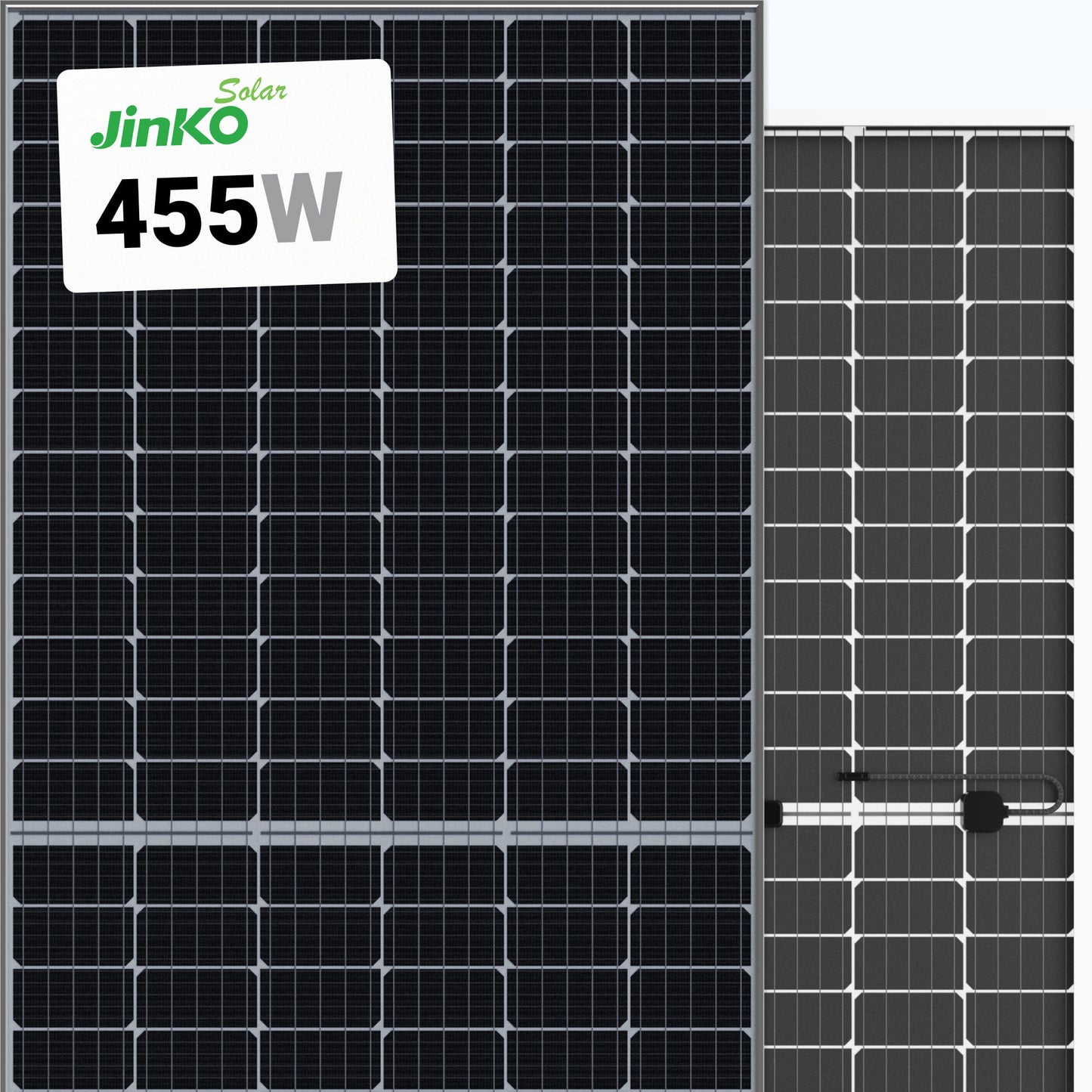

Jinko 455W Solar Panel (430-455W All Black Mono-Facial Module)
The Jinko 455W Solar Panel from the Tiger Neo 54HL4R-B series is a high-performance all-black solar panel designed for both residential and commercial use. This panel offers power outputs ranging from 430W to 455W, achieving a module efficiency of up to 22.77%. With 108 N-type monocrystalline cells and dimensions of 1762 x 1134 x 30 mm, the Jinko 455W Solar Panel provides high energy yield in a compact design. It weighs only 21.0 kg, making installation easier and more efficient. The panel is equipped with IP68-rated junction boxes and is certified to endure extreme conditions, handling up to 6000 Pa front load and 4000 Pa rear load. Additionally, the integration of HOT 3.0 technology ensures reliable performance even in low-light conditions, making this module a versatile choice for various applications.
Jinko 455 Watt Solar Panel Key Features:
- High Power Output: Produces 430W to 455W with module efficiency reaching up to 22.77%.
- Sleek All-Black Design: Ideal for residential installations with aesthetic concerns.
- N-type Technology: Reduces LID/LeTID degradation and improves performance in low-light environments.
- Durability: Certified to endure high salt mist and ammonia resistance.
- Mechanical Load Enhanced: Built to withstand 6000 Pa front and 4000 Pa rear static loads.
- Anti-PID Guarantee: Minimizes the risk of potential-induced degradation, extending the operational life of the module.
Jinko 455W Datasheet
Specifications Table:
| Category | Details |
|---|---|
| Cell Type | N-type Mono-crystalline |
| Number of Cells | 108 (54 x 2) |
| Dimensions | 1762 x 1134 x 30 mm |
| Weight | 21.0 kg |
| Front Glass | 3.2 mm, Anti-reflection Coating, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Connector Type | MC4 / Others |
| Output Cables | 4.0 mm² (±400 mm, customizable length) |
Performance Metrics (STC):
| Parameter | 430W | 435W | 440W | 445W | 450W | 455W |
|---|---|---|---|---|---|---|
| Maximum Power Current (Imp) | 13.20 A | 13.27 A | 13.34 A | 13.41 A | 13.48 A | 13.55 A |
| Open-circuit Voltage (Voc) | 39.16 V | 39.36 V | 39.59 V | 39.77 V | 39.97 V | 40.17 V |
| Short-circuit Current (Isc) | 13.65 A | 13.72 A | 13.80 A | 13.87 A | 13.94 A | 14.01 A |
| Module Efficiency | 21.52 % | 21.77 % | 22.02 % | 22.27 % | 22.52 % | 22.77 % |
| Power Tolerance | 0 ~ +3% |
Temperature Coefficients:
- Pmax: -0.29% / °C
- Voc: -0.25% / °C
- Isc: 0.045% / °C
Application Conditions:
| Parameter | Details |
|---|---|
| Operating Temperature | -40°C to +70°C |
| Maximum System Voltage | 1000 VDC (IEC) |
| Maximum Series Fuse Rating | 25 A |
Mechanical Load:
- Front Load: 6000 Pa
- Rear Load: 4000 Pa
Packaging Configuration:
| Parameter | Details |
|---|---|
| Pallet Dimensions | 1792 x 1140 x 1249 mm |
| Pallet Packing | 37 pcs/pallets, 74 pcs/stack |
| Container Capacity | 962 pcs/40'HQ Container |
Certifications & Warranty:
- 25-Year Product Warranty
- 30-Year Linear Power Warranty
- First-Year Degradation: 1%
- Annual Degradation Over 30 Years: 0.40%
- Certifications: IEC61215:2021, IEC61730:2023, IEC61701, IEC62716, IEC60068, IEC62804, ISO9001:2015 (Quality Management System), ISO14001:2015 (Environmental Management System), ISO45001:2018 (Occupational Health and Safety Management Systems)
The Jinko 455W Solar Panel is an ideal solution for both residential and commercial installations. Its all-black design makes it aesthetically appealing, while its N-type monocrystalline technology, compact dimensions, and robust mechanical load capacity provide superior performance and reliability. With industry-leading warranties and certifications, the Jinko 455W Solar Panel ensures long-term efficiency and peace of mind.

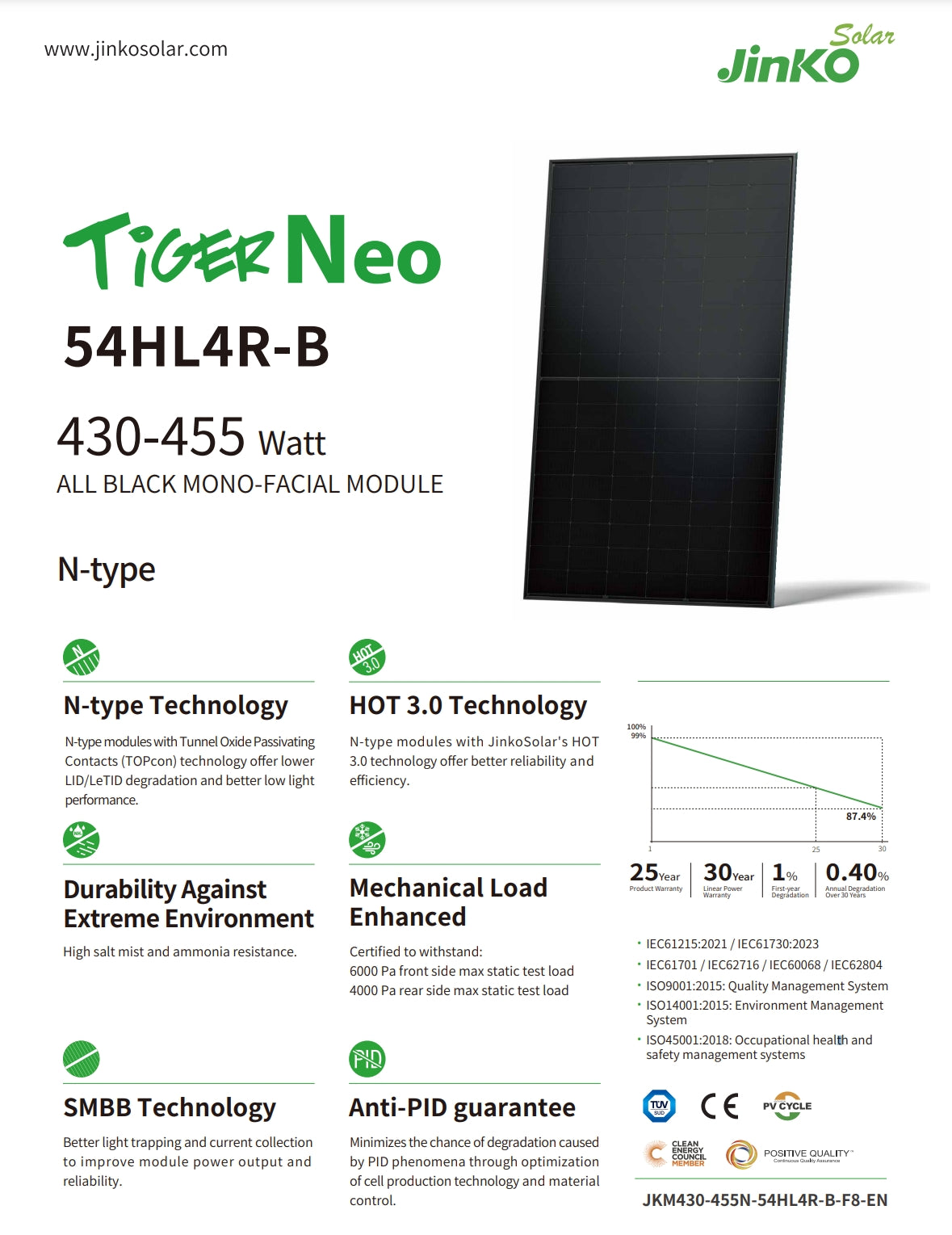

The JinKo Solar 455W Solar Panel (430-455 Watt) features a monofacial module with N-type technology and HOT 3.0 technology. This offers better reliability, lower LID/LeTID degradation, and improved low light efficiency. The performance is 87.4% with a 25-year guarantee. It also has excellent durability against mechanical load, withstanding extreme environments like high salt mist and ammonia resistance. Certified to IEC standards, it meets the requirements for front side static test load (6000 Pa) and rear side static test load (4000 Pa). The product is certified to ISO standards including 9001:2015, 14001:2015, and 45001:2018.
Jinko Solar Co., Ltd. presents the Jinko 455W Solar Panel, a high-performance module with a power output of 430-455 watts. The mechanical characteristics include an N-type mono-crystalline cell type, dimensions of 1762 x 1134 x 30 mm, and a weight of 210 kg. The frame is made of anodized aluminum alloy, and the junction box has an IP68 rated protection class. The module features high-transmission, low-iron tempered glass with anti-reflection coating. The electrical performance includes maximum power, voltage, and current ratings, as well as temperature coefficients for power, open-circuit voltage, and short-circuit current. The module is suitable for applications in operating temperatures ranging from 40°C to +70°C.
