Jinko 460W Solar Panel (435-460W Mono-Facial Module)
The Jinko 460W Solar Panel from the Tiger Neo 54HL4R-V series is an advanced solar module featuring N-type monocrystalline technology, designed to deliver high efficiency and long-lasting performance. With power outputs ranging from 435W to 460W and a module efficiency of up to 23.02%, it is well-suited for both residential and commercial applications. The 54-cell design and dimensions of 1762 x 1134 x 30 mm make the Jinko 460W Solar Panel an optimal choice for installations that demand both power and space efficiency. Equipped with HOT 3.0 technology, this panel ensures enhanced reliability and performance even in low-light conditions.
Jinko 460 Watt Solar Panel Key Features:
- High Power Output: Delivers 435W to 460W, with module efficiency reaching up to 23.02%.
- Compact and Lightweight: Dimensions of 1762 x 1134 x 30 mm and weight of 21.0 kg for easy installation.
- N-type Technology: Tunnel Oxide Passivating Contacts (TOPCon) offer lower LID/LeTID degradation and better low-light performance.
- Durability: Certified to withstand high salt mist and ammonia resistance, making it suitable for extreme environments.
- Mechanical Load Enhanced: Built to endure 6000 Pa front and 4000 Pa rear static load for optimal durability in demanding conditions.
- Anti-PID Guarantee: Reduces the risk of Potential Induced Degradation, extending the operational life of the module.

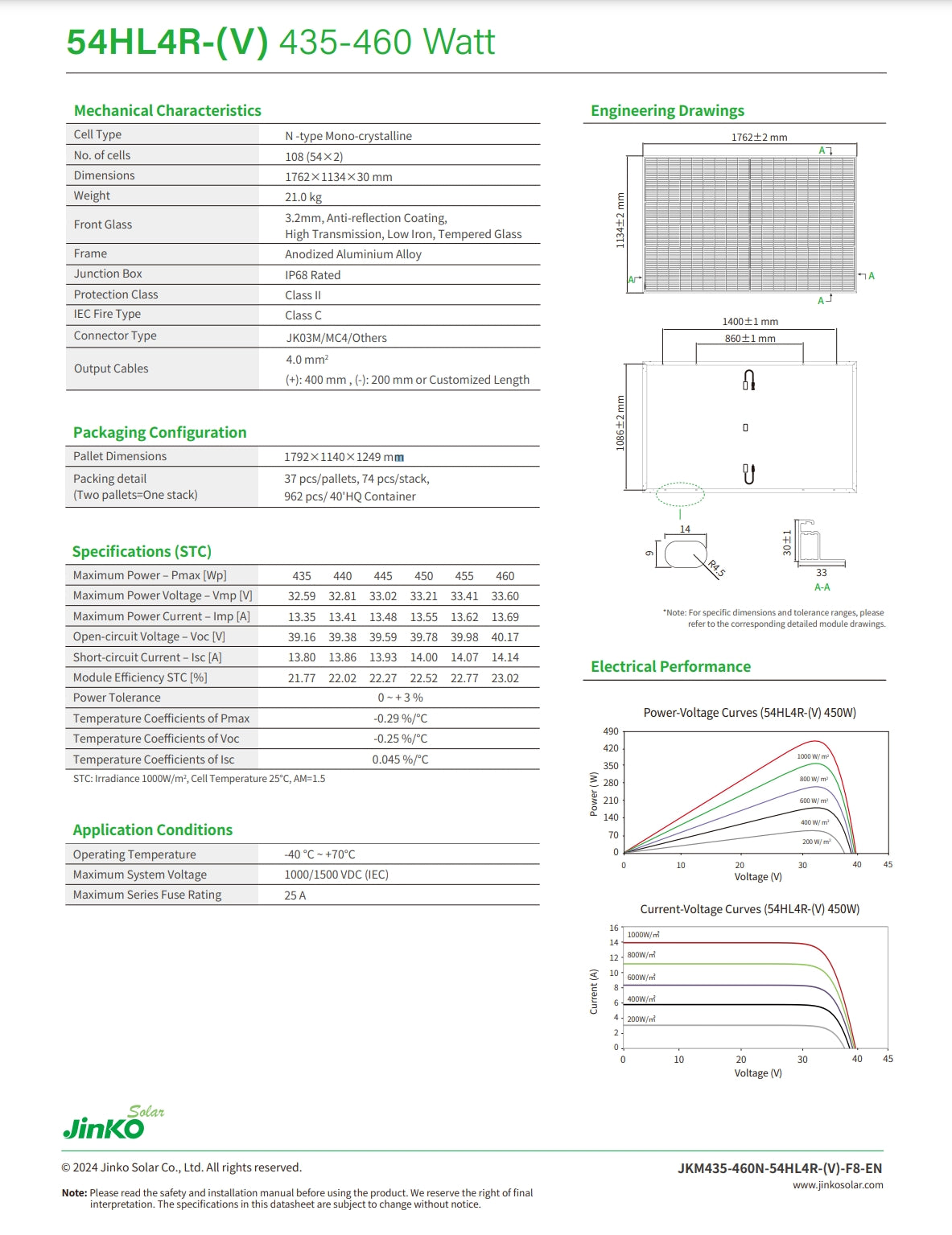

Jinko 460W Datasheet
Specifications Table:
| Category | Details |
|---|---|
| Cell Type | N-type Mono-crystalline |
| Number of Cells | 108 (54 x 2) |
| Dimensions | 1762 x 1134 x 30 mm |
| Weight | 21.0 kg |
| Front Glass | 3.2 mm, Anti-reflection Coating, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Connector Type | MC4 / Others |
| Output Cables | 4.0 mm² (±400 mm, customizable length) |
Performance Metrics (STC):
| Parameter | 435W | 440W | 445W | 450W | 455W | 460W |
|---|---|---|---|---|---|---|
| Maximum Power Current (Imp) | 13.35 A | 13.41 A | 13.48 A | 13.55 A | 13.62 A | 13.69 A |
| Open-circuit Voltage (Voc) | 39.16 V | 39.38 V | 39.59 V | 39.78 V | 39.98 V | 40.17 V |
| Short-circuit Current (Isc) | 13.80 A | 13.86 A | 13.93 A | 14.00 A | 14.07 A | 14.14 A |
| Module Efficiency | 21.77 % | 22.02 % | 22.27 % | 22.52 % | 22.77 % | 23.02 % |
| Power Tolerance | 0 ~ +3% |
Temperature Coefficients:
- Pmax: -0.29% / °C
- Voc: -0.25% / °C
- Isc: 0.045% / °C
Application Conditions:
| Parameter | Details |
|---|---|
| Operating Temperature | -40°C to +70°C |
| Maximum System Voltage | 1000 / 1500 VDC (IEC) |
| Maximum Series Fuse Rating | 25 A |
Mechanical Load:
- Front Load: 6000 Pa
- Rear Load: 4000 Pa
Packaging Configuration:
| Parameter | Details |
|---|---|
| Pallet Dimensions | 1792 x 1140 x 1249 mm |
| Pallet Packing | 37 pcs/pallets, 74 pcs/stack |
| Container Capacity | 962 pcs/40'HQ Container |
Certifications & Warranty:
- 15-Year Product Warranty
- 30-Year Linear Power Warranty
- First-Year Degradation: 1%
- Annual Degradation Over 30 Years: 0.40%
- Certifications: IEC61215:2021, IEC61730:2023, IEC61701, IEC62716, IEC60068, IEC62804, ISO9001:2015 (Quality Management System), ISO14001:2015 (Environmental Management System), ISO45001:2018 (Occupational Health and Safety Management Systems)
The Jinko 460W Solar Panel is the perfect solution for those seeking high efficiency, reliability, and durability in their solar energy system. Its N-type technology combined with HOT 3.0 ensures enhanced energy generation even in sub-optimal conditions, making it a smart choice for residential and commercial installations. With industry-leading certifications and warranties, the Jinko 460W Solar Panel offers long-term performance and security for your solar investment.

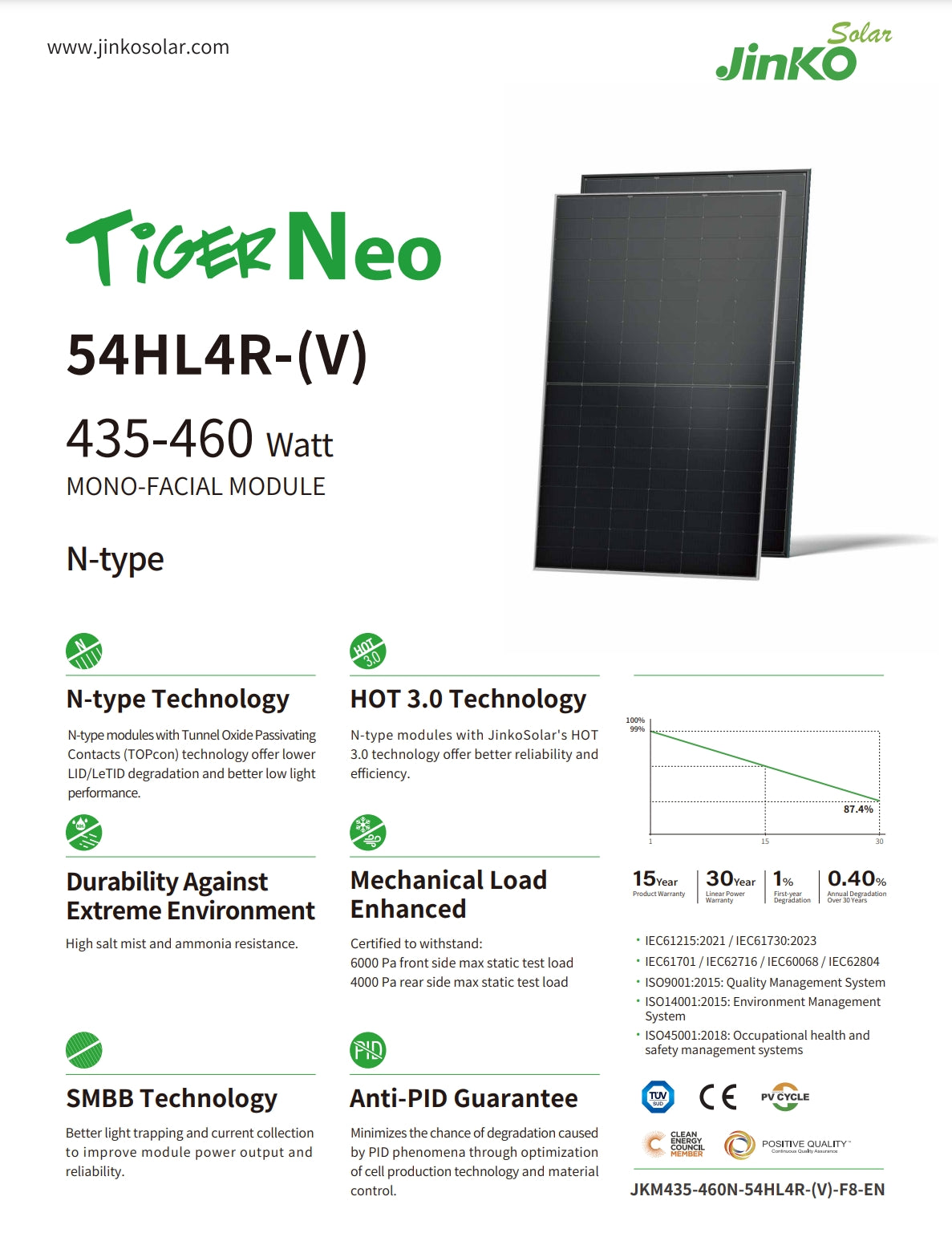

The JinkoSolar TiberNeo 54HL4R-(V) is a high-performance mono-facial module featuring N-type technology with HOT Contacts (TOPcon). This design provides better reliability, reduced LID/LeTID degradation, and improved low light efficiency. With a power output of 435-460W, this module offers excellent performance. It also boasts enhanced durability against mechanical load, with a lifespan of up to 30 years. The JinkoSolar TiberNeo 54HL4R-(V) is certified to withstand extreme environments, including high salt mist and ammonia resistance. It meets various international standards, including IEC61215.2021, IEC61730.2023, and more. This module features SMBB technology, anti-PID guarantee, and minimized degradation caused by PID phenomena. Additionally, it offers improved light trapping and current collection to enhance module power output.

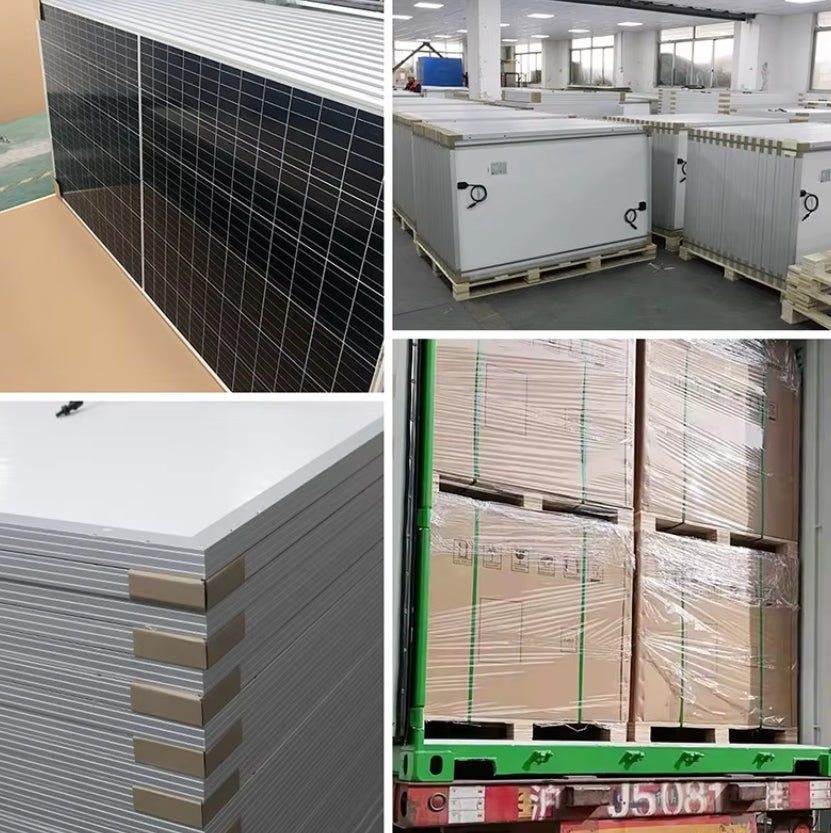

Jinko 460 Watt Solar Panel (435-460W) Product Image Product Name: Jinko 54HL4R-(V) Power Output: 435-460 watts Mechanical Characteristics: * Cell Type: N-type Mono-crystalline * No. of cells: 108 (54x2) * Dimensions: 1762x1134x30 mm * Weight: 210 kg * Frame Material: Anodized Aluminium Alloy Electrical Performance: * Maximum Power: 435-460 Wp * Maximum Power Voltage: 32.59-33.60 V * Maximum Power Current: 13.35-13.69 A * Open-circuit Voltage: 39.16-40.17 V * Short-circuit Current: 13.80-14.14 A Specifications: * STC Irradiance: 800 W/m² * Cell Temperature: 258°C, AM-1.5 * Operating Temperature: 40-70°C * Maximum System Voltage: 1000/1500 VDC (IEC) * Maximum Series Fuse Rating: 25 A
