Jinko 465W Solar Panel Overview
The Jinko 465W Solar Panel (JKM465M-7RL3-TV) offers exceptional performance and durability with its P-type monocrystalline cells. Featuring a maximum power output of 465W, an impressive module efficiency of 20.21%, and an advanced Tiling Ribbon (TR) technology, this panel ensures optimal power generation for both residential and commercial applications. Designed to withstand extreme weather conditions, it comes with a robust anodized aluminum alloy frame and high-transmission tempered glass for extended longevity.
Jinko 465 Watt Solar Panel Key Features
- TR Technology + Half Cell Design: Eliminates cell gaps and enhances module efficiency by up to 20.43%.
- 9BB Technology: Reduces the distance between busbars, increasing power output and reliability compared to traditional 5BB technology.
- Higher Lifetime Power Yield: Only 2.5% power degradation in the first year and a maximum of 0.55% annual degradation thereafter.
- Severe Weather Resilience: Certified to withstand wind loads of 2400 Pascal and snow loads of 5400 Pascal.
- Best Warranty Coverage: 12-year product warranty and a 30-year linear performance warranty for peace of mind.
Jinko 465W Datasheet
Mechanical Characteristics
- Cell Type: P-type Monocrystalline
- Number of Cells: 156 (2×78)
- Dimensions: 2205 × 1032 × 35 mm (86.81 × 40.63 × 1.38 inches)
- Weight: 25.0 kg (55.12 lbs)
- Front Glass: 3.2 mm anti-reflection coating, high-transmission tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP67 rated
- Output Cables: TUV 1×4.0 mm², length customizable (+250 mm default)
Jinko Solar 465W Specifications
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 465W |
| Module Efficiency (STC) | 20.21% |
| Maximum Power Voltage (Vmp) | 43.38V |
| Maximum Power Current (Imp) | 10.72A |
| Open-Circuit Voltage (Voc) | 51.09V |
| Short-Circuit Current (Isc) | 11.26A |
| Operating Temperature | -40°C to 85°C |
| Maximum System Voltage | 1500VDC |
| Power Tolerance | 0~+3% |
Packaging
- Configuration: Two pallets per stack; 31 panels per pallet, 62 panels per stack, 620 panels per 40HQ container.
- Weight Per Panel: 25.0 kg (55.12 lbs)
Bifacial Output-Rearside Power Gain
This panel provides enhanced rear-side power generation for optimal efficiency:
- 5% Gain: Up to 488W output
- 15% Gain: Up to 535W output
- 25% Gain: Up to 581W output
Certifications
- ISO9001:2015, ISO14001:2015, ISO45001:2018
- IEC61215, IEC61730
- CE Certified
- PV Cycle Member and Positive Quality Assurance
Warranty
- Product Warranty: 12 years
- Linear Performance Warranty: 30 years with an annual power degradation of only 0.55%.
Applications
The Jinko 465W Solar Panel is ideal for:
- Residential rooftops
- Commercial installations
- Utility-scale solar farms
- Ground-mounted and tracker systems
With its superior durability and efficiency, the JKM465M-7RL3-TV ensures reliable energy generation across various climates and conditions.

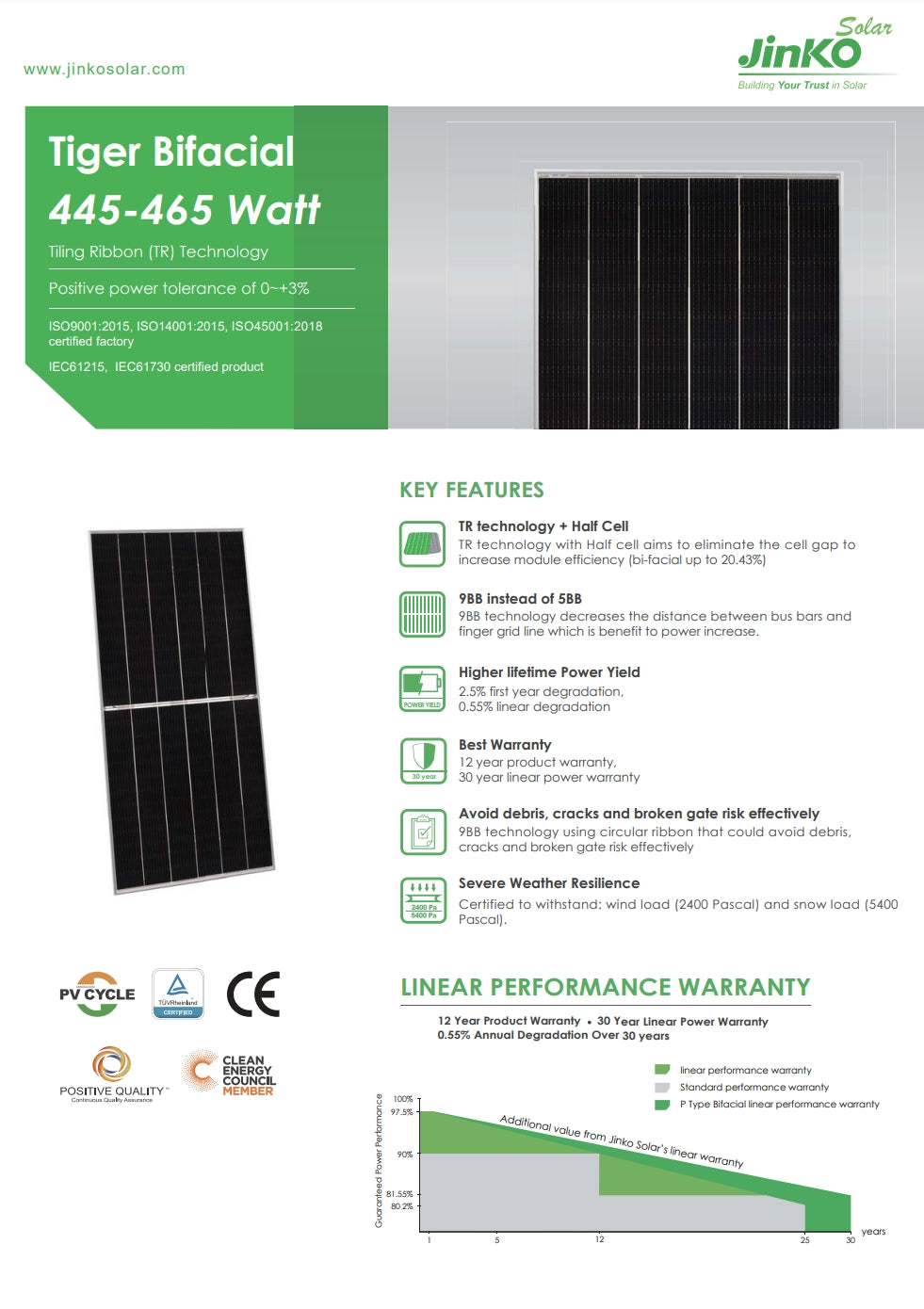

Jinko Solar Panel (JKM465M-7RL3-TV) Product Image: Jinko Building Trust in Solar - Tiger Bifacial 445-465W Tiling Ribbon (TR) Technology. Key Features: Half-cell TR technology, positive power tolerance of ±3%, ISO-certified factory and product. Benefits include higher lifetime power yield, lower degradation rate, and a 12-year product warranty.

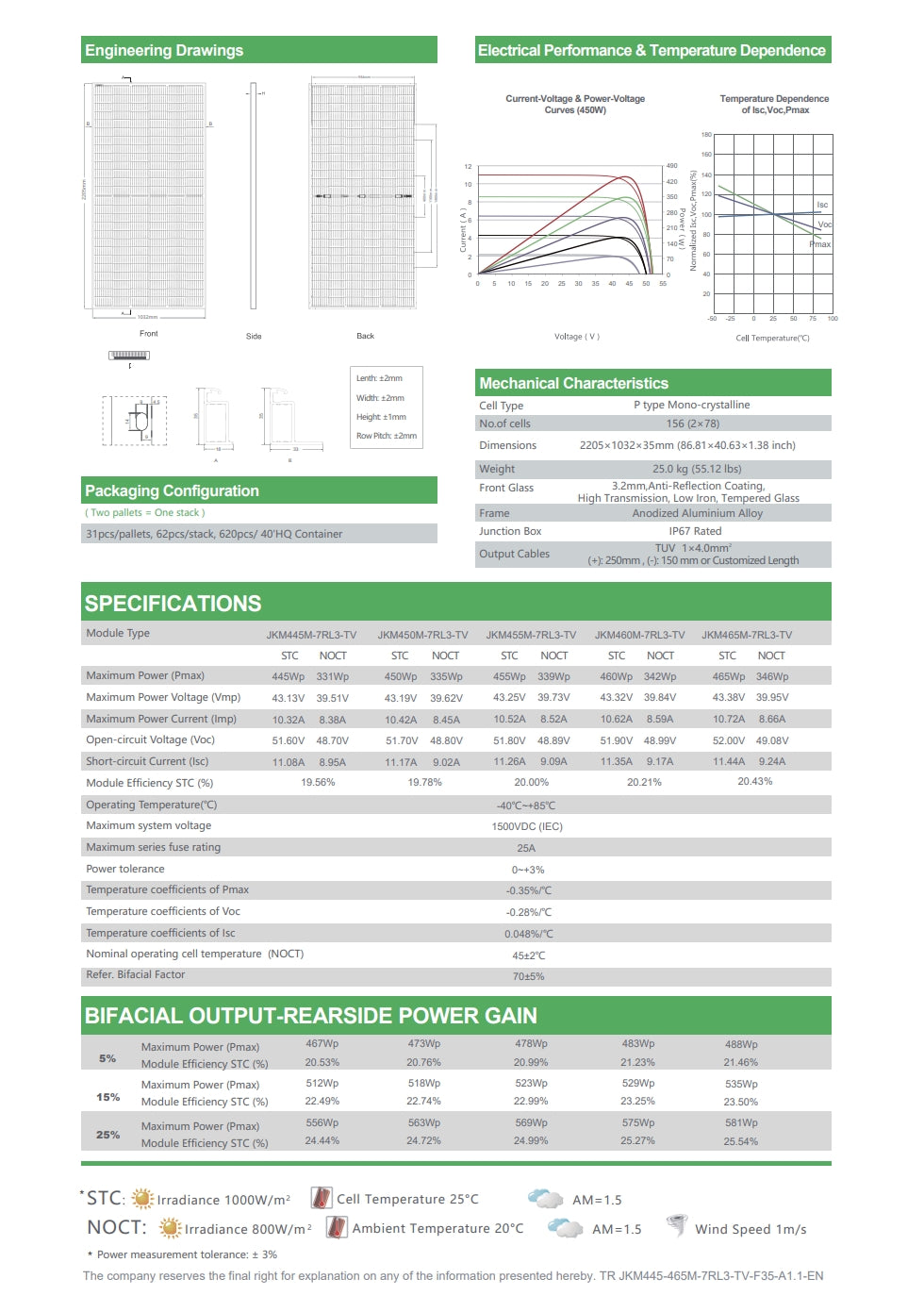

Jinko 465W Solar Panel (JKM465M-7RL3-TV) Product Image Specifications: * Module Type: JKM4SM-7RL3-TV * Maximum Power (Pmax): 465W * Maximum Power Voltage (Vmp): 43.5V * Maximum Power Current (Imp): 10.75A * Open-Circuit Voltage (Voc): 51.8V * Short-Circuit Current (Isc): 10.95A * Module Efficiency STC (%): 20.59% * Operating Temperature (-40°C to +85°C) * Maximum System Voltage (IEC): 1000VDC * Power Tolerance: ±3% * Nominal Operating Cell Temperature (NOCT): 45°C * Bifacial Factor: 1.59%
