Jinko 470W Solar Panel Overview
The Jinko 470W Solar Panel (JKM470N-7RL3) delivers cutting-edge solar performance with its N-type monocrystalline cells and advanced Tiling Ribbon (TR) technology. This panel achieves an impressive maximum power output of 470W, a high module efficiency of 20.93%, and excellent performance in low-light environments. Designed for durability, the panel incorporates a robust anodized aluminum alloy frame and IP67-rated junction box, ensuring reliable energy production in even the most demanding conditions.
Jinko 470 Watt Solar Panel Key Features
- TR Technology + Half Cell Design: Eliminates cell gaps to improve module efficiency (up to 20.93%) and enhances overall energy generation.
- Low Light Induced Degradation (LID): Features N-type cells with extremely low LID performance compared to P-type cells.
- 9BB Technology: Reduces the distance between busbars, improving power output and reliability over 5BB technology.
- Higher Lifetime Power Yield: Guarantees only 1% first-year degradation and a maximum of 0.4% annual degradation thereafter.
- Superior Low-Light Performance: Designed to perform exceptionally well in environments with low irradiance, such as early morning, dusk, and cloudy conditions.
- Enhanced Warranty: Backed by a 15-year product warranty and a 30-year linear power warranty.
Jinko Solar 470W Specs
Mechanical Characteristics
- Cell Type: N-type Monocrystalline
- Number of Cells: 156 (2×78)
- Dimensions: 2182 × 1029 × 40 mm (85.91 × 40.51 × 1.57 inches)
- Weight: 26.1 kg (57.54 lbs)
- Front Glass: 3.2 mm anti-reflection coated, high-transmission tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP67 rated for enhanced protection
- Output Cables: TUV 1×4.0 mm², customizable lengths (+290 mm default)
Specifications
Parameter | Value |
---|---|
Maximum Power (Pmax) | 470W |
Module Efficiency (STC) | 20.93% |
Maximum Power Voltage (Vmp) | 43.32V |
Maximum Power Current (Imp) | 10.85A |
Open-Circuit Voltage (Voc) | 51.07V |
Short-Circuit Current (Isc) | 11.26A |
Operating Temperature | -40°C to 85°C |
Maximum System Voltage | 1000/1500VDC |
Power Tolerance | 0~+3% |
Packaging
- Configuration: Two pallets per stack; 27 panels per pallet, 54 panels per stack, 540 panels per 40HQ container.
- Weight Per Panel: 26.1 kg (57.54 lbs)
Bifacial Output-Rearside Power Gain
- The JKM470N-7RL3 mono-facial design is optimized for front-side power generation only, ensuring peak efficiency in various applications.
Certifications
- ISO9001:2015, ISO14001:2015, OHSAS18001 Certified Factory
- IEC61215, IEC61730
- CE Certified
- PV Cycle Member and Positive Quality Assurance
Warranty
- Product Warranty: 15 years
- Linear Performance Warranty: 30 years with an annual power degradation of only 0.4%.
Applications
The Jinko 470W Solar Panel is ideal for:
- Residential rooftop installations
- Commercial and industrial solar systems
- Ground-mounted solar farms
- Grid-connected and off-grid systems
With its advanced features and robust design, the JKM470N-7RL3 ensures reliable and sustainable energy generation across diverse environments.
Jinko 470W Datasheet

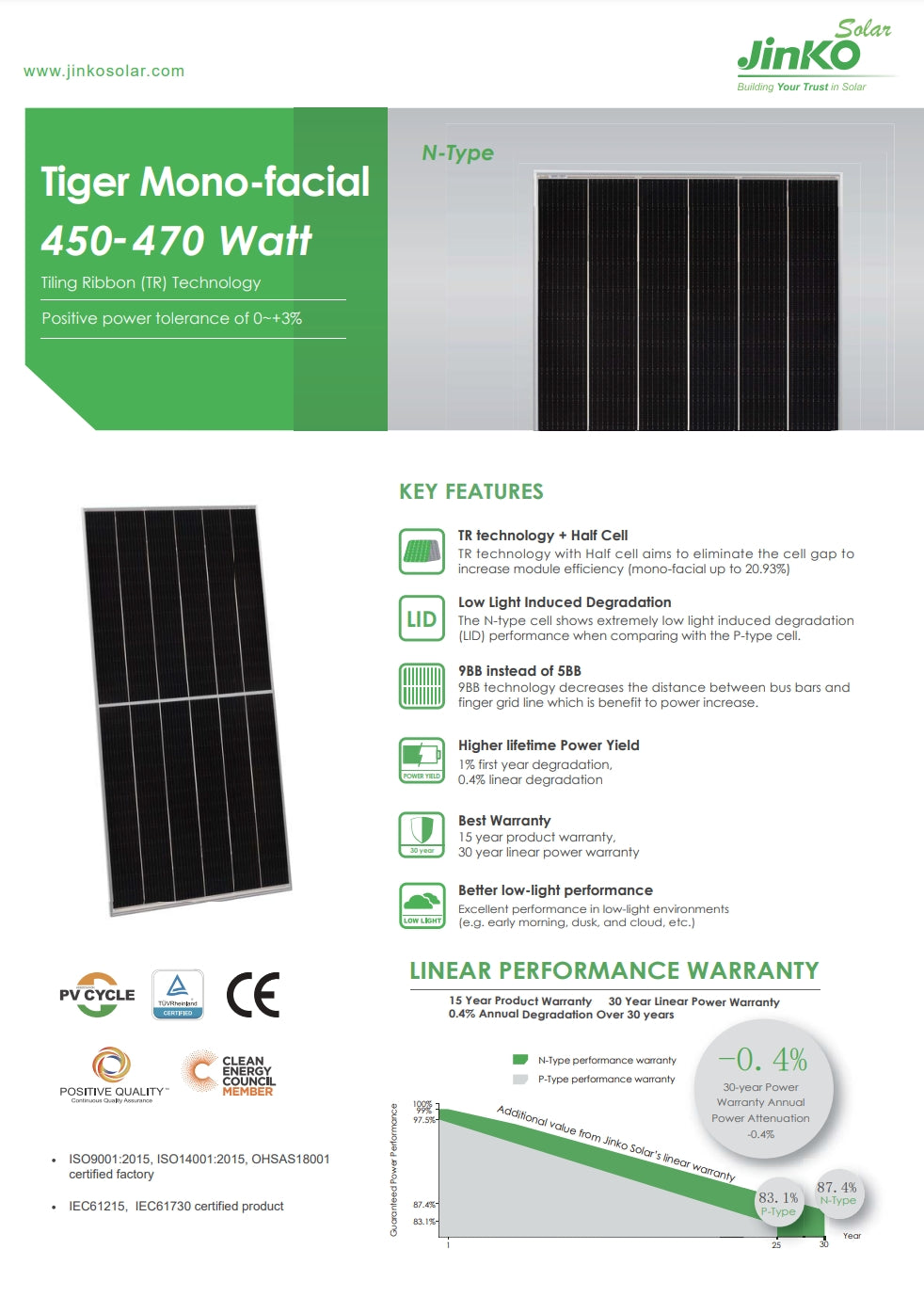

Jinko Solar JK470N-7RL3 product image features a 450-470W solar panel with N-type Tiger Mono-facial technology. Key benefits include positive power tolerance of 0% to +3%, TR technology for increased efficiency, and low light-induced degradation (LID). The module boasts a higher lifetime power yield with 1% first-year degradation and 0.4% linear degradation over 30 years. A comprehensive warranty package includes 15-year product warranty and 30-year linear power warranty, with annual degradation of 0.47%. The panel is certified by ISO9001:2015, IEC61215, and IEC61730.

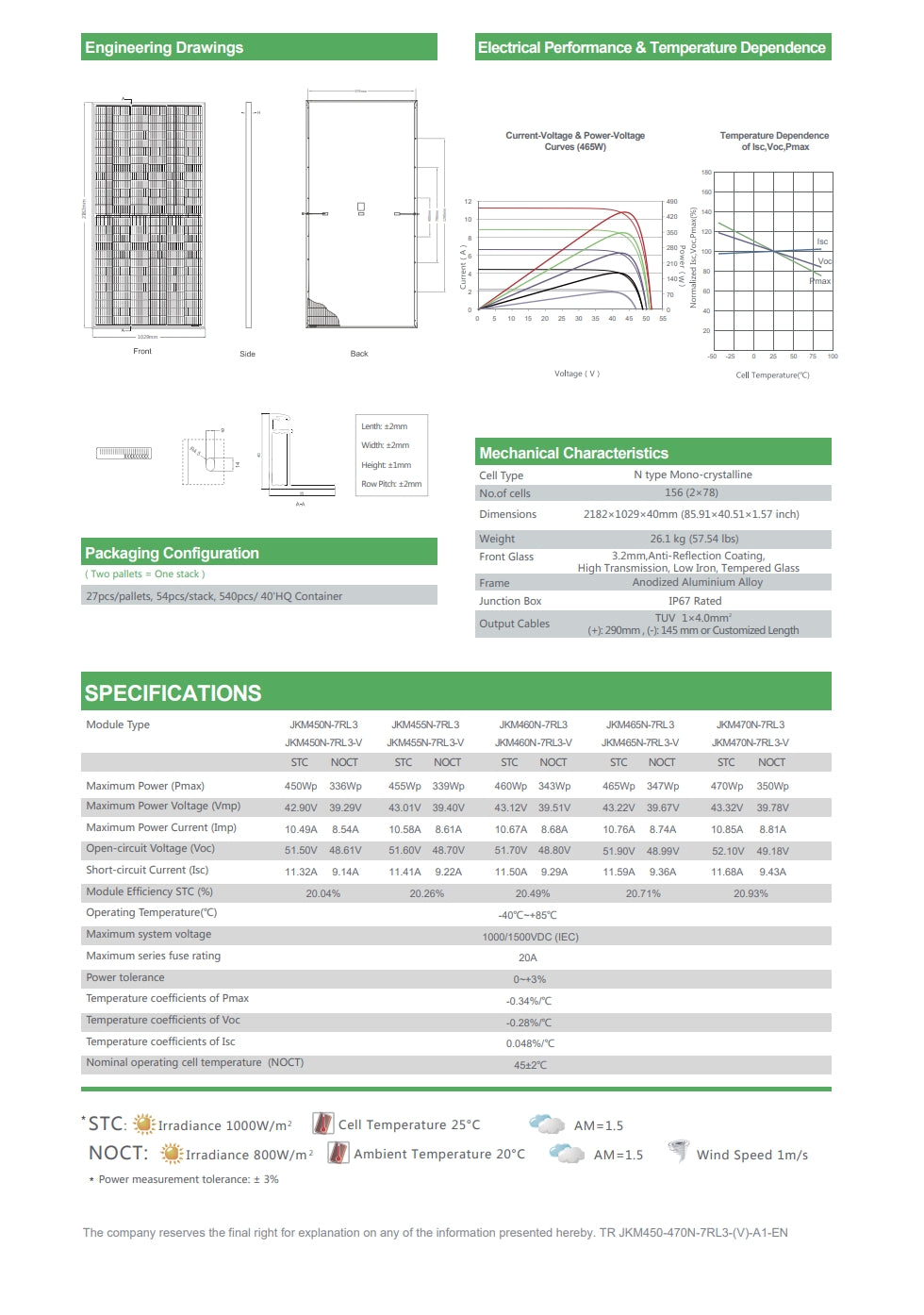

The Jinko 470W Solar Panel (JKM470N-7RL3) features a high-efficiency module with maximum power output of 470W. The panel has a maximum power voltage of 43.32V and a maximum power current of 10.854A. Its open-circuit voltage is 52.10V, while the short-circuit current is 11.884A. The module efficiency at STC is 20.4980%. The operating temperature range is -40°C to +85°C, with a maximum system voltage of 1000V and a maximum series fuse rating of 20A. The power tolerance is ±3.9% and the temperature coefficients are Pmax: 0.3496%/°C, Voc: -0.2886%/°C, and Isc: 0.0489%/°C.
