Jinko 475W Solar Panel Overview
The Jinko 475W Solar Panel (JKM475M-7RL3) offers exceptional power output and efficiency, featuring advanced P-type monocrystalline cells. With a maximum power output of 475W, an impressive module efficiency of 21.16%, and cutting-edge Tiling Ribbon (TR) technology, this panel is engineered to deliver high performance in diverse applications. Its robust design, including a 3.2mm anti-reflection coated tempered glass and IP67-rated junction box, ensures reliable operation under extreme weather conditions.

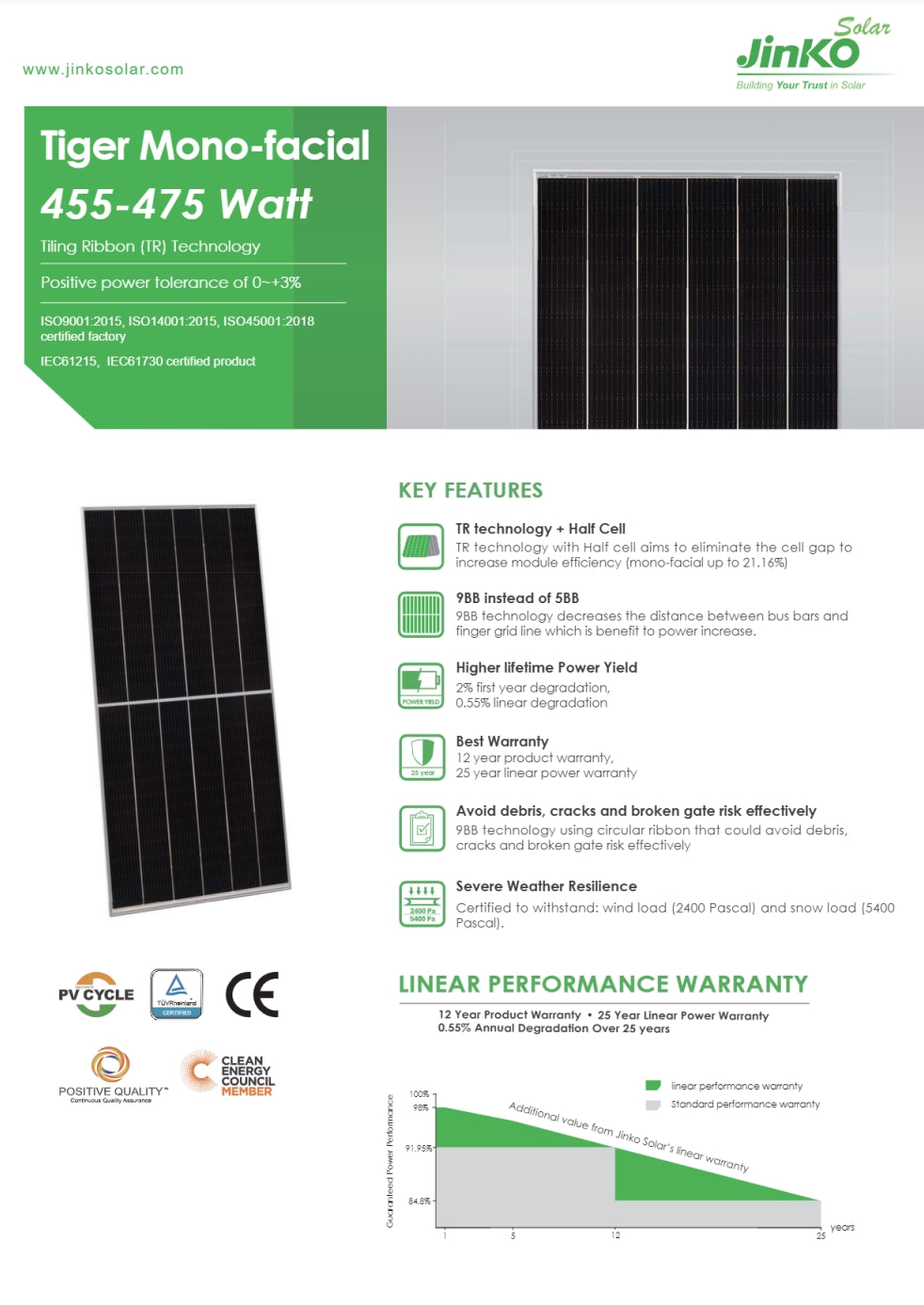

Jinko 475 Watt Solar Panel Key Features
- TR Technology + Half Cell Design: Eliminates cell gaps, boosting module efficiency (up to 21.16%) and power generation.
- 9BB Technology: Enhances power output by minimizing the distance between busbars and optimizing energy capture.
- Higher Lifetime Power Yield: Minimal degradation with 2% in the first year and a maximum of 0.55% annual degradation thereafter.
- Severe Weather Resilience: Certified to withstand high wind loads (2400 Pascal) and snow loads (5400 Pascal).
- Enhanced Durability: Circular ribbon design effectively minimizes risks of cracks and broken cells.
- Industry-Leading Warranty: Includes a 12-year product warranty and a 25-year linear performance warranty for peace of mind.
Jinko 475W Datasheet
Mechanical Characteristics
- Cell Type: P-type Monocrystalline
- Number of Cells: 156 (2×78)
- Dimensions: 2182 × 1029 × 35 mm (85.91 × 40.51 × 1.38 inches)
- Weight: 25.0 kg (55.12 lbs)
- Front Glass: 3.2mm anti-reflection coated, high-transmission tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP67 rated for superior protection
- Output Cables: TUV 1×4.0 mm², customizable lengths (+290 mm default)
Jinko Solar 475W Specifications
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 475W |
| Module Efficiency (STC) | 21.16% |
| Maximum Power Voltage (Vmp) | 43.99V |
| Maximum Power Current (Imp) | 10.80A |
| Open-Circuit Voltage (Voc) | 52.42V |
| Short-Circuit Current (Isc) | 11.14A |
| Operating Temperature | -40°C to 85°C |
| Maximum System Voltage | 1000/1500VDC |
| Power Tolerance | 0~+3% |
Packaging
- Configuration: Two pallets per stack; 31 panels per pallet, 62 panels per stack, 620 panels per 40HQ container.
- Weight Per Panel: 25.0 kg (55.12 lbs)
Certifications
- ISO9001:2015, ISO14001:2015, ISO45001:2018 Certified Factory
- IEC61215, IEC61730
- CE Certified
- PV Cycle Member and Positive Quality Assurance
Warranty
- Product Warranty: 12 years
- Linear Performance Warranty: 25 years with an annual power degradation of only 0.55%.
Applications
The Jinko 475W Solar Panel is suitable for:
- Residential rooftops
- Commercial and industrial solar installations
- Utility-scale solar farms
- Hybrid and off-grid systems
This high-efficiency panel is ideal for customers seeking a reliable and durable solution for long-term energy needs.

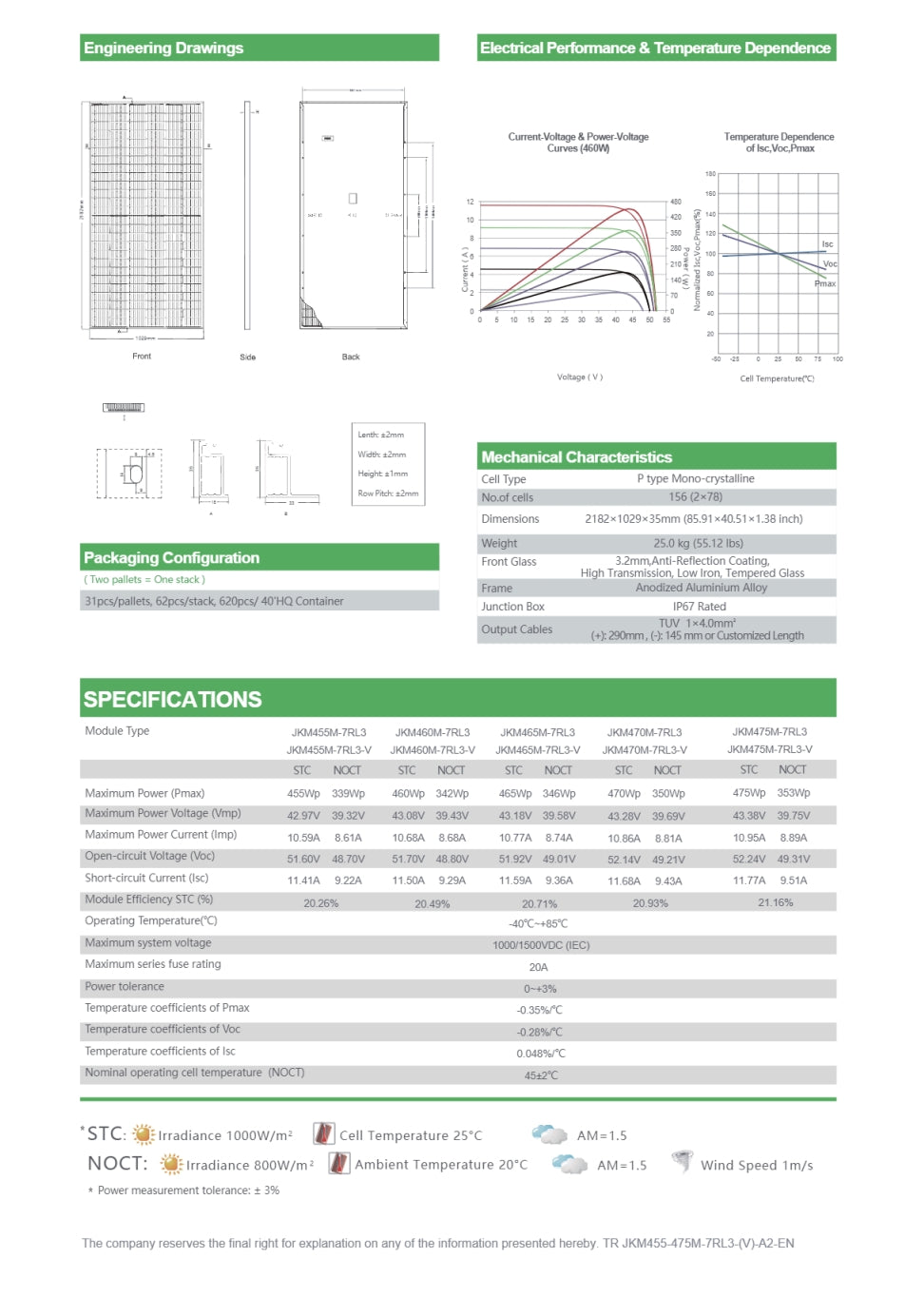

Engineering Drawings Electrical Performance & Temperature Dependence Current-Voltage Power-Voltage Temperature Dependence Curves: Open Circuit Voltage (Voc), Short Circuit Current (Isc), Maximum Power (Pmax), and Maximum Power Voltage (Vmp). Module Type: Mono-crystalline. Number of Cells: 56 (2x78). Dimensions: 2182*1029*35mm (85.91*40.51*1.38 Inch). Weight: 25.0 kg (55.12 lbs). Packaging Configuration: Front Glass with Anti-Reflection Coating; Transmission; Low Iron; Tempered Glass. Frame Material: Anodized Aluminum Alloy. Junction Box IP67 Rated TUV. Output Cables: +290mm, -145mm or Customized Length.
