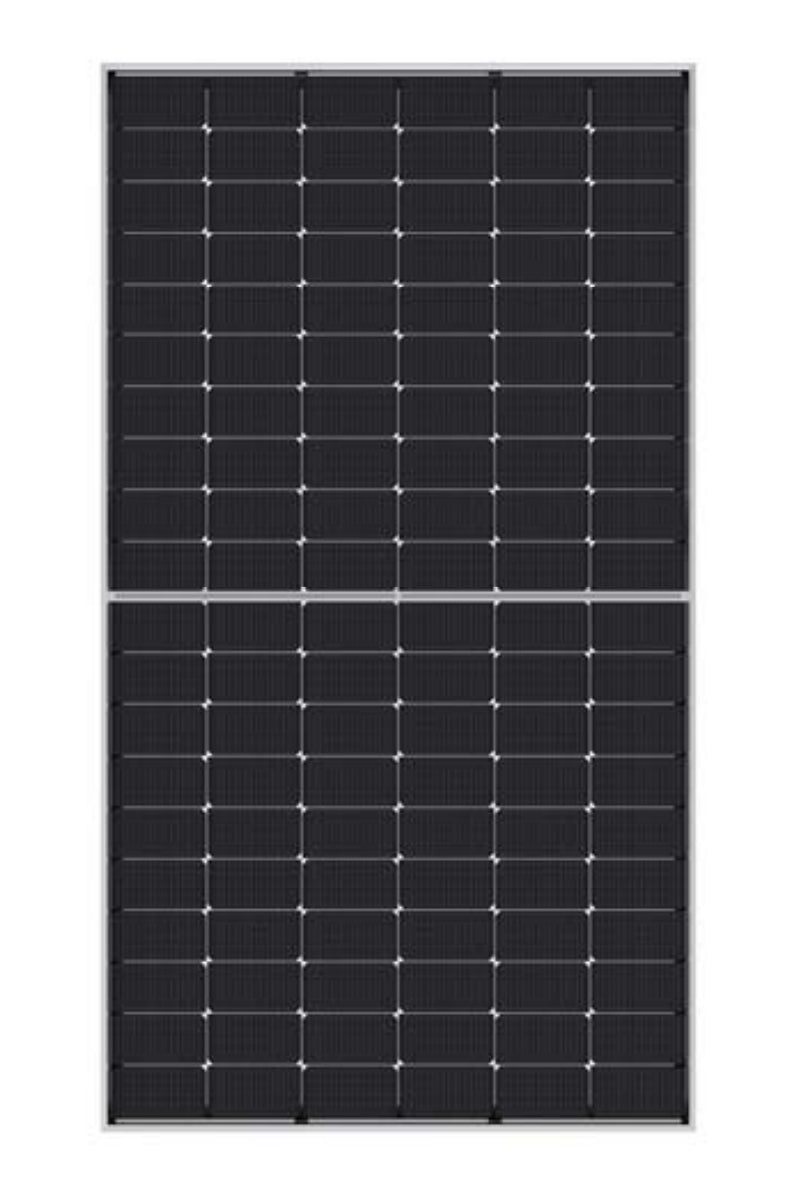

Jinko 480W Solar Panel Overview
The Jinko 480W Solar Panel (JKM480N-60HL4) features advanced N-type monocrystalline technology, offering outstanding efficiency and performance for residential and commercial installations. With a maximum power output of 480W, an impressive module efficiency of 22.24%, and SMBB (Smart Multi-Busbar) technology, this panel delivers superior energy yield even in challenging environments. Built to endure extreme weather conditions, its enhanced mechanical load capacity and PID resistance ensure long-term durability and reliability.
Jinko 480 Watt Solar Panel Key Features
- SMBB Technology: Improved light trapping and current collection to boost module reliability and energy production.
- Hot 2.0 Technology: Offers better reliability and reduces light and elevated temperature-induced degradation (LID/LETID).
- PID Resistance: Guarantees excellent Anti-PID performance through advanced production processes and materials.
- Enhanced Mechanical Load: Certified to withstand wind loads of 2400 Pascal and snow loads of 5400 Pascal.
- Durability in Harsh Conditions: High resistance to salt mist and ammonia ensures exceptional performance in coastal and agricultural areas.
Jinko Solar 480W Specs
Mechanical Characteristics
- Cell Type: N-type Monocrystalline
- Number of Cells: 120 (6×20)
- Dimensions: 1903 × 1134 × 30 mm (74.92 × 44.65 × 1.18 inches)
- Weight: 24.2 kg (53.35 lbs)
- Front Glass: 3.2mm anti-reflection coated, high-transmission tempered glass
- Frame: Anodized aluminum alloy for robust support
- Junction Box: IP68 rated for superior protection
- Output Cables: TUV 1×4.0 mm², customizable lengths (+400 mm default)
Specifications
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 480W |
| Module Efficiency (STC) | 22.24% |
| Maximum Power Voltage (Vmp) | 35.38V |
| Maximum Power Current (Imp) | 13.57A |
| Open-Circuit Voltage (Voc) | 42.55V |
| Short-Circuit Current (Isc) | 14.31A |
| Operating Temperature | -40°C to 85°C |
| Maximum System Voltage | 1000/1500VDC |
| Power Tolerance | 0~+3% |
Packaging
- Configuration: Two pallets per stack; 36 panels per pallet, 72 panels per stack, 864 panels per 40HQ container.
- Weight Per Panel: 24.2 kg (53.35 lbs)
Certifications
- IEC61215(2016), IEC61730(2016)
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Management System)
- ISO45001:2018 (Occupational Health and Safety Management System)
- CE Certified and Positive Quality Assurance
- Clean Energy Council Member
Warranty
- Product Warranty: 12 years
- Linear Performance Warranty: 30 years with only 0.40% annual degradation over 30 years.
Applications
The Jinko 480W Solar Panel is suitable for:
- Residential rooftop installations
- Commercial and industrial buildings
- Utility-scale solar farms
- Hybrid and off-grid energy systems
With its innovative design and durable construction, the JKM480N-60HL4 panel offers a reliable and efficient solution for diverse energy needs.

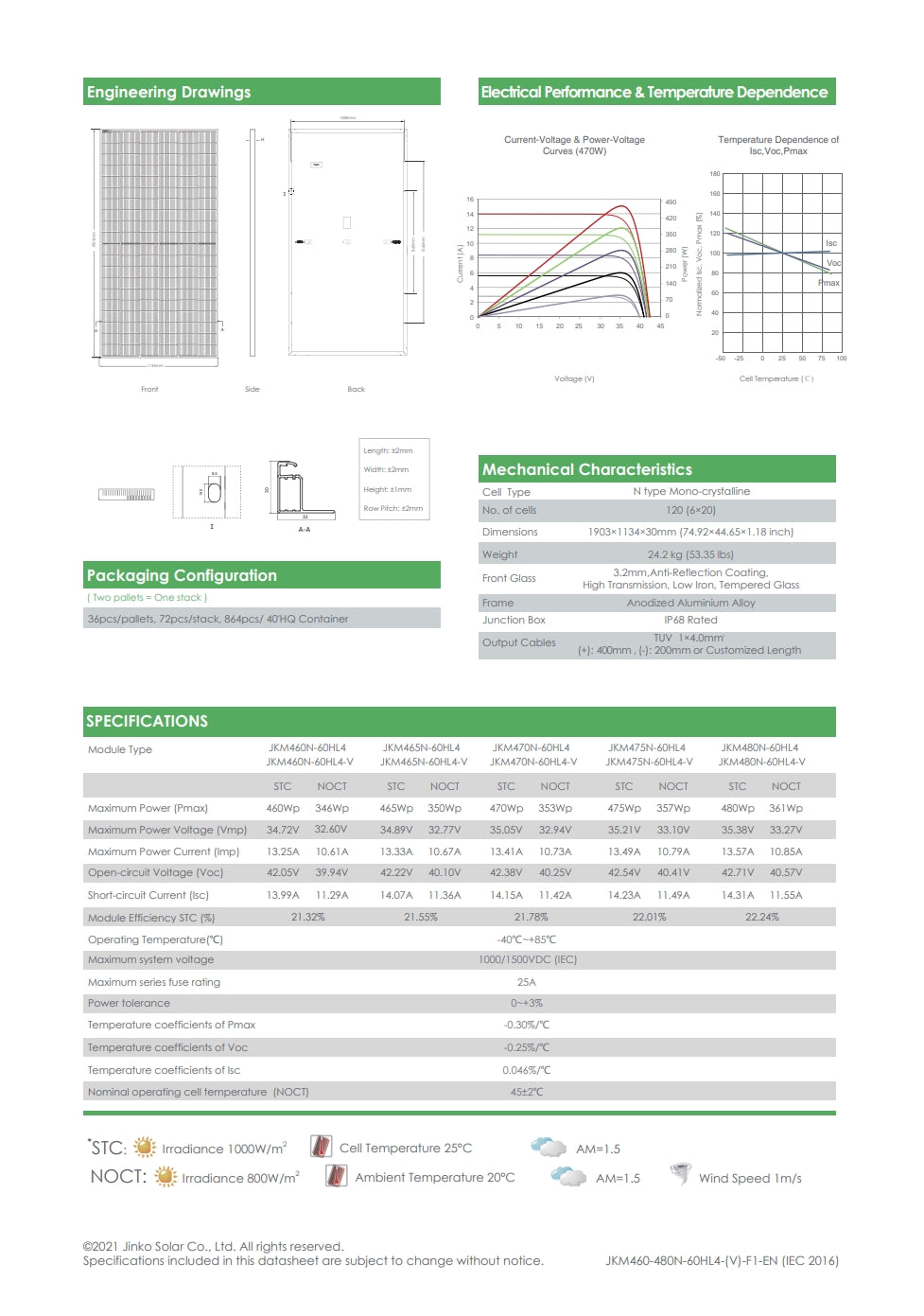

Jinko 480W Datasheet

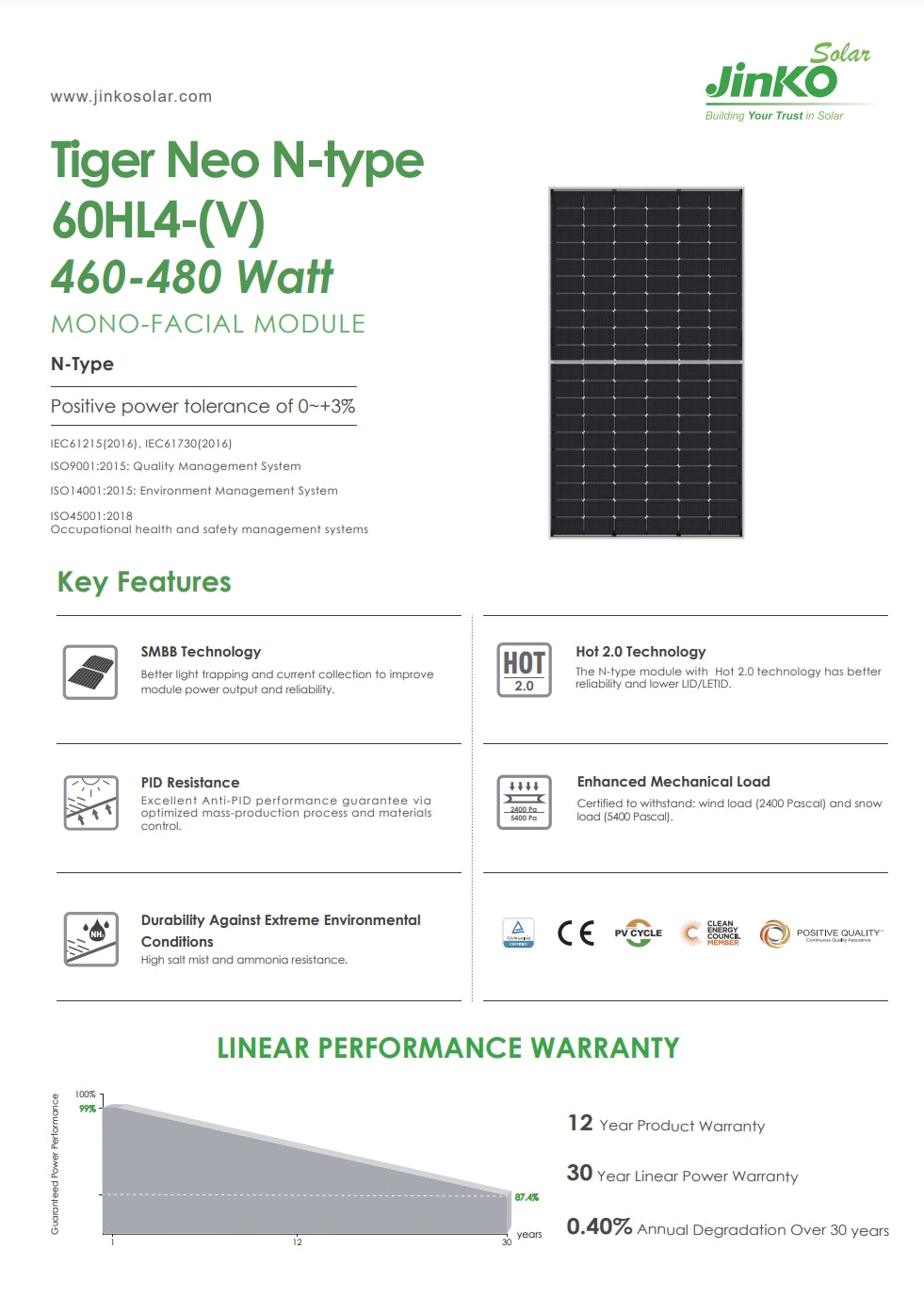

Jinko Solar presents the JKM480N-60HL4, a 460-480W MONO-FACIAL MODULE with N-Type Positive power tolerance of ±39%. The module features SMBB Technology and Hot 2.0 Technology for improved light trapping and current collection, resulting in better module power output and reliability. It also boasts Enhanced Mechanical Load and Excellent Anti-PID performance, ensuring durability against extreme environmental conditions.
The Jinko 480W Solar Panel (JKM480N-60HL4) features a monocrystalline structure with an anti-reflection coating and tempered glass. The panel has a maximum power output of 480W, with a voltage of 42.71V and current of 13.57A. It operates within a temperature range of -40 to 85°C, with a nominal operating cell temperature of 45°C (STC). The module efficiency is 22.015% at STC. The panel has an IP68 rated junction box and comes with customized engineering. The specifications included in this datasheet are subject to change without notice.
