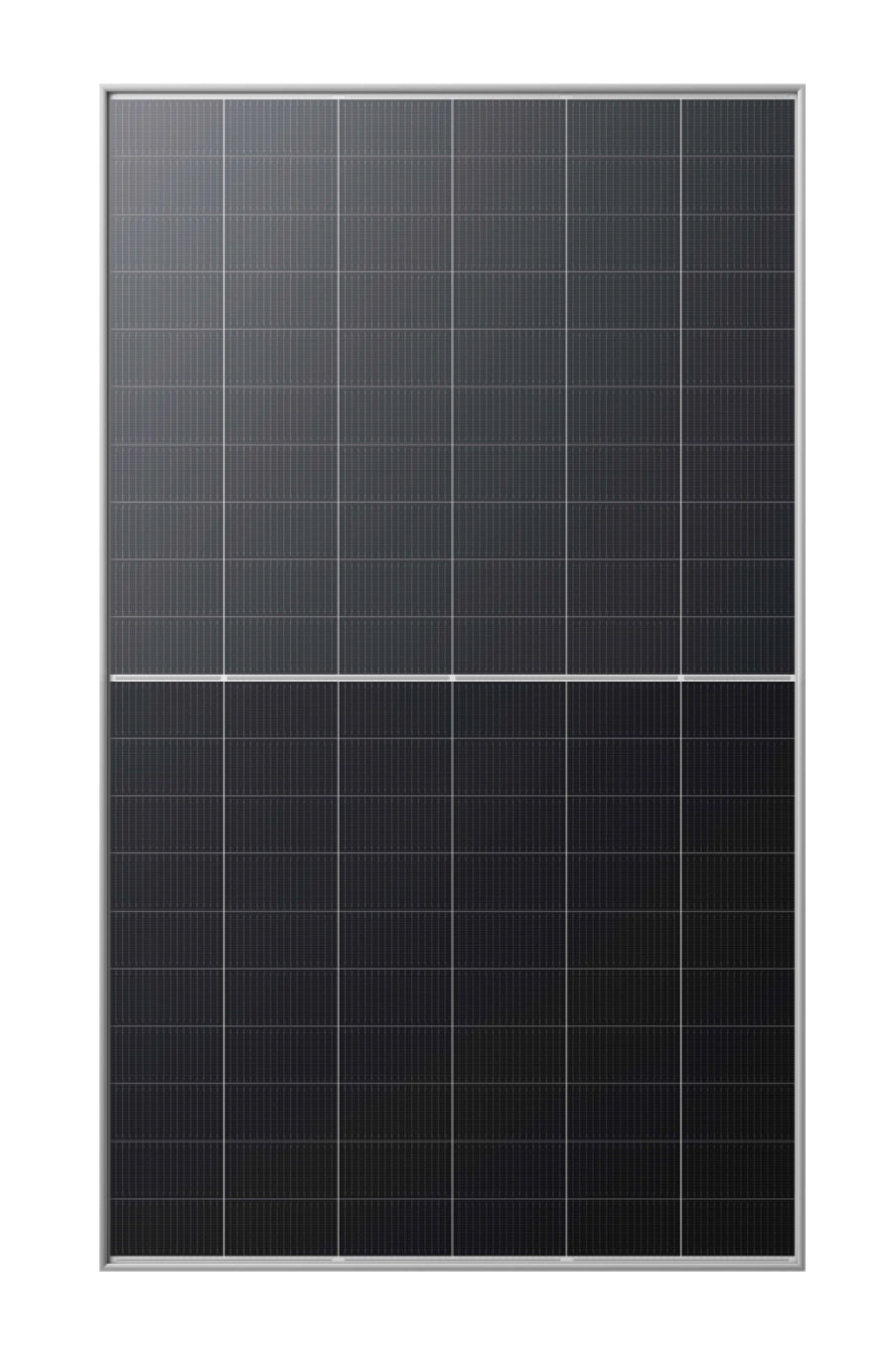

Jinko 485W Solar Panel Overview
The Jinko 485W Solar Panel (JKM485N-60HL4) combines cutting-edge N-type monocrystalline cell technology with advanced SMBB (Smart Multi-Busbar) design to deliver exceptional performance and reliability. With a maximum power output of 485W, an impressive module efficiency of 22.47%, and durability in harsh conditions, this panel is ideal for residential, commercial, and utility-scale applications. Certified for enhanced mechanical loads and designed with PID resistance, this panel ensures long-lasting performance and stability.
Jinko 485 Watt Solar Panel Key Features
- SMBB Technology: Optimizes light trapping and current collection, enhancing module reliability and power output.
- Hot 2.0 Technology: Ensures lower degradation (LID/LETID) and better performance under high temperatures.
- PID Resistance: Superior Anti-PID performance guaranteed by advanced materials and production processes.
- Enhanced Mechanical Load: Certified to withstand wind loads of 2400 Pascal and snow loads of 5400 Pascal, suitable for extreme environments.
- Durability Against Harsh Environments: Resistant to salt mist and ammonia, making it ideal for coastal and agricultural areas.
Jinko Solar 485W Specs
Mechanical Characteristics
- Cell Type: N-type Monocrystalline
- Number of Cells: 120 (6×20)
- Dimensions: 1906 × 1134 × 30 mm (74.96 × 44.65 × 1.18 inches)
- Weight: 27.5 kg (60.63 lbs)
- Front Glass: 3.2mm anti-reflection coated, high-transmission tempered glass
- Frame: Anodized aluminum alloy for structural stability
- Junction Box: IP68 rated for superior protection
- Output Cables: TUV 1×4.0 mm², customizable lengths (+400 mm standard)
Specifications
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 485W |
| Module Efficiency (STC) | 22.47% |
| Maximum Power Voltage (Vmp) | 36.25V |
| Maximum Power Current (Imp) | 13.38A |
| Open-Circuit Voltage (Voc) | 43.75V |
| Short-Circuit Current (Isc) | 14.23A |
| Operating Temperature | -40°C to 85°C |
| Maximum System Voltage | 1000/1500VDC |
| Power Tolerance | 0~+3% |
Packaging
- Configuration: Two pallets per stack; 36 panels per pallet, 72 panels per stack, 864 panels per 40HQ container.
- Weight Per Panel: 27.5 kg (60.63 lbs)
Certifications
- IEC61215(2016), IEC61730(2016)
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Management System)
- ISO45001:2018 (Occupational Health and Safety Management System)
- CE Certified and Positive Quality Assurance
- Clean Energy Council Member
Warranty
- Product Warranty: 12 years
- Linear Performance Warranty: 30 years with an annual degradation of only 0.40%, ensuring 87.4% of the rated power at the end of 30 years.
Applications
The Jinko 485W Solar Panel is versatile and suitable for:
- Residential rooftop installations
- Commercial and industrial solar systems
- Utility-scale solar farms
- Off-grid and hybrid energy systems
With its advanced features and robust construction, the JKM485N-60HL4 ensures high energy yield and reliability in diverse climates and conditions.
Jinko 485W Datasheet

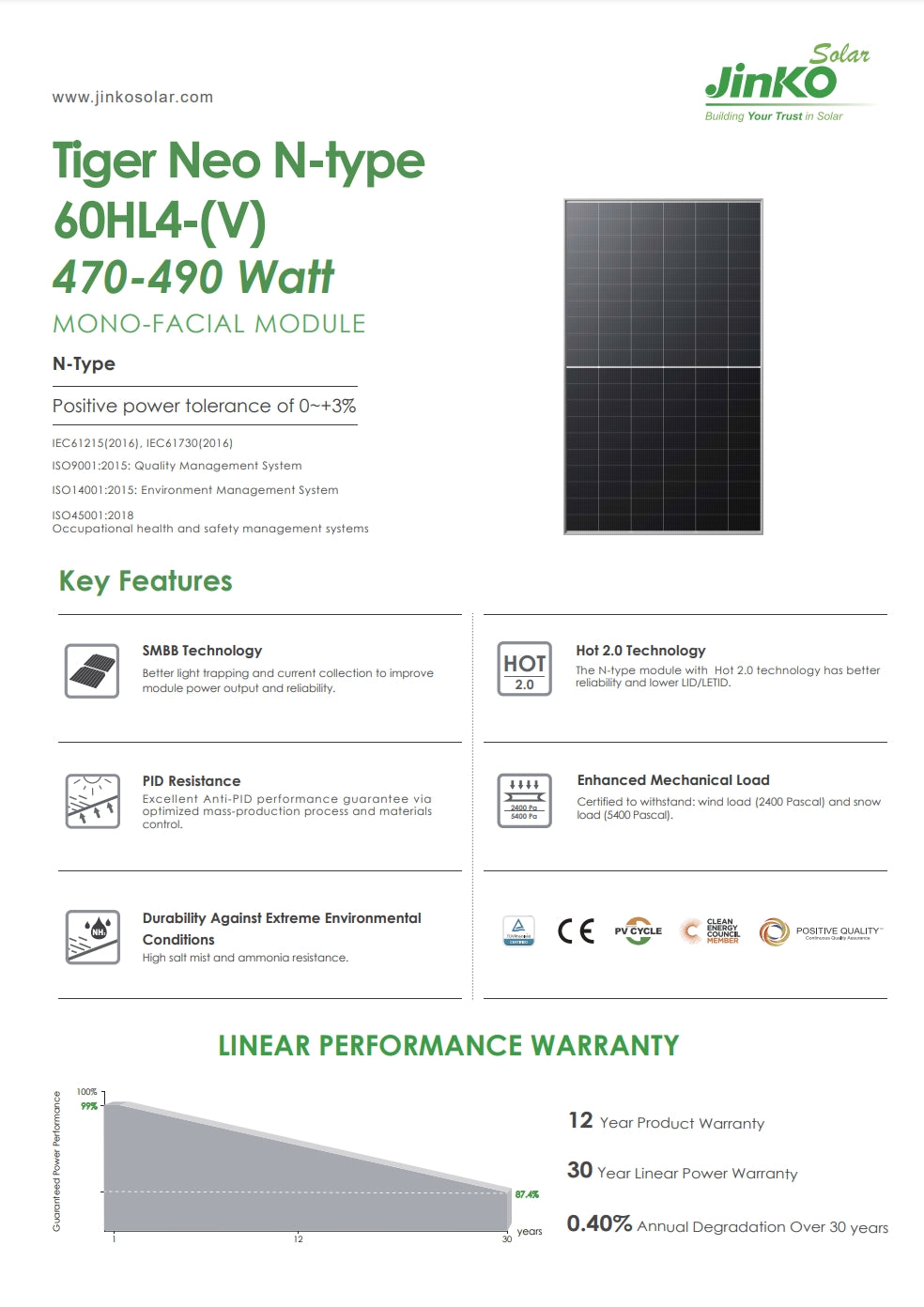

The Jinko Solar 485W module, model JKM485N-60HL4, features N-type positive power tolerance of ±3%. It complies with IEC61215/2016 and IEC61730/2016 standards. This SMBB Technology Hot 2.0-equipped module boasts better power output, reliability, and lower LID/PID resistance. The enhanced mechanical load ensures excellent anti-PID performance. The optimized mass-production process and materials enable durability against extreme environmental conditions. The product features high salt mist and ammonia resistance, linear performance warranty, and a 12-year product warranty with a 30-year linear power warranty.

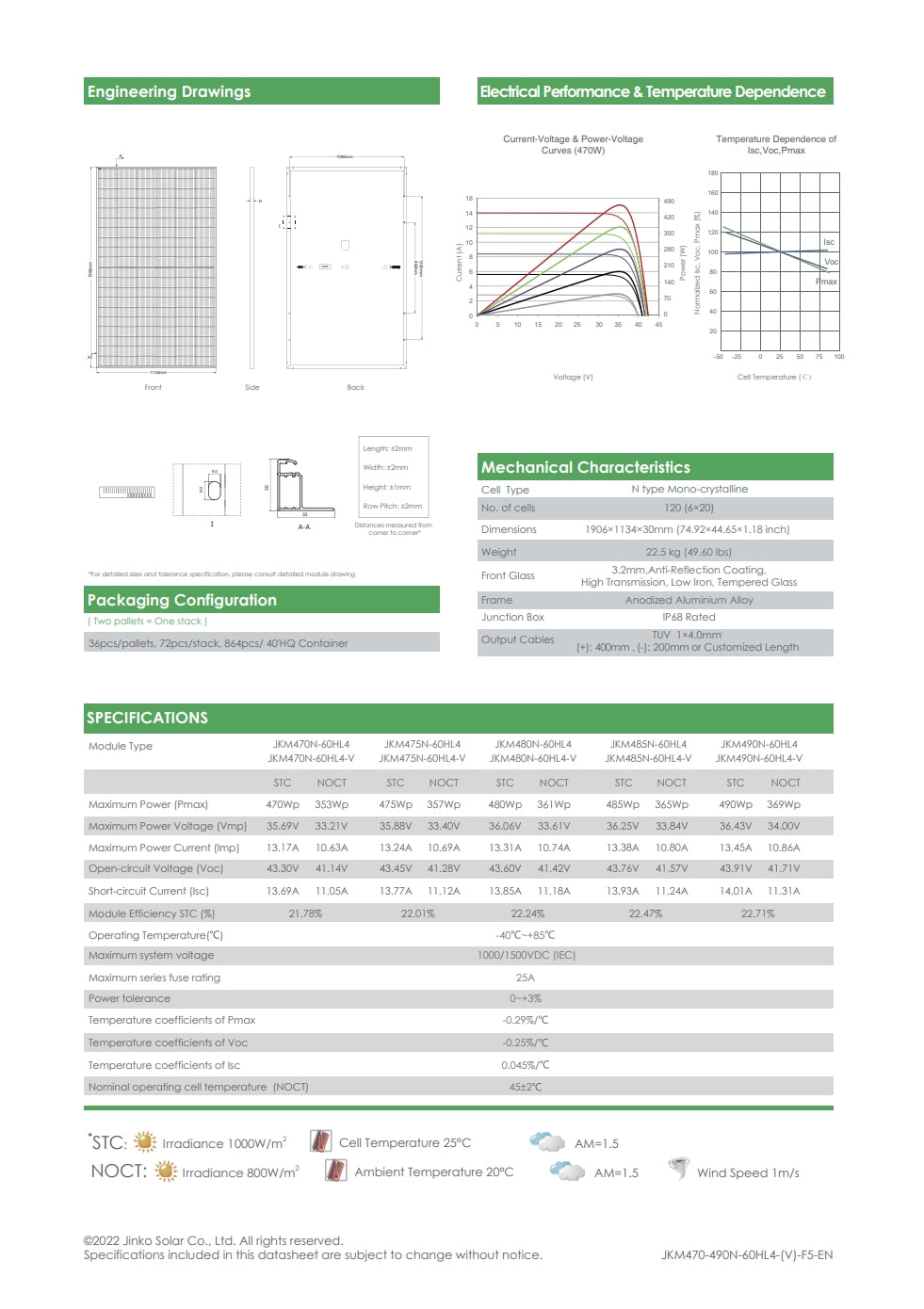

Jinko Solar Panel (JKM485N-60HL4) Engineering Drawings: Performance & Temperature Dependence Current-Voltage, Power-Voltage, and Temperature Dependence Curves. Specifications include: Isc, Voc, Pmax, Amat, and Yoltog. Mechanical Characteristics: Cell Type - Mono-crystalline; Number of Cells - 120 (6*20); Dimensions - 1906*1134*30mm (74.92*44.65*1.18 inch); Weight - 25kg (49.60 lbs). Junction Box IP68 Rated.
